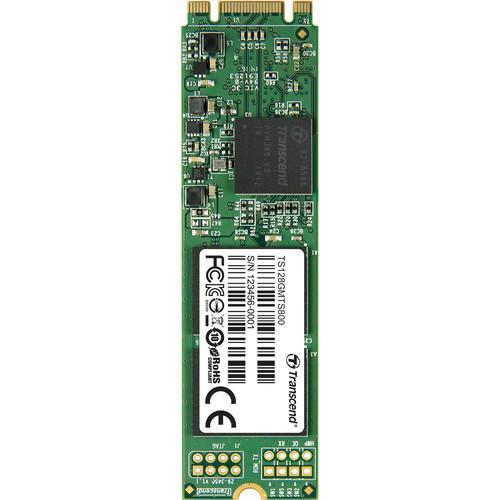

User Manual for Transcend 128GB MTS800 SATA III M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Transcend 128GB MTS800 SATA III M.2
- Product category: Internal Drives Transcend
- Brand: Transcend
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transcend Internal Drives
|
User manual for the Transcend 128GB MTS800 SATA III M.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transcend product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transcend user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transcend product will considerably shorten its lifespan!
|
Product description Increase your Windows or Linux system's performance by installing the Transcend 128GB MTS800 SATA III M.2 Internal SSD which delivers read speeds of 560 MB/s and write speeds of 460 MB/s. This SSD utilizes an SATA III interface that provides 6 Gb/s transfers speeds and supports random 4K reads of 75,000 IOPS and 4K writes of 75,000 IOPS. Its form factor is type 2280 and is installed in a computer with an available M.2 slot that is 80mm long. When using this SDD with a hard drive, you can use Intel's Smart Response Technology to constantly monitor or move your most accessed programs to the SSD, and stores all other programs and files to the hard drive. It also offers TRIM support, which helps reduce write times to the drive allowing you to save information faster and prolongs the life the drive.
Please be aware that while this SSD is covered by a limited 3-year warranty, the warranty does not apply when the SSD Scope's wear-out indicator displays 0% within the warranty coverage. General Features - M.2 Type 2280 form factor (80mm) for mobile computing devices
- Supports Wear Leveling and Intelligent Block Management
- Supports DevSleep mode, which allows devices to completely shut down the SATA interface and conserve battery life, unlike existing partial/slumber states
- Supports Power Shield, S.M.A.R.T, TRIM, and NCQ commands
- Intel Smart Response Technology
- Transcend's SATA III 6 Gb/s MTS800 M.2 SSD supports Intel Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for ample storage capacity while delivering an SSD-like overall system performance experience. ISRT works by monitoring which programs and files you access most frequently and stores them on the SSD. As a result, application launch speed and overall system responsiveness are improved, while the large capacity of the hard drive is free to store all your other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.
UPC: 760557828389 In the Box Transcend 128GB MTS800 SATA III M.2 Internal SSD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transcend 128GB MTS800 SATA III M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTranscend MTS800 Specs | | | Interface | SATA III (6 Gb/s) | | Random Read Speed | 75,000 IOPS (4 KB Files) | | Random Write Speed | 75,000 IOPS (4 KB Files) | | Sequential Read Speed | 570 MB/s | | Sequential Write Speed | 450 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Memory Type | Multi-Level Cell (MLC) | | SMART Support | Yes | | TRIM Support | Yes | | | | Supported Voltage | 3.3 VDC | | | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | Dimensions (W x H x D) | 3.1 x 0.9 x 0.1" / 80.0 x 22.0 x 3.5 mm | | Weight | 0.3 oz / 9 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.5 x 3.2 x 0.6" |
