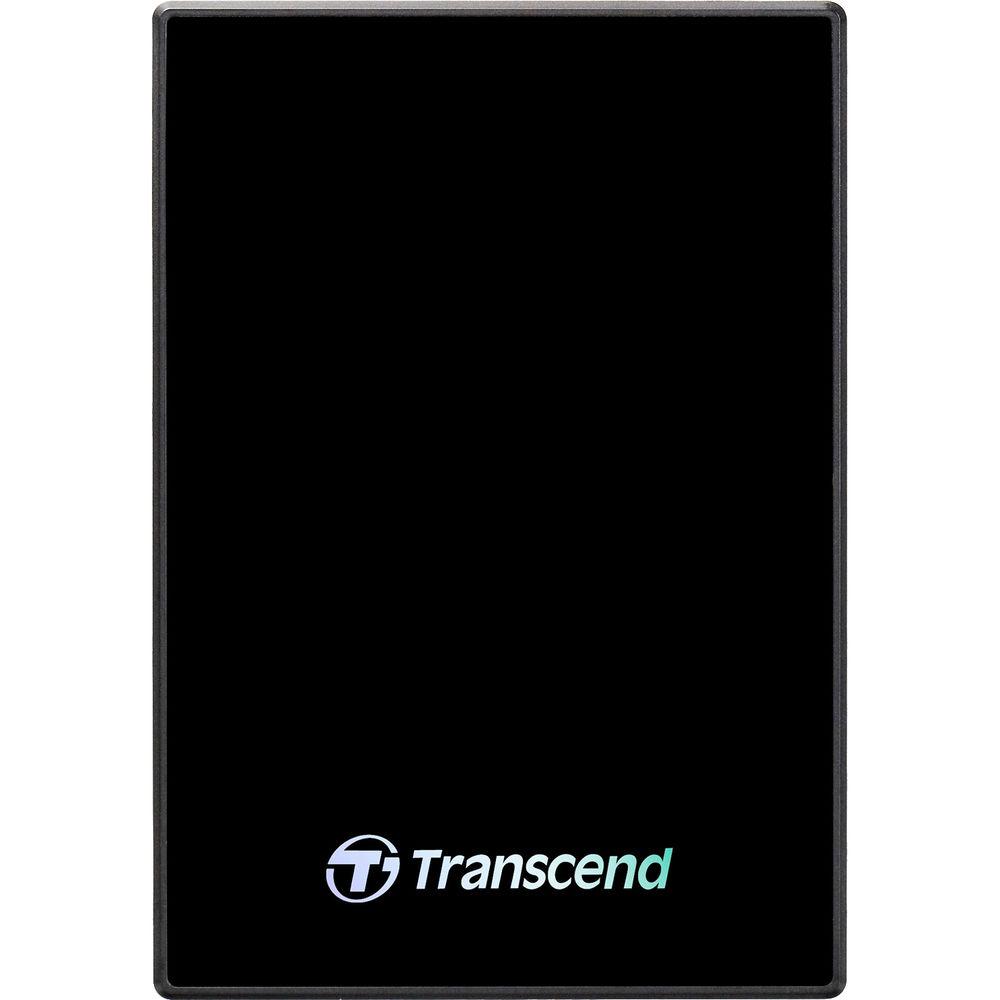

User Manual for Transcend 32GB 2.5" PATA SSD Click to enlarge the picture
Contents of the user manual for the Transcend 32GB 2.5" PATA SSD
- Product category: Internal Drives Transcend
- Brand: Transcend
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transcend Internal Drives
 |
User manual for the Transcend 32GB 2.5" PATA SSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transcend product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transcend user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transcend product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The 32GB 2.5" PATA SSD from Transcend offers sequential read and write transfer rates of 119 MB/s and 36 MB/s respectively. It features built-in ECC (Error Correcting Code) to detect and correct transfer errors. The SSD also features a built-in wear-leveling algorithm to ensure reliability of data transfer. In addition, it can withstand shocks up to 1500G and vibrations up to 20G. - Supports LBA 48-bit addressing
- Fully compatible with the PATA (IDE) interface standards
- Supports S.M.A.R.T (Self-defined) to monitor Erase Count for lifetime evaluation
- Supports Security Command
- Supports Static Data Refresh, Early Retirement for extended shelf life
UPC: 760557824879 Specification PDF 723.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Transcend 32GB 2.5" PATA SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTranscend TS32GPSD330 Specs | | | Capacity | 32 GB | | Interface | PATA (IDE)
Connector: 44-pin standard IDE/ATA connector (Pitch: 2 mm) | | Form Factor | 2.5" | | Input Voltage | 5 V ± 10% | | Modes | Ultra DMA: Mode 0 to 6
MultiWord DMA Mode: 0 to 2
PIO Mode: 0 to 4 | | MTBF | 1,000,000 hours | | Power Consumption | Read: 240.9 mA
Write: 158.9 mA
Idle: 0.8 mA | | Endurance | 20 TBW
Note: Based on JEDEC JESD218A specification, Client Application Class and based on the following scenario: Active Use: 104°F (40°C), 8 hours/day
Retention Use: 86°F (30°C), 1-year | | Sustained Transfer Rate | Sequential Read: 119 MB/s
Sequential Write: 36.12 MB/s
Random 4K Read: 13.86 MB/s
Random 4K Write: 1.276 MB/s | | | | System Requirements | Windows Series: Microsoft Windows 8, Microsoft Windows 7, Microsoft Windows XP, Microsoft Windows Vista
Linux Series: Fedora 13, Ubuntu 9.10, Solaris 10
Embedded System: Windows XP Embedded, Windows CE
Mac OS 10.4 or later
DOS | | Environmental Requirements | Mechanical Shock: 1500G, 0.5 ms, 3 axes, IEC 60068-2-27
Vibration: 20G (Peak-to-Peak), 20 to 2000 Hz (frequency), IEC 60068-2-6
Operating Temperature: 32 to 158°F / 0 to 70°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Operating/Storage Humidity: 0 to 95% | | Certifications | CE, FCC and BSMI | | Dimensions (H x W x D) | 3.9 x 2.7 x 0.29" / 100.3 × 69.85 × 7.4 mm | | Weight | 1.9 ± 0.1 oz / 55 ± 5 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.9 x 4.4 x 1.1" |
