User Manual for Transcend DrivePro 230 1080p Dash Camera with Suction Mount & 16GB microSD Card Click to enlarge the picture
Contents of the user manual for the Transcend DrivePro 230 1080p Dash Camera
- Product category: Dashcams Transcend
- Brand: Transcend
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transcend Dashcams
 |
User manual for the Transcend DrivePro 230 1080p Dash Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transcend product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transcend user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transcend product will considerably shorten its lifespan!
|

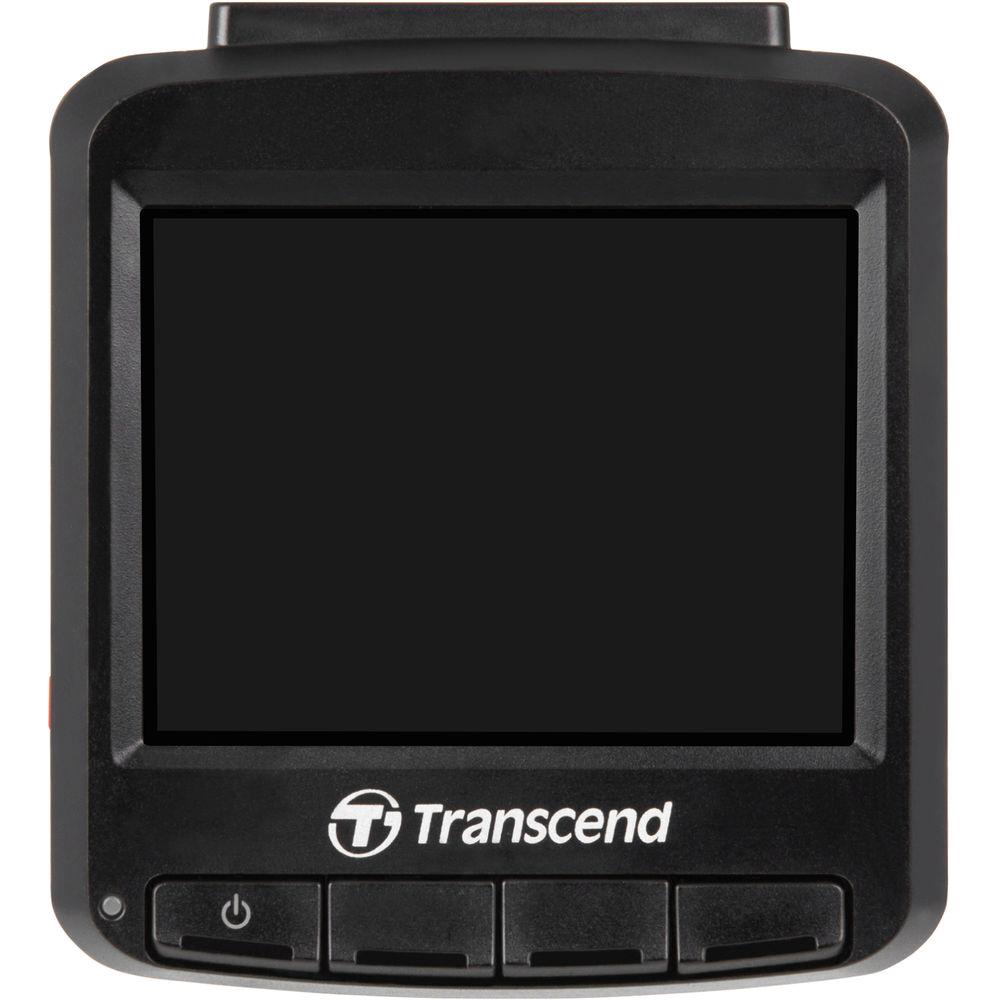

Product description Record what's in front of your vehicle with the DrivePro 230 1080p Dash Camera from Transcend. The camera features a 2.4" LCD screen, along with a 130° diagonal field of view that enables you to see the entire road in front of you. It records 1920 x 1080 resolution video at 30 fps. This dash cam is equipped with a built-in microphone and speaker. A 16GB high endurance MLC microSDHC card is included to store video locally. The built-in LiPo battery ensures uninterrupted power to the camera, enabling it to record during an accident or when the engine is off.
This dash cam features lane departure warnings, forward collision warnings, headlight reminders, and driver fatigue alerts to help keep you alert and safe while driving. A G-sensor enables the camera to automatically save video files in case of impact while the vehicle is off. In the event of a collision, the G-sensor will begin emergency recording. It is powered continuously while the vehicle is on via the included car power adapter. Wi-Fi connectivity enables real-time footage playback and downloads via the DrivePro app for iOS and Android. - The DrivePro 230 uses a Sony sensor with WDR to capture high-res images
- GPS/GLONASS receiver logs coordinates, date, and time into recorded video
- G-sensor detects impact in the event of a collision and begins recording
- G-sensor can be manually activated
- Snapshot button enables you to take still photos while recording video
- Time-lapse video recording safeguards your vehicle 24/7 (requires external power supply)
- Driver fatigue alert reminds the driver after a user-determined amount of time of driving to take a break from driving
- Lane departure warning system (LDWS) helps keep the driver safe by displaying an onscreen warning and an audible alert when the driver is veering out of a lane
- Forward collision warning system (FCWS) helps keep the driver safe by displaying an onscreen warning and an audible alert when the vehicle exceeds a certain speed and the vehicle ahead is too close
- Headlight reminder alerts the driver when the lighting conditions are poor with a reminder to turn the headlights on with an onscreen notification and an audible alert
- DrivePro Toolbox software quickly finds video files using name, recording date, or group parameters, as well as location paths and snapshots
- Wi-Fi connectivity for live video and photo snapshots via the DrivePro app for iOS and Android

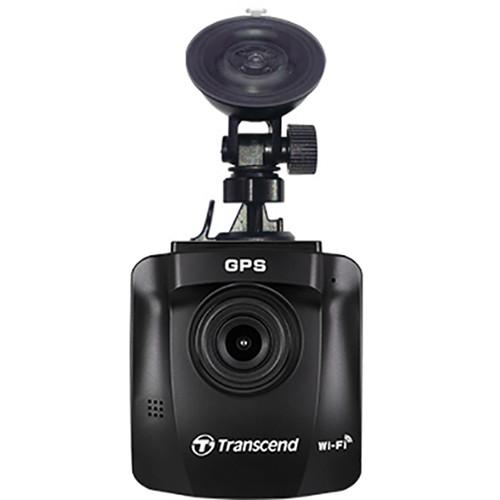

- Suction mount included for quick installation
UPC: 760557838890 In the Box Transcend DrivePro 230 1080p Dash Camera with Suction Mount & 16GB microSD Card Suction Mount 16GB High Endurance MLC microSDHC Card Car Power Adapter Limited 2-Year Warranty on Dash Cam Limited 1-Year Warranty on Suction Mount Guides & Manuals xxfyebtadb Table of Contents
|
Upload User Manual
Have you got an user manual for the Transcend DrivePro 230 1080p Dash Camera with Suction Mount & 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Transcend DrivePro 230 1080p Dash Camera with Suction Mount & 16GB microSD Card can be downloaded in PDF format at the link stated below.
Technical parametersTranscend DrivePro 230 Specs | Display | 2.4" / 6.1 cm Color LCD | | Resolution | 1920 x 1080 at 30 fps | | Aperture | f/2.0 | | Field of View | Diagonal: 130° | | Video Format | MOV (H.264) | | G-Sensor | Yes | | GPS Receiver | For Logging | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Wi-Fi Connectivity | 802.1n | | Battery Type | Built-In LiPo | | Connection Interface | Micro-USB 2.0 | | OS Compatibility | Microsoft Windows 7, 8, 10
Mac OS X Mountain Lion 10.8.2 or Later
Linux Kernel 2.6.38 or Later | | Mobile OS Support | DrivePro App for iOS and Android | | Memory Card Support | Supports microSD Cards up to 128 GB
16 GB High Endurance MLC Card Included | | Power | Input: 12 to 24 VDC
Output: 5 VDC, 1 A | | Operating Temperature | -4 to 149°F / -20 to 65°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Certifications | CE, FCC, BSMI, NCC, MIC, KC | | Dimensions | 2.76 x 2.48 x 1.36" / 70.2 x 63.1 x 34.5 mm | | Weight | 2.9 oz / 81 g | | | | Package Weight | 1.03 lb | | Box Dimensions (LxWxH) | 7.3 x 5.45 x 2.5" |
