User Manual for Transcend DrivePro 550 Dual Lens Dash Camera Click to enlarge the picture
Contents of the user manual for the Transcend DrivePro 550 Dual Lens Dash
- Product category: Dashcams Transcend
- Brand: Transcend
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transcend Dashcams
 |
User manual for the Transcend DrivePro 550 Dual Lens Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transcend product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transcend user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transcend product will considerably shorten its lifespan!
|

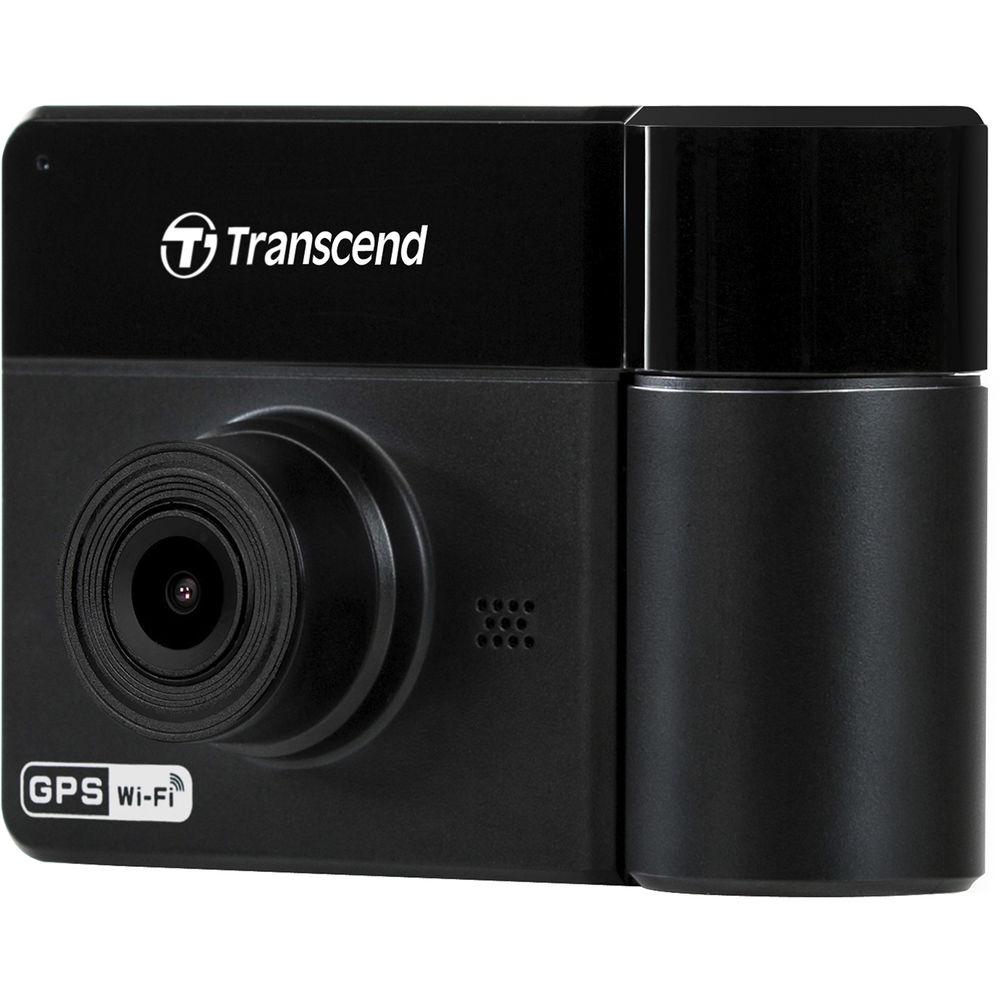

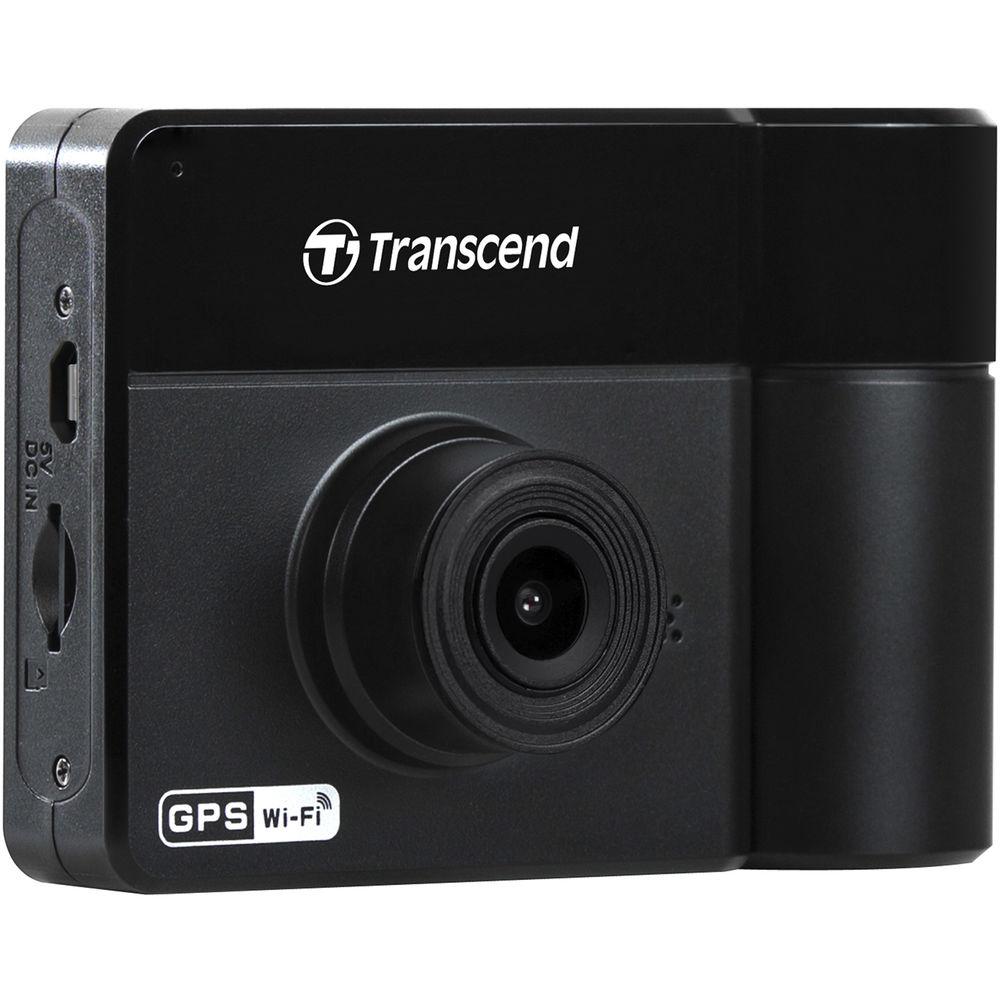

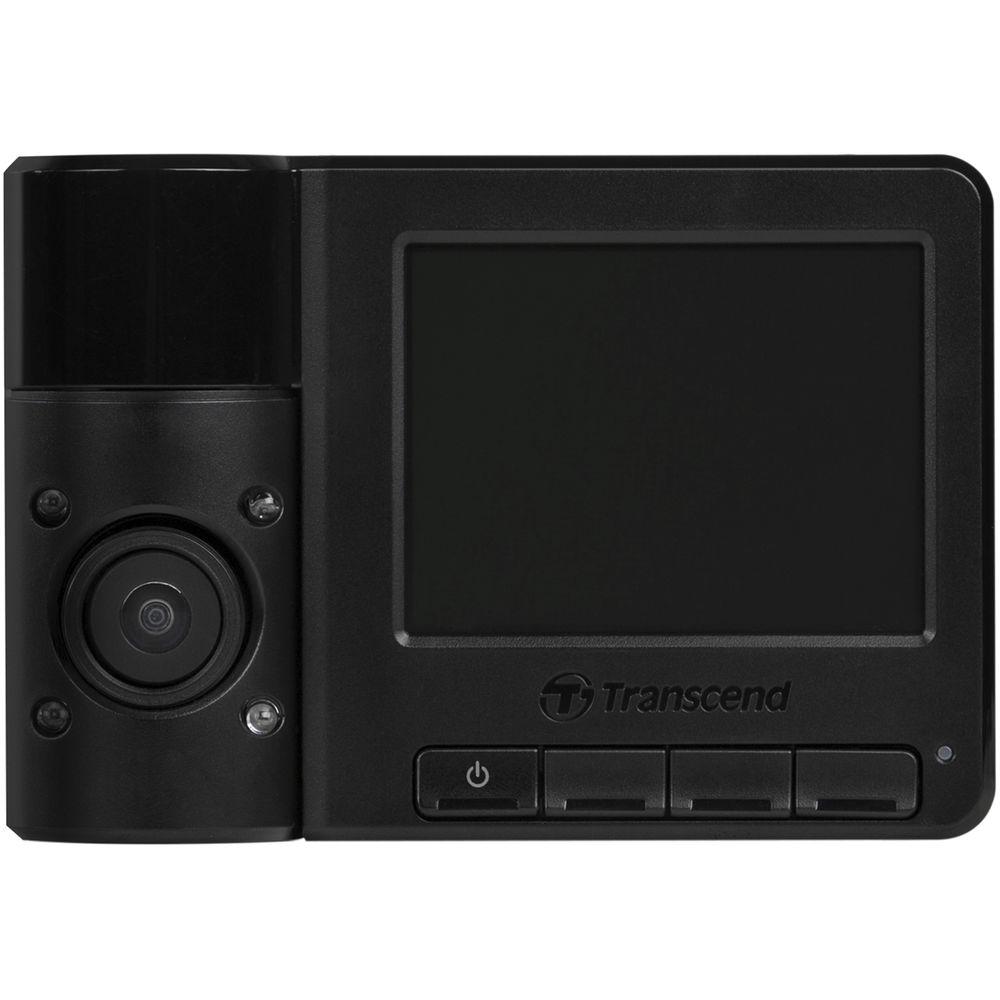

Product description The DrivePro 550 from Transcend is a dual-lens dash camera equipped with a 2.4" color LCD screen. This dash cam is capable of capturing the road ahead of you, along with the interior of your vehicle. The front camera captures 1080p resolution video at 30 fps, and the 180° rotatable rear lens captures 720p video. Four IR LEDs on the rear provide night vision functionality, enabling recording even in complete darkness. The front lens has a 160° diagonal field of view, while the rear lens has a 110° diagonal field of view.
This dash cam features lane departure warnings, forward collision warnings, headlight reminders, and driver fatigue alerts to help keep you alert and safe while driving. In the event of a collision, a G-sensor will begin emergency recording and will prevent overwriting of the recorded footage after the collision. The built-in LiPo battery ensures that power to the dash cam is uninterrupted, enabling the device to capture footage in the event of an accident or when the car engine is off.
The DrivePro App for iOS and Android allows users to save footage and view a live feed. An onboard card slot accepts microSD cards up to 128GB. A 32 GB microSD card is included. A suction mount and car lighter adapter are also included. - Sony image sensor with built-in wide dynamic range
- Rear camera is rotatable by 180°
- 802.11n Wi-Fi connectivity
- Built-in GPS/GLONASS receiver for geotagging videos and images
- Heads-up display shows current speed and driver safety alerts
- DrivePro Toolbox software to find videos using file name, recording date, group categories, and GPS coordinates
- Parking mode and time-lapse video recording available with an external power supply (sold separately)
- Compatible with Microsoft Windows 7, 8 & 10, OS X Mountain Lion 10.8.2 or later, Linux Kernel 2.6.38 or later, iOS, and Android
UPC: 760557842231 In the Box Transcend DrivePro 550 Dual Lens Dash Camera 32GB microSD Card Suction Mount Car Lighter Adapter Limited 2-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Transcend DrivePro 550 Dual Lens Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTranscend DrivePro 550 Specs | Display | 2.4" / 6.1 cm Color TFT LCD | | Image Sensor | Sony High-Sensitivity Image Sensor | | Resolution | Front Camera: 1920 x 1080
Rear Camera: 1280 x 720 | | Frame Rate | 30 fps | | Video Format | MP4 (H.264) | | Diagonal Field of View (FOV) | Front Lens: 160°
Rear Lens: 110° | | Aperture | Front Lens: f/2.2
Rear Lens: f/2.8 | | Night Vision | Rear Lens | | Number of IR LEDs | 4 On the Rear | | G-Sensor | Yes | | Wi-Fi Connectivity | 802.11n | | GPS Receiver | Built-In GPS/GLONASS | | Mobile App | DrivePro App for iOS and Android | | USB Interface | USB 2.0 | | USB Type | Micro-USB | | Battery Type | Built-In Li-Ion Polymer | | Operating System Requirements | Microsoft Windows 7, 8, 10
OS X Mountain Lion 10.8.2 or Later
Linux Kernel 2.6.38 or Later | | Memory Card Support | Supports microSD Cards up to 128 GB, 32 GB Card Included | | Input Voltage | 12-24 V | | Output Voltage | 5 V / 2 A | | Operating Temperature | -4 to 149°F / -20 to 65°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Certifications | CE, FCC, BSMI, NCC, MIC, KC | | Dimensions | 3.76 x 2.59 x 1.59" / 95.6 x 65.9 x 40.5 mm | | Weight | 3.77 oz / 107 g | | | | Package Weight | 1.015 lb | | Box Dimensions (LxWxH) | 7.25 x 5.5 x 2.5" |
