User Manual for Transcend DrivePro Body 10 1080p Body Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Transcend DrivePro Body 10 1080p Body
- Product category: Body Cameras Transcend
- Brand: Transcend
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transcend Body Cameras
 |
User manual for the Transcend DrivePro Body 10 1080p Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transcend product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transcend user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transcend product will considerably shorten its lifespan!
|

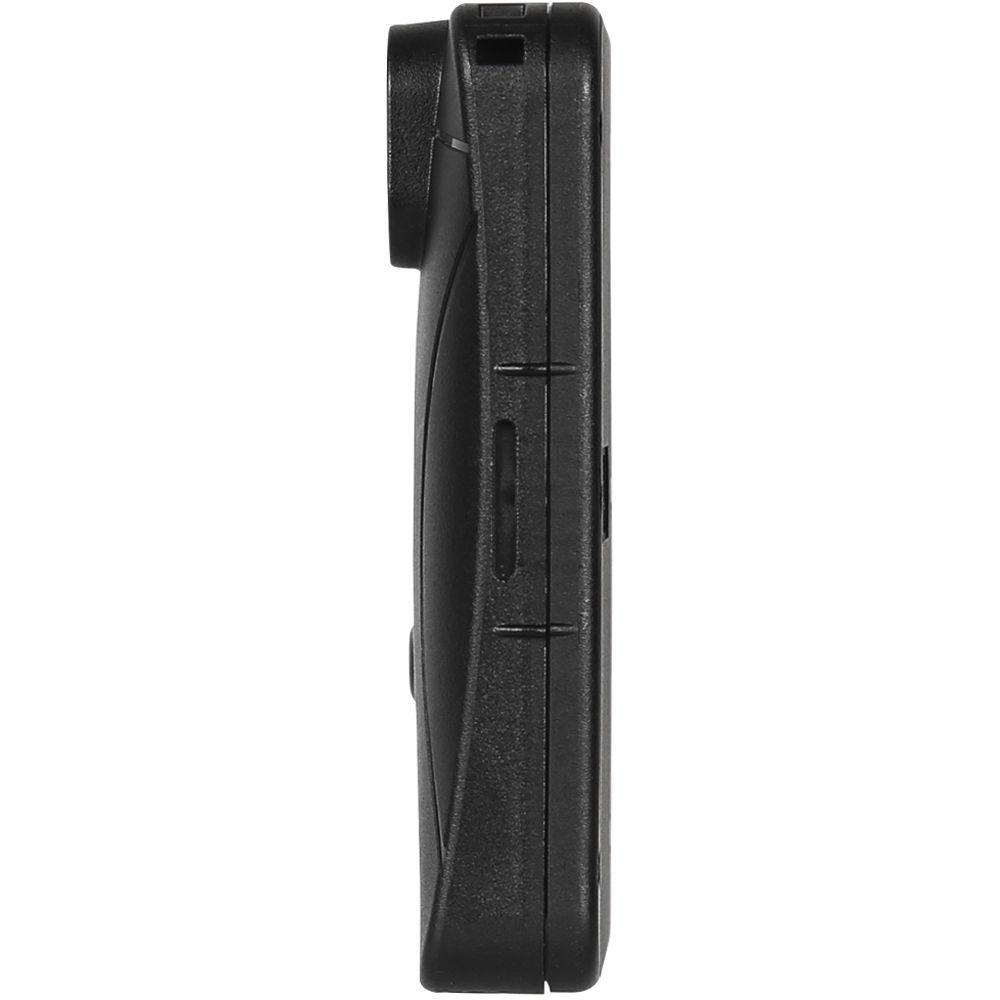

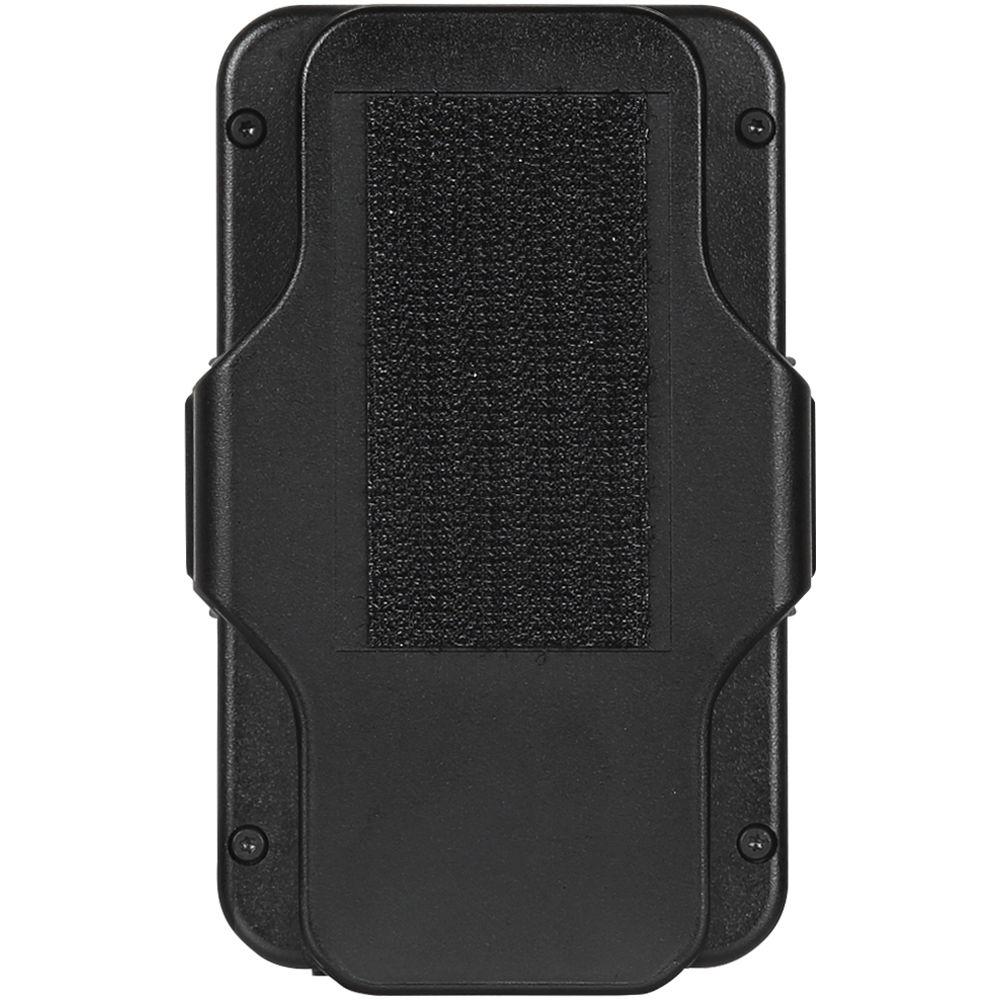

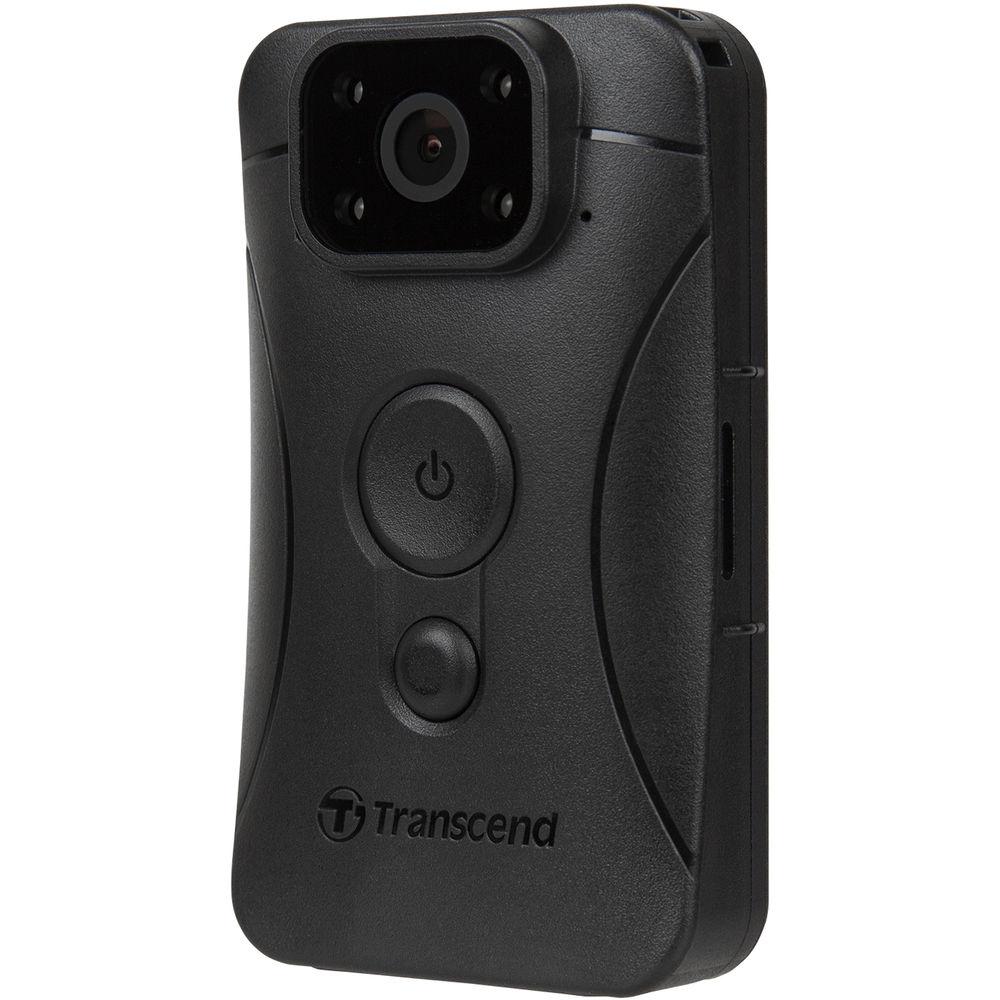

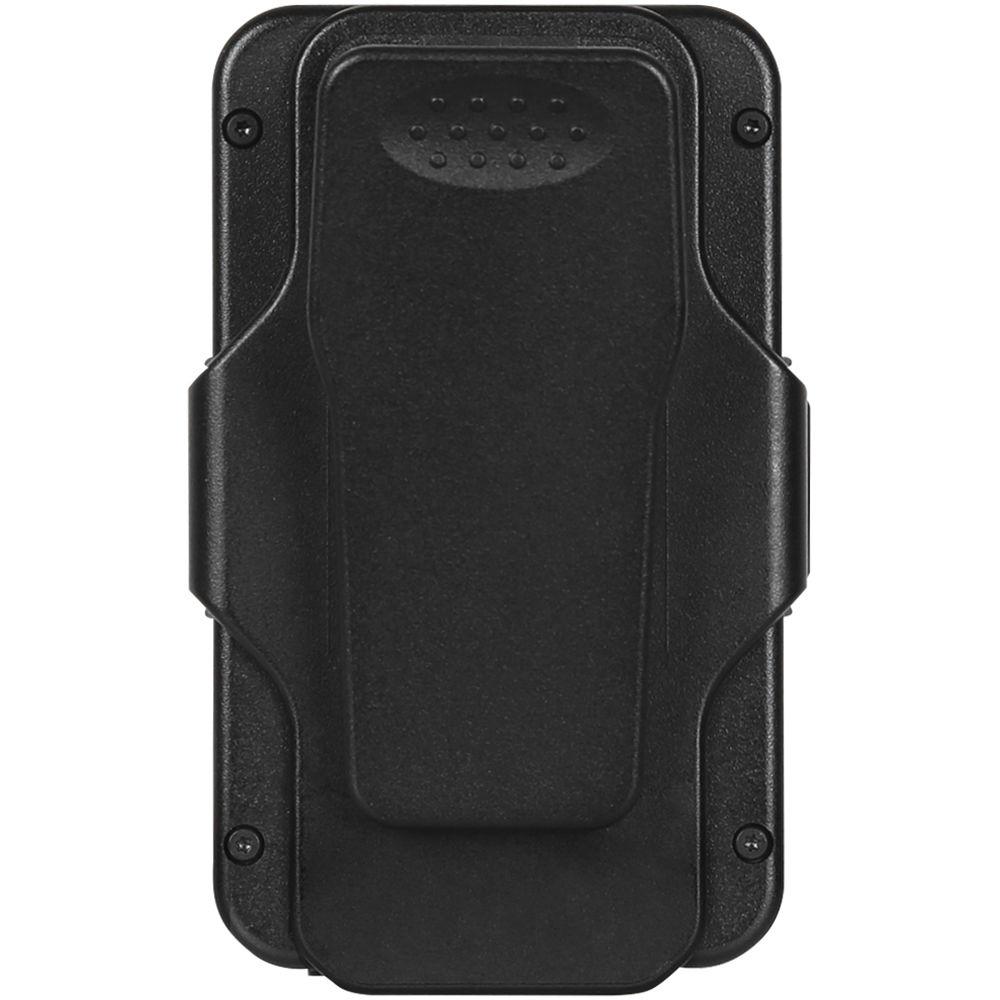

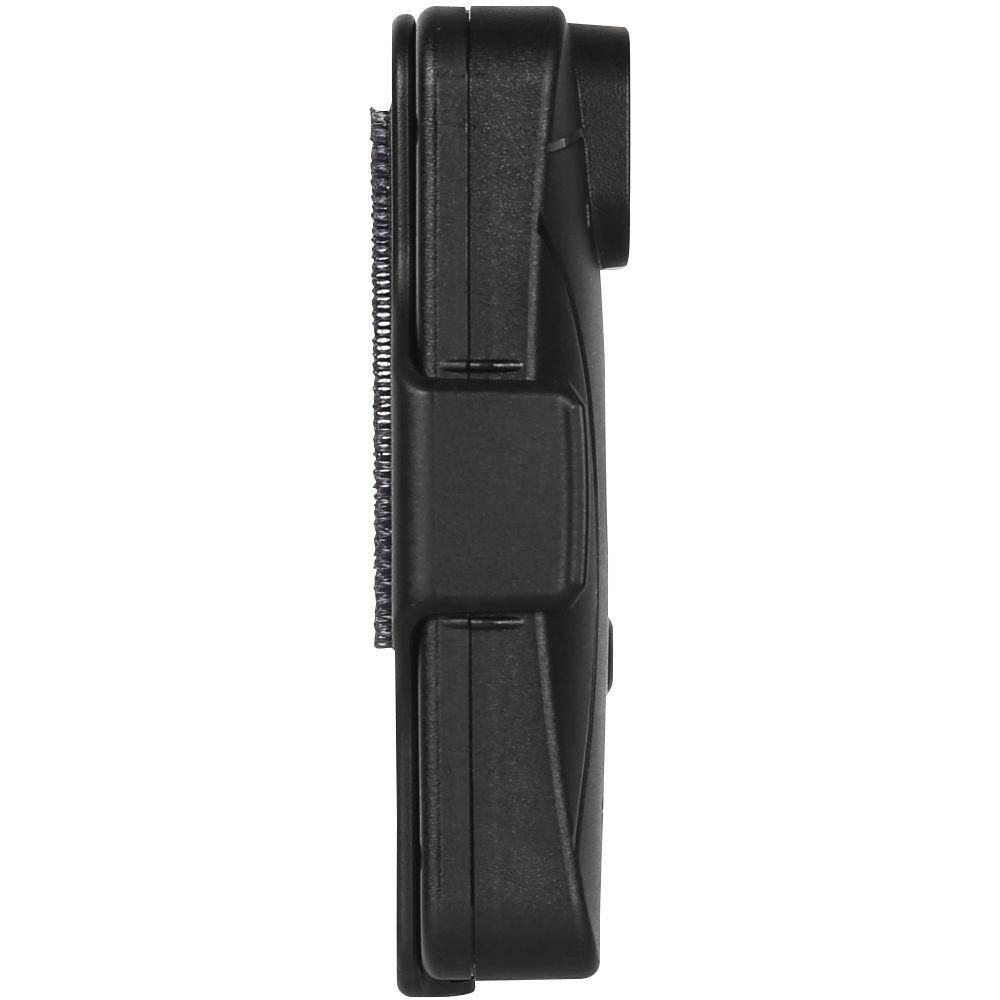

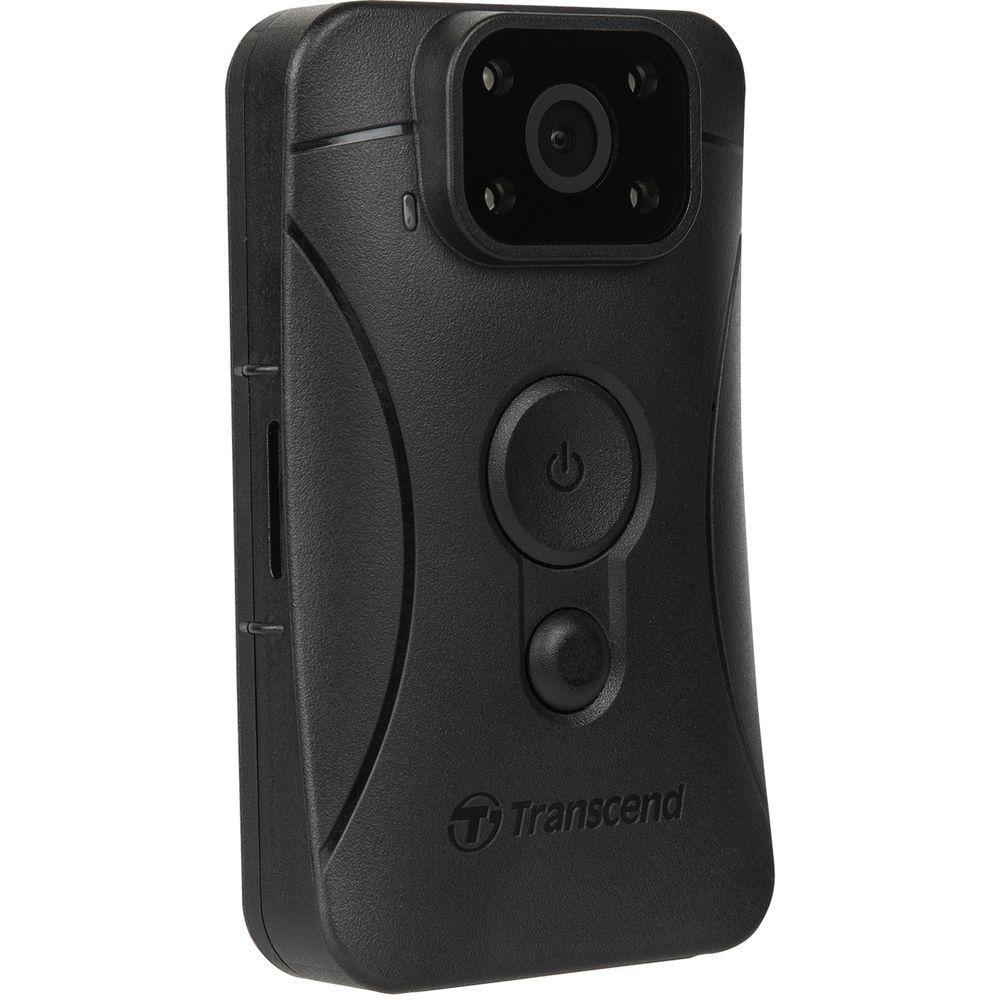

Product description Record hands-free video with the DrivePro Body 10 1080p Body Camera with Night Vision from Transcend. This body camera uses a Sony sensor to capture 1920 x 1080 resolution video at 30 fps. Four no-glow IR LEDs automatically turn on in low-light conditions to provide night vision functionality in complete darkness. The camera has a 130° diagonal field of view so you can capture everything in front of you. The quick snapshot button takes still images while the camera simultaneously records video. Audio can be captured during video recording thanks to a built-in microphone.
The camera's built-in battery delivers up to five hours of battery life on a full charge. A 32GB microSD card is included to store recorded videos. This device is IPX4-rated for protection from splashing water. It is also shock resistant. - Suitable for law enforcement and security guards
- Quick snapshot button enables still image capture while video is recording
- Compatible with DrivePro Body Toolbox & Microsoft Windows 7, 8, and 10
- IPX4-rated for protection from splashing water
- Conforms to US military MIL-STD-810G 516.6 drop test standards
- CE, FCC, and BSMI certified

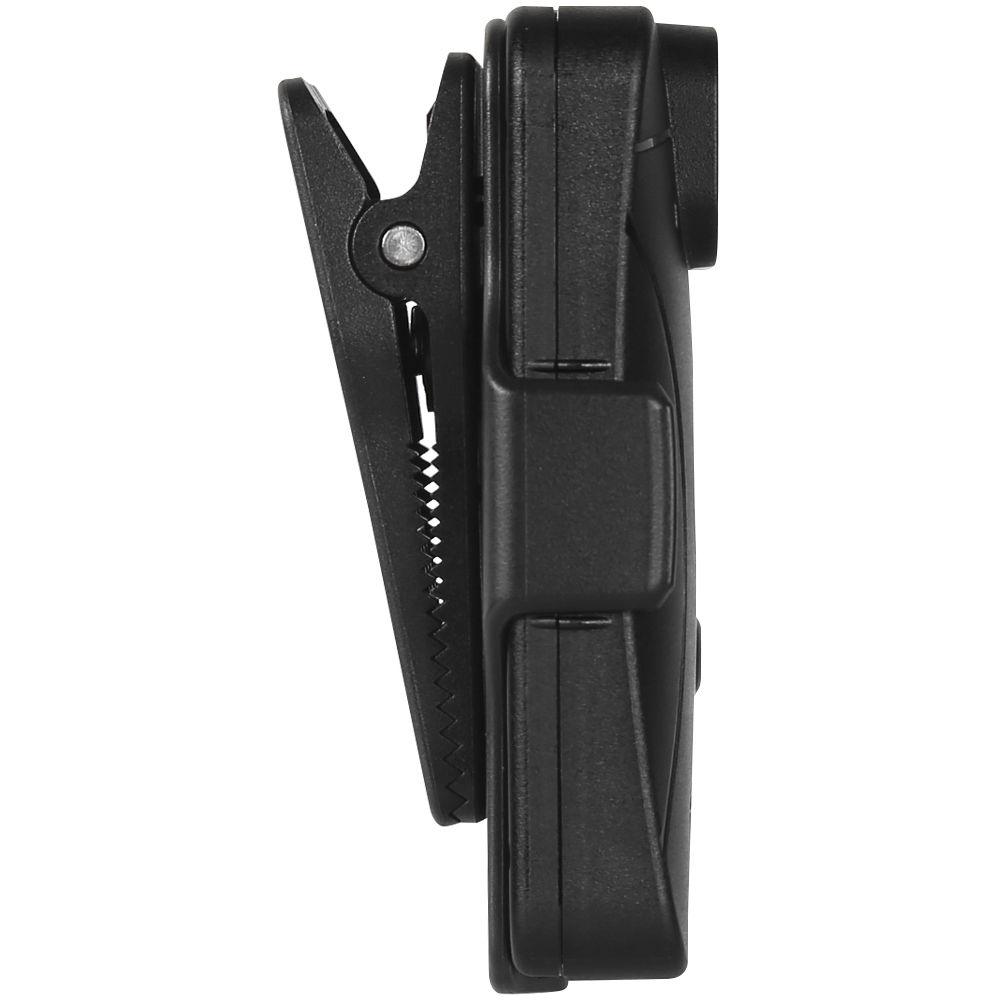

- Includes 360° rotating clip, 32GB microSD card, adapter, hook-and-loop fastener holder, and micro-USB cable
UPC: 760557841388 In the Box Transcend DrivePro Body 10 1080p Body Camera with Night Vision 32GB microSD Card Adapter 360° Rotating Clip Hook-and-Loop Fastener Holder Micro-USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transcend DrivePro Body 10 1080p Body Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTranscend DrivePro Body 10 Specs | Image Sensor | Sony High-Sensitivity Image Sensor | | Resolution | 1920 x 1080 | | Frame Rate (fps) | 30 fps | | Video Format | MP4 (H.264) | | Loop Recording | Supported | | Diagonal Field of View (FOV) | 130° | | Aperture | f/2.8 | | Night Vision | Yes | | Number of IR LEDs | 4 | | IR Wavelength | 940 nm | | Snapshot Function | Quick Snapshot Button | | Built-In Microphone | Yes | | Connection Interface | USB 2.0 | | USB Type | Micro-USB to USB Type-A | | Storage | Supports microSD Cards up to 32 GB (32 GB Card Included) | | Built-In Battery | Yes | | Battery Life | 5 Hours | | Input Power | 100-240 VAC, 50/60 Hz, 0.4 A Maximum | | Output Power | 5 VDC, 2 A | | Supported Operating Systems | Microsoft Windows 7, 8, and 10 | | Drop Resistance | MIL-STD-810G 516.6 | | IP Rating | IPX4 | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Certifications | CE, FCC, BSMI | | Dimensions | 3.48 x 2.06 x 0.77" / 88.4 x 52.2 x 19.6 mm | | Weight | 3.1 oz / 88 g | | | | Package Weight | 0.84 lb | | Box Dimensions (LxWxH) | 7.25 x 5.45 x 2.55" |
