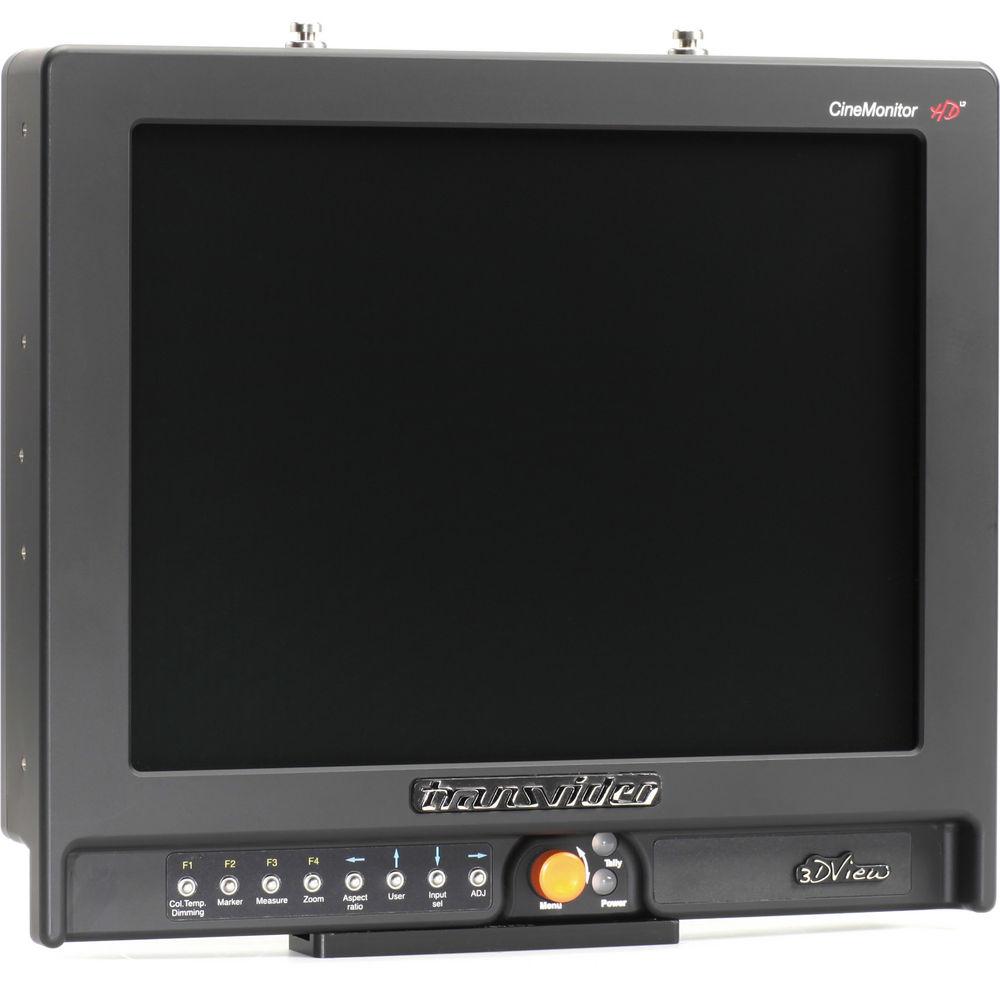

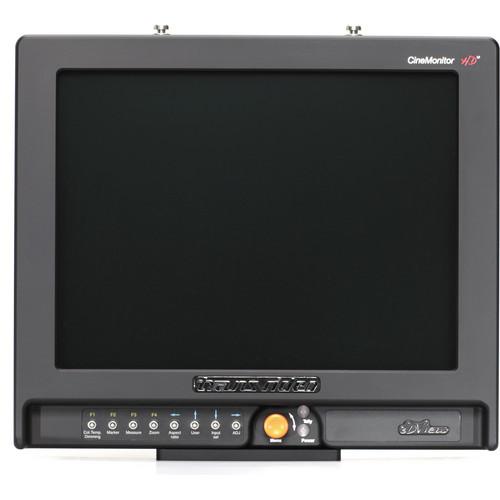

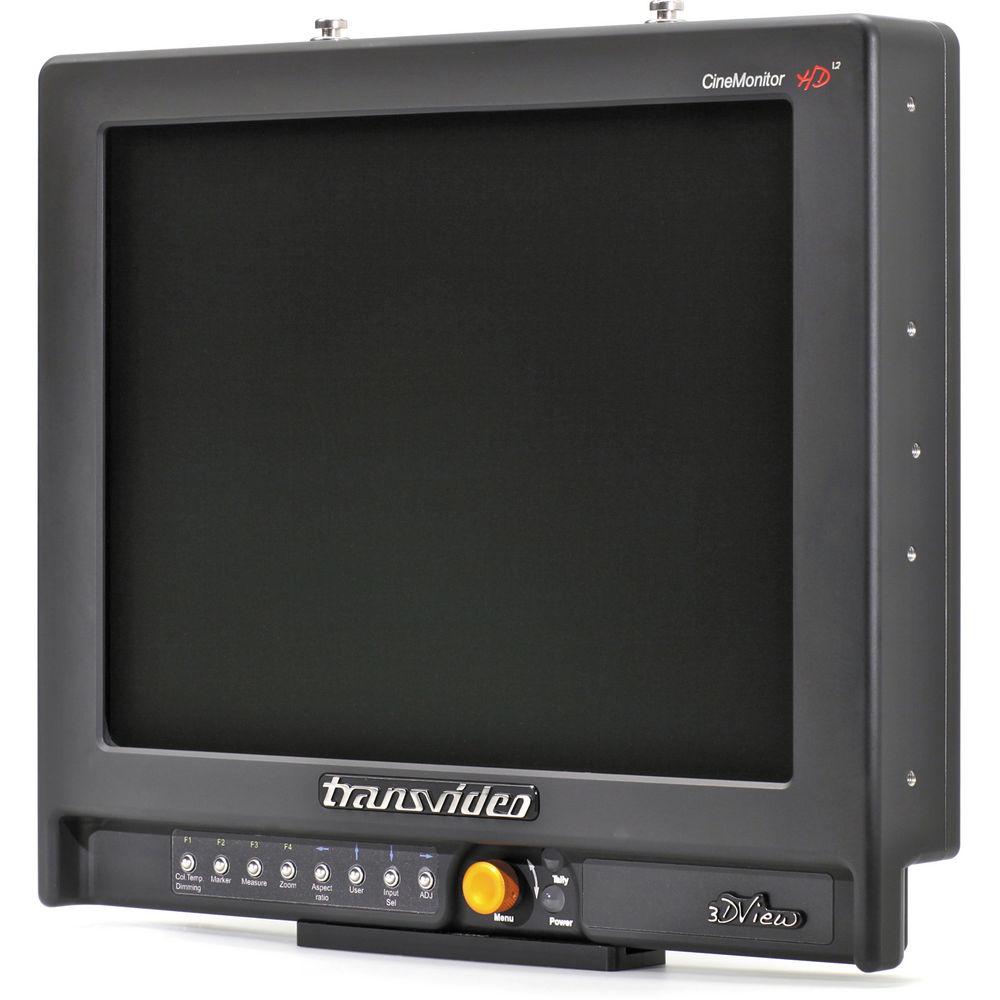

User Manual for Transvideo 12" CineMonitorHD12 3DView S Field Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 12" CineMonitorHD12 3DView S Field
- Product category: Production Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo Production Monitors
 |
User manual for the Transvideo 12" CineMonitorHD12 3DView S Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The Transvideo 12" CineMonitorHD12 3DView S Field Monitor features many tools and functions plus 3D processing. Each camera/eye can be independently monitored as well as flipped vertically and/or horizontally. The measurement tools (Waveform and Histogram) display the 2-signals analysis superimposed.Truly universal, the CineMonitorHD 3DView S Monitor processes HD SDI and HDMI left and right signals as well as side by side. With its embedded synchronizer and genlock analyser tools, the monitor is capable of working with non-genlocked cameras (like DSLRs). H&V flips are applied to these outputs.A specific manual written by Alain Derobe describing the theory and basics of 3D-steroscopic shooting with the CineMonitorHD 3DView is included. Alain Derobe was a French Stereographer and teacher. He was also one of the founders of the A.F.C.(Association of French Cinematographers).This monitor can also be used for regular 2D HD productions. Firmware and software updates are possible by the user with a USB key. - 12" SuperBright Model
- Advanced S3D tools in a medium-size field monitor
2x HD SDI & 2x HDMI
Embedded synchronizer and 2 processed outputs - 3D Modes
- Monitor comes with Anaglyph (Red/Cyan, Green/Magenta, Blue/Yellow), Color, B&W, Shutter Glasses, Side by Side, Monochrome, and Difference modes to let the fringes appear
- Phase Analysis
- A phasemeter provides pixel and line phase information between the 2 signals before synchronization
Vertical temporal break line shows the vertical blanking offset - 3D Tools
- Derobe's grid and picture shift to achieve 2-camera photometric matching
Horizontal split and Checker board to adjust iris and color temperature of the 2 signals - Display Setting
- Aspect ratio (16/9, 4:3, anamorphic 2.40:1)
Markers (safe area, 4:3 and 14/9)
Zoom & reframe (pixel to pixel)
Image flips and monitor reverse - Color Adjustments
- Color calibration (D56/D65/manual) / full bright / dimmer adjust
Curves (LogC, LogF, PanaLog)
Gamma adjust
Color / green / B&W modes
Blue check - Picture Analysis
- Line Waveforms (Y, R, G, B) / Parade Waveforms (RGB, GBR, YRGB, YPrPb) / Frame waveforms with user-programmable clipping levels
Luminance histogram
Vectorscope
Exposure monitoring 1 Please Note: These tools also work in 3D. The 2-signal analysis are superimposed and use specific colors. close - 2D Tools
- Full color frameline and matting generator
Timecode
Audio monitoring
Voltage control
Tri-color and on-screen tally (including embedded SDI tally)
Focus helper
i/Lens and CineTape data reader
Avenger-Leveler
Optional VirtualHorizon2 In the Box Transvideo 12" CineMonitorHD12 3DView S Field Monitor 2 x Shoulder Strap Pin Bottom Slide Screen Protective Cover Microfiber Cloth and Bag 4.5 GHz 3D-HDTV BNC Dual Cable 6.5' (2.0 m) 2 x Mini HDMI Cable Anaglyph Glasses USB Adapter for Software Updates Pelican Case with Custom Shaped Foam Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 12" CineMonitorHD12 3DView S Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

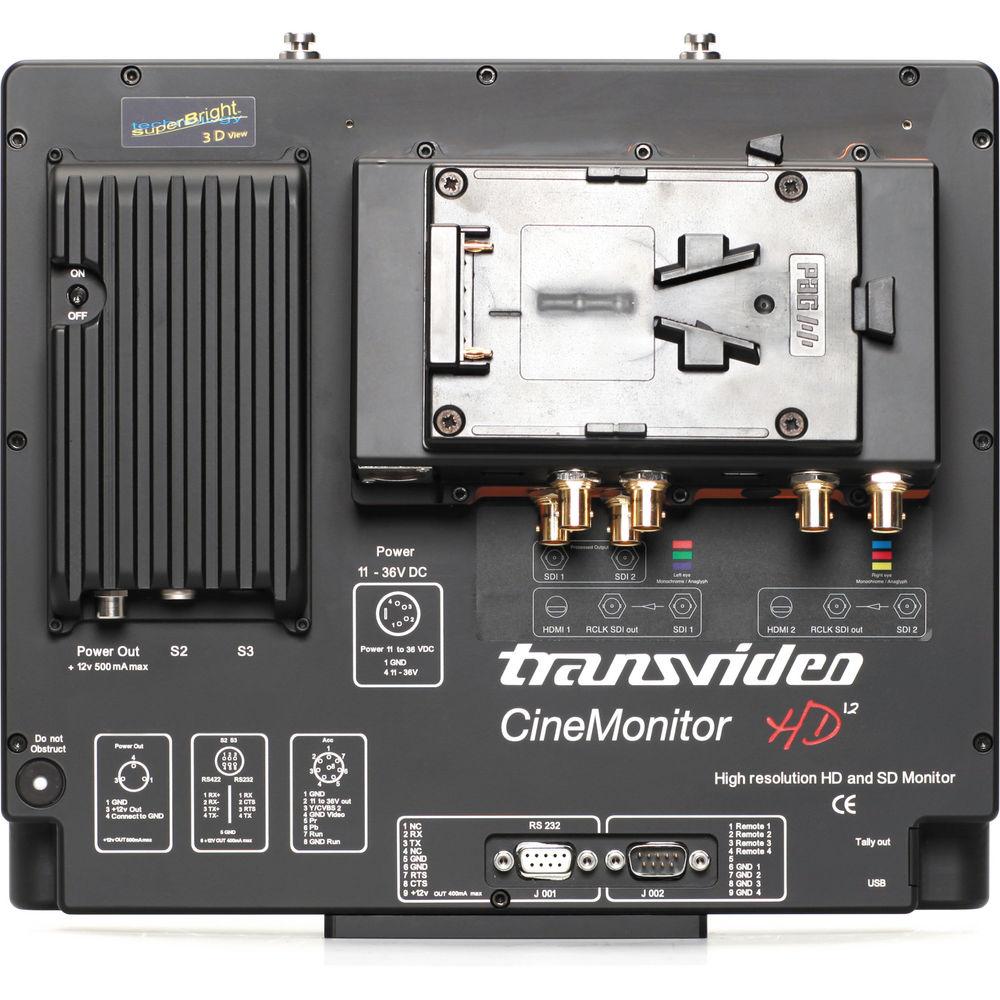

Technical parametersTransvideo 3DView S Specs | Video I/O | 2 x HD/SD SDI + 2 Rclk out (BNC)
2 x mini HDMI in
2 x HD/SD SDI processed out (BNC) | | Contrast Ratio | 500:1 (maximum) | | Viewing Angle | ±80° H, +60/-80° V | | Brightness | 1000 Nits | | Input Formats | HD SDI (SMPTE 292M)
1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M)
1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M)
1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M)
1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M)
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)
SD SDI (SMPTE 259M-C)
720 x 487i @ 60Hz (SD SDI 525 - SMPTE 125M; not available in 3D mode)
720 x 576i @ 50Hz (SD SDI 625 - ITU-R BT.601; not available in 3D mode)
HDMI
720 x 480i @ 59.94, 60 Hz; not available in 3D mode
720 x 576i @ 50 Hz; not available in 3D mode
720 x 480p @ 59.94, 60 Hz (these standards are not supported by the SDI processed outputs)
720 x 576p @ 50 Hz (these standards are not supported by the SDI processed outputs)
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz | | Power | XLR4 connector (-1, +4) with galvanic insulation | | Power Consumption | 10 to 36 VDC / 46 W | | Dimensions | 11.7 x 10.3 x 4.1" (297.1 x 261.6 x 104.1 mm) | | Weight | 8.4 lb (3.8 kg) |
