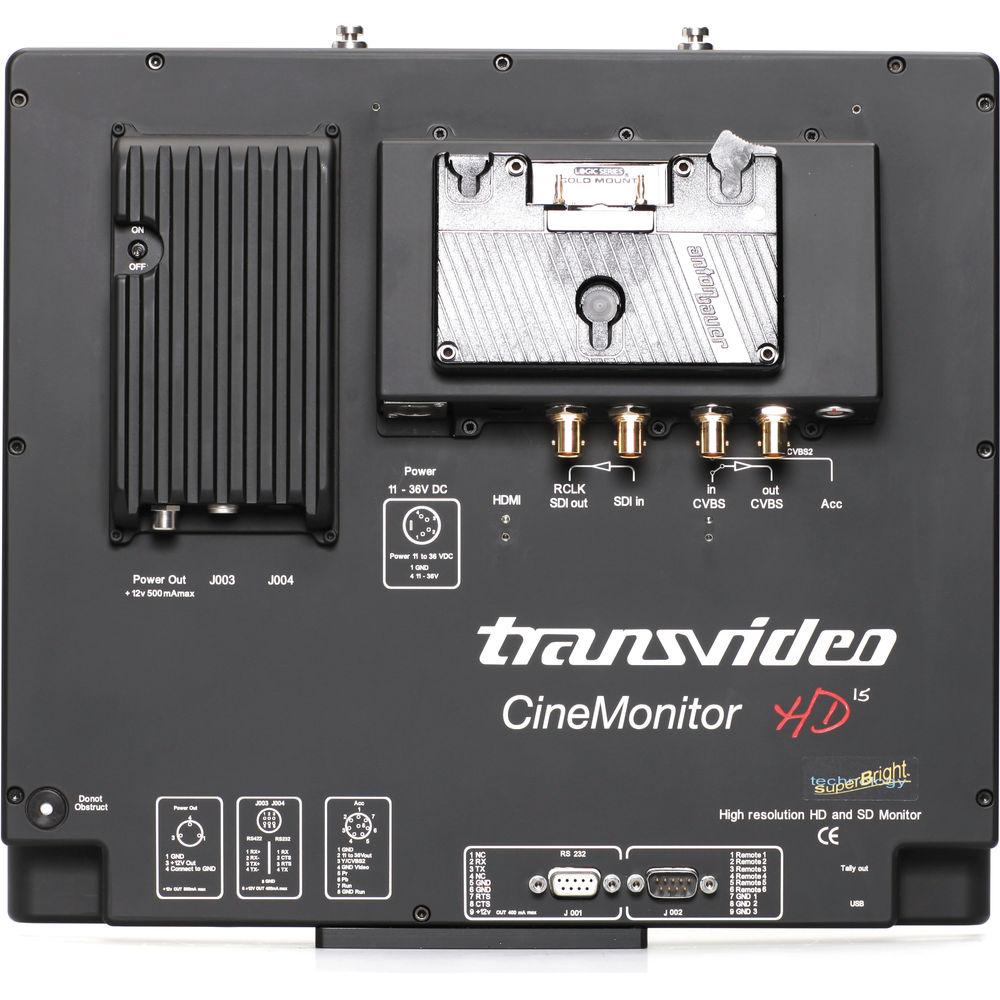

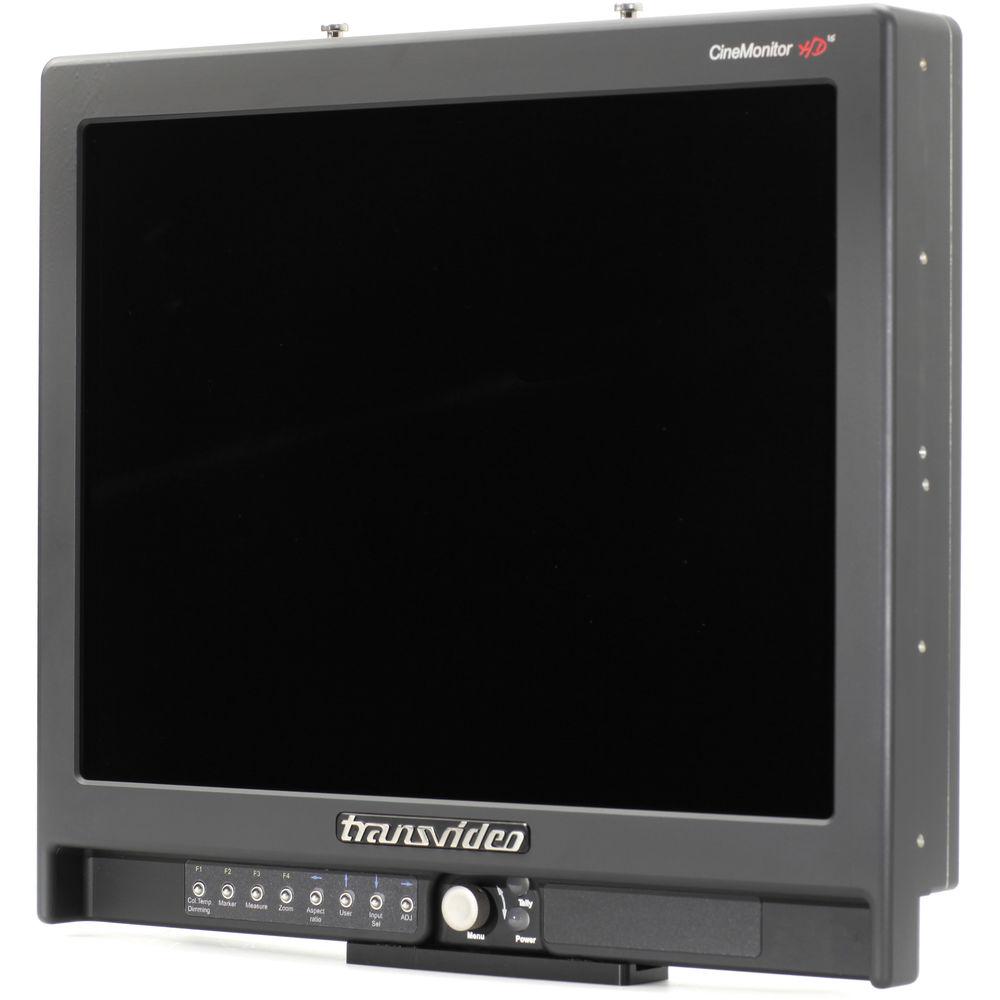

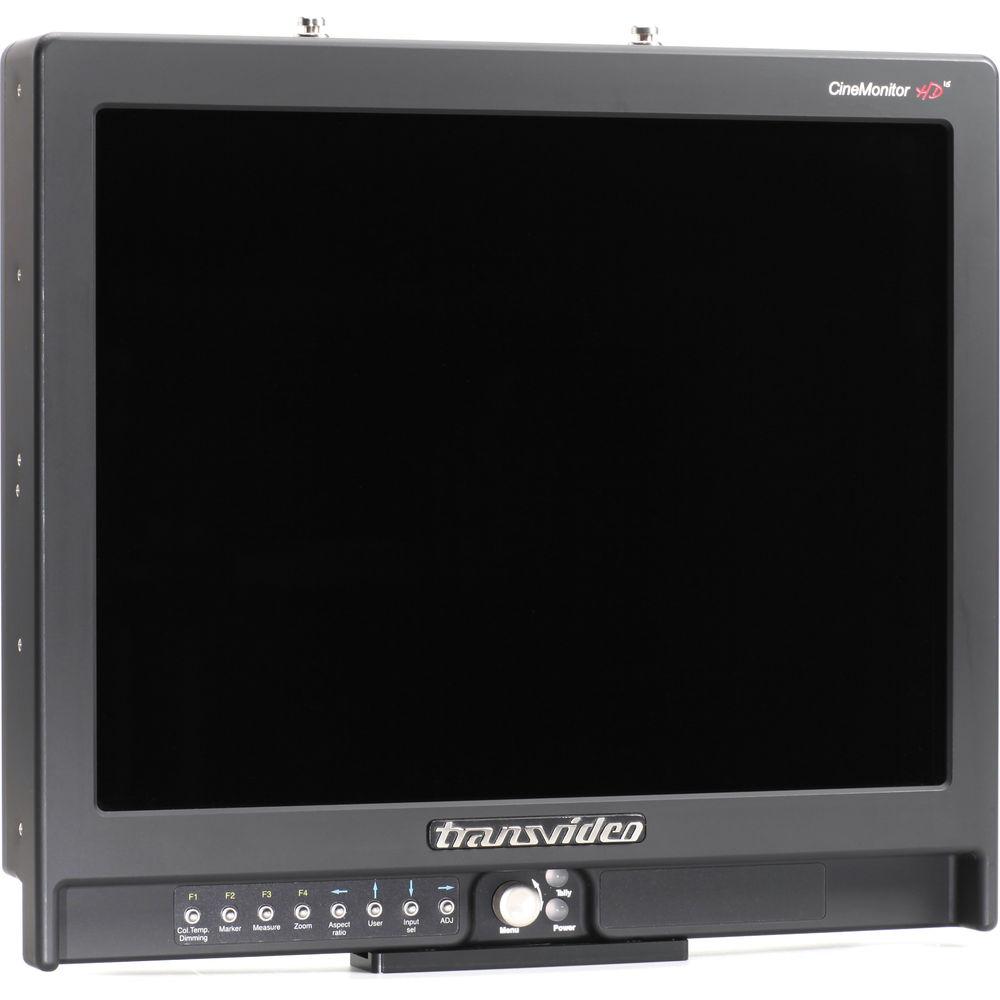

User Manual for Transvideo 15" CineMonitor HD 15 SB Video Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 15" CineMonitor HD 15 SB
- Product category: Production Monitors Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Production Monitors
 |
User manual for the Transvideo 15" CineMonitor HD 15 SB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Transvideo 15" CineMonitor HD 15 SB Video Monitor supports all analog SD/HD video signals. The unit uses Transvideo's proprietary SuperBright technology, and thus guarantees that the screen is bright enough to be legible in almost any condition; this ensures excellent viewability outdoors and/or under direct sunlight. It uses a Transvideo processor to yield images that are clear and without blur. Using the RealFrameRate processing, the HD Video Monitor yields fast-moving images appear crystal clear and are free of ghosting. The unit comes with a built-in tally light that lets you know when the feed being displayed on the monitor is the "main program" at that moment. It can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display; this saves you the trouble of having to do so manually. The 15" CineMonitor supports multiple aspect ratios (16:9, 4:3, and anamorphic), and you can easily switch among the aspect ratios readily even when a feed is being displayed. Owing to the Transvideo 15" monitor's low latency (less than one frame), seamless continuous playback is guaranteed. The Transvideo 15" CineMonitor supports zooming, and also comes with D56-D65 manual color calibration. Safe area markers allow you to ensure that the feed and adjustments being made thereof do not effect TV viewability. Further, the HD Video Monitor comes with adjustable gamma that lets you make easy corrections to the feed being displayed from the monitor itself. The 15" HD Video CineMonitor has multiple optional enhancements for the HD video monitor: HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram). - Supports all analog SD/HD video signals
- SuperBright technology ensures that the screen is bright enough to be legible in almost any condition; this ensures excellent outdoor viewability
- Transvideo's proprietary processor ensures that the images are clear and sans blur
- RealFrameRate processing ensures that fast-moving images are not marred by ghosting and appear crystal clear
- Built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment
- Can display waveform, vector, and histogram scopes
- Can automatically reverse and correct any horizontal or vertical flips in the display
- Support for multiple aspect ratios (16:9, 4:3, and anamorphic) with switchability: the aspect ratio can be changed readily when displaying a feed
- Low latency (less than one frame) ensures seamless continuous playback
- D56-D65 manual color calibration
- Safe area markers allow you to ensure that the feed and the adjustments being made thereof do not effect TV viewability
- Adjustable gamma lets you make easy corrections to the feed being displayed from the monitor itself
- Optional enhancements available: HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram)
In the Box Transvideo 15" CineMonitor HD 15 SB Video Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 15" CineMonitor HD 15 SB Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo SB Specs | Application | Hi-definition monitor for digital cinematography & broadcasting | | Standard | HD 720p, 1080p&1, SD, PAL, SECAM, NTSC | | Display | Display Mode: color, B/W, green
Display: AMLCD RGB stripe | | Aspect Ratio | 4:3 / 16:9 / 1:1.2.35 | | Tally | Tally light | | Waveform Display | Waveform vector histogram | | Auto Reverse | Horizontal and vertical auto reverse | | Latency | Latency <1 frame | | Supported Signals | HD/SD SDI auto-sense & analog inputs | | Digital Video Inputs | 1 SDI input | | Digital Video Outputs | 1 SDI reclocked output on BNC | | Analog Video Inputs | 1 CVBS and 1 YPrPB HD input on Lemo 8 | | Exposure Control | Overexposure control | | Focus | Advanced focus helper | | Calibration | D56 - D65 manual color calibration | | Markers | Safe area markers | | Gamma | Gamma adjustable | | Power Input | 10 - 36V DC on XLR | | Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
