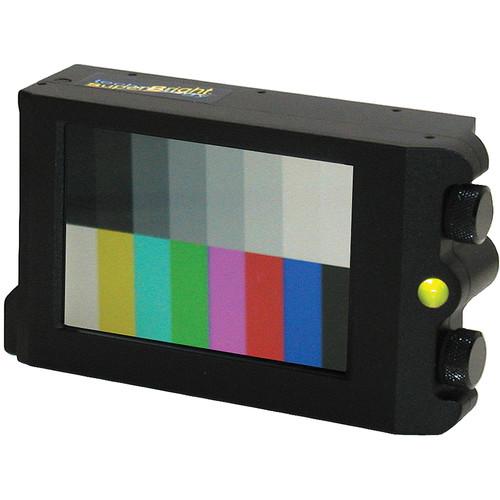

User Manual for Transvideo 4" Starlite Color SuperBright On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 4" Starlite Color SuperBright On-Camera
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
|
User manual for the Transvideo 4" Starlite Color SuperBright On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The 4" Starlite Color SuperBright On-Camera Monitor from Transvideo offers the compactness of a flip-out screen with the quality of a professional viewfinder featuring more than 1000 nits of brightness. The monitor is switchable between color, green-screen, and black & white. It is also switchable between 4:3 and 16:9 aspect ratios. NTSC, PAL, and SECAM formats are all supported.
SuperBright technology delivers more than 1000 nits of brightness without losing the details in the blacks, and without washing off the image. With very wide viewing angles of ±85° and a high contrast ratio, this monitor is designed to operate in full sun without a hood. The aluminum anti-vibration housing and protective glass allow for continuous operation, even in challenging environments.
The 4" Starlite Color SuperBright features multiple display modes, functions, and image adjustments. Basic adjustments such as tint, saturation, contrast, and sharpness levels are set by turning the metal potentiometers. Advanced functions such as display modes, aspect ratio, and flips are activated by pushing the potentiometers. The potentiometers are user-programmable: you can configure the monitor so that the most-often used functions are readily accessible.
The Starlite Color SuperBright includes the Waveform Y function. The Virtual Horizon function (optional) may be added. - NTSC, PAL, and SECAM formats supported
- Greater than 1000 nits brightness
- Multiple display modes and image adjustments
In the Box Transvideo 4" Starlite Color SuperBright On-Camera Monitor Microfiber Cloth Microfiber Bag Pelican Case Limited 2-Year Warranty; Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 4" Starlite Color SuperBright On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 910TS0056 Specs | Display Size | 4" (10.2 cm) | | Aspect Ratio | 4 : 3, 16 : 9 switchable | | Input | 1 x CVBS, 1 V / 75 Ω (Fischer 4) | | Contrast Ratio | 700 : 1 (typical) | | Viewing Angle | ±85° H & V | | Brightness | >1000 nits | | Standards | NTSC, PAL, SECAM | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Power Input | 8.5 - 36 VDC (Fisher 4) | | Power Consumption | 7 W typical, 600 mA at 12 VDC | | Dimensions | 5.2 x 3.0 x 1.4" (13.1 x 7.6 x 3.7 cm) | | Weight | 12 oz (350 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
