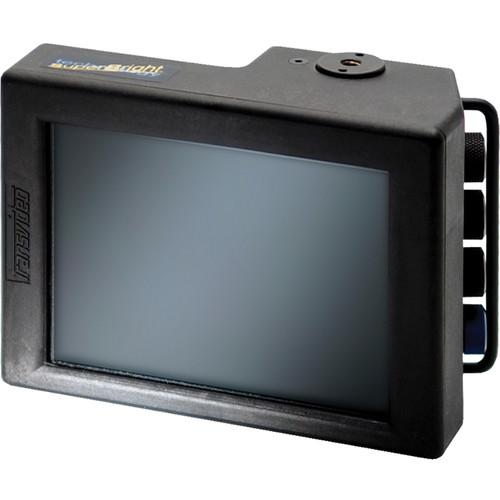

User Manual for Transvideo 5" Rainbow II SuperBright On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 5" Rainbow II SuperBright On-Camera
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
|
User manual for the Transvideo 5" Rainbow II SuperBright On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The > 700-nit 5" Rainbow II SuperBright On-Camera Monitor from Transvideo is a professional monitor which is ideal for body-rig, film, and high-end DV applications. It is a native 4:3 LCD monitor, but the aspect ratio can be switched to 16:9. The auto-reverse function (specifically designed for body-mount operators) automatically reverses the image when the monitor is turned upside down.
The 5" Rainbow II SuperBright has three composite video inputs, a straight video output, and a processed video output. If the monitor is set to 16:9, the processed video output will be 16:9. This processed signal can be fed to other monitors, recorders, or transmitters. - Supports NTSC, PAL, and SECAM standards
- Switchable between 4:3 and 16:9 aspect ratios
- Auto-reverse function flips the image when monitor is turned upside down
- Brightness, contrast, saturation, and (hue/tint in NTSC) adjustment
- User memories, lock function, full-scan & under-scan
- Sharpness adjustments facilitate focus pulling
In the Box Transvideo 5" Rainbow II SuperBright On-Camera Monitor (>700 Nits) Microfiber Cloth Microfiber Bag Pelican Case Limited 2-Year Warranty; Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 5" Rainbow II SuperBright On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 910TS0038 Specs | Display Size | 5" (12.7 cm) | | Inputs | 2 x CVBS
1 x BNC, automatic loop through
1 x XLR-4, power (-1, +4) | | Outputs | 1 x CVBS
1 x Hirose6, processed video | | Aspect Ratios | 4 : 3 / 16 : 9, switchable | | Contrast Ratio | Maximum 700 : 1 | | Viewing Angle | ±85° H & V | | Brightness | > 700 nits | | Output Voltage | 10 - 36 VDC | | Power Consumption | 12.5 W | | Standards | NTSC, PAL, SECAM | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions | 5.3 x 3.9 x 2.3" (13.5 x 10.0 x 5.7 cm) | | Weight | 1.25 lb (0.6 kg) |
