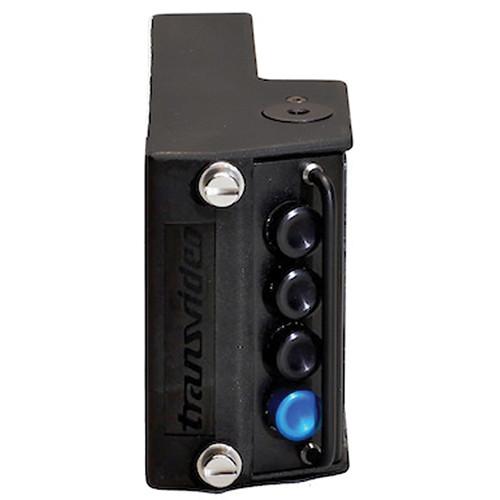

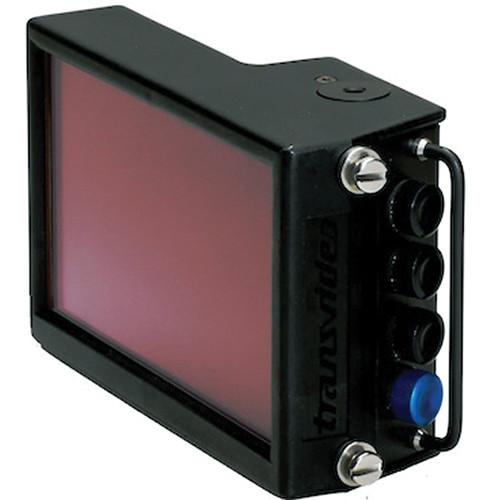

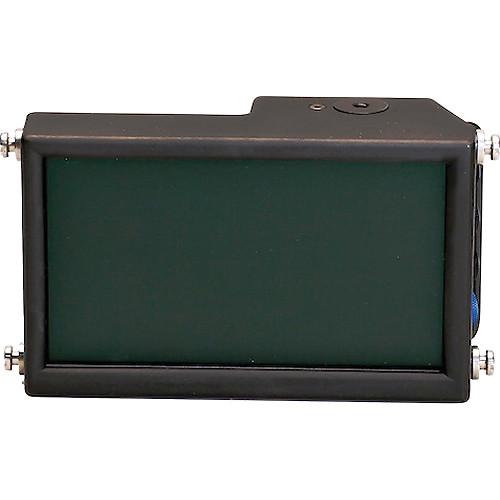

Product description The 6.5" Rainbow II SuperBright On-Camera Monitor from Transvideo delivers more than 900 nits of brightness and is ideal for body-rig, film, and high-end DV applications. It is a native 16:9 LCD monitor, but the aspect ratio can also be switched to 4:3 or anamorphic 1:2.35. The auto-reverse function (specifically designed for body-mount operators) automatically reverses the image when the monitor is turned upside down.

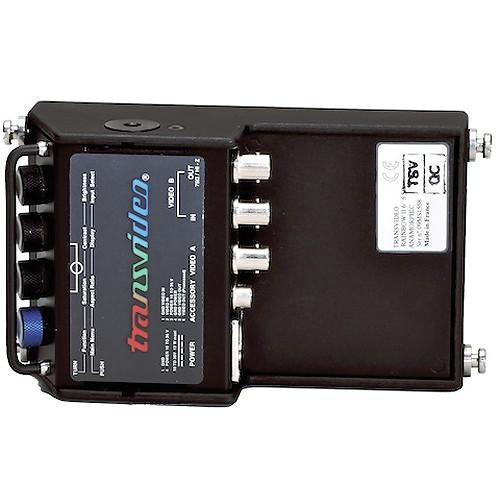

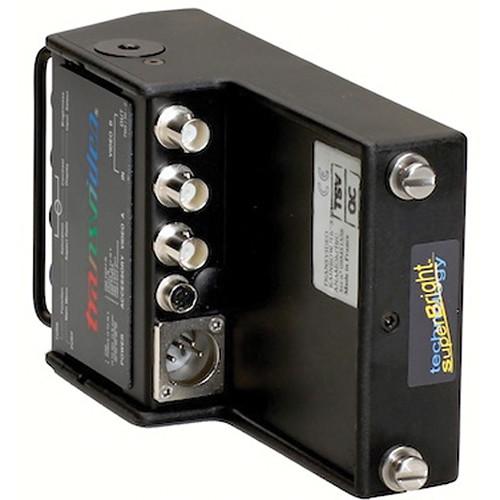

The 6.5" Rainbow II SuperBright has three composite video inputs, a straight video output, and a processed video output. The output follows the ratio setting; if the monitor is set to 16:9, then the processed video output will be 16:9. This processed signal can be fed to other monitors, recorders, or transmitters. - NTSC, PAL, and SECAM formats supported
- Switchable between 4:3, 16:9, and anamorphic aspect ratios
- Auto-reverse function flips the image when monitor is turned upside down
- Brightness, contrast, saturation, and hue/tint (in NTSC) adjustment
- User memories, lock function, full-scan & under-scan
- Sharpness adjustments facilitate focus pulling
In the Box Transvideo 6.5" Rainbow II SuperBright On-Camera Monitor Microfiber Cloth Microfiber Bag Pelican Case Limited 2-Year Warranty; Extendable to 3 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 6.5" Rainbow II SuperBright On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 910TS0040 Specs | Display Size | 6.5" (16.5 cm) | | Inputs | 2 x CVBS
1 x BNC, automatic loop through
1 x XLR-4, power (-1, +4) | | Outputs | 1 x CVBS
1 x Hirose6, processed video | | Contrast Ratio | Maximum 700 : 1 | | Aspect Ratios | 4 : 3 / 16 : 9 / anamorphic 1:2.35, switchable | | Viewing Angle | ±65° H, +50° / -65° V | | Brightness | >900 nits | | Input Voltage | 10 - 36 VDC | | Power Consumption | 13.2 W | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions | 6.4 x 3.9 x 2.3" (16.3 x 10.0 x 5.9 cm) | | Weight | 1.6 lb (715 g) |
