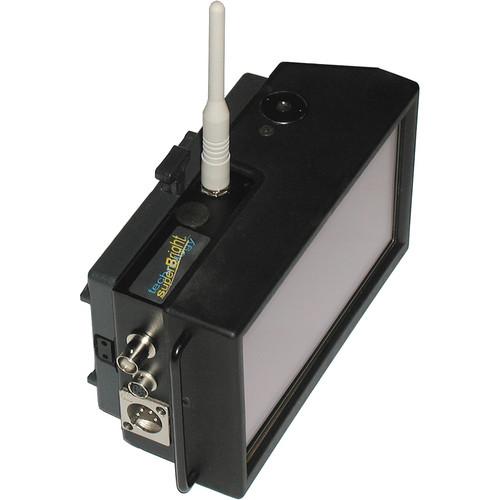

User Manual for Transvideo 6.5" RainbowII LCD Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 6.5" RainbowII LCD Monitor
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
|
User manual for the Transvideo 6.5" RainbowII LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The 6.5" RainbowII Monitor from Transvideo is a professional native 16/9 LCD monitor, switchable between 16/9, 4:3, and Anamorphic 1:2.35.The RainbowII offers 3 composite video in, a straight video out, and a processed video out. If the monitor is set in 16/9, the processed video out will be 16/9. This processed signal can be fed to other monitors, recorders, or transmitters.An auto-reverse function is especially designed for body-mount operators; the image is automatically reversed when the monitor is turned upside down. - Display Settings
- Aspect ratios (4:3, 16/9, anamorphic) and blue check are available. Brightness, contrast, saturation, and (hue/tint in NTSC) adjustments are possible.
- Functions & Tools
- Image and monitor flips, user memories, lock function, full- & under- scan are included. Sharpness adjustments facilitate the focus pulling.
- Additional Features
- NTSC, PAL, SECAMSwitchable 4:3, 16/9 and AnamorphicAuto-reverse and flipsMultiple image adjustments and tools
In the Box Transvideo 6.5" RainbowII LCD Monitor Microfiber Cloth and Bag Pelican Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 6.5" RainbowII LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 910TS0043 Specs | Input | 2 x CVBS + 1 x Automatic loop through (BNC)
1 x CVBS + 1 x Processed Video out (Hirose6) | | Contrast Ratio | 700:1 maximum | | Viewing Angle | ±65° H, +50°/-65° V | | Brightness | 420 Nits | | Power Input | XLR4 connector (-1, +4) | | Power Consumption | 10 to 36 VDC / 13.2 W | | Operating Temperature | -22 to 140F (-30 to 60°C) | | Storage Temperature | -40 to 176F (-40 to 80°C) | | Dimensions (L x W x D) | 6.4 x 3.9 x 2.3" (162.5 x 99.0 x 58.4 mm) | | Weight | 1.6 lb (0.7 kg) |
