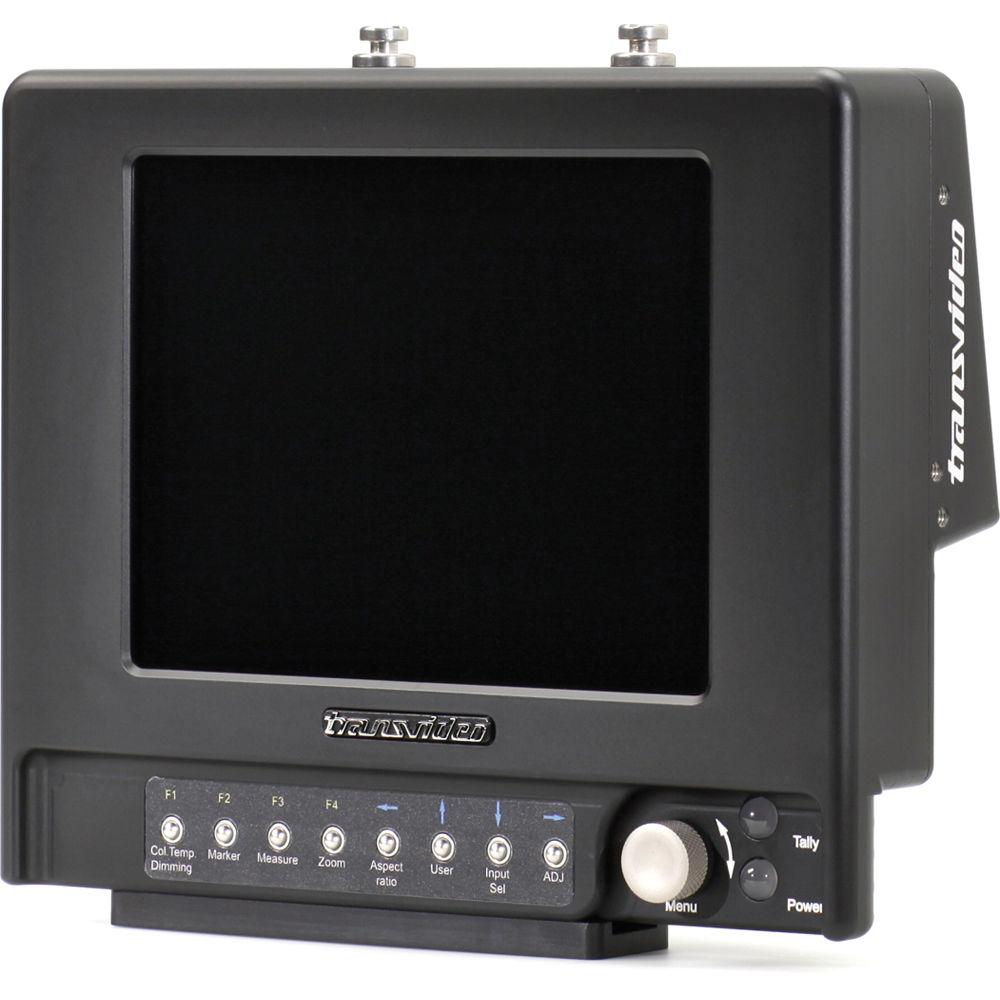

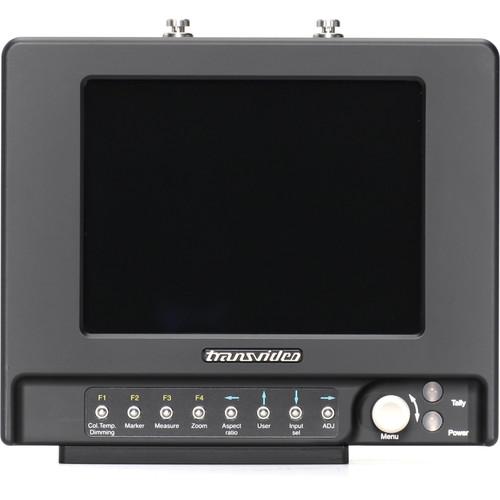

Product description The Transvideo 6" CineMonitor Evolution HD Video Monitor supports all analog SD/HD video signals. By making use of Transvideo's proprietary processor, the Evolution monitor delivers images that are clear and without any blur. The 6" CineMonitor also uses RealFrameRate processing to make sure that fast-moving images appear crystal clear and are not marred by ghosting. Using the SuperBright technology, the HD video monitor guarantees that the screen is bright enough to be legible in almost any condition, thereby ensuring excellent viewability outdoors and/or under direct sunlight. The CineMonitor comes with a built-in tally light that lets you know when the feed being displayed on the monitor is the "main program" at that moment. Given the Transvideo 6" monitor's low latency (less than one frame), you can be rest assured of seamless continuous playback. The Transvideo 6" CineMonitor HD Video Monitor supports multiple aspect ratios (16:9, 4:3, and anamorphic), and you can easily switch among the aspect ratios readily even when a feed is being displayed. The HD video monitor can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display (thereby saving you the trouble from having to do so manually). The HD video monitor also supports zooming, and D68-D65 manual color calibration. Safe area markers allow you to ensure that the feed and adjustments being made thereof do not effect TV viewability. Further, the HD Video Monitor comes with adjustable gamma that lets you make easy corrections to the feed being displayed from the monitor itself. The 6" CineMonitor Evolution HD Video Monitor has optional enhancements - HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built into the monitor), Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation [parade mode], vectorscope, and histogram), and 3D View (which can be used to correlate feeds from two synchronous HD cameras). - Supports all analog SD/HD video signals
- Transvideo's proprietary processor yields images that are clear and free from blur
- RealFrameRate processing ensures that fast-moving images are not marred by ghosting and appear crystal clear
- SuperBright technology offers excellent outdoor viewability by making the screen bright enough to be legible in almost any condition
- Built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment
- Low latency (less than one frame) ensures seamless continuous playback
- Support for multiple aspect ratios (16:9, 4:3, and anamorphic) with switchability: the aspect ratio can be changed readily when displaying a feed
- Can display waveform, vector, and histogram scopes
- Can automatically reverse and correct any horizontal or vertical flips in the display
- D68-D65 manual color calibration
- Safe area markers allow you to ensure that the feed and the adjustments being made thereof do not effect TV viewability
- Adjustable gamma allows you to make easy corrections to the feed being displayed from the monitor itself
- Optional enhancements available: HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built into the monitor), Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation [parade mode], vectorscope, and histogram), and 3D View (which can be used to correlate feeds from two synchronous HD cameras)
In the Box Transvideo 6" CineMonitor Evolution HD Video Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 6" CineMonitor Evolution HD Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

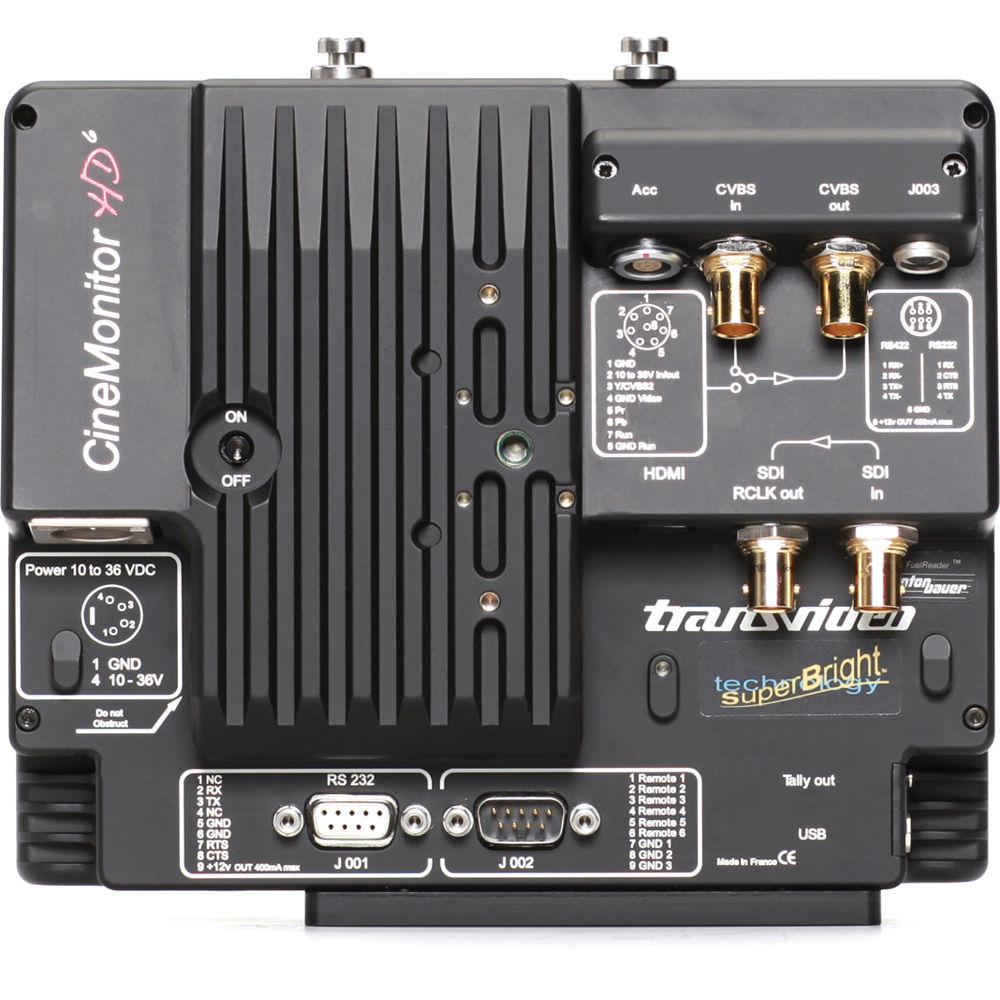

Technical parametersTransvideo Evolution HD Specs | Application | Hi-definition monitor for digital cinematography & broadcasting | | Standard | HD 720p, 1080p&1, SD, PAL, SECAM, NTSC | | Picture Size Area | 1024 x 560 | | Display Mode | Color, B/W, green | | Aspect Ratio | 4:3 / 16:9 / 1:1.2.35 | | Tally | Tally light | | Waveform Display | Waveform vector histogram | | Auto Reverse | Horizontal and vertical auto reverse | | Latency | Latency <1 frame | | Supported Signals | HD/SD SDI auto-sense & analog inputs | | Digital Video Inputs | 1 SDI input | | Digital Video Outputs | 1 SDI reclocked output on BNC | | Analog Video Inputs | 1 CVBS and 1 YPrPB HD input on Lemo 8 | | Exposure Control | Overexposure control | | Focus | Advanced focus helper | | Calibration | D56 - D65 manual color calibration | | Markers | Safe area markers | | Gamma | Gamma adjustable | | Other Functions | Advanced Measurement Tools Set of advanced tools for video measurement including YRGB, RGB, GBR, YPrPb Waveform
Advanced Focus Helper with selectable colors and level
Horizon display movable in the picture
Time code reader
Embedded Audio Bar Graph
COOKE i/lenses interface
Freeze, Store, Recall, Superimpose function
Power supply monitoring on screen | | Power Input | 10 - 36V DC on XLR | | Power Consumption | 15.5W | | Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
