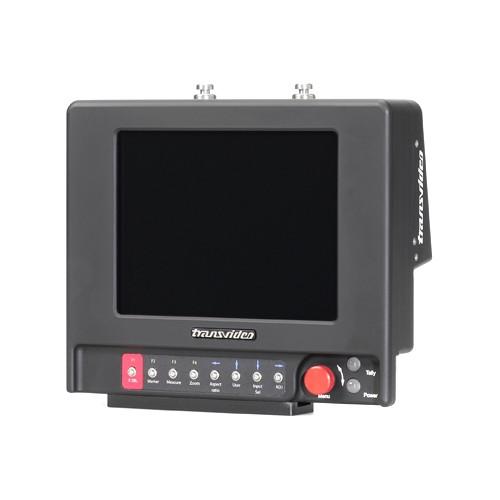

Product description The CineMonitorHD6 X-SBL Evolution Monitor from Transvideo is a 6" eXtremely SuperBright on-board monitor with an anti-glare bonded screen. The 4:3 screen is partitioned in two areas; the picture zone displays the picture in 16/9 format whereas tools and measurements are displayed in the remaining free area of the screen. The CineMonitorHD Evolution can be set in two operating modes, either for outdoor viewing or color monitoring. In Full Bright mode, details in both the dark areas and highlights are maintained even in full sun without hood. Featuring Transvideo's proprietary technology with RealFrameRate processing (RFR), the CineMonitorHD Evolution provides true monitoring of existing in-camera images with 1-frame delay or less. Transvideo's processing technology displays crystal clear images without aliasing or motion-blurs. The monitor features rugged and fully sealed (no holes, no noisy fans) design with precision machined aluminum housing. - Measurements and Exposure Monitoring Features
-
- Waveform Y, R, G, B, RGB, YPrPb, YRGB in three sizes (small, medium, full screen)
- Histogram and Vectorscope
- User adjustable false colors (low- or high-light details emphasis)
- Color, Gammas, and Display Adjustments
-
- Factory color calibration preset D56/D65 with backlight dimmer
- Multiple input profiles (LogC, S-Log, S-Log2, Canon-Log, Rec709)
- Brightness, contrast, saturation, and hue controls
- Aspect ratios with anamorphic desqueeze and special scaling for Alexa 4:3
- Color, black and white, and green modes with blue check
- Tools
-
- Focus helper with pixel-to-pixel zooming - /i and LDS LensReader plus Cine Tape reader
- Markers (safe area, 4:3, and 14/9) with crosshair and user frame-lines
- On-screen timecode with tri-color led, multiple on-screen tally, and SDI audio monitoring
- Battery and power information
- Image flip and monitor reverse
- Avenger Leveler
- Includes VirtualHorizon2 with inertia and shock compensation
In the Box Transvideo 6" CineMonitorHD6 X-SBL Evolution Monitor Limited 2-Year Warranty Limited 3-Year Warranty on Registration with Transvideo within First Month of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 6" CineMonitorHD6 X-SBL Evolution Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 917TS0110 Specs | Video Inputs | 1 x 3G HD/SD SDI + 1 Rclk out (BNC)
1 x CVBS + Loop (BNC)
1 x Accessory YPrPb / RGB / CVBS (Lemo8)
1 x Mini HDMI | | Contrast Ratio | 600:1 | | Viewing Angle | Horizontal: ±80°
Vertical: +60°/-80° | | Brightness | 2000 cd/m2 | | Power | 10 to 36 VDC Via XLR4 connector (-1, +4) with galvanic insulation | | Consumption | 19 W | | Dimensions | 7.7 x 6.6 x 2.6" (19.5 x 16.8 x 6.5 cm) | | Weight | 3.2 lb (1.44 kg) |
