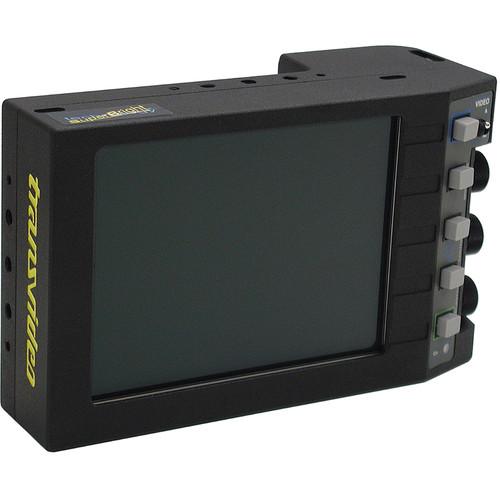

User Manual for Transvideo 6" CineMonitorIIIa SuperBright Analog SD Field Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 6" CineMonitorIIIa SuperBright Analog SD
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
|
User manual for the Transvideo 6" CineMonitorIIIa SuperBright Analog SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The 6" CineMonitorIIIa SuperBright Analog SD Field Monitor from Transvideo is switchable between 4:3, 16:9, and anamorphic 1:2.35 aspect ratios thanks to the built-in format converter. The 4:3 ratio with 16/9 extract lines and the 16:9 ratio with 14/9 lines help framing for most editing requirements. The field monitor offers three composite video in, a straight video out, and a processed video out. If the monitor is set in 16:9, the processed video out will be 16:9. This processed signal can be fed to other monitors, recorders, or transmitters. It also accepts the higher quality Y/C input available on Arriflex video-assists. Highlights - SuperBright technology offers 1200 nits brightness
NTSC, PAL, SECAM support
Switchable 4:3, 16:9, and anamorphic (1:2.35) aspect ratios
Robust construction
Multiple display modes and tools Display Settings - Display modes (color, B&W, green screen), aspect ratios (4:3, 16/9, anamorphic) and blue check
Brightness, contrast, saturation and (hue/tint in NTSC) adjustments are possible Basic Features - Image and monitor flips, user memories, fixed markers, lock function, full and under scan, and zoom in all standards and aspect ratios
Advanced Functions - Advanced functions include sharpness to facilitate focus pulling; freeze-, replay-, & superimpose for frame matching and still frame reviewing; voltage monitoring
In the Box Transvideo 6" CineMonitorIIIa SuperBright Analog SD Field Monitor Microfiber Cloth and Bag Pelican Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 6" CineMonitorIIIa SuperBright Analog SD Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 911TS0031 Specs | Screen Size | 6.0" (15.3 cm) | | Video Standards | NTSC, PAL, SECAM | | Input | 2 x CVBS, auto-terminated + 1 loop through (BNC)
1 x YC + Video in & out processed (Hirose10) | | Nominal Input Level | 1 V / 75 Ω composite & component Y
300 Vcc (burst level) component C | | Contrast Ratio | 450:1 maximum | | Viewing Angle | Horizontal: ±70°, Vertical: +70/-50° | | Brightness | >1200 nits | | Power Input | 9 to 36 VDC, XLR4 connector (-1, +4) | | Power Consumption | 13 W | | Operating Temperature | -22 to 149°F (-30 to 65°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions (L x H x D) | 7.16 x 4.41 x 2.75" (18.18 x 11.20 x 6.98 cm) | | Weight | 2 lb (1 kg) |
