User Manual for Transvideo 7" RainbowHD7 On-Board Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 7" RainbowHD7 On-Board Monitor
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
 |
User manual for the Transvideo 7" RainbowHD7 On-Board Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|

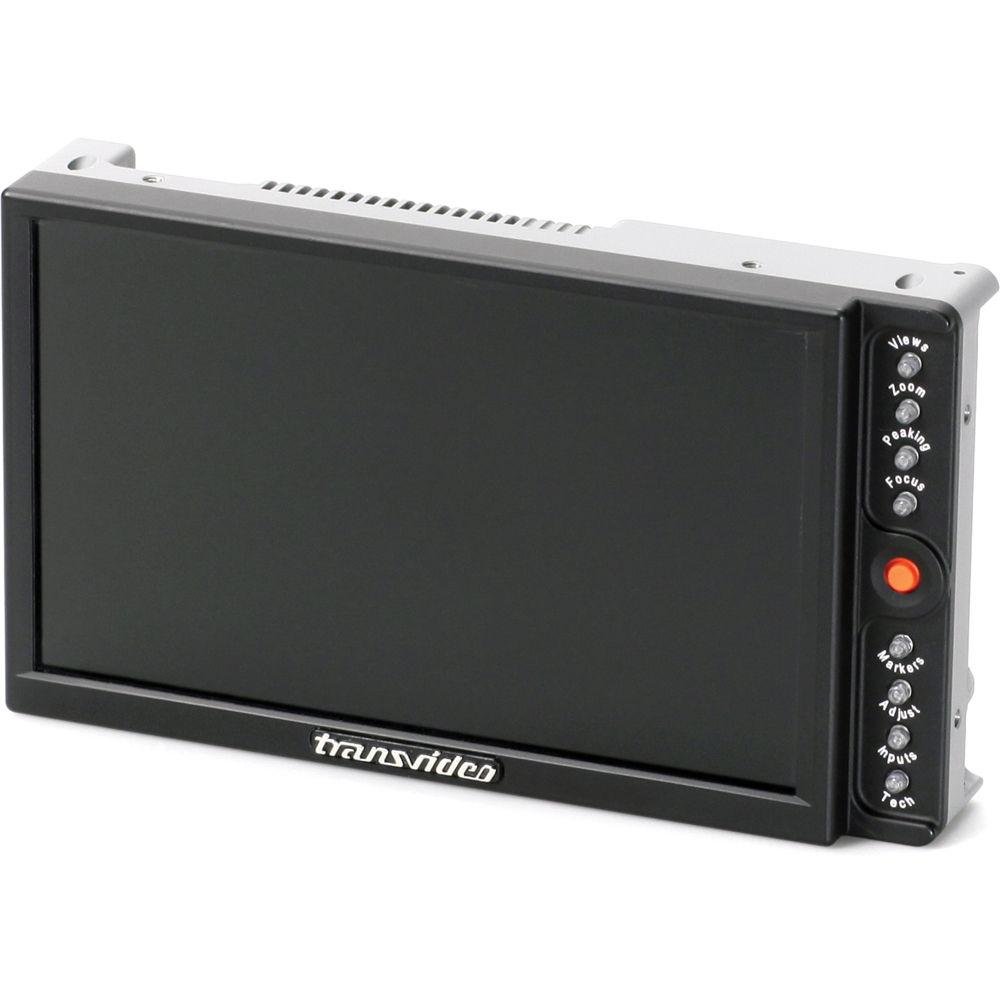

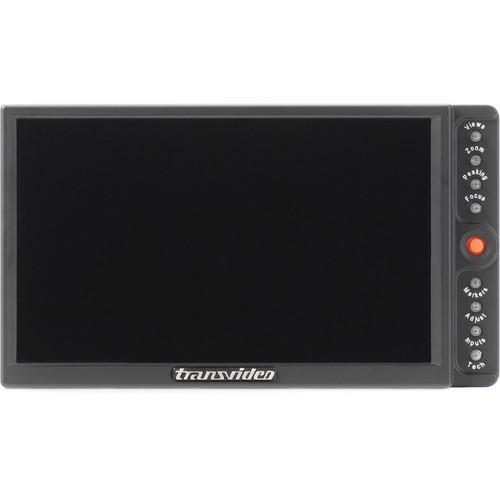

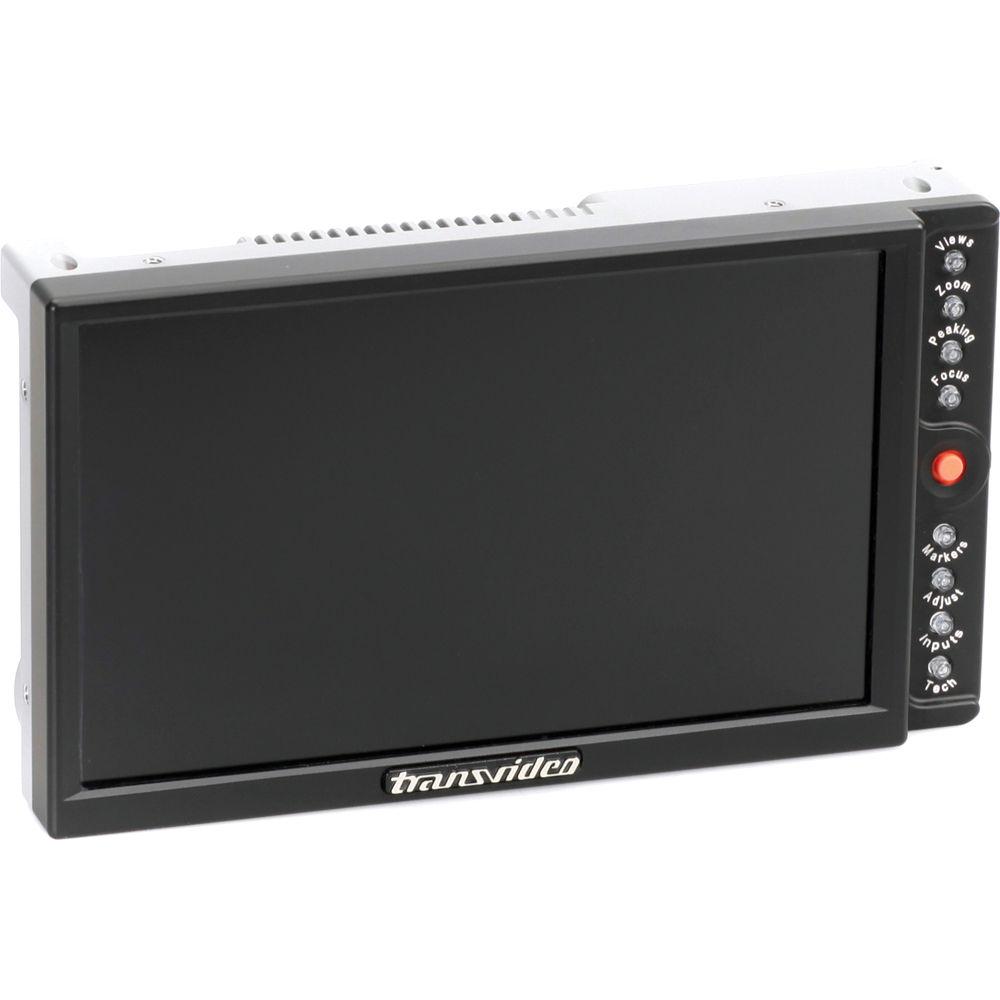

Product description The Transvideo 7” RainbowHD7 On-Board Monitor is slim and rugged, with precision machined aluminum housing fully sealed (no holes, no noisy fans). It also features an anti reflective glass protecting the screen and high quality connectors.
A new concept has been introduced of working in the RainbowHD. Each job has its specific view, showing the image with a specific set of tools: no need to navigate in deep menus to find the right tools.
The screen measures 7” diagonal. The regular model features 450Nits, suggested for studios and interiors as well as low budget applications.
The RainbowHD7 includes Screen Protective Cover, Microfiber Cloth and Bag, 4.5GHz HDTV BNC Cable (1m), and Printed Documentation.
The 4.5GHz HDTV BNC Cable (1m) is a high performance 4.5GHz HDTV cable with certified HD BNC male connectors. Each cable is individually tested at 3GHz. - Inputs / Outputs
-
- HD/SD SDI, HDMI, and composite
- HDMI to SDI converter
- Measurements
-
- Waveform, histogram, and vectorscope
- Display Adjust
-
- Factory color calibration preset D56/D65 - dimming
- Brightness, contrast, saturation, and hue
- Aspect ratios
- Tools
-
- Focus helper, peaking, zoom pixel to pixel
- Markers 1.33:1 & 1.56:1, safe area, crosshair
- Timecode reader, tally on SDI
- Battery / power informations
- Embedded audio monitoring
In the Box Transvideo 7" RainbowHD7 On-Board Monitor Screen Protective Cover Microfiber Cloth & Bag 4.5 GHz 3G-SDI BNC to BNC Cable (3.3') Printed Documentation Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 7" RainbowHD7 On-Board Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo HD7 Specs | Video Input | 1 x HD/SD SDI
1 x HDMI
1 x CVBS | | Video Output | 1 x HD/SD SDI (processed)
1 x CVBS (loop) | | Supported Standards | 1080p / 1080i / 1080psf
480p / 576p / 720p
SD SDI 525 / 625
NTSC (M, J, 443) / PAL (M, BG, N) / SECAM | | Display Type | Size: AMLCD, 7.0" (177.8 mm) | | Pixels | Picture zone 1024 x 560 | | White Point Calibration | D65 ITU-R BT.709-5 & D56 | | Color Space | Rec. ITU-R BT.709-5 | | Contrast Ratio | 1000:1 (760:1 ANSI) | | Brightness | Maximum: 450 Nits | | Viewing Angle | Horizontal & Vertical: ±80° | | Power | 10 to 36 VDC through XLR4 or battery adapter (Anton-Bauer & V-mount) | | Dimensions (W x H x D) | 7.5 x 4.1 x 14.0" (187.0 x 105.0 x 35.0 mm) | | Weight | 23.2 oz (660.0 g) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 10.4 x 9.4 x 4.7" |
