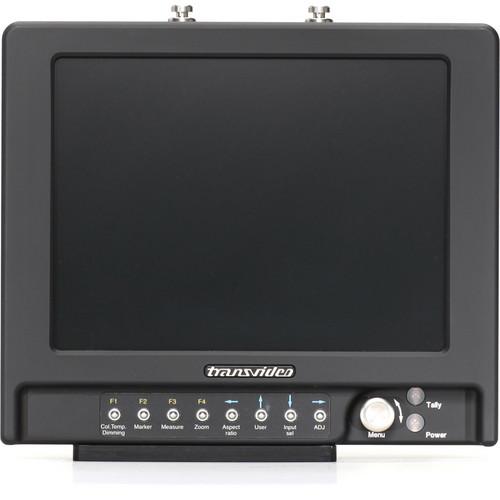

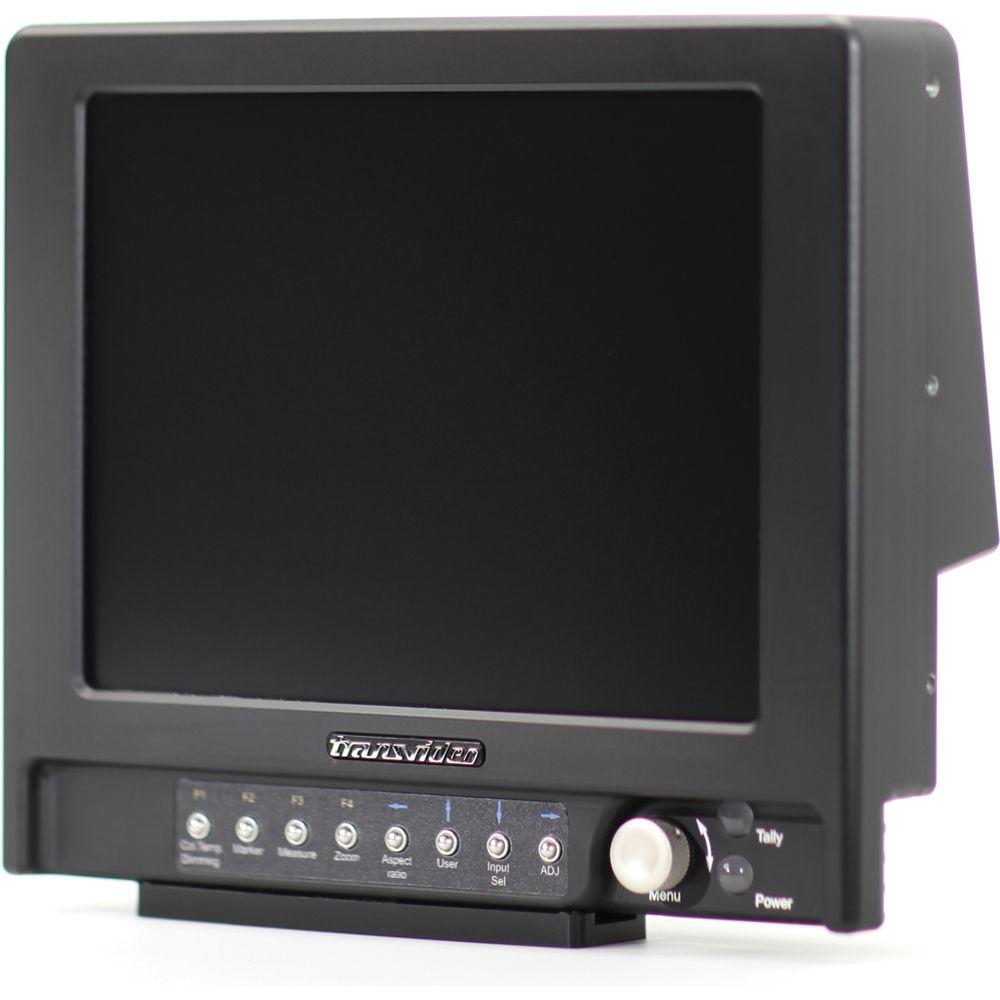

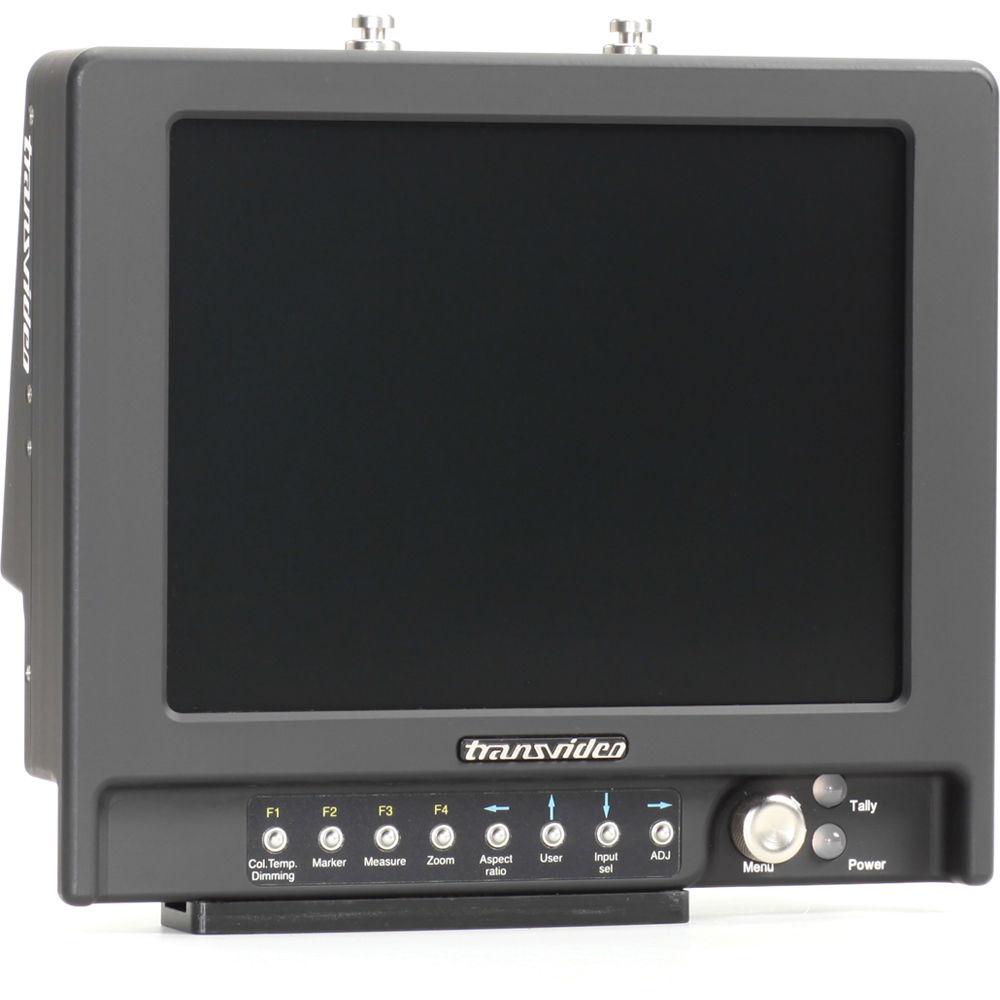

User Manual for Transvideo 8" CineMonitor HD Video Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo 8" CineMonitor HD Video Monitor
- Product category: On Camera Monitors Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others On Camera Monitors
 |
User manual for the Transvideo 8" CineMonitor HD Video Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Transvideo 8" CineMonitor HD Video Monitor supports all analog SD/HD video signals. The video monitor uses Transvideo's proprietary processor to ensure that the images are clear and free from blur. It also uses RealFrameRate processing to make sure that fast-moving images appear crystal clear and are not marred by ghosting. The built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment. The Transvideo 8" CineMonitor HD Video Monitor supports multiple aspect ratios (16:9, 4:3, and anamorphic); you can easily switch among the aspect ratios readily even when a feed is being displayed. The HD video monitor unit also supports zooming, and D56-D65 manual color calibration. Given the Transvideo 8" monitor's low latency (less than one frame), you can be rest assured of seamless continuous playback. The HD video monitor can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display (thereby saving you the trouble from having to do so manually). Safe area markers allow you to ensure that the feed and adjustments being made thereof do not effect TV viewability. Further, the HD Video Monitor comes with adjustable gamma that lets you make easy corrections to the feed being displayed from the monitor itself. The 8" CineMonitor HD Video Monitor has optional enhancements for this HD video monitor - HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram). - Supports all analog SD/HD video signals
- Transvideo's proprietary processor ensures that the images are clear and sans blur
- RealFrameRate processing ensures that fast-moving images are not marred by ghosting and appear crystal clear
- Built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment
- Support for multiple aspect ratios (16:9, 4:3, and anamorphic) with switchability: the aspect ratio can be changed readily when displaying a feed
- D56-D65 manual color calibration
- Low latency (less than one frame) ensures seamless continuous playback
- Can display waveform, vector, and histogram scopes
- Can automatically reverse and correct any horizontal or vertical flips in the display
- Safe area markers allow you to ensure that the feed and the adjustments being made thereof do not effect TV viewability
- Adjustable gamma lets you make easy corrections to the feed being displayed from the monitor itself
- Optional enhancements available: HD Frameline (which can be used to generate 3 colored framelines with or without the center cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram)
In the Box Transvideo 8" CineMonitor HD Video Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 8" CineMonitor HD Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo HD Specs | Application | Hi-definition monitor for digital cinematography & broadcasting | | Standard | HD 720p, 1080p&1, SD, PAL, SECAM, NTSC | | Display | Display Mode: color, B/W, green

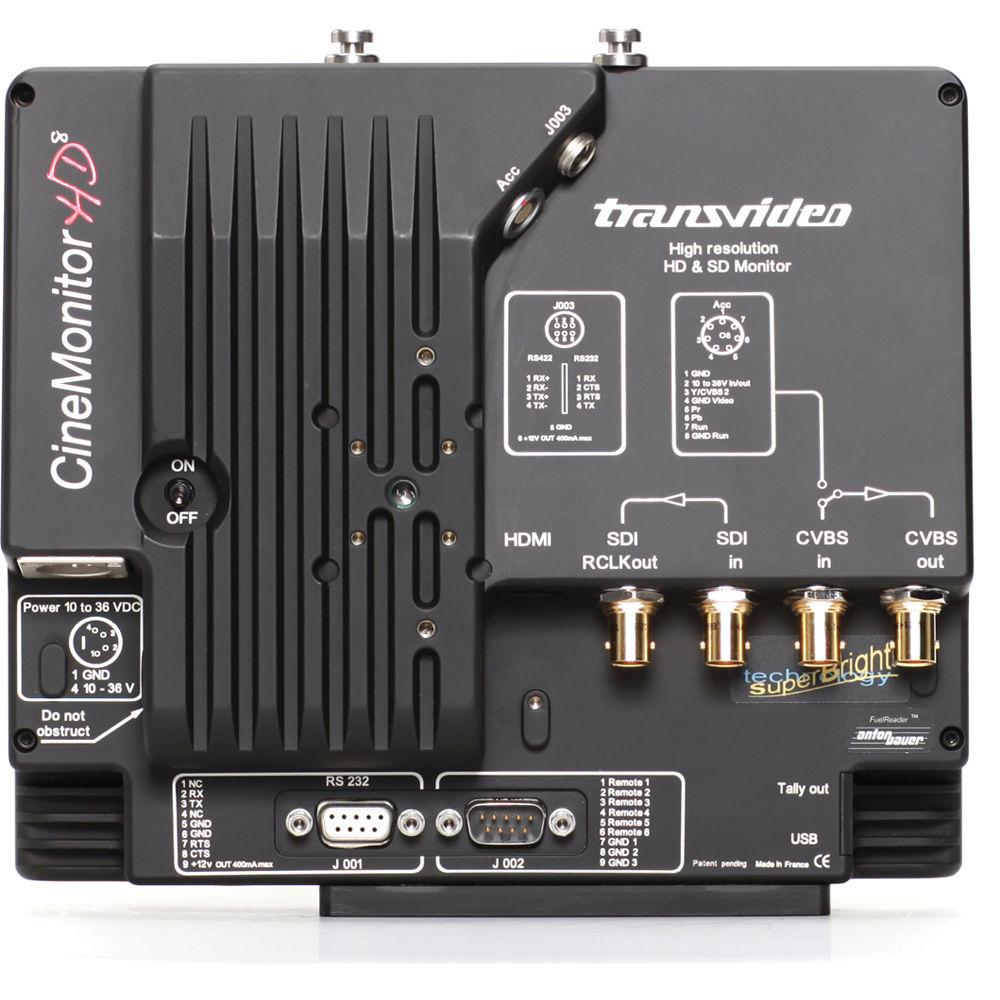

Display: AMLCD RGB stripe | | Aspect Ratio | 4:3 / 16:9 / 1:1.2.35 | | Tally | Tally light | | Waveform Display | Waveform vector histogram | | Auto Reverse | Horizontal and vertical auto reverse | | Latency | Latency <1 frame | | Supported Signals | HD/SD SDI auto-sense & analog inputs | | Digital Video Inputs | 1 SDI input | | Digital Video Outputs | 1 SDI reclocked output on BNC | | Analog Video Inputs | 1 CVBS and 1 YPrPB HD input on Lemo 8 | | Exposure Control | Overexposure control | | Focus | Advanced focus helper | | Calibration | D56 - D65 manual color calibration | | Markers | Safe area markers | | Gamma | Gamma adjustable | | Power Input | 10 - 36V DC on XLR | | Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
