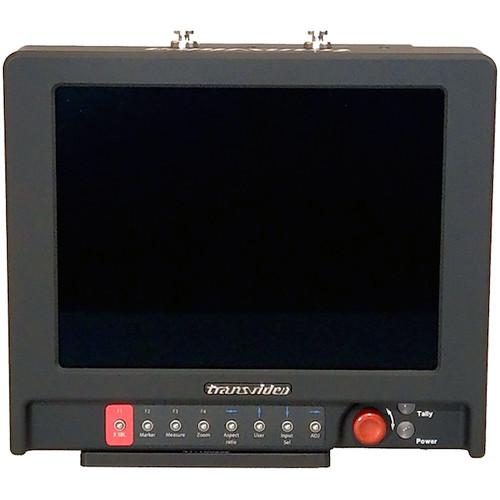

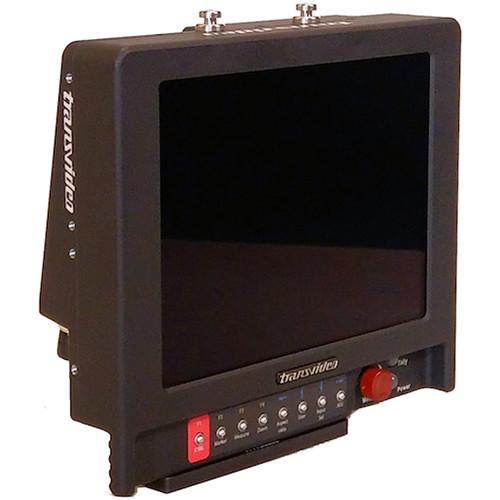

User Manual for Transvideo 8" CineMonitorHD8 X-SBL Evolution Click to enlarge the picture
Contents of the user manual for the Transvideo 8" CineMonitorHD8 X-SBL Evolution
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
 |
User manual for the Transvideo 8" CineMonitorHD8 X-SBL Evolution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The 8" CineMonitorHD8 X-SBL Evolution from Transvideo features an anti-glare bonded screen and 2500 cd/m2 brightness with a maximum contrast ratio of 1000:1. The 4:3 screen is partitioned in 2 areas: the picture zone displays the picture in 16/9 format whereas tools and measurements are displayed in the remaining free area of the screen. The monitor can be set in two operating modes either for outdoor viewing or color monitoring. In bright mode, details in the dark areas and highlights are maintained without a hood. Furthermore, it features Transvideo's proprietary technology with (RFR) Real Frame Rate processing, and the CineMonitorHD Evolution provides true monitoring of existing in-camera images with 1-frame delay or less. The processing technology displays clear images with minimal aliasing or motion-blur. - Inputs/Outputs

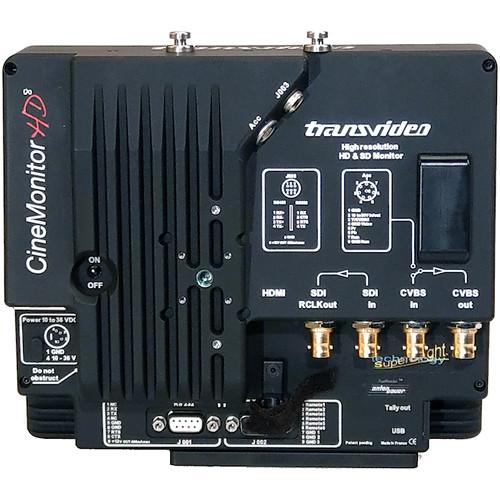

- 3G HD/SD SDI, HDMI, composite, YPrPb, RGB
- Measurements and Exposure Monitoring
-
- Waveform Y, R, G, B, RGB, YPrPb, YRGB (3 sizes: small, medium, full screen)
- Histogram, vectorscope
- User adjustable false colors, low or high light detail emphasis
- Color, Gammas, and Display Adjustments
-
- Factory color calibration preset D56/D65, backlight dimmer
- Input profiles: LogC, S-Log, S-Log2, Canon-Log, Rec709
- Brightness, contrast, saturation, hue
- Aspect ratios anamorphic de-squeeze, special scaling for Alexa 4:3
- Color, black & white and green modes, blue check
- Tools
-
- Focus helper, zoom pixel to pixel, /i and LDS LensReader + Cine Tape reader
- Markers (safe area, 4:3 and 14/9), crosshair, user frame lines
- On-screen timecode, tri-color led and multiple on-screen tally, SDI audio monitoring
- Battery and power information, image flips, & monitor reverse
- Includes VirtualHorizon2 with inertia & shock compensation

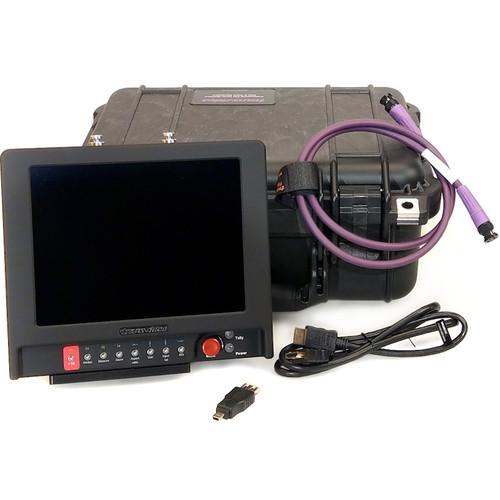

In the Box Transvideo 8" CineMonitorHD8 X-SBL Evolution Screen Protective Cover Microfiber Cloth and Bag 3.3' 4.5 GHz HDTV BNC Cable Mini HDMI Cable USB Adapter for Software Updates 2 x Shoulder Strap Pins Bottom Slide Pin Pelican Case with Custom Shaped Foam Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo 8" CineMonitorHD8 X-SBL Evolution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo X-SBL Specs | LCD Size | 8" / 20.3 cm | | Contrast Ratio | Maximum 1000:1 | | Viewing Angle | Horizontal:
