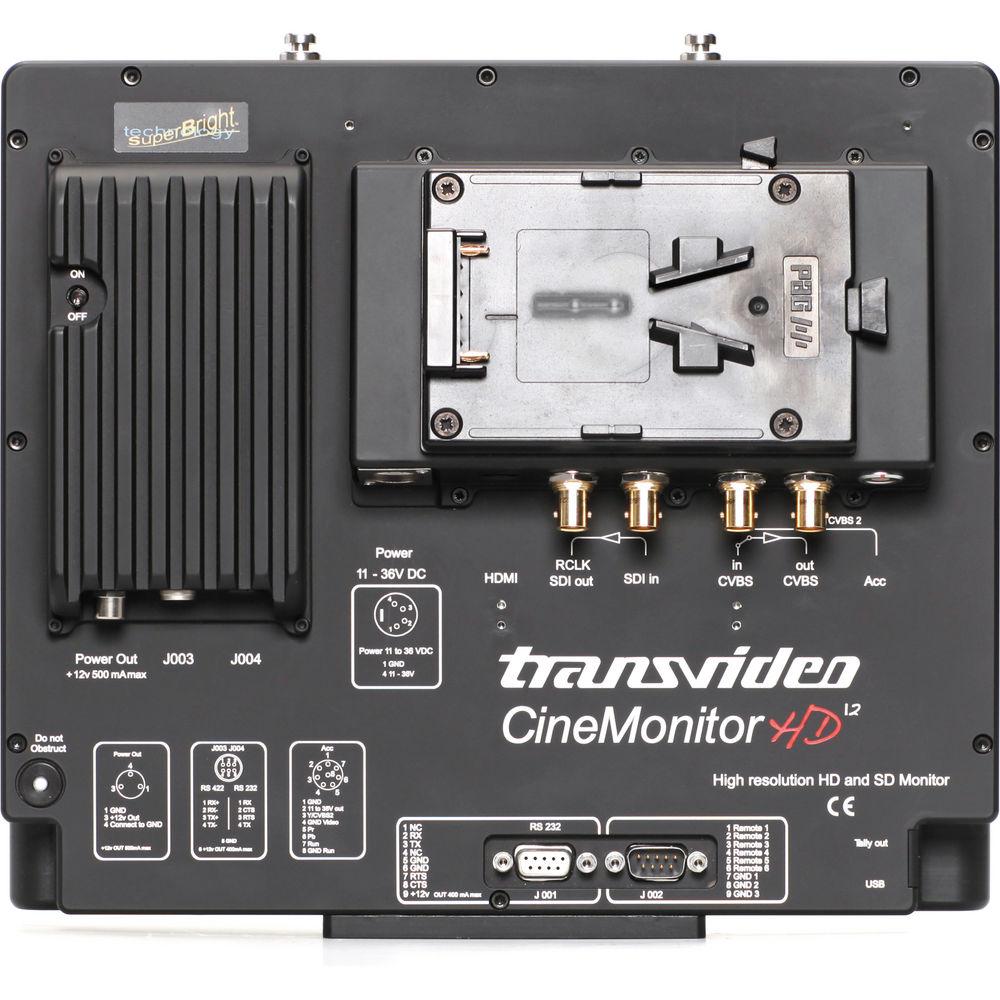

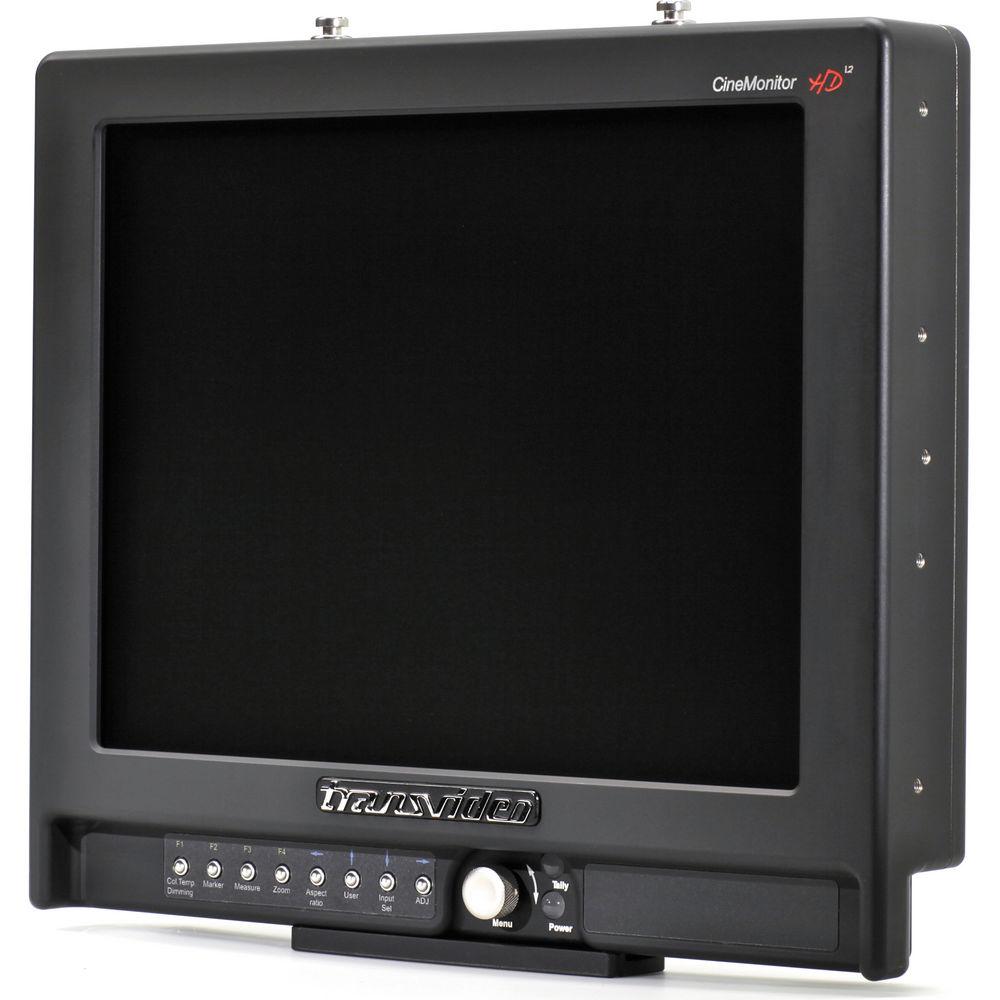

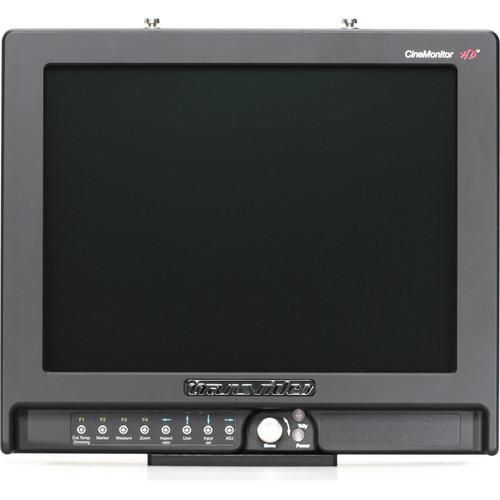

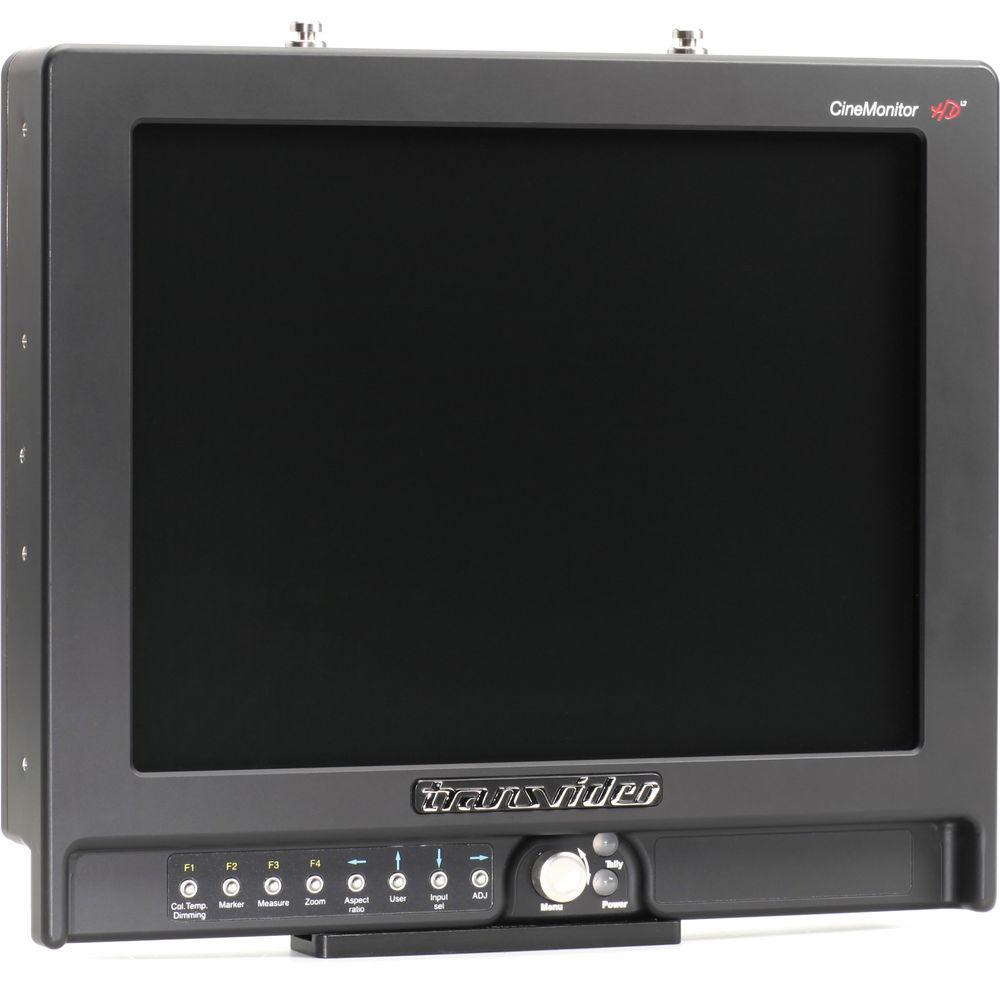

User Manual for Transvideo CineMonitor HD SB Video Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo CineMonitor HD SB Video Monitor
- Product category: Production Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo Production Monitors
 |
User manual for the Transvideo CineMonitor HD SB Video Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The Transvideo CineMonitor HD Video Monitor (12") supports all analog SD/HD video signals and uses Transvideo's proprietary processor, ensuring that the images are clear and without blur. It also uses RealFrameRate processing to make sure that fast-moving images appear crystal clear and are free of ghosting. Using SuperBright technology, the HD video monitor screen is bright enough to be viewed in almost any condition, thereby ensuring high-quality viewability outdoors and/or under direct sunlight. The 12" CineMonitor HD Video Monitor supports multiple aspect ratios (16:9, 4:3, and anamorphic). You can easily switch among the aspect ratios readily even when a feed is being displayed. The CineMonitor comes with a built-in tally light that lets you know when the feed being displayed on the monitor is the "main program" at that moment. The unit can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display. Low latency (<1 frame) of the monitor ensures of seamless continuous playback. The HD video monitor also supports zooming, and D68-D65 manual color calibration. Safe area markers allow you to ensure that the feed and adjustments being made thereof do not effect TV viewability. Further, the HD Video Monitor comes with adjustable gamma that lets you make easy corrections to the feed being displayed from the monitor itself. The 12" HD Video Monitor has optional enhancements - HD Frameline (which can be used to generate 3 colored framelines with or without the centre cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram). - Supports all analog SD/HD video signals
- Transvideo's proprietary processor ensures that the images are clear and without blur
- RealFrameRate processing ensures that fast-moving images are not marred by ghosting
- SuperBright technology ensures that the screen is bright enough to be legible in almost any condition; this ensures high-quality outdoor viewability
- Support for multiple aspect ratios (16:9, 4:3, and anamorphic) with switchability: the aspect ratio can be changed readily when displaying a feed
- Built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment
- Can display waveform, vector, and histogram scopes
- Can automatically reverse and correct any horizontal or vertical flips in the display
- Low latency (<1 frame) ensures seamless continuous playback
- D56-D65 manual color calibration
- Safe area markers allow you to ensure that the feed and the adjustments being made thereof do not effect TV viewability
- Adjustable gamma lets you make easy corrections to the feed being displayed from the monitor itself
- Optional enhancements available - HD Frameline (which can be used to generate 3 colored framelines with or without the centre cross), HD Virtual Horizon (which can be used to add a color-coded electronic bubble with several representations; the sensor is already built-in the monitor), and Advanced Measurement Tools (which can be used to add an RGB waveform with individual representation (parade mode), vectorscope, and histogram)
- Applications include digital cinematography, hi-speed digital video, helicopter, harsh environment
In the Box Transvideo CineMonitor HD SB Video Monitor (12") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo CineMonitor HD SB Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo SB Specs | Screen Size | 12" | | Brightness | SuperBright 1000 Nits | | Functions | 4:3 / 16:9 / 1:1.2.35
RFR Process
Tally
Waveform Vector Histogram
H&V FLIP Auto Reverse
Latency <1 frame
Zoom
D58 D65 Manual Color Calibration
Safe Area Markers
Gamma Adjustable | | Standard | HD 720p, 1080p & 1, SD PAL/SECAM/NTSC | | Display Mode | Color, B&W, green | | Display | AMLCD RGB stripe | | Video Connector | BNC | | Power | 10-36 VDC with galvanic insulation | | Power Connector | XLR4 - 1, 4 | | Operating Temperature | -4 ~ +131°F (-20 ~ +55°C) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
