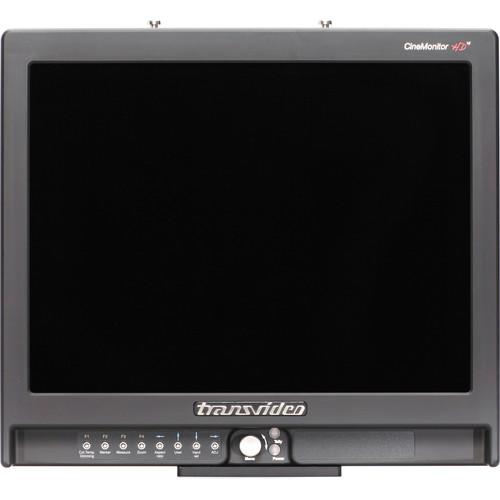

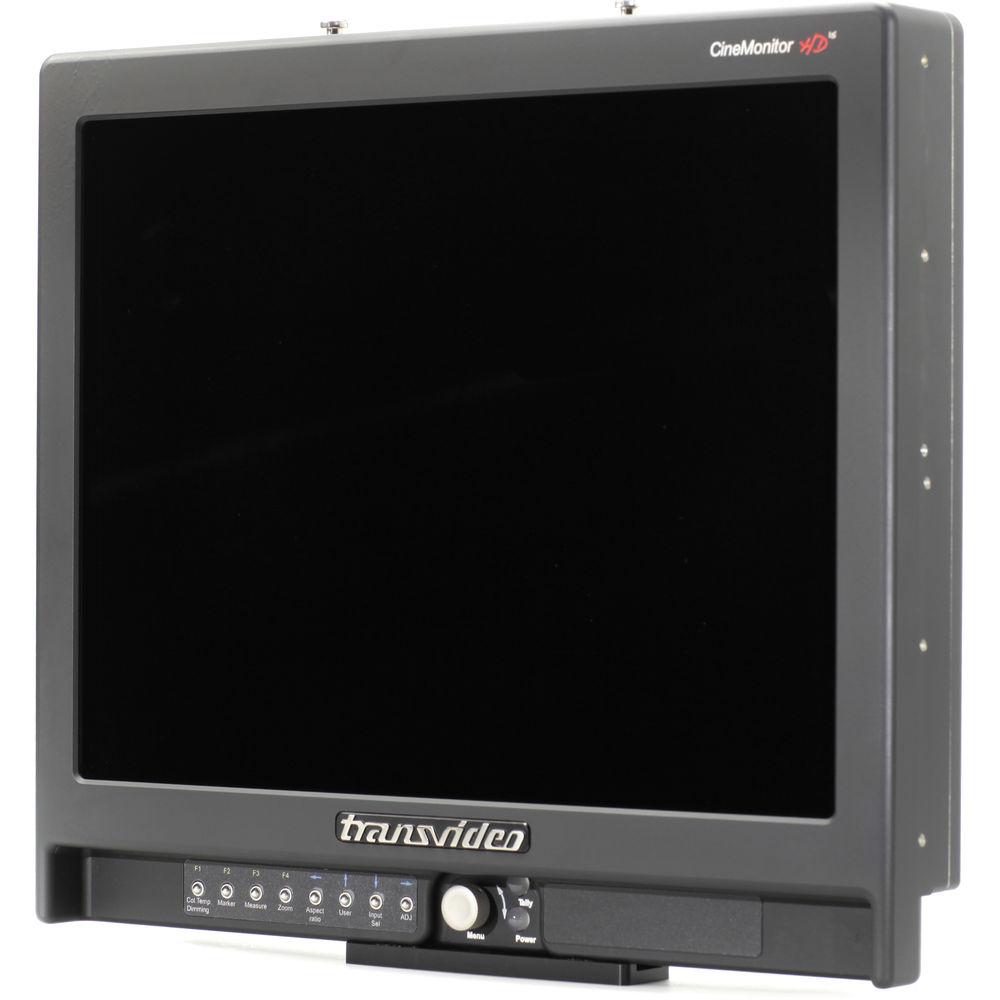

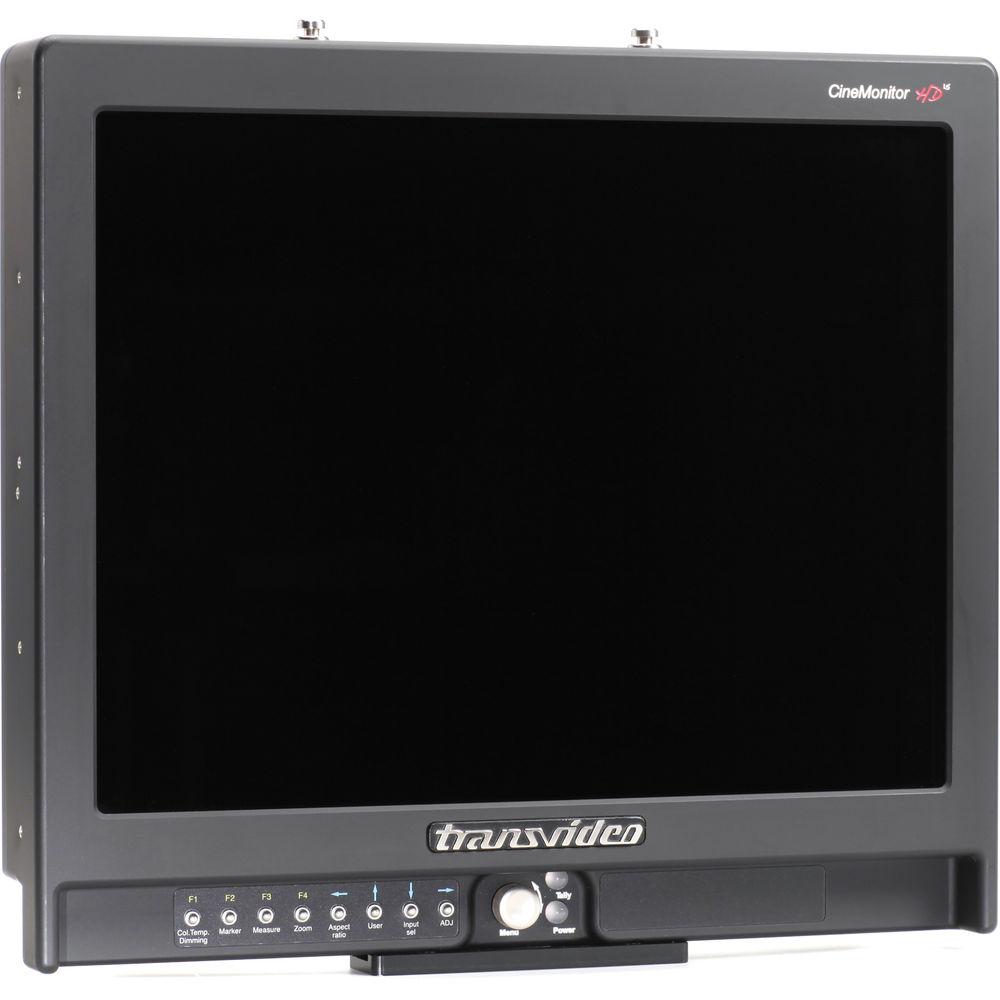

Product description The Transvideo CineMonitorHD SuperBright 15" 3DView Evolution Monitor is the same monitor as the CineMonitorHD Evolution but 3D-enhanced with an S3D tools kit and capable of being used for both 3D and regular 2D HD productions. This monitor is also a simplified version of the CineMonitorHD 3DView S, featuring less functionality but otherwise same picture quality and resolution.
The S3D tools kit includes multiple display modes for evaluating stereoscopic convergences and camera correlation. The two 3D eyes must at all times be synchronized in 3D mode, and for help with ensuring synchronization, the monitor has a genlock analyzer that alerts you when signals are not synchronized. The two eyes can be independently monitored and flipped vertically or horizontally, and Waveform and Luminance Histogram enable displaying both signals simultaneously.

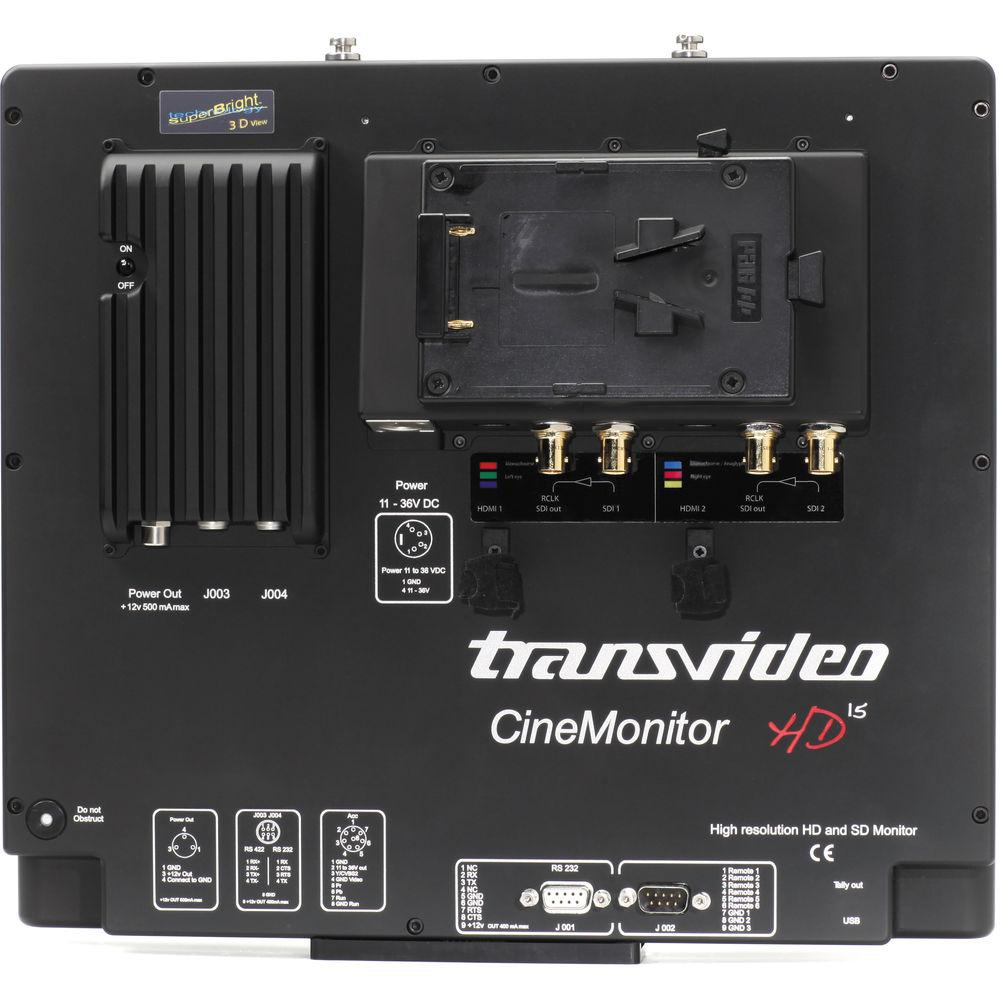

Connections consist of two SDI and two HDMI inputs plus two reclocked SDI outputs. Top resolution supported is 1080p, brightness is 1000 nits, contrast ratio 700:1, and latency less than one frame. Several accessories come included, among them: anaglyph glasses and a Pelican case. - Phase Analysis
- A phasemeter provides pixels and lines phase information between the 2 signals before synchronization
- 3D Modes
-
- Anaglyph: red/cyan, green/magenta, blue/yellow
- Monochrome
- Color
- Black & White
- Shutter Glasses
- 3D Tools
-
- Horizontal and vertical flips
- Derobe's Grid and Horizontal Picture Shift functions help to achieve two-camera photometric matching
- Display Settings
-
- Aspect ratios: 16:9, 4:3, and Anamorphic 2.40:1
- Markers: Safe Area, 4:3, and 14:9
- Zoom and reframe: Pixel-to-Pixel
- Image Flips and Monitor Reverse
- Color Adjustments
-
- Color calibration: D56/D65/manual, full bright, dimmer adjust
- Curves: LogC, LogF, PanaLog
- Gamma adjust: color / green / B&W modes
- Blue check
- Picture Analysis
-
- Line Waveforms: Y, R, G, B
- Parade Waveforms: RGB, GBR, YRGB, YPrPb
- Frame Waveforms with user-programmable clipping levels
- Luminance Histogram
- Vectorscope
- Exposure Monitoring
- Line Waveform, Parade Waveform, and Luminance Histogram also work in 3D. The 2 signal analysis is superimposed and uses a specific color.
- 2D Tools
-
- Full color Frameline and Matting Generator
- Timecode
- Audio Monitoring
- Voltage Control
- Tri-color and on-screen Tally (including embedded SDI Tally)
- Focus Helper
- i/ lens and CineTape data reader
- AvengerHorizon
- Optional VirtualHorizon2
- Focus Helper also works in 3D. The 2 signal analysis is superimposed and uses a specific color.
In the Box Transvideo CineMonitorHD SuperBright 15" 3DView Evolution Monitor Set of 2 Shoulder Strap Pins and 1 Bottom Slide Screen Protective Cover Microfiber Cloth and Bag 4.5 GHz 3D-HDTV BNC Dual Cable (6.5 ft / 2 m) 2 x Mini HDMI Cables Anaglyph Glasses USB Adapter for SW Updates Printed Documentation Pelican Case with Custom Shaped Foam Limited 2-Year Warranty Additional 1-Year Warranty Per Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo CineMonitorHD SuperBright 15" 3DView Evolution Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 3DView Evolution Specs | Connections | 2x HD/SD-SDI inputs
2x HD/SD-SDI reclocked outputs
2x mini HDMI inputs | | Supported Standards | 1080p, 1080i, 1080psf, 720p, 576p, 480p
HD-SDI (SMPTE 292M):
1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M) -- not available in 3D mode
1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M)
1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M)
1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M)
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)
SD-SDI (SMPTE 259M-C):
720 x 487i @ 60 Hz (SD-SDI 525 - SMPTE 125M) -- not available in 3D mode
720 x 576i @ 50 Hz (SD-SDI 625 - ITU-R BT.601) -- not available in 3D mode
HDMI:
720 x 480i @ 59.94, 60 Hz -- not available in 3D mode
720 x 576i @ 50 Hz -- not available in 3D mode
720 x 480p @ 59.94, 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz | | Display Type | AMLCD | | Pixels | Picture zone 1024 x 560 | | White Point Calibration | D65 ITU-R BT.709-5 and D56 | | Color Space | Rec. ITU-R BT.709-5 | | Latency | Less than 1 frame | | Contrast Ratio | 700:1 | | Viewing Angle | ±85° H / ±85° V | | Brightness | 1000 nits | | Power | XLR4 connector (-1, +4) with galvanic insulation | | Power Consumption | 10 - 36 VDC / 54 W | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions | 13.5 x 12.2 x 3.4" (34 x 31 x 8.6 cm) | | Weight | 9.25 lb (4.2 kg) |
