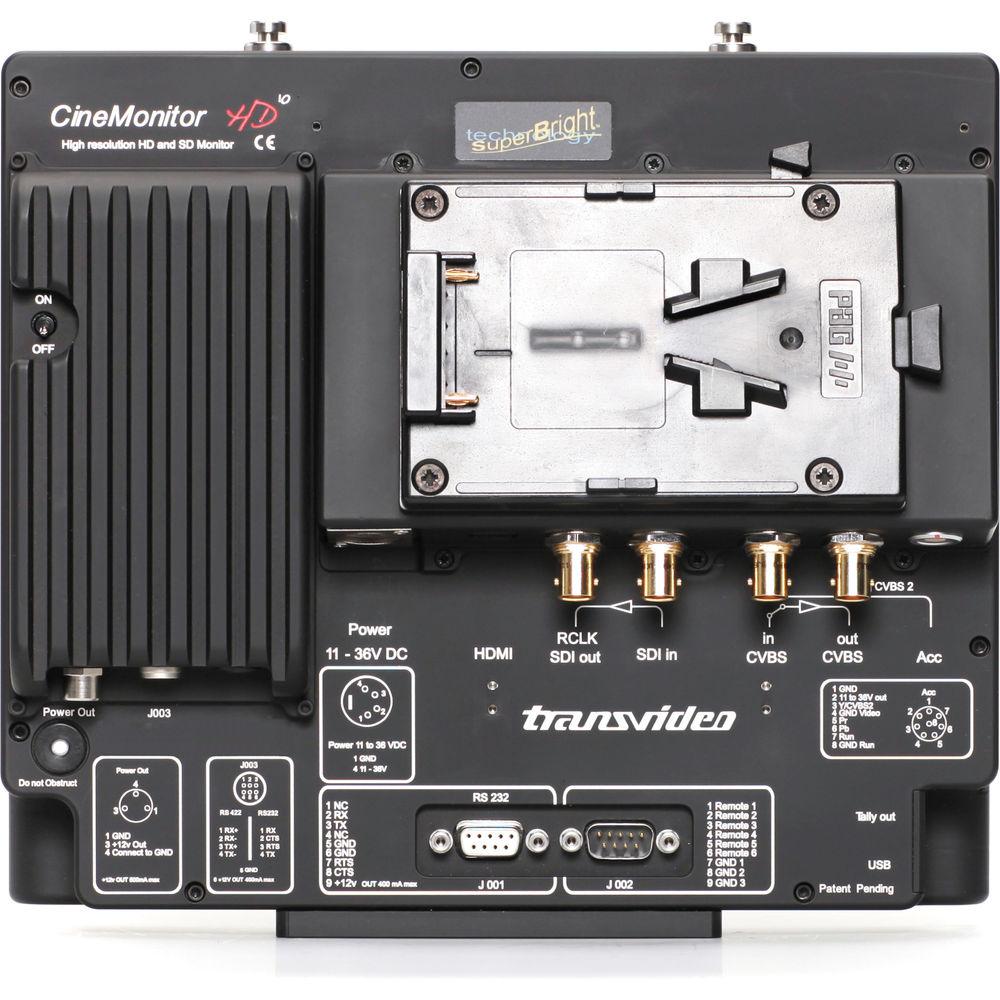

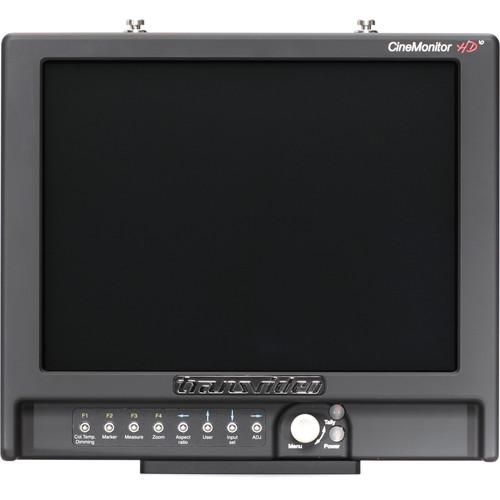

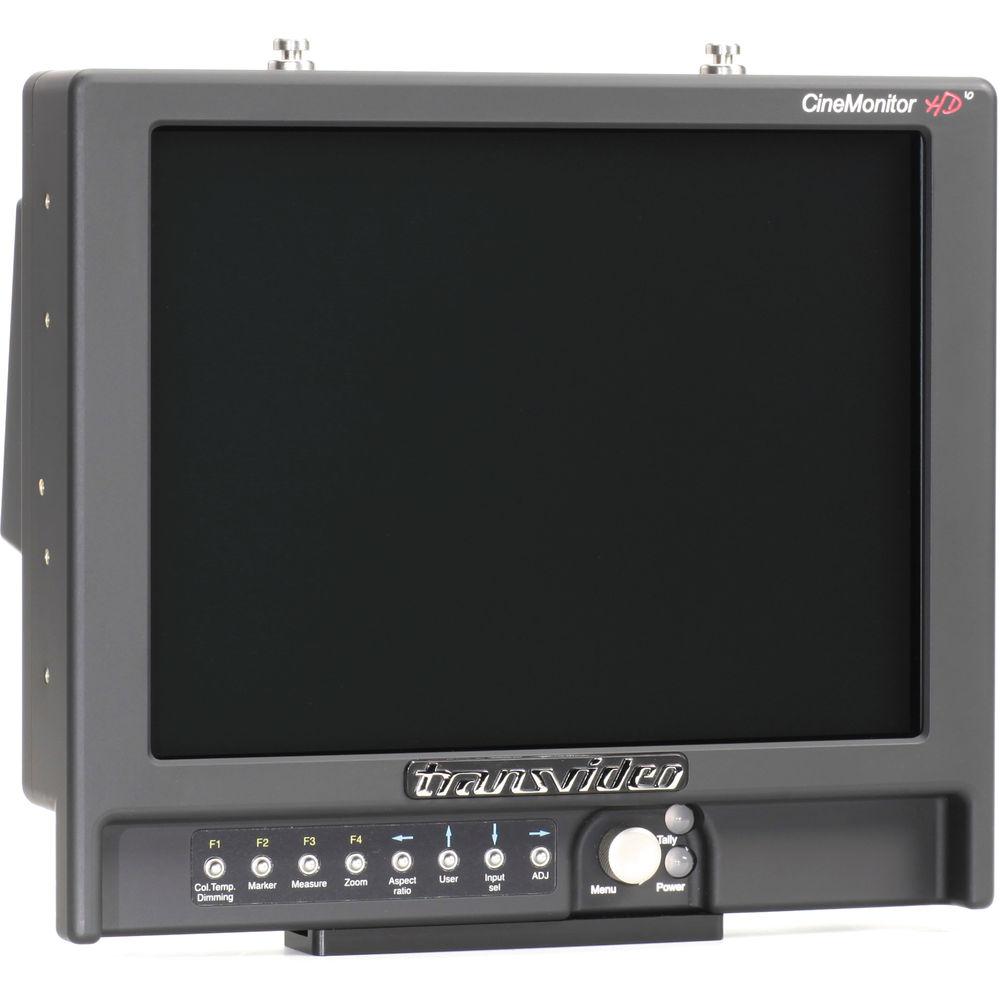

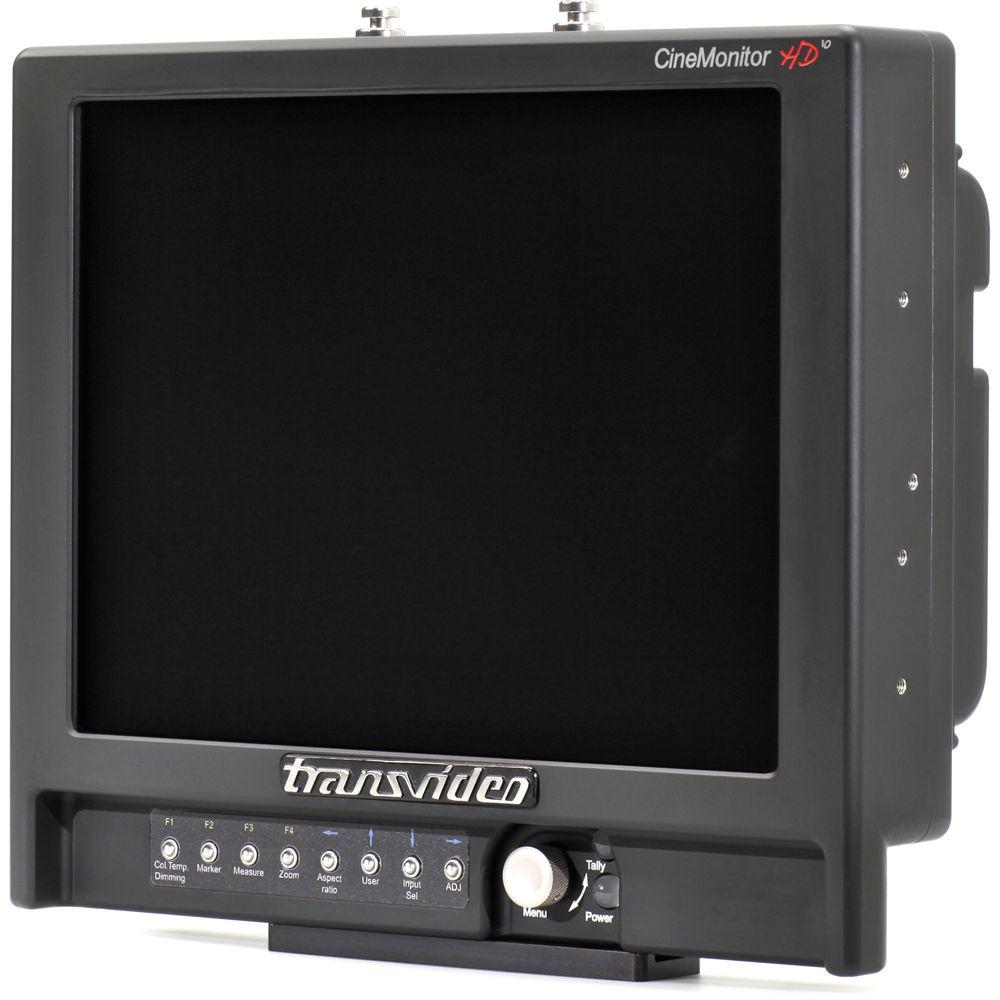

Product description The Transvideo CineMonitorHD10 SB Evolution (10”) allows for full sun operation by offering a brightness of 1000 Nits, and consumes low power (10 - 36V DC / 30W). Featuring 2 operating modes, it can be set either for outdoor viewing or for color monitoring. The monitor comes with a V-Lock battery socket as standard (Anton-Bauer or PAG battery sockets can be requested).
Using the RFR (RealFrameRate) processing, the monitor can display crystal clear images without aliasing or motion-blurs, and in-camera images with 1-frame delay or less. The CineMonitorHD10 SB Evolution can automatically recognize all standards, and is configured with HD/SD SDI and analog inputs.
In addition to functions such as Fixed markers, Blue Check, Colorimetry & Gamma Adjustments, Display Mode, Zoom & Reframe, and Image Flips & Monitor Reverse, the CineMonitorHD10 SB Evolution is also switchable between 16/9, Anamorphic, and 4:3 (in SD). It also features functions for HD monitoring such as Luminance Waveform with user- programmable clipping levels, Histogram, Vectorscope, Overexposure Control, and Full color Frameline & Matting Generator.
The CineMonitorHD10 SB Evolution also offers advanced functions such as Line, Sweep & Multiple Parade Waveforms, Time-Code, Embedded Audio Monitoring, i/ Lenses, Voltage Monitoring, Focus Helper, and Tri-color Tally. Equipped with a fully sealed aluminum housing, it also comes with galvanic insulation and an optical glass that protects the screen. A USB key allows you to install firmware and software updates. - Allows for full sun operation by offering an output of 1000 Nits
- Consumes low power (10 - 36V DC / 30W)
- Can be set in 2 operating modes - outdoor viewing or color monitoring
- Comes with a V-Lock battery socket as standard (Anton-Bauer or PAG battery sockets can be requested)
- RFR (RealFrameRate) processing - displays crystal clear images without aliasing or motion-blurs and in-camera images with 1-frame delay or less
- Can automatically recognize all standards
- Configured with HD/SD SDI and analog inputs
- Features Fixed markers (TV safe, 4:3 and 14/9), Blue Check, Colorimetry & Gamma Adjustments, Display Mode (Color, Green or Black & White), Zoom & Reframe, and Image Flips & Monitor Reverse
- Switchable between 16/9, Anamorphic, and 4:3 (in SD)
- Features necessary functions for HD monitoring - Luminance Waveform with user- programmable clipping levels, Histogram, Vectorscope, Overexposure Control, and Full color Frameline & Matting Generator
- Supports advanced functions - Line, Sweep & Multiple Parade Waveforms, Time-Code, Embedded Audio Monitoring, i/ Lenses, Voltage Monitoring, Focus Helper, and Tri-color Tally Fully sealed aluminum housing
- Comes with Galvanic insulation and an optical glass that protects the screen
- USB key - allows you to install firmware and software updates
In the Box Transvideo CineMonitorHD10 SB Evolution (10") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo CineMonitorHD10 SB Evolution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo SB Evolution Specs | Inputs | - 1 x HDMI
- 1 x HD/SD SDI + 1 Rck out
- 1 x CVBS (PAL/NTSC) + Loop
- 1 x Multi (YPrPb/RGB)
| | Contrast Ratio | max 600:1 | | Viewing Angle | ±80° H, ±65° V | | Brightness | 1000 Nits | | Dimensions (LxHxD) | 10.55 x 8.89 x 2.99" (268 x 226 x 76 mm) | | Weight | 5.84lb (2.65kg) | | Power Input | XLR4 connector (-1, +4) | | Power Consumption | 10 - 36V DC / 30W |
