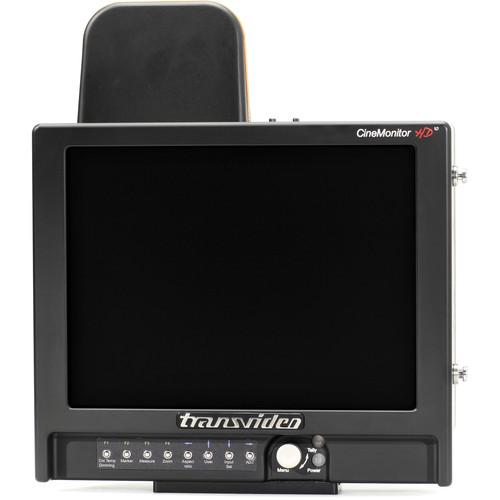

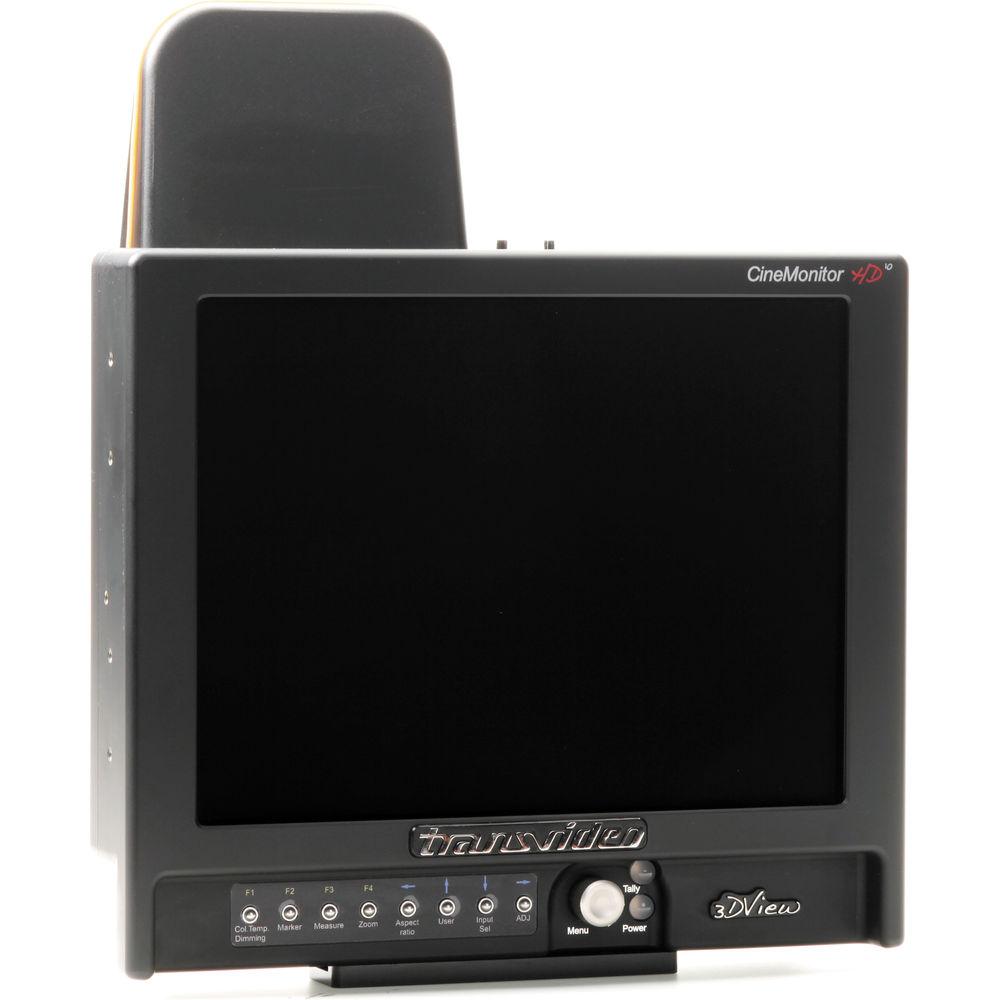

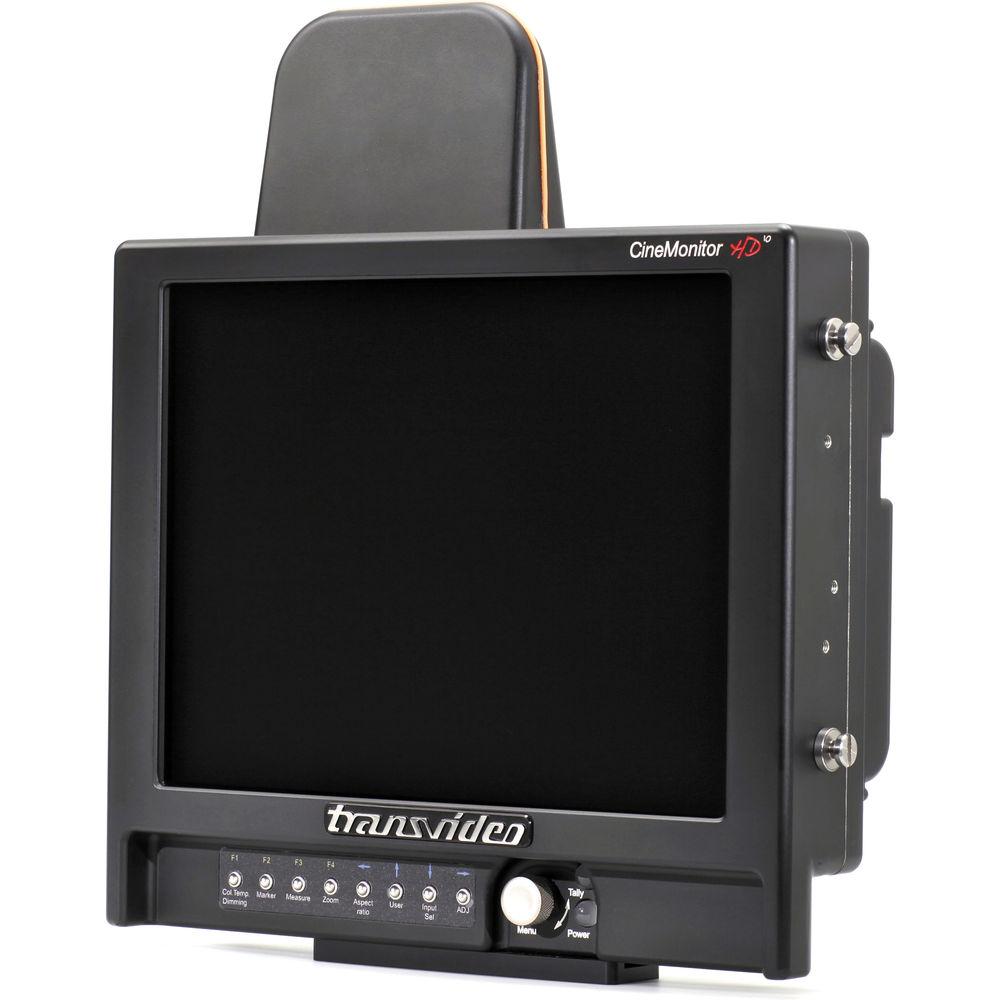

Product description The Transvideo CineMonitorHD12 SB RF-Ready Field Monitor is a 12" field monitor that can be powered using V-Mount-compatible batteries or other 11 to 36V DC sources. It is RF-ready, meaning it can be used with the Transvideo TitanHD Tx wireless transmitter.
The CineMonitorHD12 SB monitor ships precalibraded following the D65 ITU-R BT.709-5 and D56 specifications. It features a 4:3, XGA resolution panel that includes two zones. A 16:9, 1024 x 576 resolution picture zone above and a data zone below. The data zone can be used to display may types of useful data, including lens metadata, waveforms, histograms, SDI-embedded audio levels and more. It also features overlays including user-definable makers, focus peaking, timecode, mattes, and OSD tally.
The monitor supports standard definition PAL and NTSC signals as well as 720p, 1080i and 1080p. It features an HD-SDI/SD-SDI input with reclocked loop through, and HDMI input on a mini type C connector, a dedicated composite input with loop through, and an analog combo jack on an 8-pin Lemo connector for component, RGB, and composite. The screen adapts to non native aspect rations; the aspect ratios it supports are: 1.33:1, 1.78:1, 2.40:1 and 3.20:1. In addition, framelines can be used to "safe-in" secondary aspect ratio in cases were multiple deliver formats are anticipated. - LensReader for /i and LDS lenses and Cine Tape
- Displays metadata from /i and LDS lenses as virtual scales the below the video image. Scales include: focus with depth of field and hyperfocal point, iris, zoom (if any). LensReader is compatible with: Cooke 5/i, S4/i, and mini S4/i; Arri/Zeiss MasterPrime and UltraPrime LDS; Arri/Fujinon Alura lightweight zooms; and Fujinon Cabrio series
When a Cine Tape is connected to the monitor, measured distance is displayed on the focus ring - AvengerLeveler
- Formerly VirtualHorizon, AvengerLeveler is a color coded electronic leveler with several renditions, adjustable sensitivity, and direction. The leveler cam either be driven by a built-in sensor or use an external sensor, such as the Betz-Tools external horizon
- Waveform
- The monitor offer two waveform modes:
Sweep Mode: Shows a line representation of the picture in two sub-modes: In Line Mode, showing the Y, R, G or B component of the signal; in Parade Mode, showing RGB, GBR, YRGB, or YPrPb. Sweep Mode can display frame, twelve lines, or one specific line waveforms. In addition, the waveform can also be displayed as overlay above the video image
Frame Mode: Shows a frame representation of the Y component of the signal - Vector Scope
- Plots color vectors on a circular graph to provide objective data on the color composition of the image
- False Color
- Tints specific tonal values in the frame with a particular color to assist in gauging accurate exposure. Safety limits for clipping as well as maximum and minimum exposure values can be user defined
- Markers
- Includes preset markers for 4:3, 14:9, 16:9 as well as "TV safe". In addition, user-defined frame lines can created, composed of solid lines, dots, dashes, or corners with or without a crosshair and with or without matting. Matting includes four solid colors and four shades of semi-opaque gray
- Focus Peaking and Magnification
- Choose between ten levels and nine colors. Peaking puts an colored overlay of increasing density over high-contrast parts of the frame to help identify what is in focus. Additionally, the image magnification scales the image at pixel to pixel to make critical focusing easier
- Audio Detect
- Places an icon on the display indicating whether embedded audio is detected in the SDI signal alongside a digital VU meter showing one stereo pair out of the possible eight stereo channels SDI carries
- LED and OSD Tally
- Up to three tallies may be displayed simultaneously: two from an external source and one based triggered by the camera REC/STOP command embedded in the SDI signal. The tally can be a colored LED Displays and/or an on-screen tally. The OSD tally can take the form of frameline, "REC" style, or a big "ON AIR" exclamation
- Timecode Overlay
- Displays SDI-embedded LTC, VUTC1, or VITC2 timecode
- Image Flip
- The image can be flipped horizontally or vertically as well as reversed, in case the monitor will be mounted upside down. Reversing can either automatically flip the image when the monitor is rotated or be locked in manually
- Display Adjustments
- Basic display adjustments include brightness, saturation, contrast, saturation, and hue. Advanced settings include gamma correction, with presets for linear, Rec. 709, Log C, and S-Log
- 11 to 36V DC Power
- Allows the monitor to be powered from a wide range of mobile power sources, including professional battery systems. The 4-pin XLR power input features galvanic isolation to help prevent ground loops in case of reverse polarity
In the Box Transvideo CineMonitorHD12 SB RF-Ready Field Monitor (V-Mount) Limited 2-Year Warranty - Extends to a Total of 3 Years With Registration Through Transvideo Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo CineMonitorHD12 SB RF-Ready Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 917TS0074V Specs | Screen Size | 12" diagonal | | Type | AMLCD | | Resolution | Picture Zone: 1024 x 576 | | Brightness | 1000 Nits | | Contrast Ratio | 500:1 | | Viewing Angle | ±85° H / +65°/-80° V | | Color Space | D65 ITU-R BT.709-5 and D56 | | Video Standards | HD: 1080p / 1080i / 1080psf / 720p
SD: 480p / 576p
SD-SDI: 525 / 625

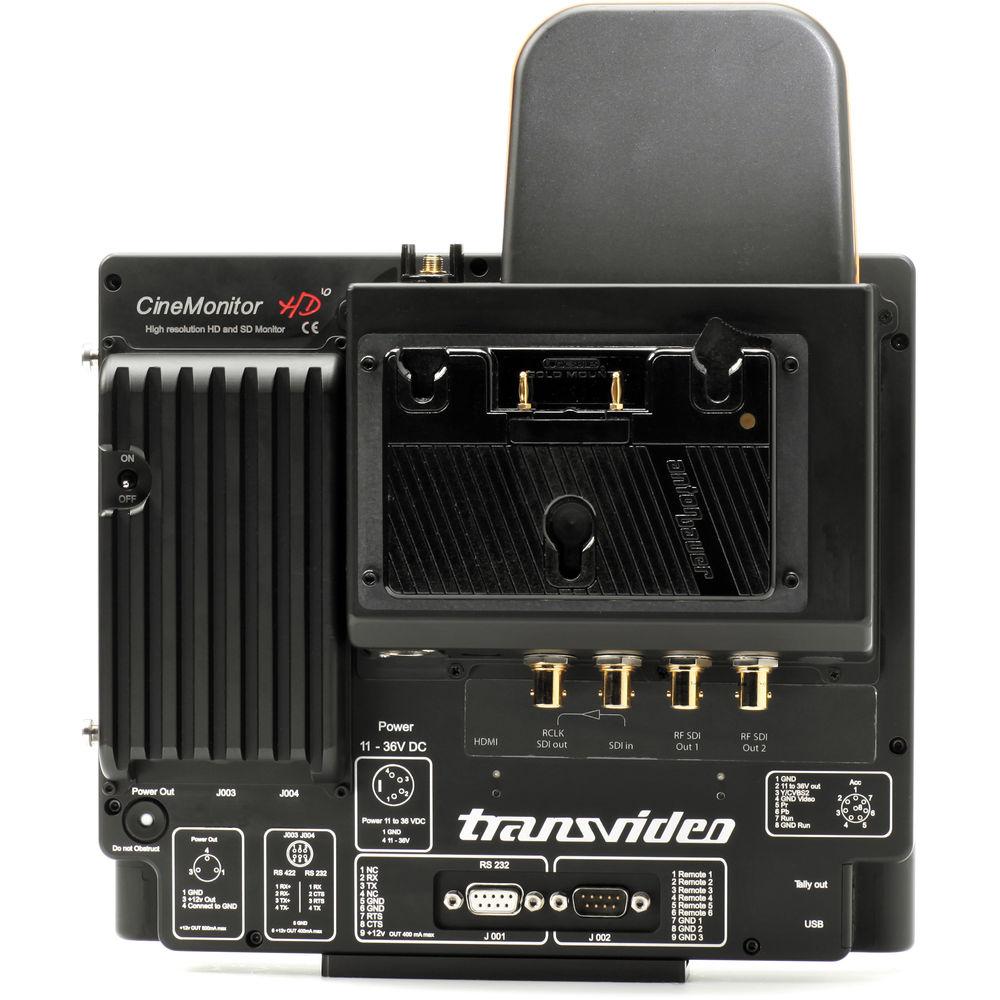

Color Systems: NTSC (M, J, 443) / PAL (M, BG, N) / SECAM | | Inputs | 1 x HD-SDI/SD-SDI on BNC connector
1 x Composite on BNC female
1 x Component / RGB / composite combo on 8-pin Lemo connector
1 x HDMI mini type C
1 x 4-pin XLR power connector - galvanic isolation | | Outputs | 1 x HD-SDI/SD-SDI reclocked loopthrough on BNC female 1 x Composite loop through on BNC female
1 x Tally
1 x 3-point Phoenix connector for power | | Remote | 1 x RS-232 / RS-422 / HR-25 on 9-pin D-sub female
1 x GPI on 9-pin D-sub male | | USB | 1 x USB | | Power Consumption | 41 W | | Power Requirements | 11 - 36 VDC through 4-pin XLR or battery plate | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -40 to 176°F / -40 to 80°C | | Dimensions (L x H x D) | 11.7 x 13.4 x 3.7" / 298 x 339 x 95 cm | | Weight | 8.4 lb / 3.8 kg |
