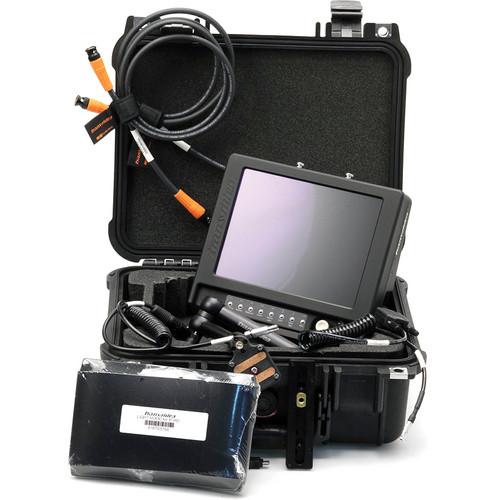

User Manual for Transvideo CineMonitorHD8 SBL Evolution Alexa Package Click to enlarge the picture
Contents of the user manual for the Transvideo CineMonitorHD8 SBL Evolution Alexa Package
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
|
User manual for the Transvideo CineMonitorHD8 SBL Evolution Alexa Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|
Product description The Transvideo CineMonitorHD8 SBL Evolution Alexa Package includes the 8" CineMonitor Evolution HD Video Monitor, a heavy-duty 3D Swing Arm, a Carbon Handle, two 4.5GHz HDTV BNC Cables (1m), a mini HDMI Cable, an i/ lens cable to display data from Cooke or Angenieux Lens /i primes and zooms, a RS3 power cable, and a USB adapter for updates. The package also includes a screen protective cover, a microfiber cloth and bag, a light hood, and a Pelican case with custom shaped foam.
The 8" CineMonitor HD Video Monitor supports all analog SD/HD video signals. The video monitor uses Transvideo's processor to ensure that the images are clear and free from blur. It also uses RealFrameRate processing to make sure that fast-moving images appear crystal clear and are not marred by ghosting. The built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment.
The CineMonitor HD Video Monitor supports multiple aspect ratios (16:9, 4:3, and anamorphic); you can easily switch among the aspect ratios readily even when a feed is being displayed. The HD video monitor unit also supports zooming, and D56-D65 manual color calibration. Given the Transvideo 8" monitor's low latency (less than one frame), you can be rest assured of seamless continuous playback. The HD video monitor can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display (thereby saving you the trouble from having to do so manually).
The Heavy-Duty 3D Swing Arm for Alexa is designed for the CineMonitorHD 8" used with ARRI cameras. The clamp for sliding on the top allows mounting the monitor from the bottom slide, its back or any extra slide. It comes with a special 3/8"-16 male thread on the bottom that keeps the arm steady and prevents rotation. Thanks to the die-cast stainless steel body, it fits perfectly and securely on the side or on the handle of the camera.
The Carbon Handle for CineMonitorHD Monitor provides you with a secure and elegant way to carry your CineMonitorHD in the studio or on location. This handle can be attached to the top or either side of the 8", 10", 12", and 15" monitors, but only to the top of the 6" monitor. A quick release mechanism makes it easy to attach or detach this handle from the monitor.
The 3.3' (1m) long 4.5 GHz HDTV BNC Male to BNC Male Cable is a high-performance HDTV cable tested at 3 GHz. This cable features certified HD BNC male connectors.
The 1.6 to 2.3’ (50 to 70cm) XLR4 Female to RS3 (Fisher3) Male Spiral Cable is used to power the CineMonitorHD. In the Box Transvideo CineMonitorHD8 SBL Evolution Alexa Package Transvideo 8" CineMonitor HD Video Monitor fsrtwqyzftwdaqrc Heavy-Duty 3D Swing Arm for ARRI Alexa Carbon Handle for 6" CineMonitorHD 2 x 4.5 GHz 3G-SDI BNC to BNC Cable (3.3') RS3 Power Cable 2 x Shoulder Strap Pin Bottom Slide Mini HDMI Cable i/ Lens Cable USB Adapter Screen Protective Cover Microfiber Cloth & Bag Light Hood Pelican Case with Custom Shaped Foam Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo CineMonitorHD8 SBL Evolution Alexa Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo HD8 SBL Specs
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
