User Manual for Transvideo RainbowHD7 SBL 7" SuperBright On-Board Monitor Click to enlarge the picture
Contents of the user manual for the Transvideo RainbowHD7 SBL 7" SuperBright On-Board
- Product category: On Camera Monitors Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo On Camera Monitors
 |
User manual for the Transvideo RainbowHD7 SBL 7" SuperBright On-Board contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|

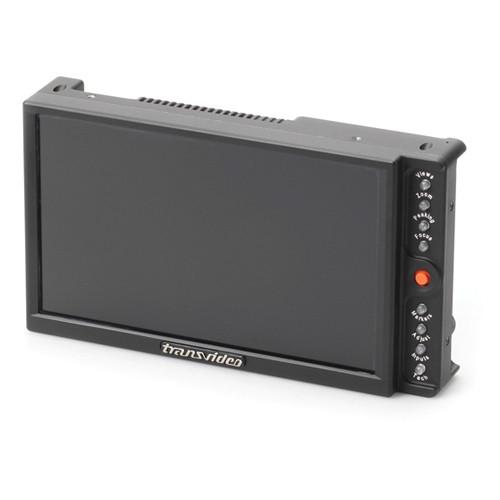

Product description The Transvideo7" RainbowHD7 SBL On-Board Monitor is similar to the standard unit, but is significantly brighter which makes it more than suitable for use outdoors. It is slim and rugged, precision machined from aluminum, the housing is fully sealed with no cooling fans and therefore no fan noise to intrude on your shoot. It also features an anti reflective protective glass screen.
The monitor supports four pre-configured modes, referred to by Transvido as "modes", which avoids needing to navigate deep into the menu system to find the right tools. The RainbowHD7 includes a high performance 4.5GHz HDTV BNC Cable with certified HD BNC male connectors. Each cable is individually tested at 3GHz before being included with a monitor. - Inputs / Outputs
-
- HD/SD SDI, HDMI, and composite
- HDMI to SDI converter
- Measurements
-
- Waveform, histogram, and vectorscope
- Display Adjust
-
- Factory color calibration preset D56/D65 - dimming
- Brightness, contrast, saturation, and hue
- Aspect ratios
- Tools
-
- Focus helper, peaking, zoom pixel to pixel
- Markers 1.33:1 & 1.56:1, safe area, crosshair
- Timecode reader, tally on SDI
- Battery / power information
- Embedded audio monitoring
In the Box Transvideo RainbowHD7 SBL 7" SuperBright On-Board Monitor Screen Protective Cover Microfiber Cloth & Bag 4.5 GHz 3G-SDI BNC to BNC Cable (3.3') frecvrftddrqvbf Pelican Case with Custom Cut Foam Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo RainbowHD7 SBL 7" SuperBright On-Board Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

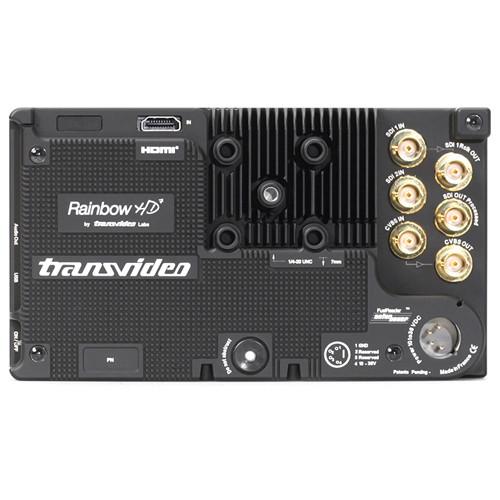

Technical parametersTransvideo SuperBright Specs | Video Input | 2 x SD/HD/3G SDI
1 x HDMI
1 x CVBS | | Video Output | 2 x HD/SD SDI (processed)
1 x CVBS (loop) | | Supported Standards | 1080p / 1080i / 1080psf
480p / 576p / 720p
SD SDI 525 / 625
NTSC (M, J, 443) / PAL (M, BG, N) / SECAM | | Display Type | AMLCD, 7.0" / 177.8 mm | | Pixels | Picture zone 1024 x 560 | | White Point Calibration | D65 ITU-R BT.709-5 & D56 | | Color Space | Rec. ITU-R BT.709-5 | | Contrast Ratio | 950:1 (600:1 ANSI) | | Brightness | Maximum: 900 Nits | | Viewing Angle | Horizontal & Vertical: ±80° | | Power | 10 to 36 VDC through XLR4 or battery adapter (Anton-Bauer & V-mount) | | Dimensions (W x H x D) | 7.5 x 4.1 x 14." / 187 x 105 x 35 mm | | Weight | 23.2 oz / 660 g | | | | Package Weight | 2.76 lb | | Box Dimensions (LxWxH) | 10.8 x 6.8 x 3.8" |
