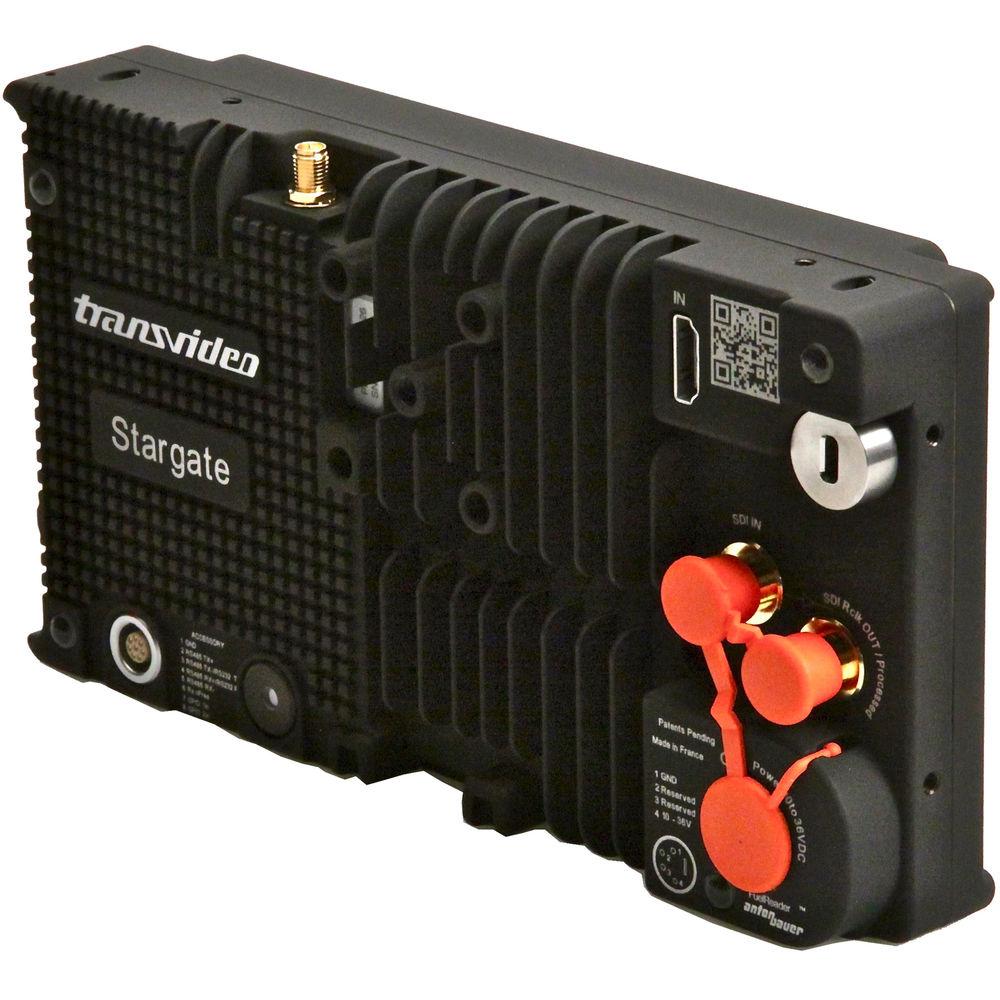

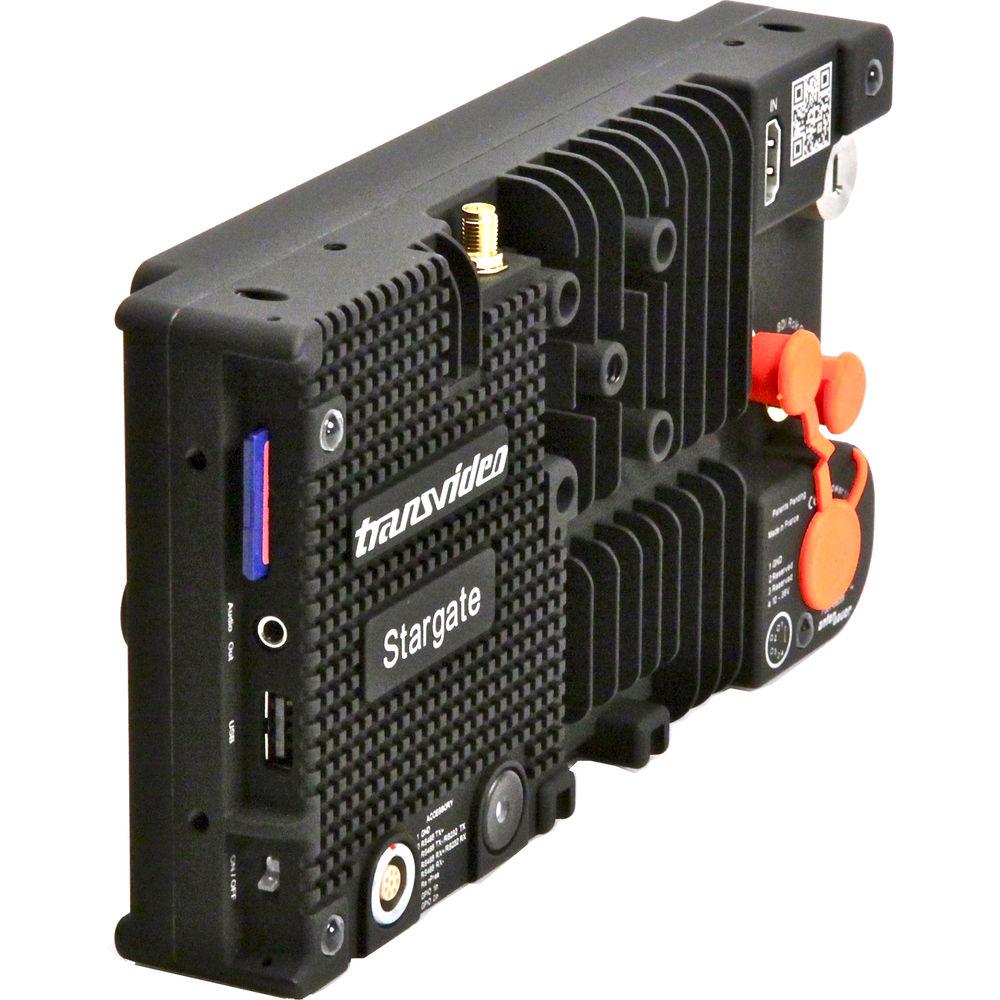

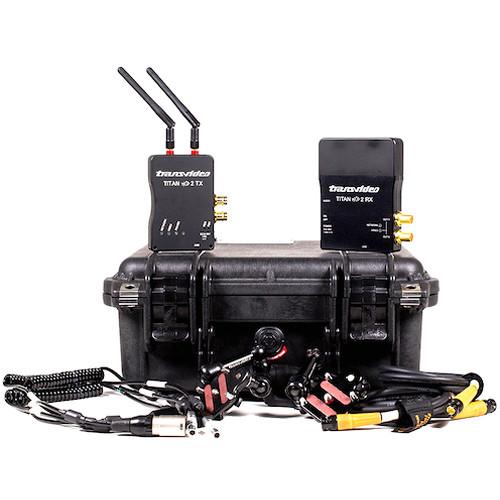

Product description The StarliteRF-ARRI Version Deluxe Kit from Transvideo includes two TitanHD2 Transmitters, one TitanHD2 Receiver, StarliteRF-A Monitor, and hard case with custom foam. - 5" StarliteRF Arri Pack with TitanHD2 Transmitter The 5" StarliteRF Arri Pack from Transvideo includes the StarliteRF-a monitor and a TitanHD2 Transmitter that connects to the external socket of the cameras via included cables.

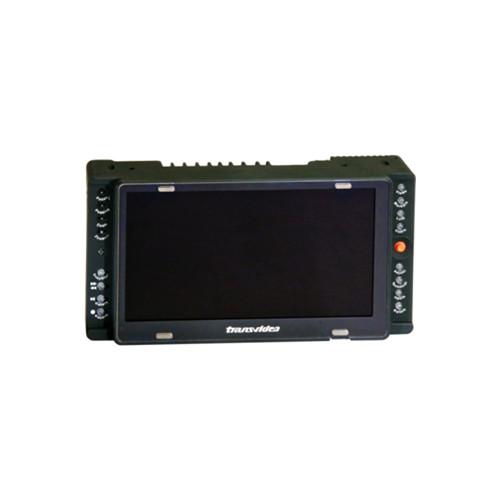

The 5" OLED wireless monitor-recorder consists of advanced features for remote control of ARRI's Alexa-Mini and AMIRA cameras.

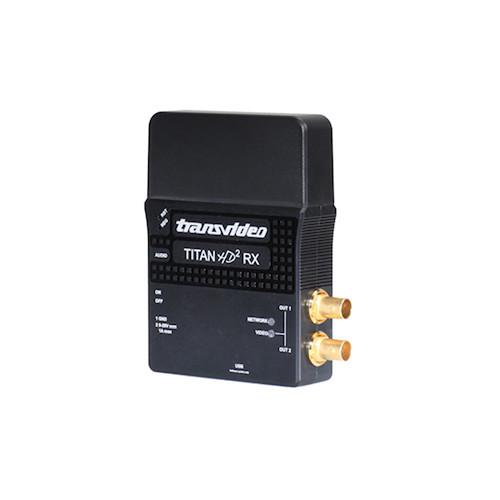

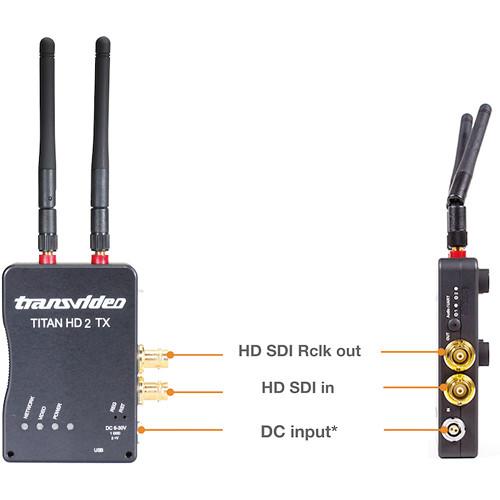

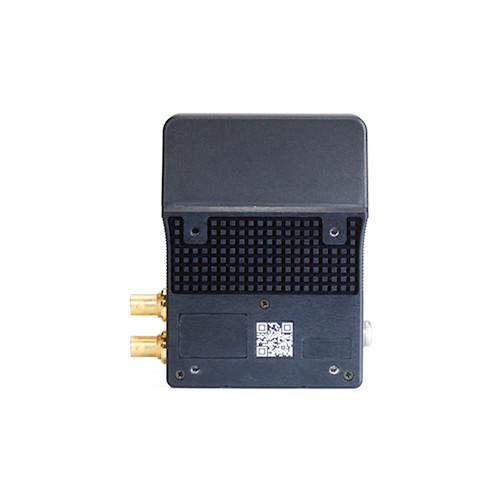

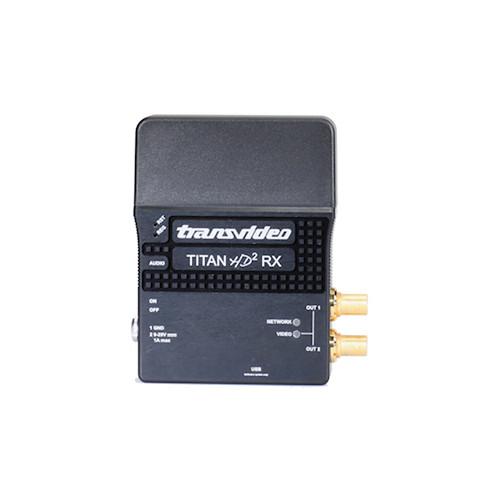

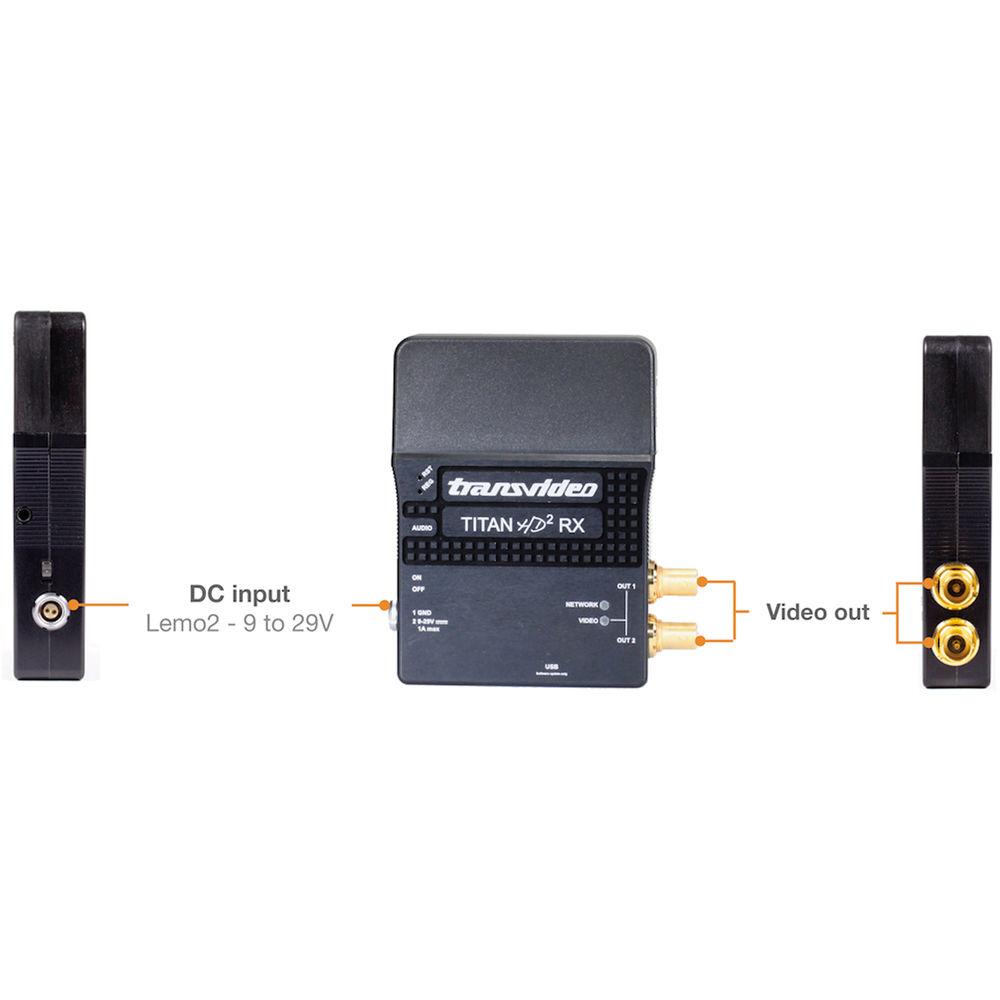

The TitanHD2 Transmitter is capable of connecting to up to four TitanHD2 receivers using 5.8 GHz ISM band frequency at a range of 600'. - TitanHD2 Receiver The TitanHD2 Receiver from Transvideo operates on the 5.8 GHz ISM band.The receiver is paired with TitanHD2 transmitter and can be used in any type of configuration.
In the Box Bundle Items 5" StarliteRF Arri Pack with TitanHD2 Transmitter - LEMO2 Mini to D-Tap Power Cable
- LEMO5 to LEMO6 Power Cable for TitanHD2 Transmitter
- LEMO5 to D-Tap Power Cable for TitanHD2 Transmitter
- LEMO2 Mini to XLR4-M Power Cable
- BNC Cable DIN 1.0/2.3 Plug
- Mini 3D Swing Arm for Alexa/Amira
TitanHD2 Receiver xsxtdtdefvyvbtybezer Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo StarliteRF-ARRI Version Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 5" StarliteRF Arri Pack with TitanHD2 Transmitter
| | | Display Type | 5" OLED touchscreen with wide color gamut (EBU) | | Resolution | 1280 x 720 | | Brightness | 380 cd/m2 | | Contrast Ratio | 3400:1 | | Viewing Angle | 170° H & V | | Supported Standards | 3G: 1080 / 50p, 60p
HD: 1080 / 50i, 60i; 1080 / 24p, 25p, 30p, 24psf, 25psf; 720 / 25p, 30p, 50p, 60pf | | Video Output | 1 x 3G/HD/SDI | | Recording Format | H.264 on SD card (sold separately) | | Receiver Frequency Response | Built-in 5.8 GHz ISM band | | Power | 6 to 30 VDC power input through LEMO2 "0B"
1 GND, 2 VDC | | Power Consumption | 12 W | | Battery | Socket: Sony type L | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Audio | 1-channel stereo + SDI embedded | | Supported Standards | 720p / 1080p / 1080i / 1080psf | | Video In/Out | 1 x HD SDI input + Rclk output | | Modulation | OFDM MiMo | | Power | 5 to 29 VDC (-1, +2)
LEMO2 mini (EGG.0B.302 CLL) | | Power Consumption | 6 W | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions | 3.9 x 2.7 x 0.92" (9.9 x 6.8 x 2.33 cm) | | Weight | 7.76 oz (220 g) | - TitanHD2 Receiver
| Video Inputs/Outputs | 1 x HD-SDI input + Rclk out | | Supported Formats | 720p / 1080p/ 1080i / 1080 psf | | Audio | 1-channel stereo + SDI embedded | | Modulation | OFDM MiMo | | Latency | > 1 ms | | Power | 9 to 29 VDC
6 W maximum | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
