User Manual for Transvideo TitanHD Transmitter and Receiver Pack Click to enlarge the picture
Contents of the user manual for the Transvideo TitanHD Transmitter and Receiver Pack
- Product category: Wireless Transmission Systems Transvideo
- Brand: Transvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Transvideo Wireless Transmission Systems
 |
User manual for the Transvideo TitanHD Transmitter and Receiver Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Transvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Transvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Transvideo product will considerably shorten its lifespan!
|

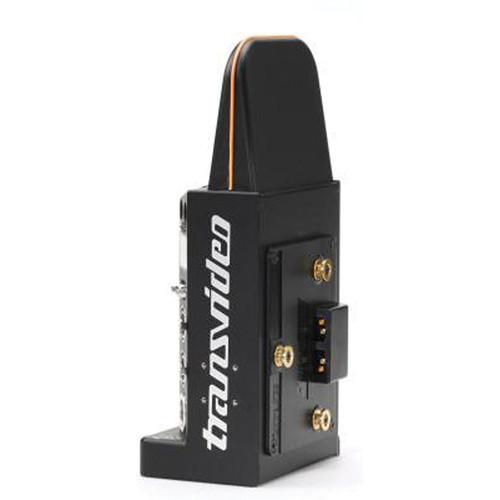

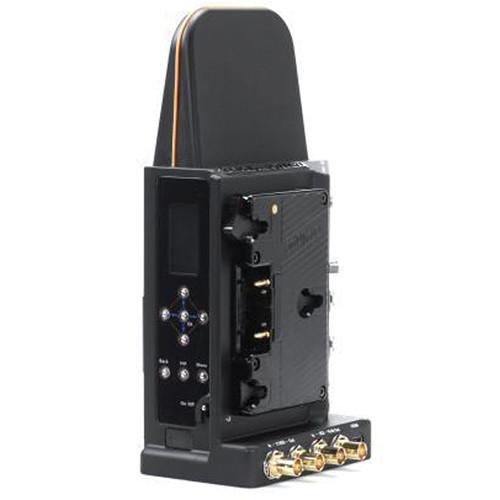

Product description The TransVideo TitanHD Transmitter and Receiver Pack allows transmission and receipt of signal without any loss in a normal environment. With latency below 5ms, this transmitter and receiver pack provides real-time SD/HD monitoring.Based on a 5GHz ISM band COFDM MiMo wireless system, the TitanHD Transmitter and Receiver Pack carries RGB and YCrCb 10-bit signal (HD SDI and HDMI), as well as SD SDI and composite signals. It provides good signal strength and stability.The Transmitter can be stacked between the camera and battery. It can be powered by an Anton Bauer battery (sold separately) or an external DC. It works on the 5.8GHz ISM band that doesn't require a broadcast license. - State-of-the-art Digital HD/SD Wireless Transmission System
- The Transmitter can be stacked between the camera and the battery and is suitable for video-village, news, sport, digital-cinematography, and body-rigs. With latency below 5ms, the Transmitter transmits HD/SD SDI, composite, & HDMI signals using the 5.8GHz ISM band that doesn't require a broadcast license.
- Transmission Range
- The transmission range varies depending on the topology of the location; performance remains excellent within an open field line of sight test from 200.0' (60.9m). It can be reduced by walls or interferences with other systems.
- Link
- The selection of a channel can be manual or automatic. In P2P mode, the link is possible only between one receiver and one transmitter. In Broadcast mode, up to 6 receivers can be linked to a single transmitter, but data transmission from receiver to transmitter (S/N ratio, GPIO) is not possible.
- Compliance
- This transmitter and receiver pack complies with part 15C of the FCC rules and the procedures issued by Industry Canada

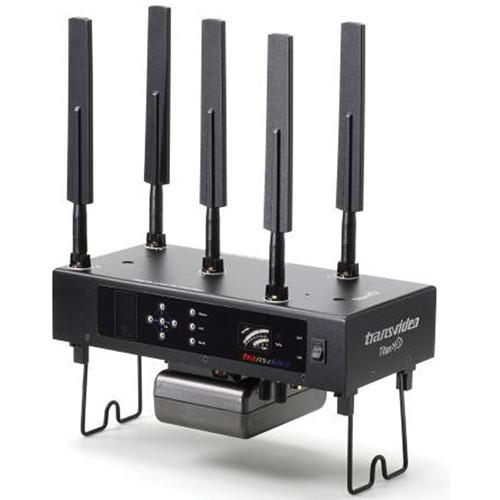

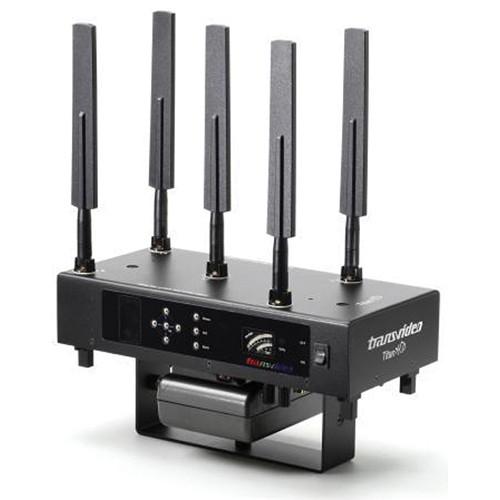

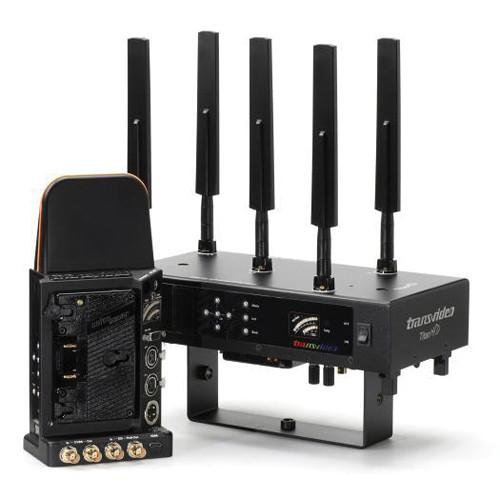

In the Box Transvideo TitanHD Transmitter and Receiver Pack (Anton Bauer Battery Compatible) 5 x Antenna (3dBi) U-Shape Holder with C-Stand Adapter AL30 Power Supply (30W) USB Adapter for Software Updates Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Transvideo TitanHD Transmitter and Receiver Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTransvideo 904TS0129A Specs | Transmitter | Input/Output: 1 x HD/SD SDI + 1 Rclk out (BNC)
1 x CVBS + Loop (BNC)
1 x mini HDMI in | | Receiver | Output: 2 x HD/SD SDI out (BNC)
2 x CVBS out (BNC) | | Transmission | 5 GHz ISM band COFDM MiMo | | Modes | P2P: 1 Tx to 1 Rx
Broadcast: 1 Tx to 6 Rx | | Channels | 10 for USA & Canada models | | Power | XLR4 connector (-1, +4) - with galvanic insulation | | Standards | HD SDI (SMPTE 292M): 1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M) 1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)
SD SDI (SMPTE 259M-C): 720 x 487i @ 60 Hz (SD SDI 525 - SMPTE 125M) 720 x 576i @ 50 Hz (SD SDI 625 - ITU-R BT.601)
CVBS: NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM
HDMI: 720 x 480i @ 59.94, 60 Hz 720 x 576i @ 50 Hz 1280 x 720p @ 50, 59.94, 60 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 25, 29.97, 30 Hz 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz | | Power Consumption | 10 to 36 VDC/22 W | | Operating Temperature | -4 to 135°F (-20 to 55°C) | | Storage Temperature | -40 to 176°F (-40 to 80°C) | | Weight | Transmitter: 2.42 lb (1.09 kg)
Receiver (Without Antennas): 3.19 lb (1.44 kg) |
