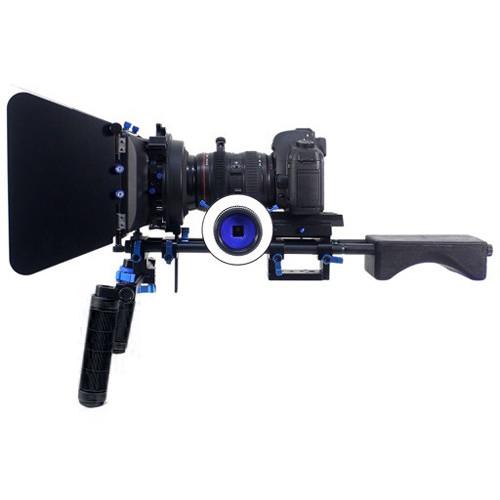

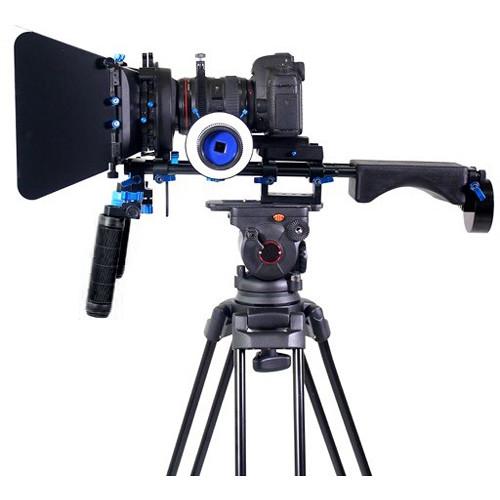

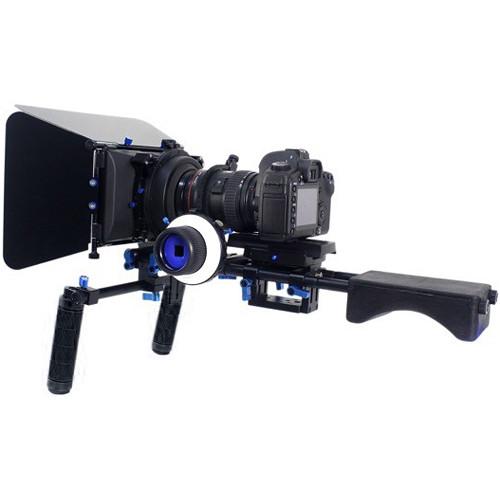

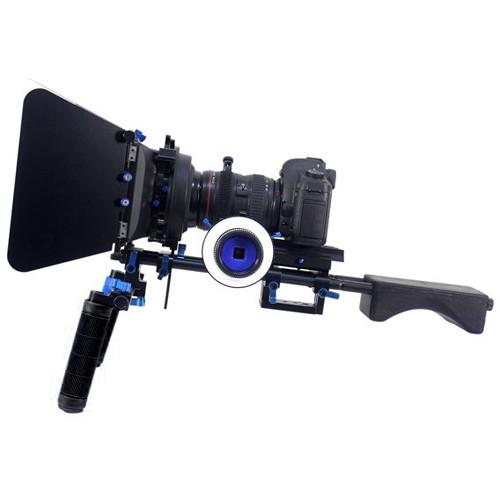

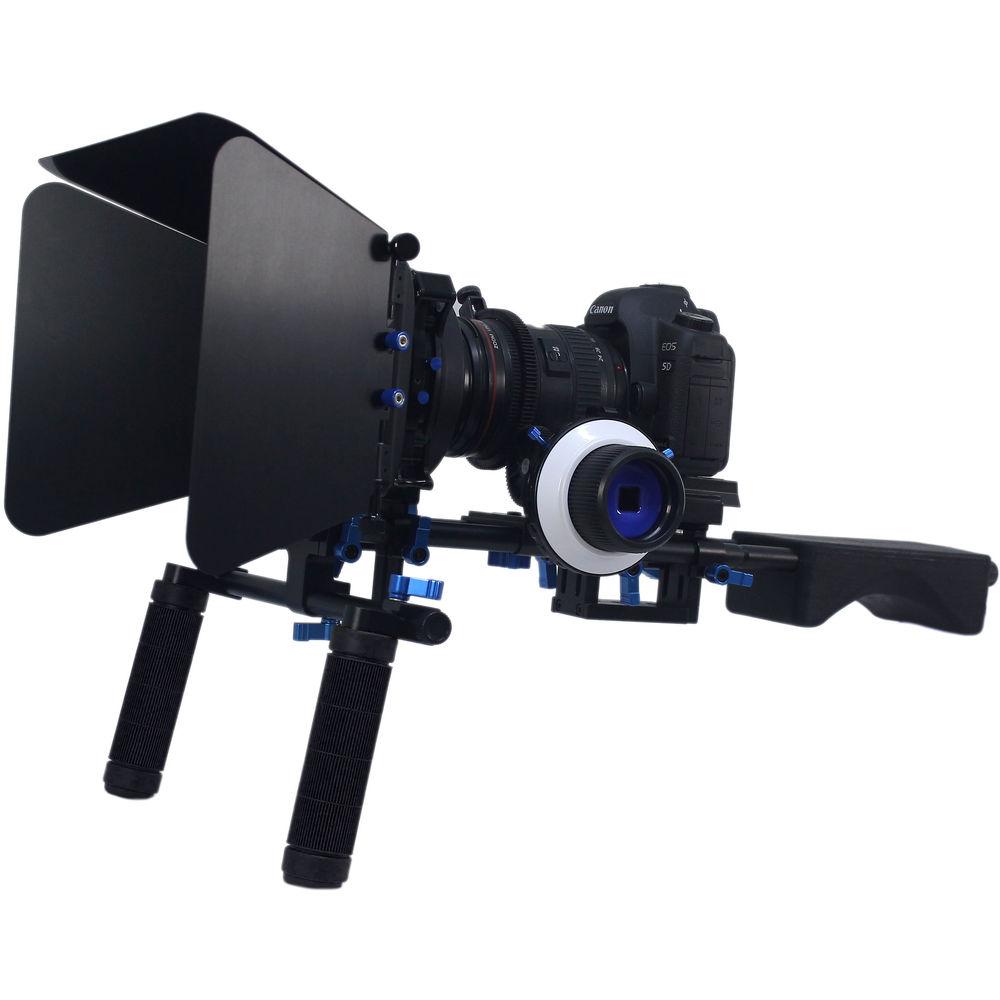

Product description The black TRL-04 Camera Rig Kit from Travelite is compatible with any standard 15mm rod system for your DSLR rig or cage. The kit includes the RL-04 Camera Rig, Follow Focus F3, and Matte Box M3. It is a portable and handy kit which can be used handheld, on your shoulder, or mounted on a tripod without disturbing any part of the kit. The follow focus features a gear-driven design for slip-free, accurate, and repeatable focus movement. An adjustable slide-mounting mechanism fits a large range of lens diameters, including video camera lenses. The driven gear can be installed on either side, making it suitable for both right and left-handed shooters. It is compatible with DSLRs and video cameras. The matte box and barndoors shield your camera from light and help prevent lens reflection. - RL-04 Camera Rig
-

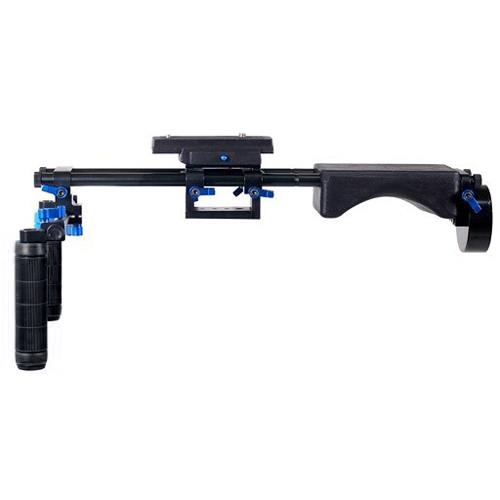

- Supports heavy professional video camcorders and other video devices
- Shoulder pad for comfortable support
- 1/4'-20' and 3/8''-16 threads on plate for multiple mounting options
- Rail system with height adjustment for adjusting your camera height relative to the accessories
- 1/4"-20 thread-in base for mounting on tripods
- Compatible with all DSLRs and camcorders
- Made of heavy-duty aluminum, high-grade ABS, and rubber
- Follow Focus F3
-
- Suitable for both right and left-handed operation
- Gear drive can be mounted from either side
- Pair of stops on the ring for adjustable focus indication
- Easy begin/end setup for accurate, repeatable racking between your desired indicator location with two hard stops
- Control follow focus in a desired range by setting the stops for desired focal lengths
- Movable focus indicator
- Completely gear-driven design for slip-free, accurate, and repeatable focus movement
- Matte Box M3
-
- Can be height- adjusted to the lens on a 15mm rod system
- Swing-away hoods
- Two filter trays supporting two 4 x 4" filters
- For lenses of front diameter size up to 98mm
- Removable aluminum top flag and two adjustable aluminum side flags
- Made of high-grade ABS and heavy-duty aluminum
In the Box Travelite RL-04 Camera Rig Kit (Black) RL-04 Camera Rig Professional Follow Focus FF3 with 2 Hard Stops zfvburbbezatyyytvbvwvx Matte Box M3 Table of Contents
|
Upload User Manual
Have you got an user manual for the Travelite RL-04 Camera Rig Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTravelite RL-04 Specs | | | Drive Gear | 0.8 MOD | | Rod Standard | 15 mm rod compatibility
2.4" (60 mm) center-to-center distance | | Lens Compatibility | 52 to 86mm | | Dimensions | 8.3 x 4.5 x 3.9" (21.0 x 11.5 x 10.0 cm) | | Weight | 1.5 lb (700 g) | | | | Materials | High-grade ABS and heavy-duty aluminum | | Mounting | 15 mm rod compatibility
2.4" (60 mm) center-to-center distance | | Lens Diameter | Up to 86mm, with adapter rings to fit lenses of varying diameters (51mm, 64mm, 76mm) | | Filter Type | 2 x Dual-purpose trays, supporting 4 x 4" filters | | Filter Stages | Rotating 360° | | Dimensions | 12.0 x 10.8 x 4.9" (30.5 x 27.5 x 12.5 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Material of Construction | Heavy-duty aluminum, high-grade ABS, and rubber | | Rod Support | 15 mm rod compatibility
2.4" (60 mm) center-to-center distance | | Payload | Up to 33.1 lb (15 kg) | | Dimensions | 13.8 x 7.0 x 3.7" (35 x 18 x 9.5 cm) | | Weight | 6.7 lb (3.05 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 26.0 x 19.0 x 15.0" |
