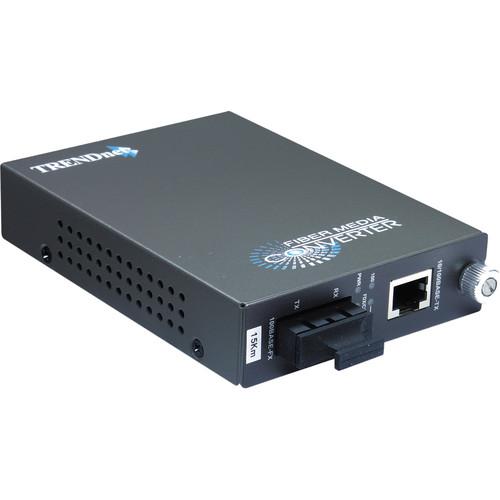

User Manual for TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter Click to enlarge the picture
Contents of the user manual for the TRENDnet 100Base-TX to 100Base-FX Single Mode
- Product category: Network Transceivers TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Transceivers
|
User manual for the TRENDnet 100Base-TX to 100Base-FX Single Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The 100Base-TX to 100Base-FX Single Mode SC Fiber Converter from TRENDnet features one 10/100Base-TX and one 100Base-FX port along with support for up to 100 Mb/s data transfer speeds in half-duplex and up to 200 Mb/s data transfer speeds in full-duplex modes. This fiber converter ensures you can transform 10/100Base-TX UTP/STP media to 100Base-FX media and vice versa. You can select from multi-mode SC, MT-RJ, or single-mode SC connectors along with a slide-switch to select full- or half- duplex modes. - Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- One 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port
- One 100Mbps fiber port with Single-Mode SC-Type Connector
- Half / Full-Duplex mode selector on Fiber port
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
UPC: 710931504064 In the Box TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TFC-110S15 Specs | Ethernet Standards | IEEE 802.3, IEEE 802.3u | | Ports | 1 x SC
1 x RJ45 | | Networking Technology | 10BASE-T, 100BASE-TX, 100BASE-FX | | Wavelength | 1310 nm | | Protocol | CSMA/CD | | Maximum Networking Distance | 49,213' / 15,000 m | | Maximum Data Rate | 200 Mb/s | | Power Consumption | 7.2 W | | DC Input Power | 7.5 VDC at 1.5 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -13 to 158°F / -25 to 70°C | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.7 x 4.3 x 2.5" |
