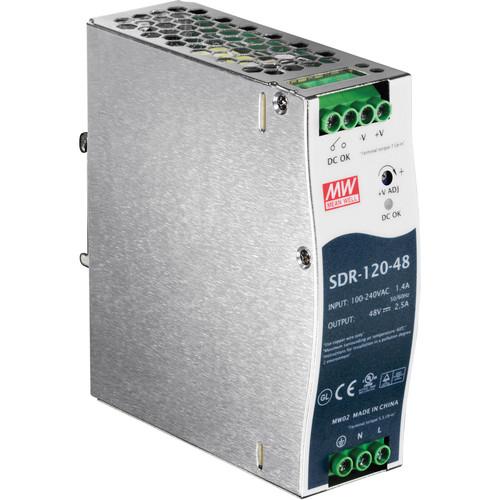

Product description Designed to withstand extreme temperatures from -13 to 158°F, the 120-Watt Single-Output Industrial DIN-Rail Power Supply from TRENDnet can be installed in some of the harshest conditions. This power supply features a durable metal casing, a DIN-rail mount, and built-in LED indicators to confirm the unit is powered on. This unit also comes with short-circuit, overload, over-voltage, and over-temperature protection, as well as shutdown and re-power protection. - 120 Watt Power
- Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
- Active PFC
- The built-in active Power Factor Controller (PFC, PF >0.93) helps eliminate unusable reactive power
- Overload Protection
- Overload/short circuit/over voltage/over temperature protection
- Full-Load Test
- This power supply undergoes a 100% full-load burn-in test
- Passive Cooling
- Cooling by free air convection

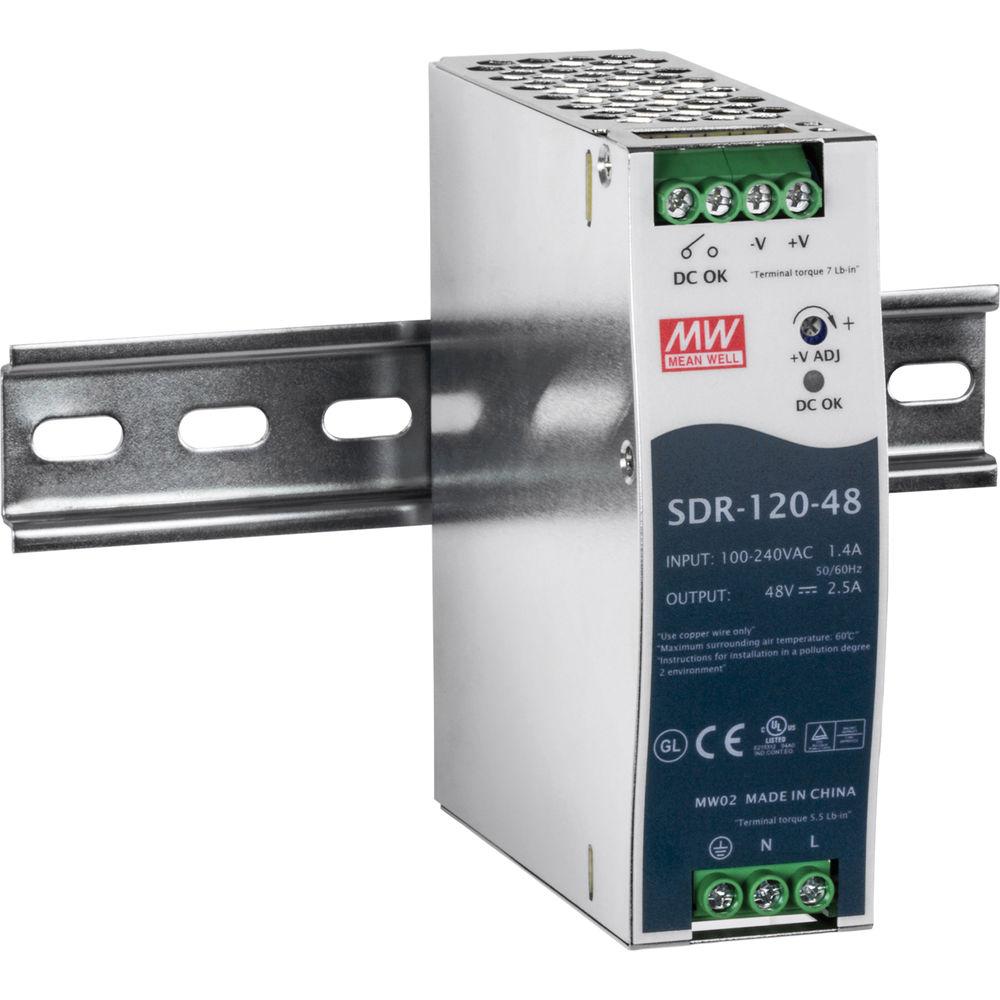

- DIN-Rail Mount

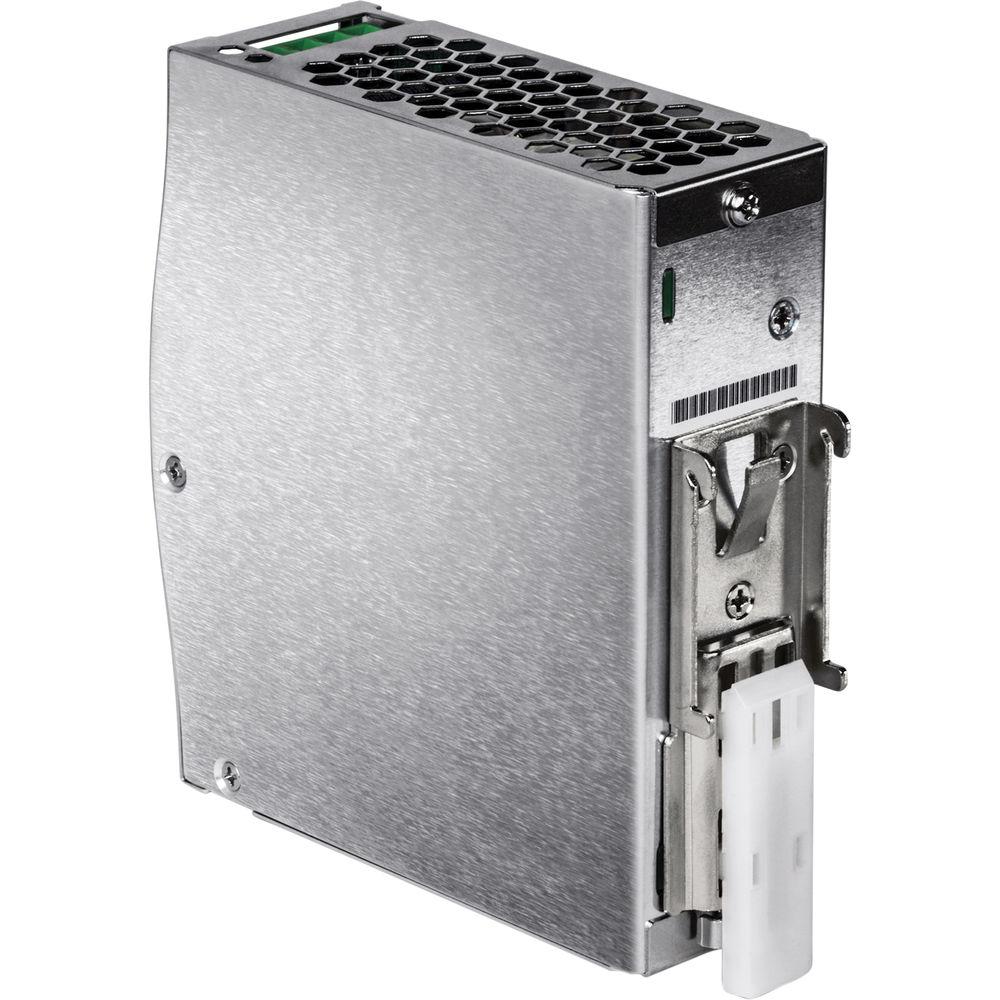

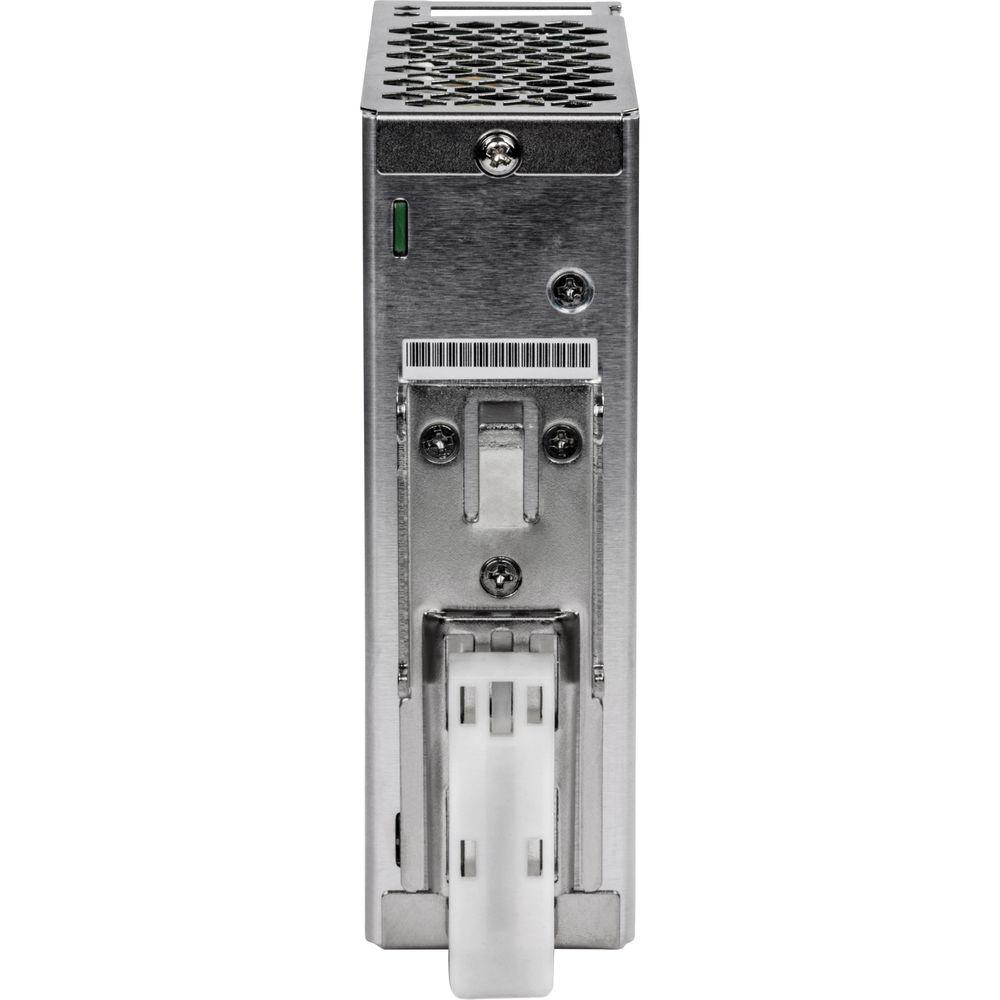

- Metal enclosure with integrated DIN-rail mount
- Extreme Temperature
- Rated for an operating temperature range of -13 to 158°F
- Electro Magnetic Emission / Immunity
- Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
- Vibration Resistant
- Rated for vibration (IEC 60068-2-6)
- LED Indicator
- LED indicator confirms power to the unit
- Additional Features
- • DC OK relay contact
• 150% peak load capacity
• Short circuit/overload/over voltage/over temperature protection
• Protection Type: shut down and repower
• High efficiency (91%) design UPC: 710931160383 In the Box TRENDnet 120-Watt Single-Output Industrial DIN-Rail Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 120-Watt Single-Output Industrial DIN-Rail Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

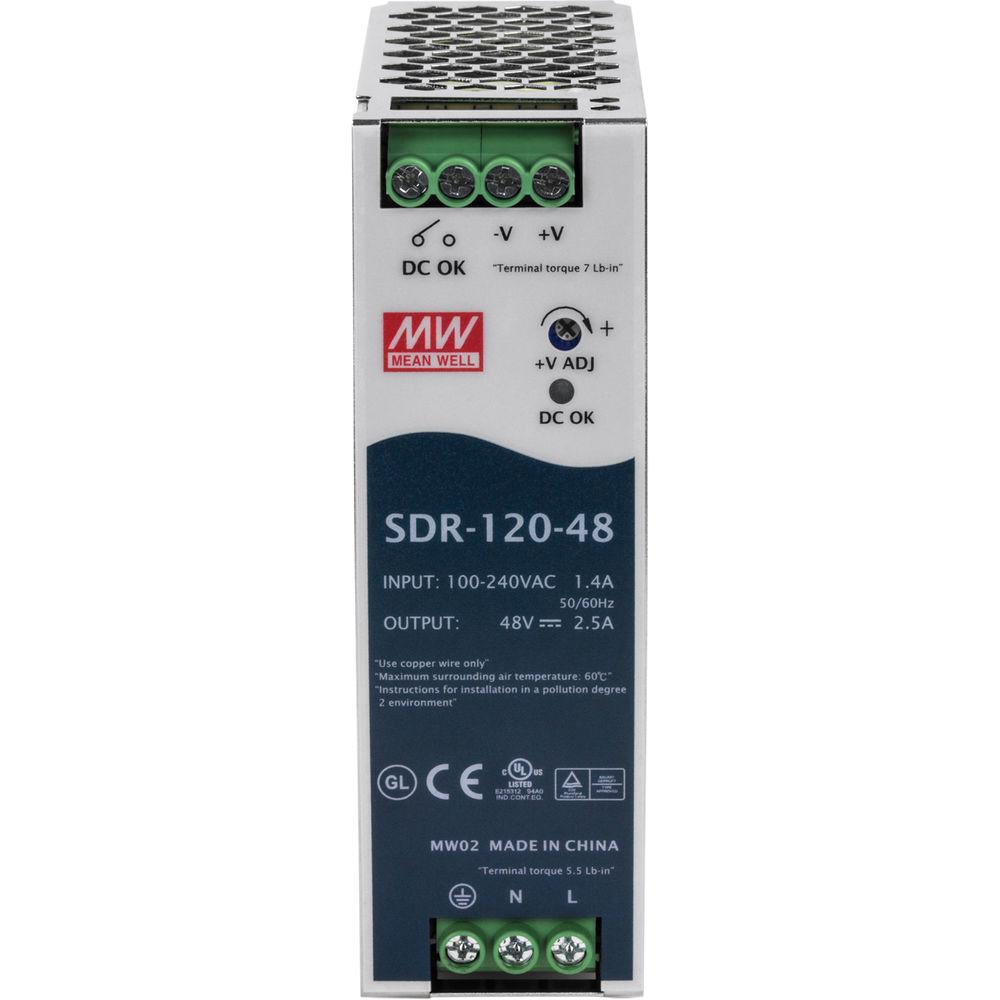

Technical parametersTRENDnet TI-S12048 Specs | Interface | Input: 100-240 VAC, 50/60 Hz, 1.8 A 125-370 VDC
Output: 120 Watts, 48 V, 2.5 A
DIN-rail: TS-35/7.5 or 15 | | Housing | Metal case
DIN-rail mount
LED indicator confirms power to the unit | | Temperature & Humidity | Operating Temperature
-13 to 158°F / -25 to 70°C
Operating Humidity
Max. 95% non-condensing | | MTBF | 2,899,000 hours | | Certifications | CE, UL 508CB 60950-1, TUV EN60950-1 | | Dimensions | 1.6 x 4.9 x 4.5" / 40 x 125 x 114 mm | | Weight | 23.6 oz / 670 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 5.9 x 5.6 x 2.5" |
