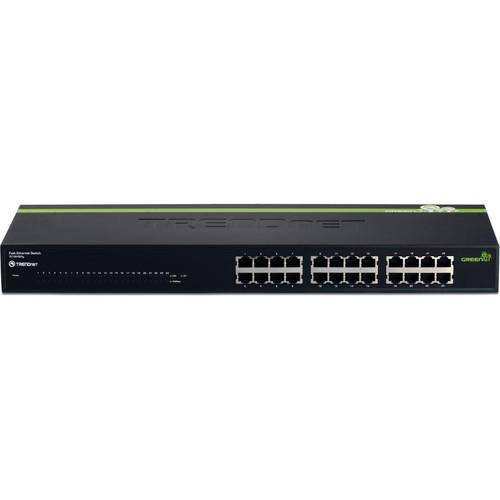

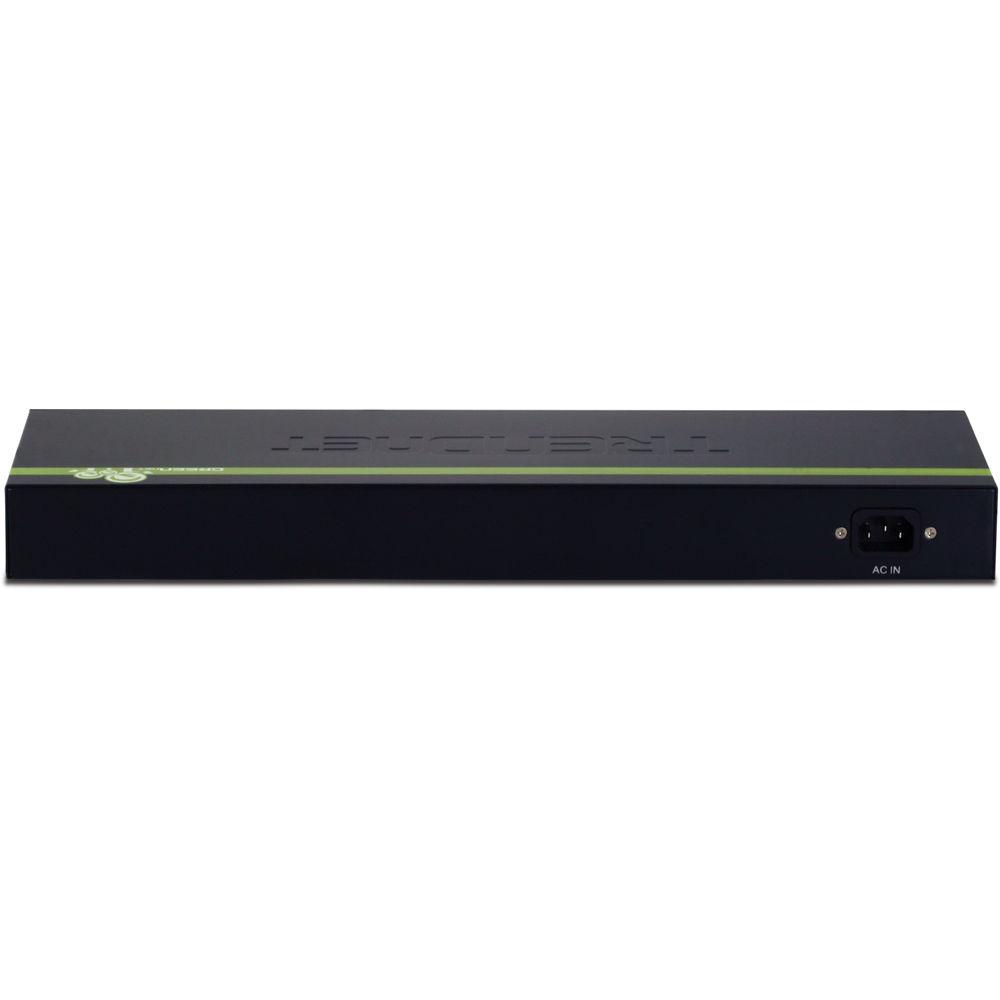

Product description The 24-Port 10/100Mbps GREENnet Ethernet Switch from TRENDnet is an unmanaged switch that's easy-to-use, affordable, and designed to reduce power consumption when possible. This switch features a total of 24 fast Ethernet ports, all of which are great for providing you with extended connectivity between the devices on your network, such as computers, servers, printers, IP cameras, and more. Enclosed in a sturdy-metal casing, this switch fits in a 1U rackmount and is plug-and-play ready. - 24x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet ports
- GREENnet technology reduces power consumption in the below scenarios:
1. Ethernet port is not in use
2. Connected device is turned off
3. Connected device is in power-saving mode
4. When Ethernet cable length is short - Compliant with IEEE 802.3/IEEE 802.3u standards
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- IEEE 802.3x flow control support
- Provides 8k MAC address entries
- 1.25Mbits RAM data buffer
- Standard 19" (1U) rackmount design
UPC: 710931203394 In the Box TRENDnet 24-Port 10/100Mbps GREENnet Ethernet Switch Multi-Language Quick Installation Guide Power Cord Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 24-Port 10 100Mbps GREENnet Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TE100-S24G Specs | | | Standards | IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control | | Protocols | CSMA/CD, Star | | Ports | 24x 10/100Mbps Auto-MDIX RJ-45 ports | | Speed | Ethernet: 10Mbps/20Mbps (half/full-duplex)
Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) | | Buffer | RAM Data Buffer: 1.25Mbits | | MAC Address Table Size | 8Kb entries | | Maximum Forwarding Rate | 4.8Gbps | | Clip Splitting | Supports these Cables:
Ethernet: UTP/STP Cat. 3, 4, 5, up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e, 6, up to 100m | | LED | Power, Link/ACT, 100Mbps | | | | Agency Approval | CE, FCC | | System Requirements | ·A computer with a network adapter installed
·Cat.5, Cat.5e or Cat.6 Network Cable
·The surface must support at least 1.86Kg for the Switch
·The power outlet should be within 6' / 1.82 m of the switch
·Securely connect DC power jack to the power adapter
·Make sure that there is proper heat dissipation from and adequate ventilation around the switch
Note:Do not place heavy objects on the switch | | Environmental Requirements | Temperature
Operating: 32 to 122°F / 0 to 50°C
Non-operating: 14 to 158° / -10 to 70°C
Humidity
Operating: 10 to 90% non-condensing
Non-operating: 5 to 90% non-condensing | | Power Requirements | 100 to 240VAC, 50 to 60Hz, 0.4A Internal Power Supply | | Power Consumption | A maximum of 6.5 watts | | Dimensions | 17.3 x 5.5 x 1.7" / 44 x 14 x 4.c | | Weight | 4.1 lb / 1.86kg | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 21.8 x 8.5 x 3.9" |
