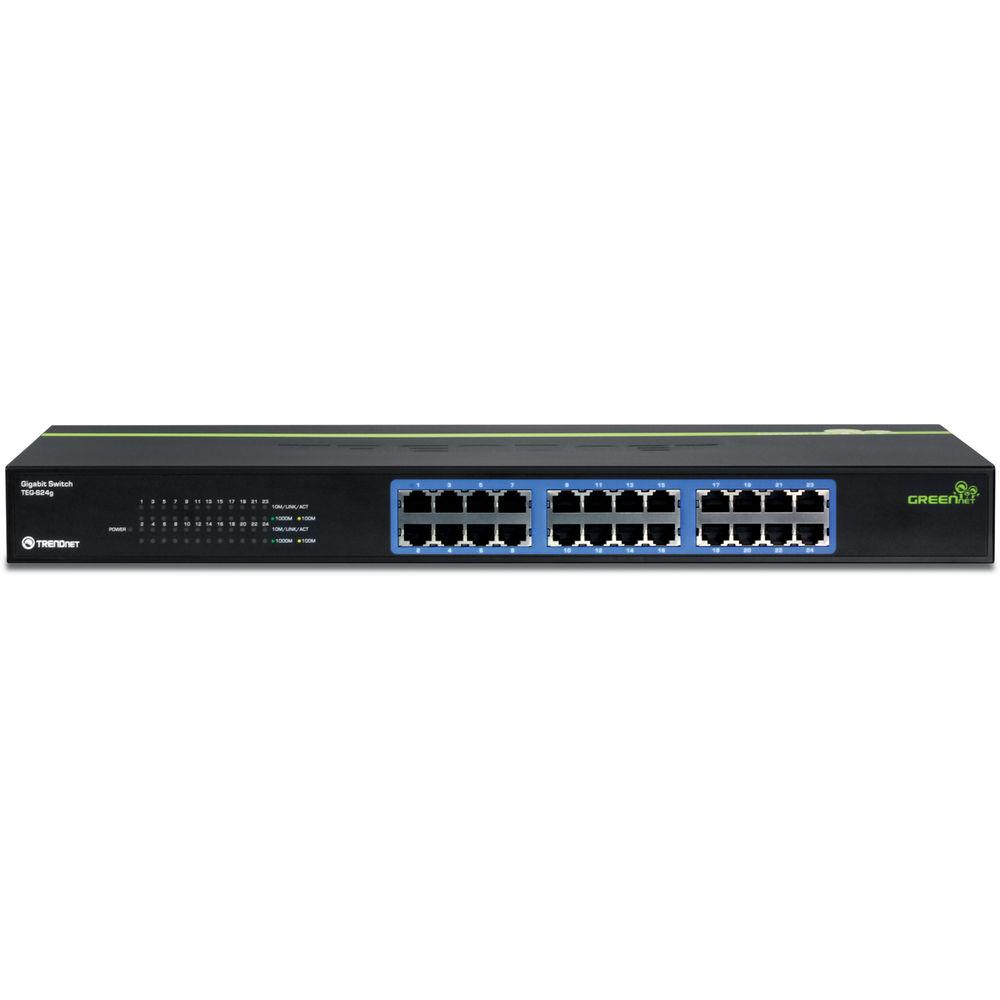

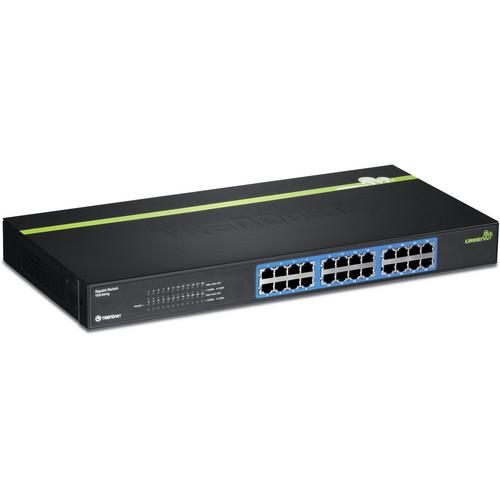

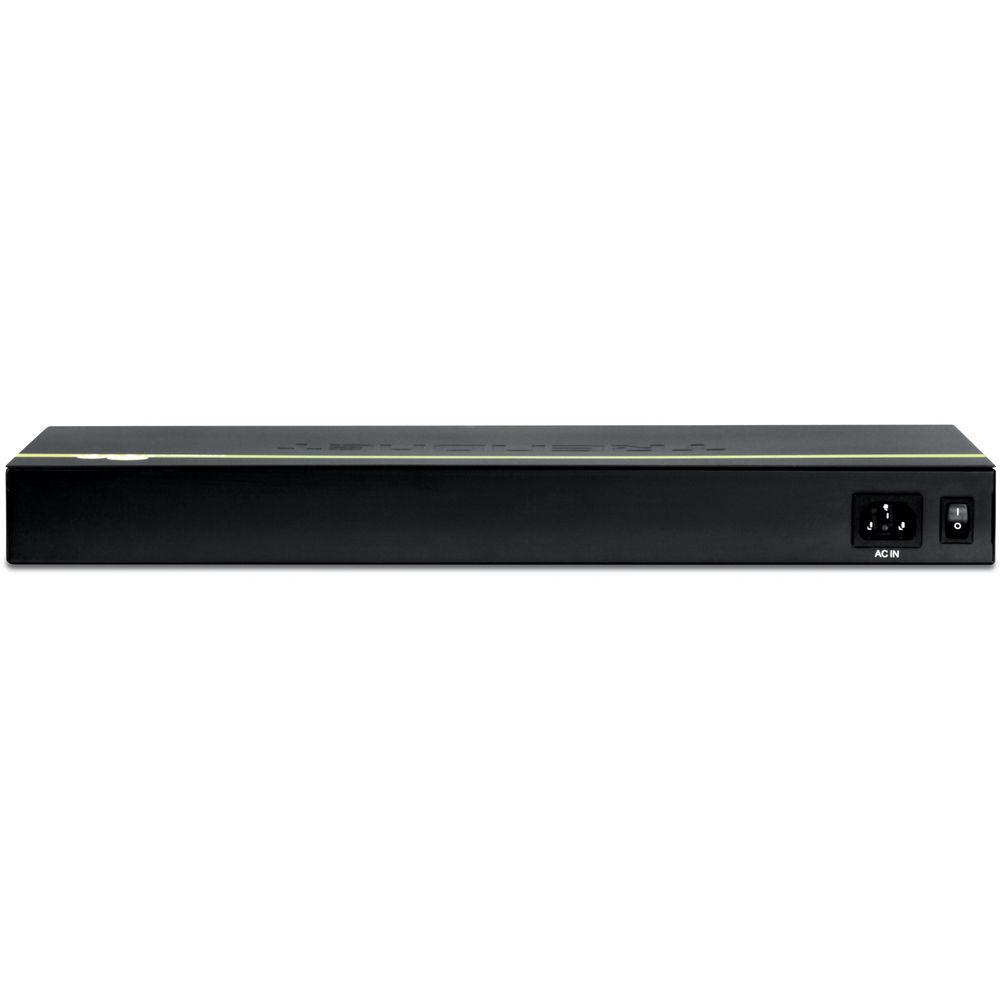

User Manual for TRENDnet 24-Port Gigabit GREENnet Ethernet Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet 24-Port Gigabit GREENnet Ethernet Switch
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet 24-Port Gigabit GREENnet Ethernet Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The 24-Port Gigabit GREENnet Ethernet Switch from TRENDnet adds 24 Gigabit Ethernet ports to your local area network. The switch is designed with energy efficiency in mind -- it features an internal power supply that uses up to 70% less power than comparable switches.
The switch has a forwarding capacity of 48Gbps when used in Full-Duplex Mode. Diagnostic LEDs are present to assist in network troubleshooting. This is a true plug-and-play device that requires no drivers or configuration. - 24x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
- Features a 48Gbps forwarding capacity
- Internal power supply reduces clutter
- GREENnet technology reduces electrical power consumption:
- When the Ethernet port is not in use
- When the connected device is turned off
- When the connected device is in power-saving mode
- Based on Ethernet cable length
- IEEE 802.3x Flow Control for full-duplex mode
- Back pressure Flow Control for half-duplex mode
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- Integrated address look-up engine with a 8K MAC address table, and 3.5Mb RAM data buffer
- Operates and maximizes packet filtering and forwarding rate
- Jumbo Frame support up to 9216B
- Diagnostic LEDs and Plug & Play support
UPC: 710931610215 In the Box TRENDnet 24-Port Gigabit GREENnet Ethernet Switch 6' (1.8 m) Power Cord Multi-Language Quick Installation Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 24-Port Gigabit GREENnet Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-S24DG Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,216 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 48 Gb/s | | Packet Buffer | 3.5 Mb | | | | Power Draw | 13.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 11 x 7.1 x 1.7" / 28 x 18 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 14.0 x 11.2 x 3.4" |
