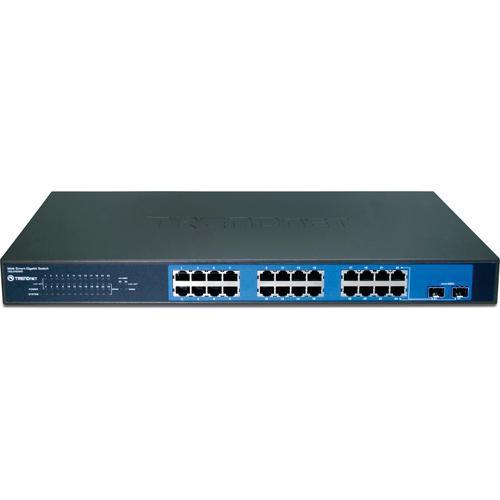

User Manual for TRENDnet 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots Click to enlarge the picture
Contents of the user manual for the TRENDnet 24-Port Gigabit Web Smart Switch
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
|
User manual for the TRENDnet 24-Port Gigabit Web Smart Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (Version C2.0R) from TRENDnet is a Gigabit Ethernet switch, designed for use as part of a Local Area Network (LAN). The switch features 24 Gigabit Ethernet ports, and 2 Mini-GBIC slots for uplink expansion module installation. Compatible with all standard Ethernet protocols, the switch can be used to create networks to which computers of any operating system can connect. - 24 10/100/1000Mbps Gigabit Ethernet ports, each featuring Auto-MDIX negotiation
- The 2 1000Base-SX/LX Mini-GBIC slots are shared with the last 2 numbered Gigabit ports, and can be used to install fiber uplink modules that use the standard Mini-GBIC form factor
- 48Gbps switching capability
- IEEE 802.3x Full Duplex Flow Control and Back Pressure incorporates DIX framing, eliminating the need for a DIX/802.3 split
- IEEE 802.3ad Port Trunk aggregates parallel links for fast communication
- IEEE 802.1D Spanning Tree Protocol ensures a loop-free topology for any bridged LAN
- IEEE 802.1p QoS prioritizes traffic so that data that needs a constant link, such as VoIP and videoconferencing, takes precedence over traffic that does not
- IEEE 802.1X authentication supports port-based access control, and SNMP v1 supports basic network management
- Supports the port-based IEEE 802.1Q VLAN tag and asymmetric VLANs, perfect for creating virtual LANs
- Utilizes the store-and-forward switching method
- Front panel LEDs give indication of network status and activity
- Can handle Jumbo Frame packets, up to 9KB in size
- Integrated address look-up engine sports up to 8K absolute MAC addresses
- Boasts 512KB of data buffering RAM
- Configurable via a web browser
- Housed in a standard 1U rackmount form factor, and even includes the rackmount kit
In the Box TRENDnet 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (Version C2.0R) Power Cord Rackmount Kit Software CD-ROM with Utility and User's Guide Multi-Language Quick Installation Guide Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-240WS Specs | | | Ports | 22 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x, 802.3z | | | | Power Draw | 35.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | | | Dimensions | 17.3 x 8.3 x 1.7" / 44 x 21 x 4.4 cm | | Weight | 7 lb / 3 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 4.0" |
