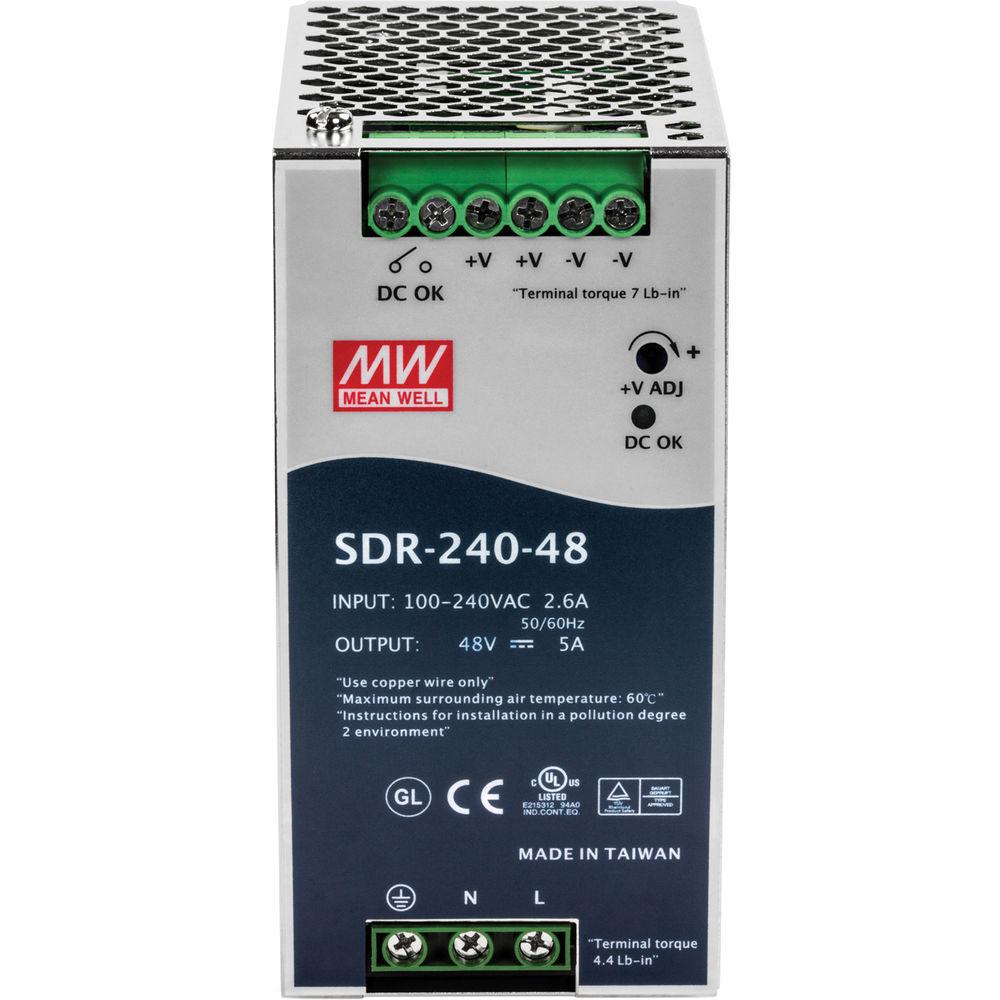

Product description Power a variety of PoE-compatible equipment such as switches, network cameras, access points, and more with the 240W Single Output Industrial DIN-Rail Power Supply from TRENDnet. This power supply features a 240W power budget along with overload protection, passive cooling, and the ability to operate in extreme temperatures ranging from -13 to 158°F. Installation is simple as this power supply comes equipped with a metal enclosure complete with an integrated DIN-rail mount. -
- Provides up to 240 Watts (48 V, 5 A) of power for PoE devices such as switches, network cameras, and access points
- The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power
- Overload/short circuit/over voltage/over temperature protection
- This power supply undergoes a 100% full load burn-in test
- Cooling by free air convection

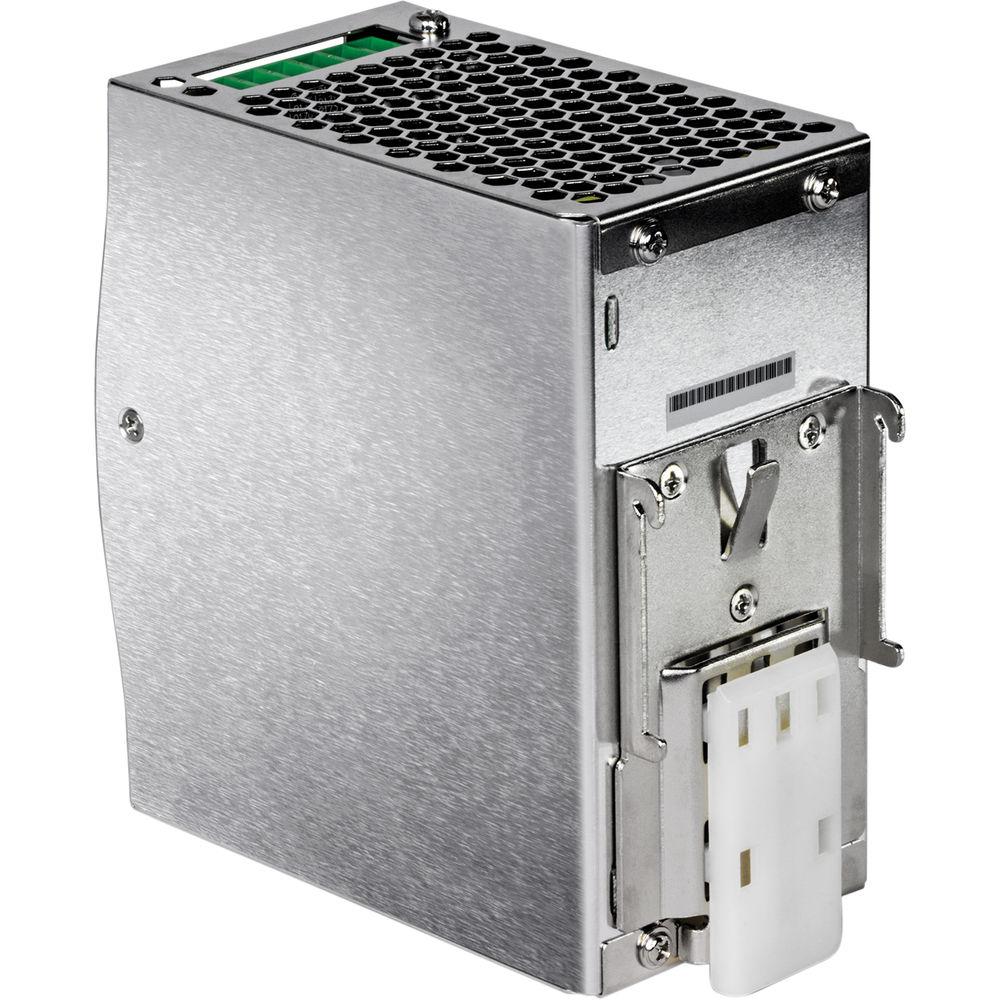

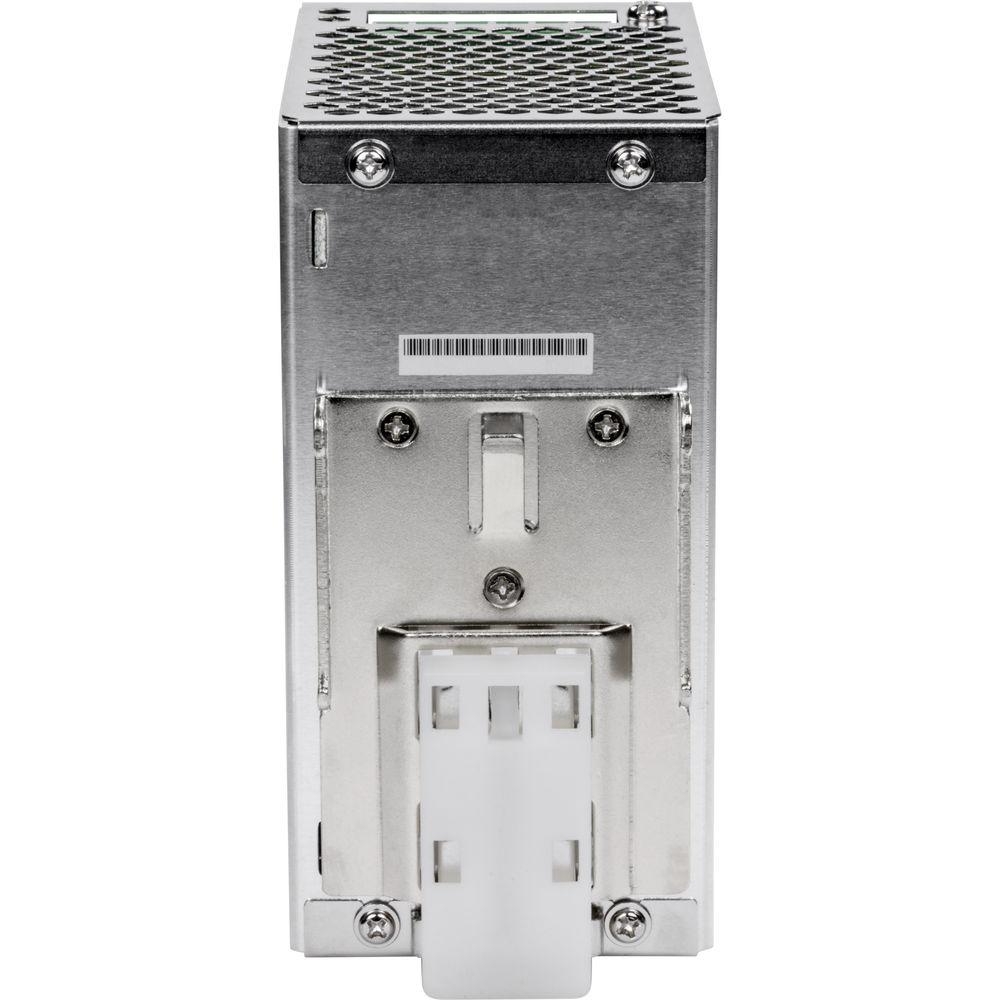

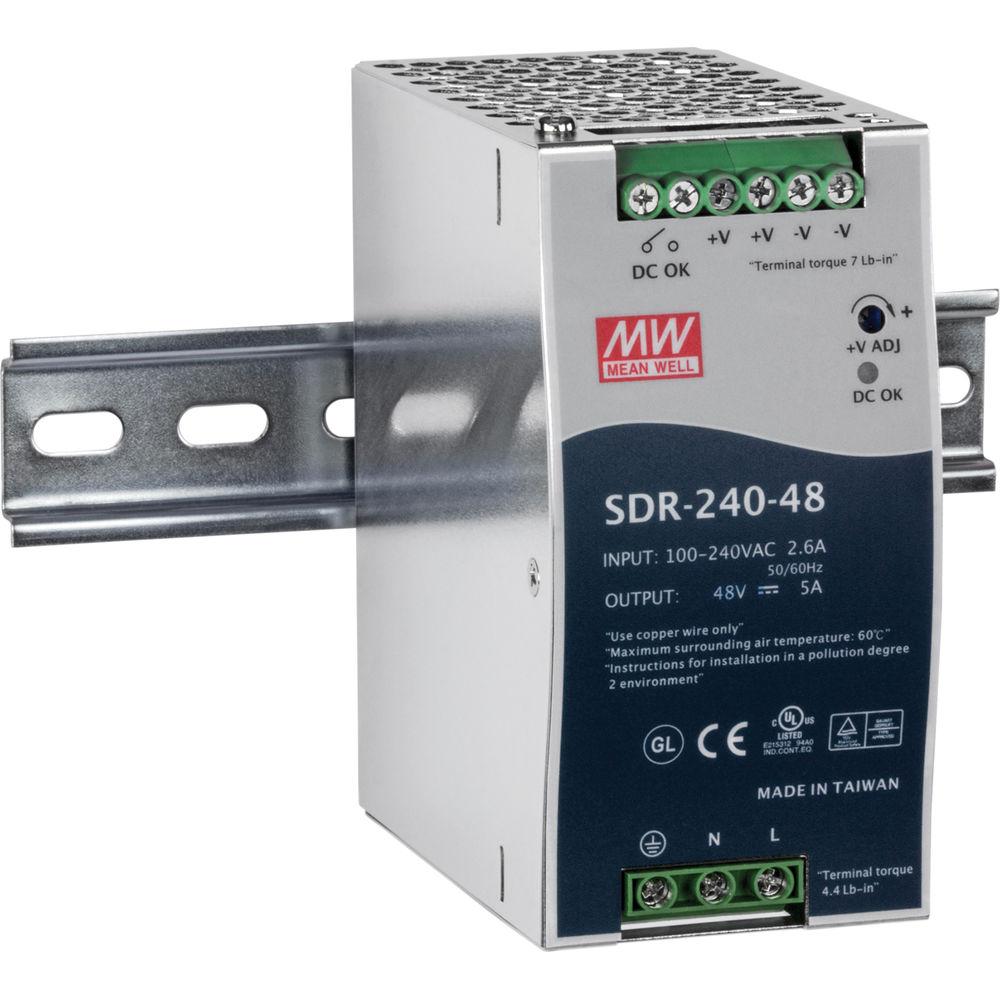

- Metal enclosure with integrated DIN-rail mount
- Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
- Certified for UL 508 and TUV EN60950-1
- Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
- Rated for vibration (IEC 60068-2-6)
- LED indicator confirms power to the unit
- DC OK relay contact
- 150% peak load capacity
- Short circuit / overload / over voltage / over temperature protection
- Protection Type: Shut down and repower
UPC: 710931160390 In the Box TRENDnet 240W Single Output Industrial DIN-Rail Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 240W Single Output Industrial DIN-Rail Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-S24048 Specs | Interface | Input
100-240 VAC, 50/60 Hz, 1.8 A 125-370 VDC
Output
240 Watts, 48 V, 5 A
DIN-Rail
TS-35/7.5 or 15 | | Housing | Metal case
DIN-rail mount
LED indicator confirms power to the unit | | Temperature & Humidity | Operating Temperature
-13 to 158°F / -25 to 70°C
Operating Humidity
Max. 95% non-condensing | | MTBF | 1,693,000 hours | | Certifications | CE, UL 508CB 60950-1, TUV EN60950-1 | | Dimensions | 1.6 x 4.9 x 4.5" / 40 x 125 x 114 mm | | Weight | 2.30 lb / 1.03 kg | | | | Package Weight | 2.275 lb | | Box Dimensions (LxWxH) | 6.3 x 6.3 x 4.0" |
