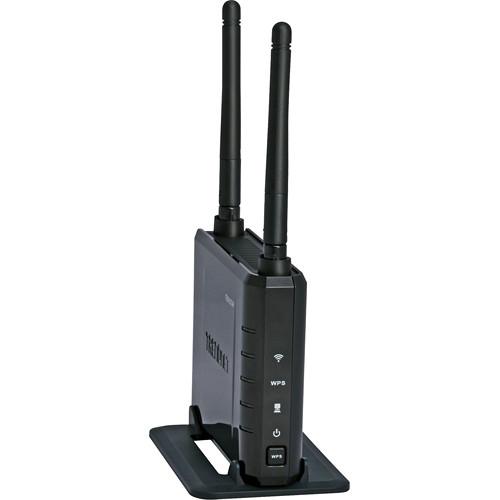

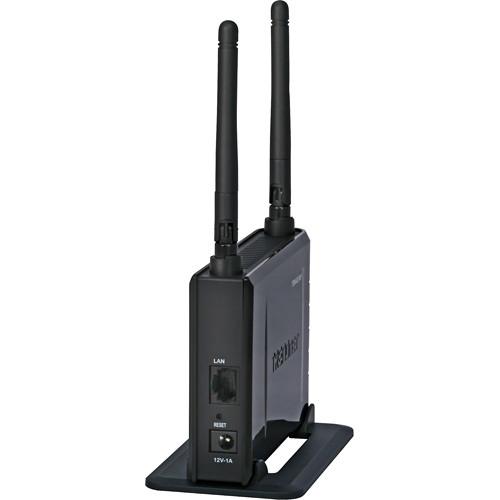

User Manual for TRENDnet 300Mbps Wireless-N Access Point Click to enlarge the picture
Contents of the user manual for the TRENDnet 300Mbps Wireless-N Access Point
- Product category: Wireless Access Points TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Access Points
 |
User manual for the TRENDnet 300Mbps Wireless-N Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The 300Mbps Wireless-N Access Point from Trendnet allows you to extend your wireless network to areas of your home or business that have poor signal strength. Place the access point wherever you need to have wireless access, and you'll be able to connect up to 984' away. The access point is Wireless-N compatible, allowing you to connect at up to 300Mbps, and is backwards compatible with Wireless-G or -B networks and devices. The access point provides standard WEP/WPA security encryption. It can also be used in Wireless Bridge Mode to wireless connect game consoles, printers, and DVRs. - Compact, high-performance Wireless-N Access Point
- Wireless Bridge Mode for Ethernet-to-wireless bridging function
- Works as an access point and a wireless adapter
- Compatible with 802.11b/g/n networks
- Data rate of up to 300Mbps using an 802.11n connection
- Expand a wireless network using AP client mode or Wireless Distribution System (WDS)
- Support for the 802.11e Quality of Service (QoS) standard
- Low interference and high susceptibility deliver reliable performance
- 2 removable antennas support high speed performance and expanded coverage
- Supports Wi-Fi Protected Setup (WPS), allowing you to integrate other WPS devices into your network quickly
- Indoor coverage up to 328'
- Outdoor coverage up to 954'
- Supports Windows 2000, XP, 2003 server, and Vista Operating Systems
UPC: 710931600506 In the Box TRENDnet 300Mbps Wireless-N Access Point Quick Install Guide CD w/ Software and Documentation 2' (0.6 m) Ethernet Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 300Mbps Wireless-N Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEW-638APB Specs | | | Standards | IEEE 802.11n draft 2.0
IEEE 802.11b
IEEE 802.11g | | Network Protocol | Not Specified by Manufacturer | | Data Rate | Up to 300Mbps | | Frequency Range | 2.412 - 2.462GHz | | Channel Support | 1-11 (FCC), 1-13 (ETSI) | | Security | 64/128-bit WEP (HEX & ASCII)
WPA/WPA2 Radius
WPA/WPA2-PSK Encryption | | Antenna | 2x 2dBi Detachable Antennas | | Operation Distance | Not Specified by Manufacturer | | Transmitted Power | 802.11n: 11dBm (typical) @ MCS15/ & HT40
802.11g: 15dBm (typical) @ 54Mbps
802.11b: 18dBm (typical) @ 11Mbps | | Power Over Ethernet | No | | Ports | 1x RJ-45 Ethernet | | | | Power Requirements | DC 12V/0.5A External Power Adapter | | Dimensions (WxHxD) | 4.7 x 1 x 3.4" (120 x 26 x 88mm) | | Weight | 5.11oz (145g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.8 x 6.1 x 2.4" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
