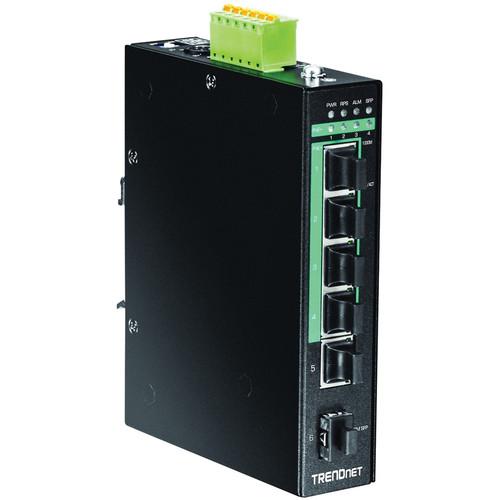

Product description With an IP30 rated metal housing, the 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch from TRENDnet is capable of withstanding harsh industrial environments. This DIN-Rail Switch comes equipped with four Gigabit PoE+ Ethernet ports, one Gigabit Ethernet port, and one Gigabit SFP slot. The 120 Watt PoE+ power budget ensures each of the four Gigabit Ethernet ports receives up to 30 Watts of power allowing you to attach PoE-compatible devices directly to the switch. Additionally, you can take advantage of dual redundant power inputs featuring alarm output to alert you in the case of a power failure. - Full PoE+ Power Budget
- Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget
- Network Ports
- Five Gigabit Ethernet ports (port 1-4 PoE/PoE+) and 1 x SFP slot
- Integrated DIN-Rail Mount
- IP30 rated metal enclosure with integrated DIN-rail mounting hardware
- Switching Capacity
- 12 Gbps switching capacity
- Redundant Power
- Dual redundant power inputs with overload current protection
Note: power adapter sold separately: model 48VDC2000 - Alarm Output
- Alarm output triggered by power failure of primary and/or redundant power (defined by DIP switch)
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance
- Extreme Temperatures
- Hardened switch is rated for an operating temperature range of -4 to 140 ºF (-20 to 60 ºC)
- Electro Magnetic Compliance
- Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
- Shock and Vibration Resistant
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- LED Indicators
- LED indicators convey power, redundant power, alarm, SFP, and network port status
- Grounding Point
- Grounding point protects equipment from external electrical surges
UPC: 710931160246 In the Box TRENDnet 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch DIN-Rail Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 5-Port Hardened Industrial Gigabit PoE DIN-Rail Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-PG541 Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit SFP | | | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 8.9 Mpps | | Switching Bandwidth | 12 Gb/s | | Packet Buffer | 512 Kb | | | | Power Draw | 130.00 W (Active)
10.00 W (Idle) | | PoE Power Budget | 120 W | | PoE per Port | 15.4 to 30 W | | Power Supply Type | Redundant | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 95% | | | | Dimensions | 5.3 x 3.9 x 1.2" / 13.5 x 10 x 3 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.2 x 7.3 x 2.5" |
