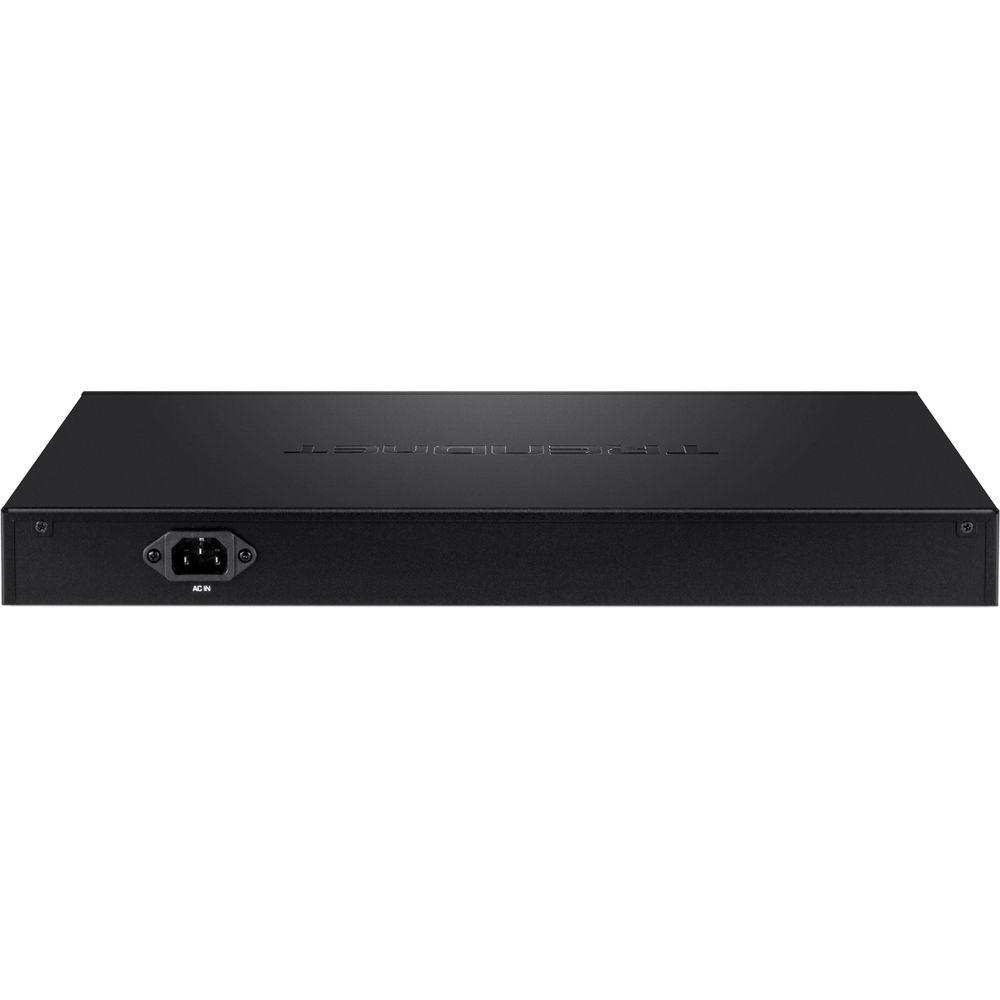

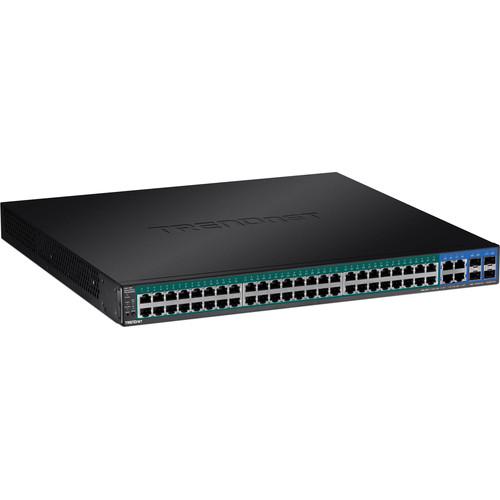

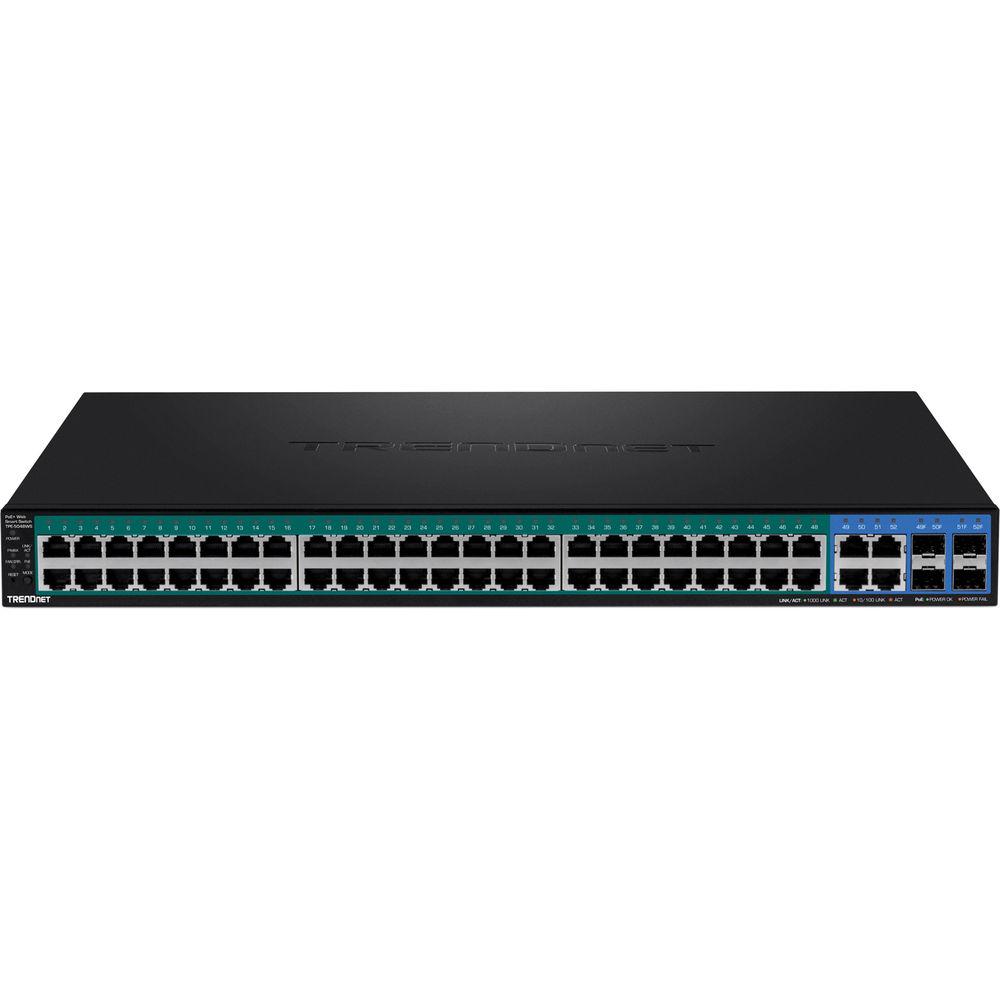

User Manual for TRENDnet 52-Port Gigabit Web Smart PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet 52-Port Gigabit Web Smart PoE
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet 52-Port Gigabit Web Smart PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description - Key Features
-
- 48x Gigabit PoE+ ports
- 4x Shared Gigabit ports (RJ-45 or SFP)
- 740W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Bandwidth control per port
- Private and Voice VLAN support
- Smart fan
- 104 Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
UPC: 710931161168 In the Box TRENDnet 52-Port Gigabit Web Smart PoE+ Switch TRENDnet TPE 5048WS Rack mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 52-Port Gigabit Web Smart PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-5048WS Specs | | | Device Type | Switch - 52 ports - smart | | Enclosure Type | Desktop, rack-mountable 1U | | Subtype | Gigabit Ethernet | | Ports | 48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 740 W | | Performance | Switching capacity: 104 Gbps
Forwarding performance (64-byte packet size): 77.4 Mpps | | Capacity | VLAN groups: 256 | | MAC Address Table Size | 16K entries | | Jumbo Frame Support | 10KB | | Routing Protocol | IGMPv2, IGMP, IGMPv3 | | Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS | | Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 | | Authentication Method | RADIUS, TACACS+ | | Features | DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Link Aggregation Control Protocol (LACP), Traffic Control, SNMP trap, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), tagged VLAN, Denial of Service (DoS), per port bandwidth control, 1.5MB packet buffer, 5 fans, Storm Control, port filtering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az | | Status Indicators | Power, PoE, link/activity, SFP | | | | Interfaces | 48 x 1000Base-T RJ-45 PoE+
4 x Gigabit LAN SFP
4 x 1000Base-T RJ-45 | | | | Power Device | Internal power supply | | Voltage Required | AC 100 - 240 V (50/60 Hz) | | Power Consumption Operational | 963 Watt | | | | Rack Mounting Kit | Included | | MTBF | 338,601 hours | | Compliant Standards | UL, FCC | | | | OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 | | | | Width | 17.3 in | | Depth | 16.9 in | | Height | 1.7 in | | Weight | 14.51 lbs | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 23
