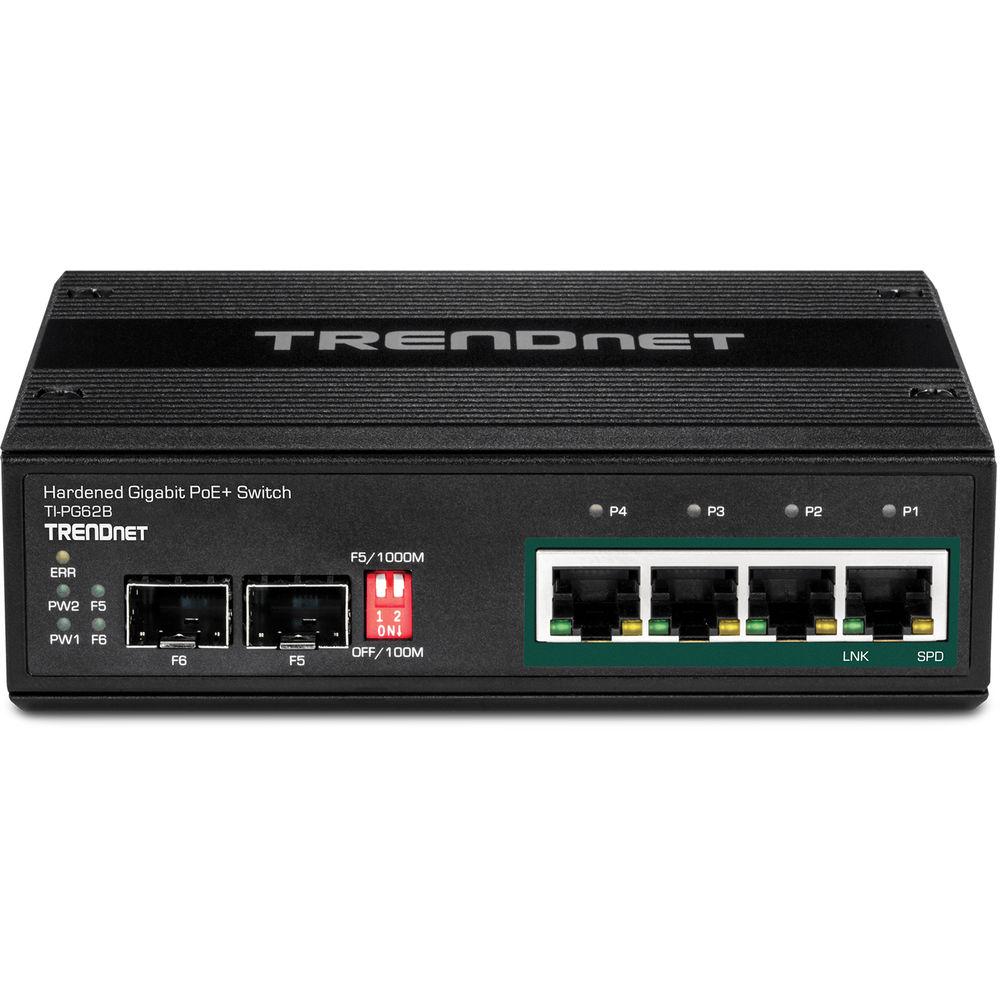

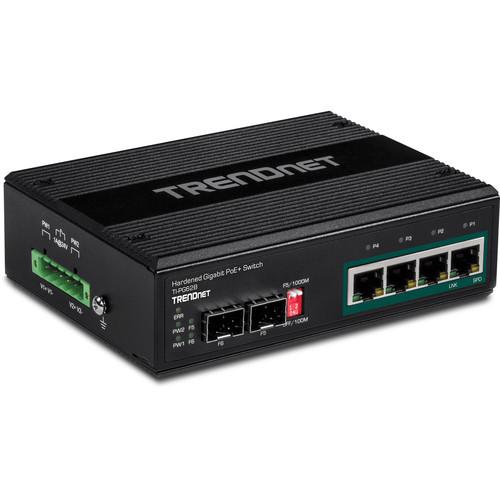

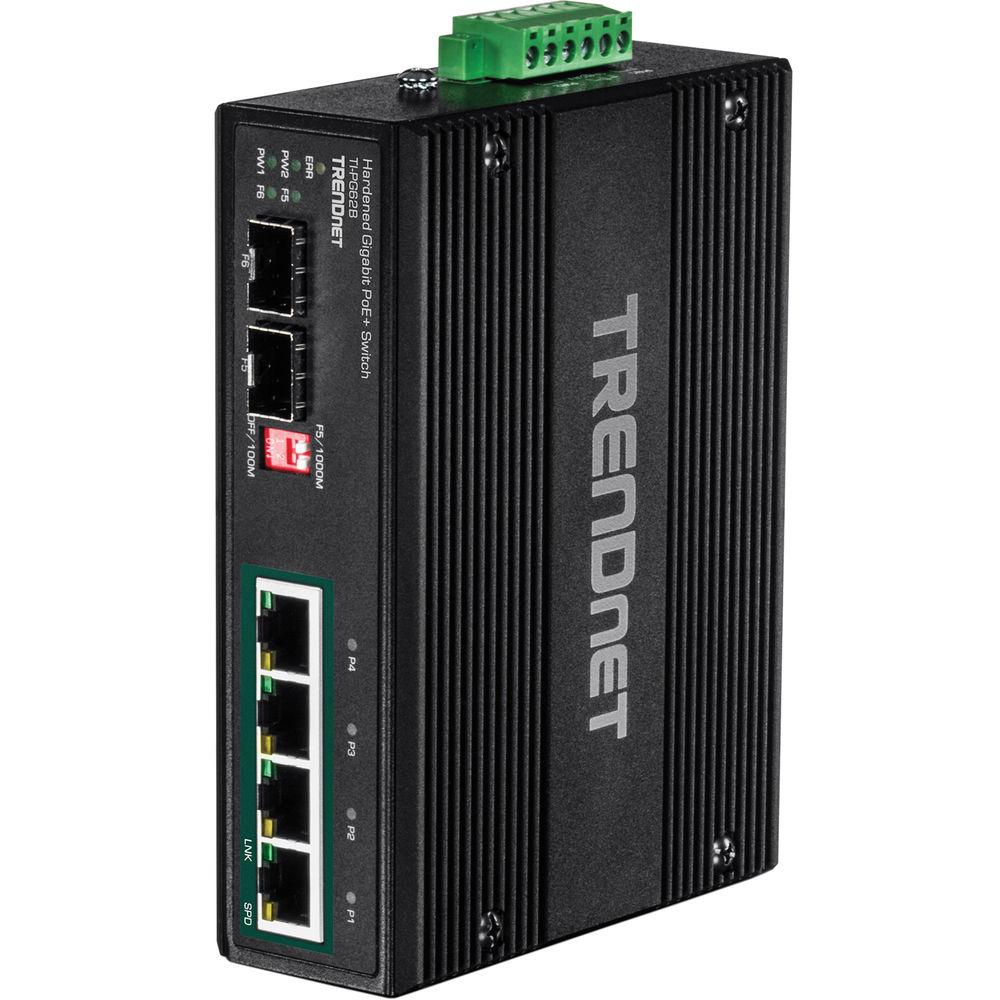

Product description With four Gigabit PoE+ ports and dual dedicated SFP slots, the 6-Port Industrial Gigabit PoE+ DIN-Rail Switch from TRENDnet is designed to power a variety of PoE compatible devices. This switch features a 60- to 120-watt power budget and comes equipped with a 12 Gbps switching capacity and a 9 KB jumbo frame to handle a large amount of network traffic.
Installation is simple as this switch includes both DIN-rail and wall mounts along with a hardened IP30 housing to help protect against physical damage. The TI-PG62B can even withstand extreme temperatures of -40 to 167 degrees. Once installed, a network administrator can plug a redundant power supply (sold separately) into the switch for backup power while the built-in alarm alerts admins to a power failure. - Network Ports
- 4 x Gigabit PoE+ ports and 2 x dedicated SFP slots

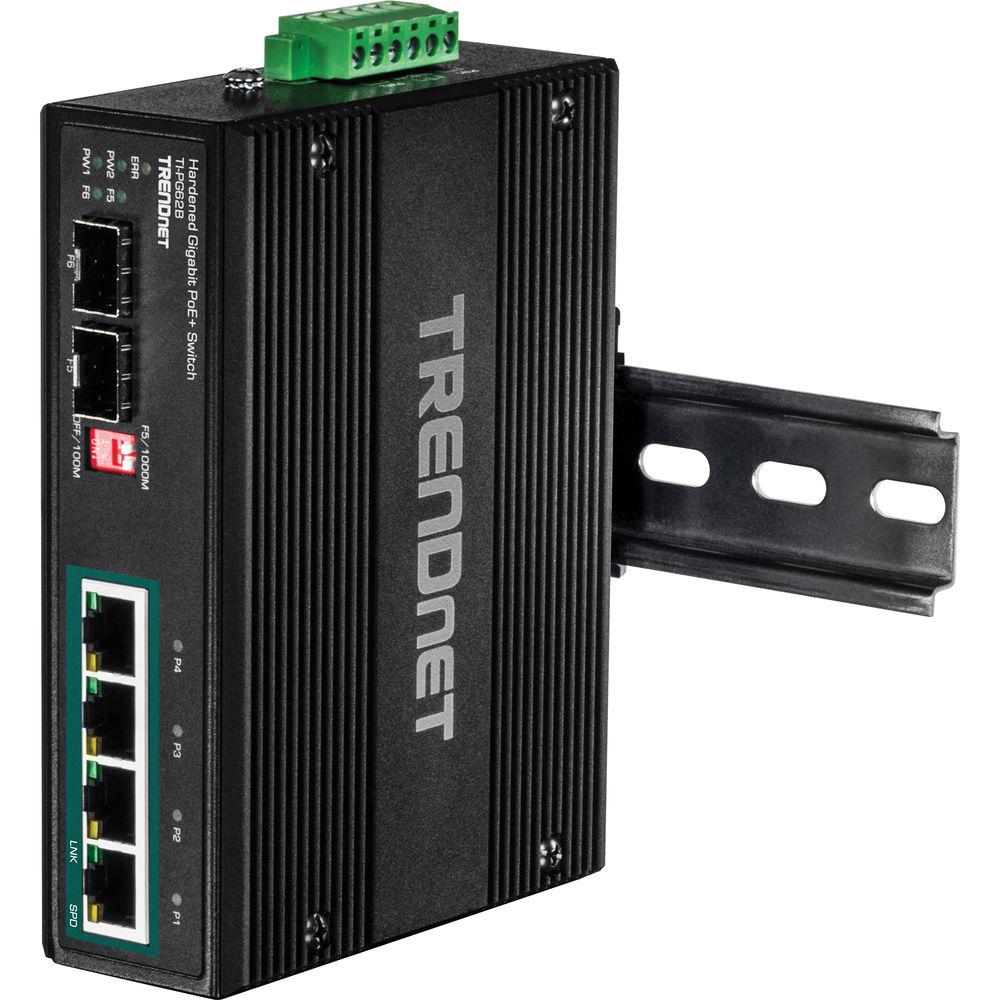

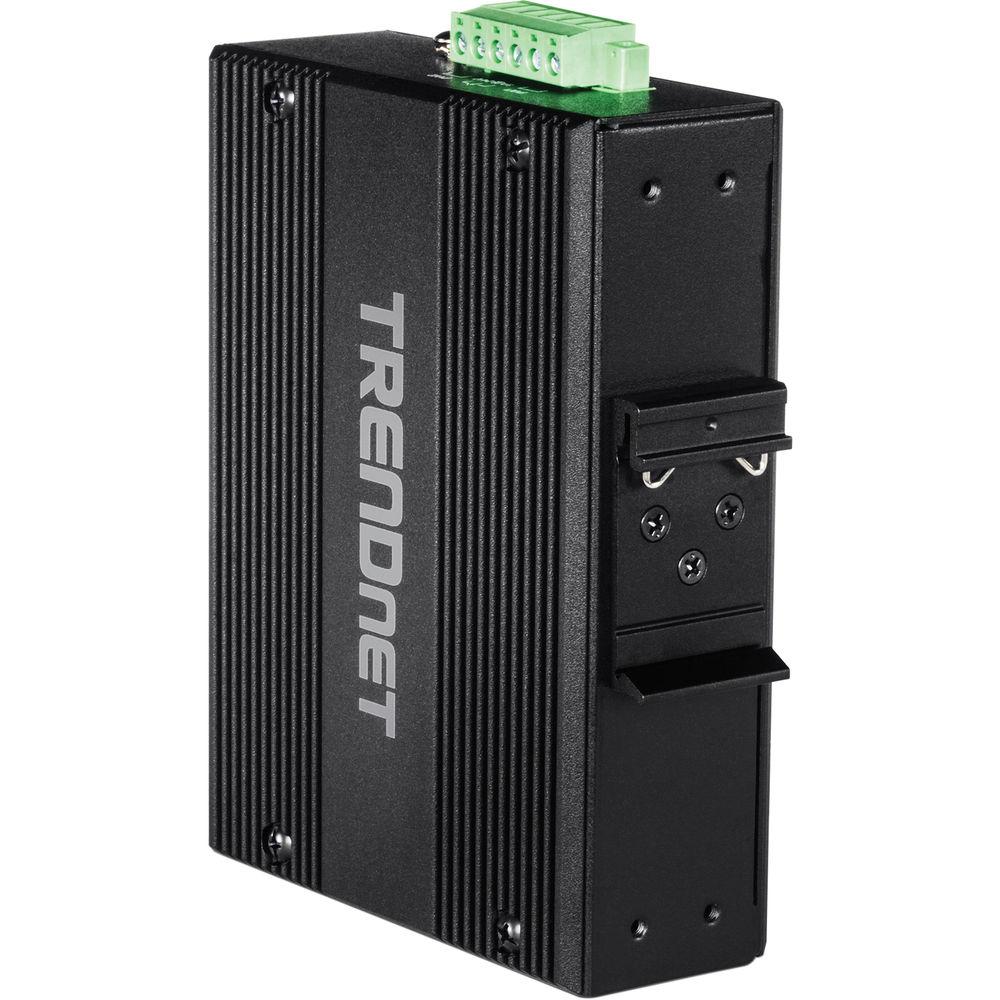

- DIN-Rail / Wall Mounts
- IP30 rated metal enclosure with included DIN-rail and wall mount hardware
- Switching Capacity
- 12 Gbps switching capacity

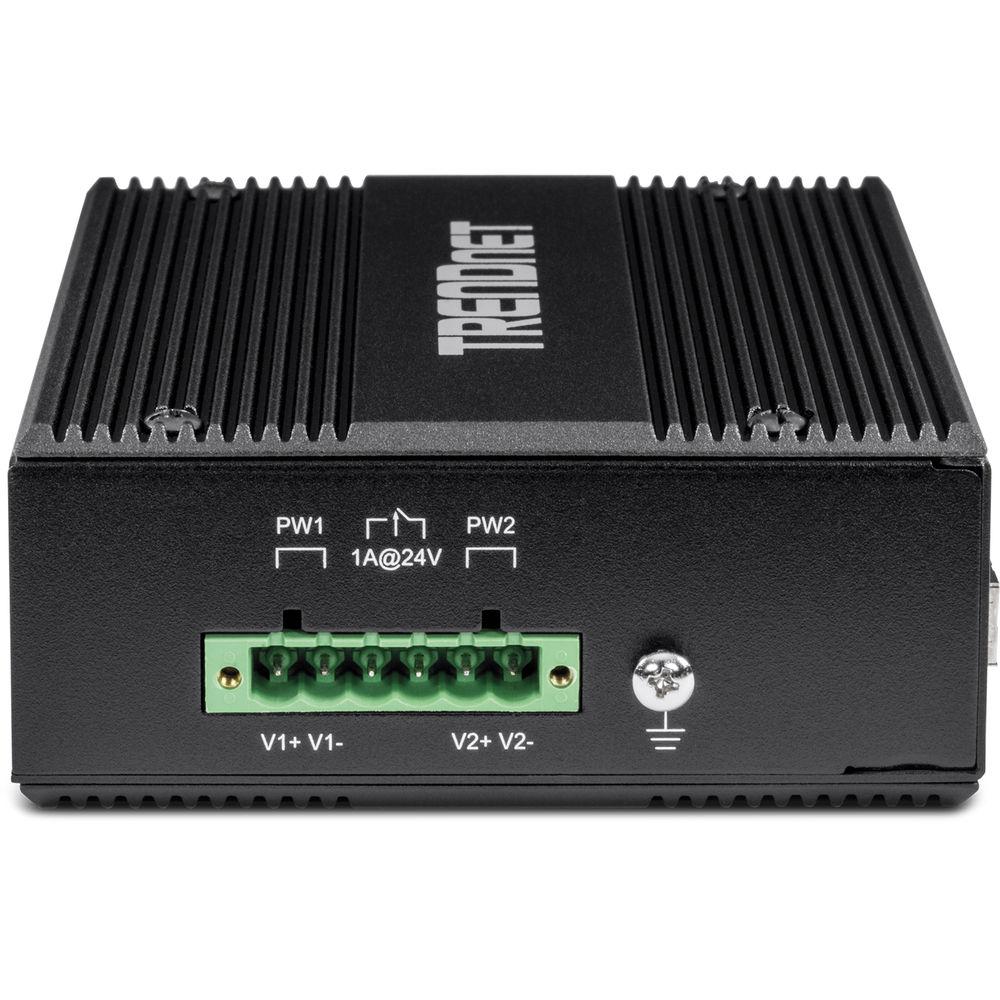

- Redundant Power
- Dual redundant power inputs with overload current protection (power supply sold separately)
- Alarm Relay
- Alarm relay triggered by power failure of primary and/or redundant power
- Jumbo Frames
- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
- Extreme Temperatures
- Industrial switch is rated for an operating temperature range of -40 to 167°F (-40 - 75°C)
- Shock and Vibration Resistant
- Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- Grounding Point
- Grounding point protects equipment from external electrical surges

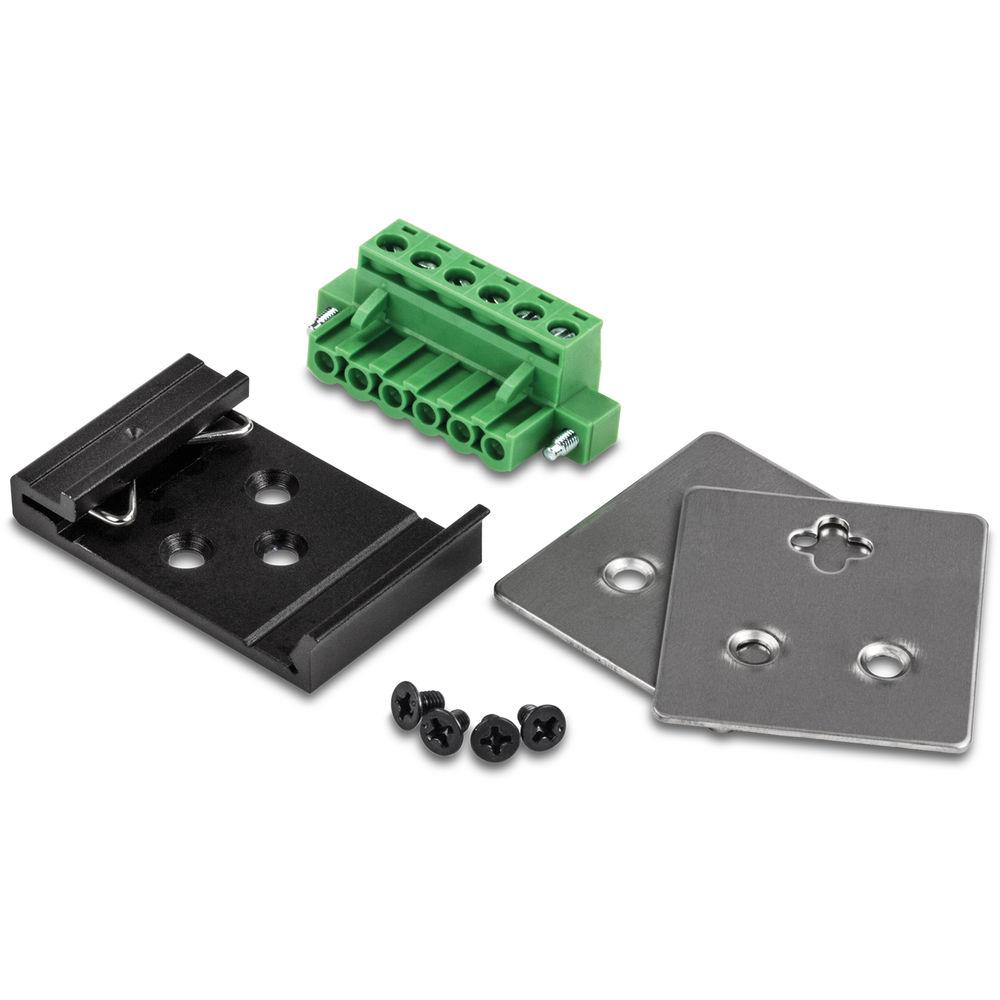

UPC: 710931160963 In the Box TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch Removable Terminal Block DIN-rail and Wall Mount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet 6-Port Industrial Gigabit PoE DIN-Rail Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-PG62B Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit SFP | | | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 1K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 8.9 Mpps | | Switching Bandwidth | 12 Gb/s | | Packet Buffer | 1024 Kb | | | | Power Draw | 5.76 W (Active) | | DC Input Power | 55 VDC | | | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Operating Humidity | 95% | | | | Mean Time Between Failures (MTBF) | 510,304 Hours | | Dimensions | 5.6 x 4.1 x 1.8" / 14.3 x 10.5 x 4.5 cm | | Weight | 2 lb / 1 kg |
