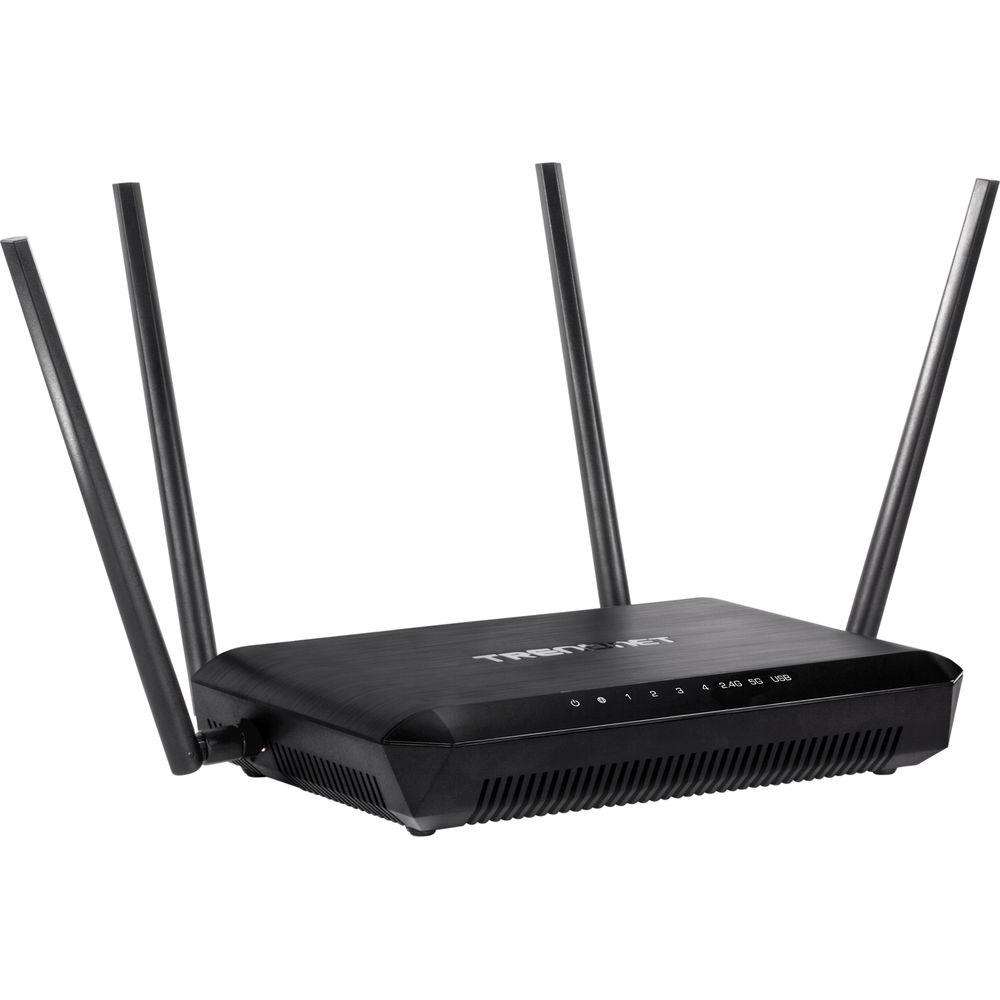

User Manual for TRENDnet AC2600 StreamBoost Dual-Band Wi-Fi Router Click to enlarge the picture
Contents of the user manual for the TRENDnet AC2600 StreamBoost Dual-Band Wi-Fi Router
- Product category: Wireless Routers TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Routers
 |
User manual for the TRENDnet AC2600 StreamBoost Dual-Band Wi-Fi Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

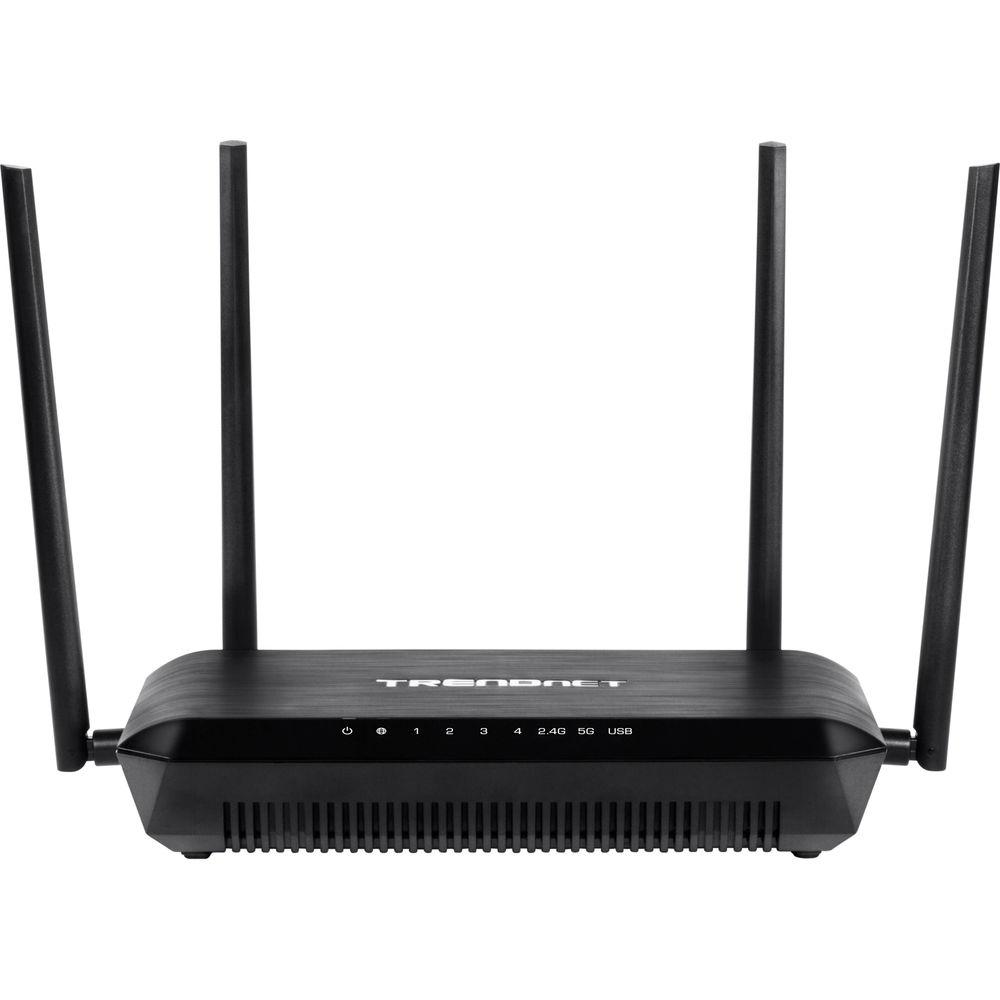

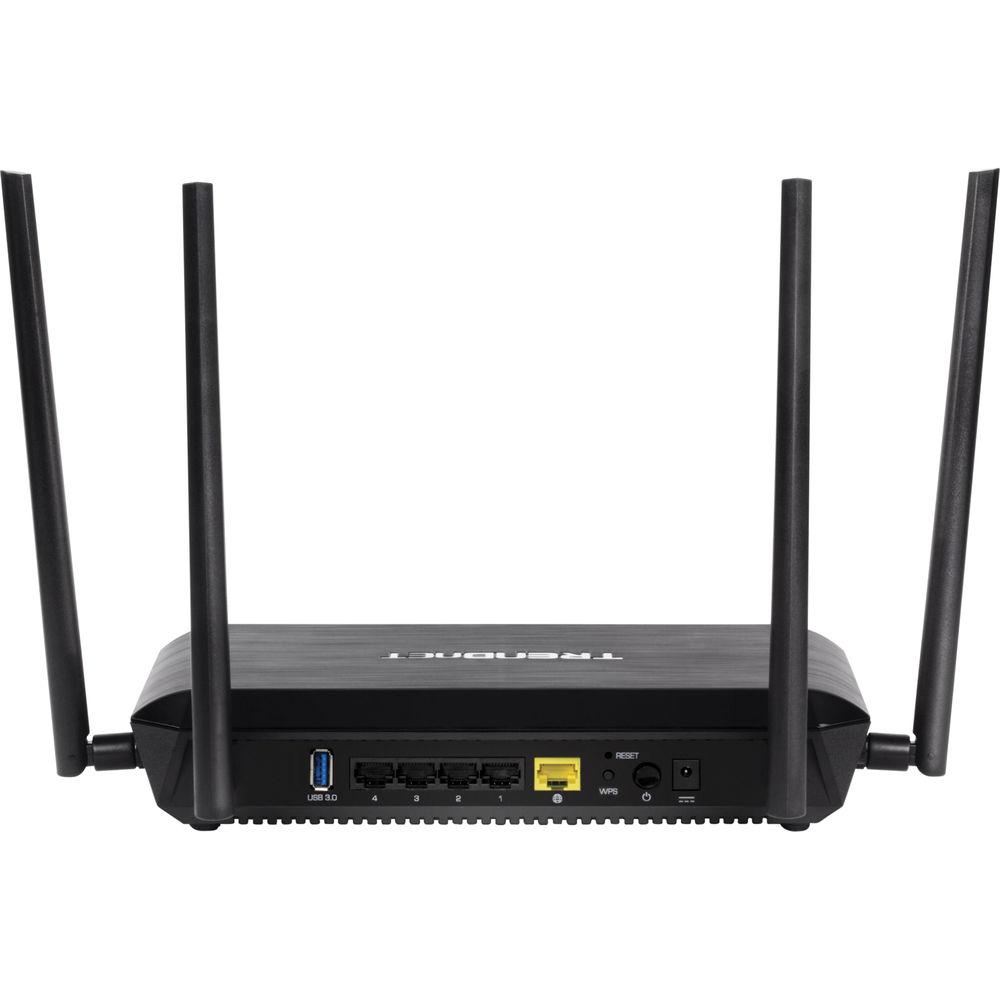

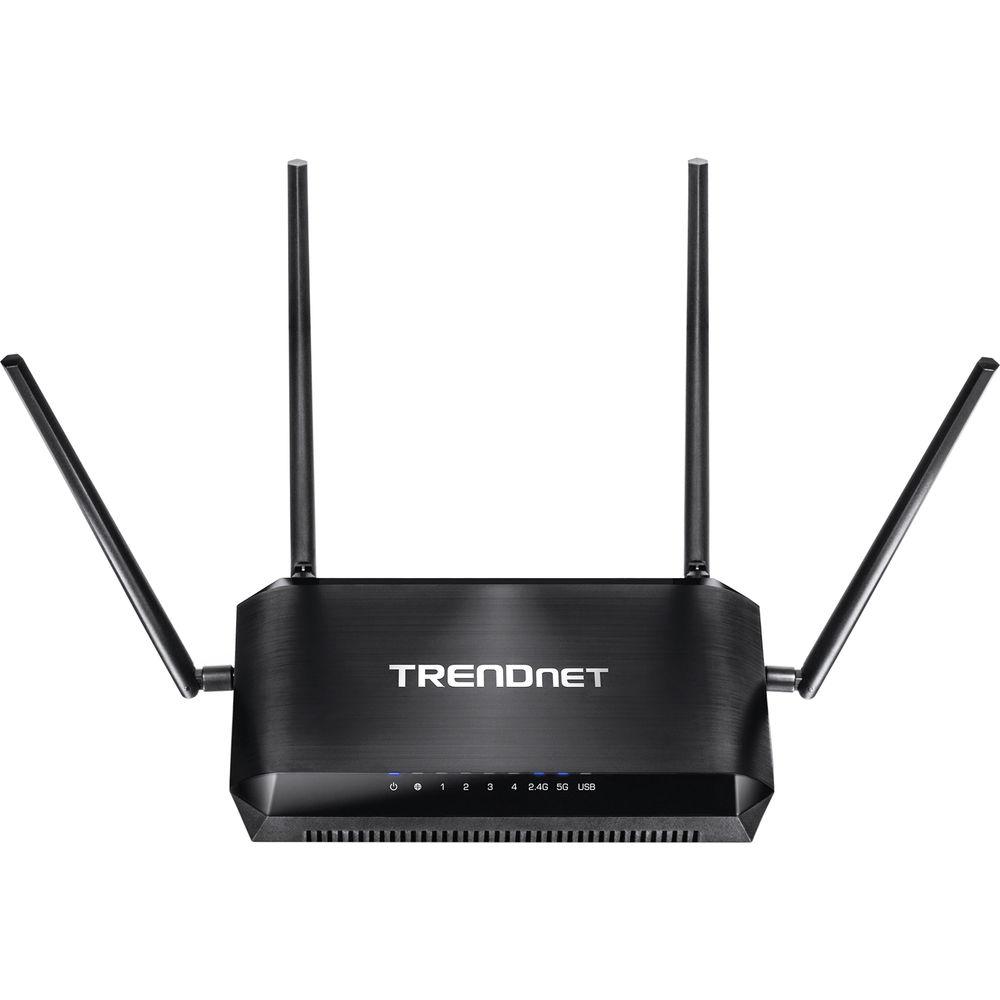

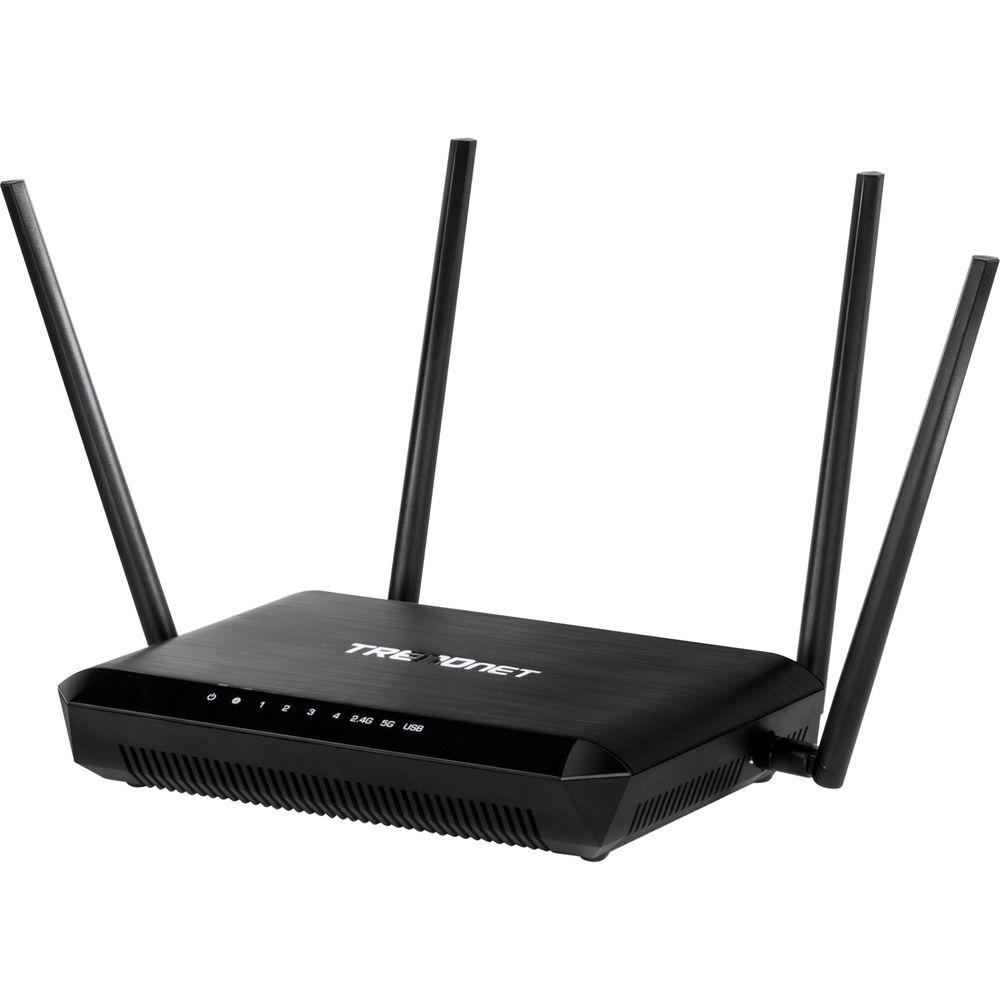

Product description Deploy a new wireless network in your home or small office with the AC2600 StreamBoost Dual-Band Wi-Fi Router (Version v2.0R) from TRENDnet. Capable of up to 2,533 Mb/s total data throughput, this dual-band Wi-Fi 5 (802.11ac) router comes equipped with four detachable antennas, four Gigabit Ethernet LAN ports, one Gigabit Ethernet WAN port, and a USB 3.0/3.1 Gen 1 Type-A port that's ideal for sharing files on the network. The AC2600 StreamBoost router features quad-stream multi-user MIMO technology, which allows the router to handle multiple data streams simultaneously. Wi-Fi Protected Setup (WPS) support helps ease the process of connecting wireless clients to the network, while beamforming support helps to boost network performance. - Wi-Fi Guest Network
- Create an isolated network for guest internet access only.
- Pre-Encrypted Wireless
- For added convenience, the Wi-Fi network is pre-encrypted with its own unique password.
- Parental Controls
- Limit access to specific websites and control connected device access to the network.
- Targeted Beamforming
- Beamforming helps to boost performance by directing stronger wireless signals to your specific location.
- File Sharing Support
- Management controls help to optimize BitTorrent sharing, iTunes server streams, and Samba (SMB) clients.
- Wi-Fi Protected Setup (WPS) Support
- Lets you connect compatible wireless clients to the network by pushing the WPS button on both the router and the device.
- Access Control Features
-
- Firewall: NAT, SPI, virtual server, special applications, gaming, DMZ host, allow/deny ping request from internet
- ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
- Parental (Access) Controls: MAC, URL, IP Filter
- Quality of Service Features
-
- WMM
- Dynamic IP (DHCP)
- Static IP (Fixed)
- PPPoE (Dynamic IP/Static IP)
- PPTP (Dynamic IP/Static IP)
- L2TP (Dynamic IP/Static IP)
- Russia PPPoE (Dynamic IP/Static IP)
- Russia PPTP (Dynamic IP/Static IP)
- Russia L2TP (Dynamic IP/Static IP)
- IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
- Management and Monitoring Features
-
- Local/remote web based management
- Upgrade firmware
- Backup/restore configuration
- Internal logging
- Reboot & scheduled automatic reboot
- Ping watchdog
- Restore to factory defaults
- Ping test
- Routing
-
- Static
- Dynamic (RIP v1/2)
- Frequency
-
- 2.412 - 2.472 GHz
- 5.180 - 5.825 GHz
- Modulation
-
- 802.11b: CCK, DQPSK, DBPSK
- 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
- 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
- Media Access Protocol
-
- CSMA/CA with ACK
- Additional Features
-
- Multi-Language interface: English, French, Spanish, German, Russian, Portuguese
- IPv6 support
- Up to 2 additional SSIDs per band
- Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
UPC: 710931160727 In the Box TRENDnet AC2600 StreamBoost Dual-Band Wi-Fi Router (Version v2.0R) 4 x Detachable Antennas Network Cable (5' / 1.5 m) Power Adapter (12 VDC, 1.5A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet AC2600 StreamBoost Dual-Band Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet StreamBoost Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | MU-MIMO Support | 4 x 4 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Sensitivity | -55 to -83 dBm | | Antenna Gain | 3 to 5 dBi | | Transmit Power | 15 to 27 dBm | | Supported Protocols | IPv6
WMM | | Antenna Placement | External | | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
1 x 5 Gb/s USB Type-A | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 800 Mb/s
5 GHz: 1733 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WEP, WPA, WPA2-PSK | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1.5 A | | Power Consumption | <17.4 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 95% | | | | Certifications | CE, FCC, IC, as per Manufacturer | | Dimensions | 9.8 x 7.1 x 1.8" / 248.92 x 180.34 x 45.72 mm | | Weight | 21.6 oz / 612 g | | | | Package Weight | 2.785 lb | | Box Dimensions (LxWxH) | 10.7 x 9.2 x 4.5" |
