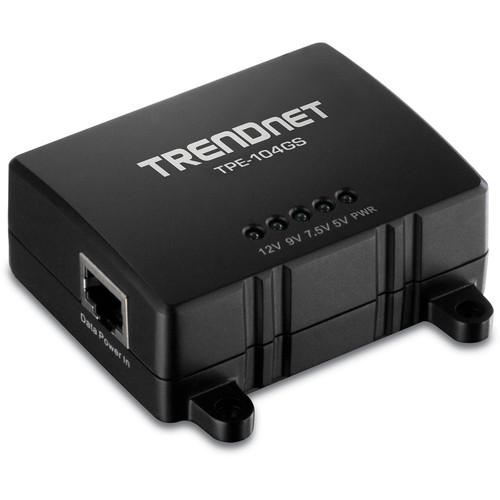

User Manual for TRENDnet Gigabit PoE Splitter Click to enlarge the picture
Contents of the user manual for the TRENDnet Gigabit PoE Splitter
- Product category: Power over Ethernet (PoE) TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Power over Ethernet (PoE)
 |
User manual for the TRENDnet Gigabit PoE Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

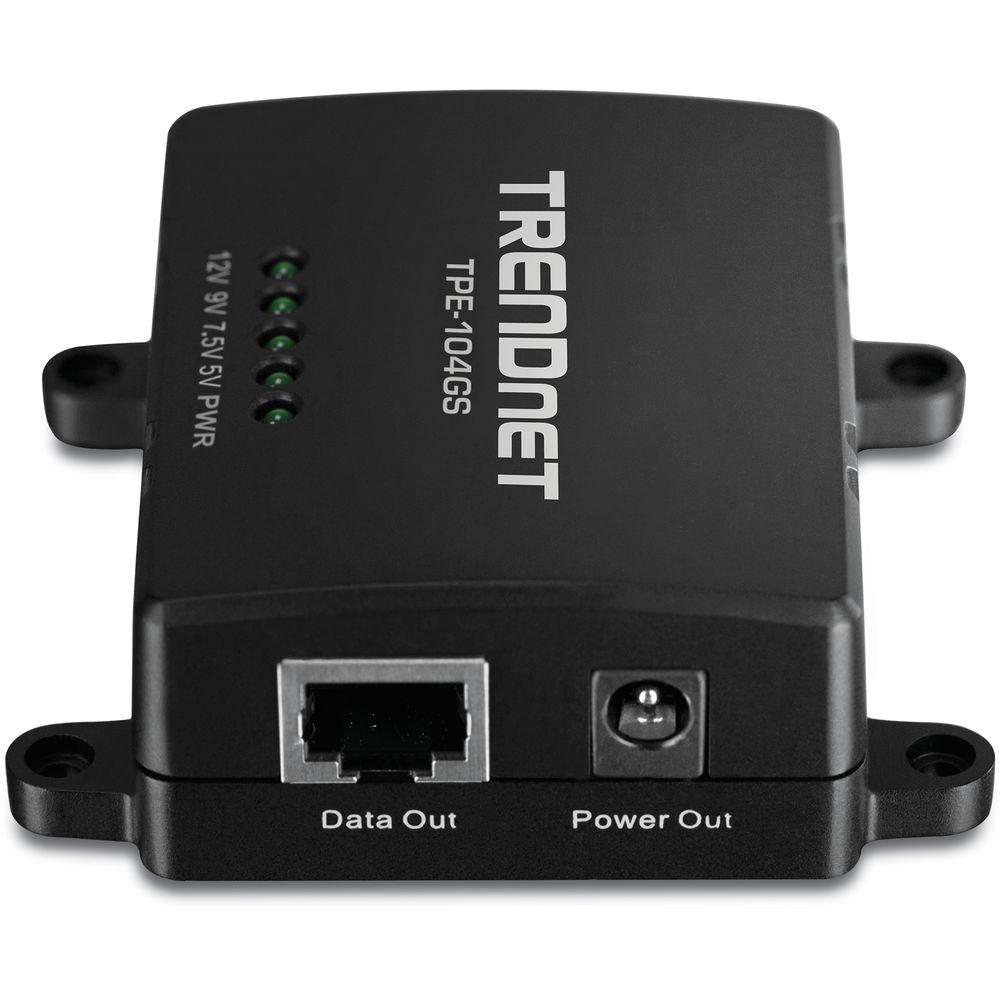

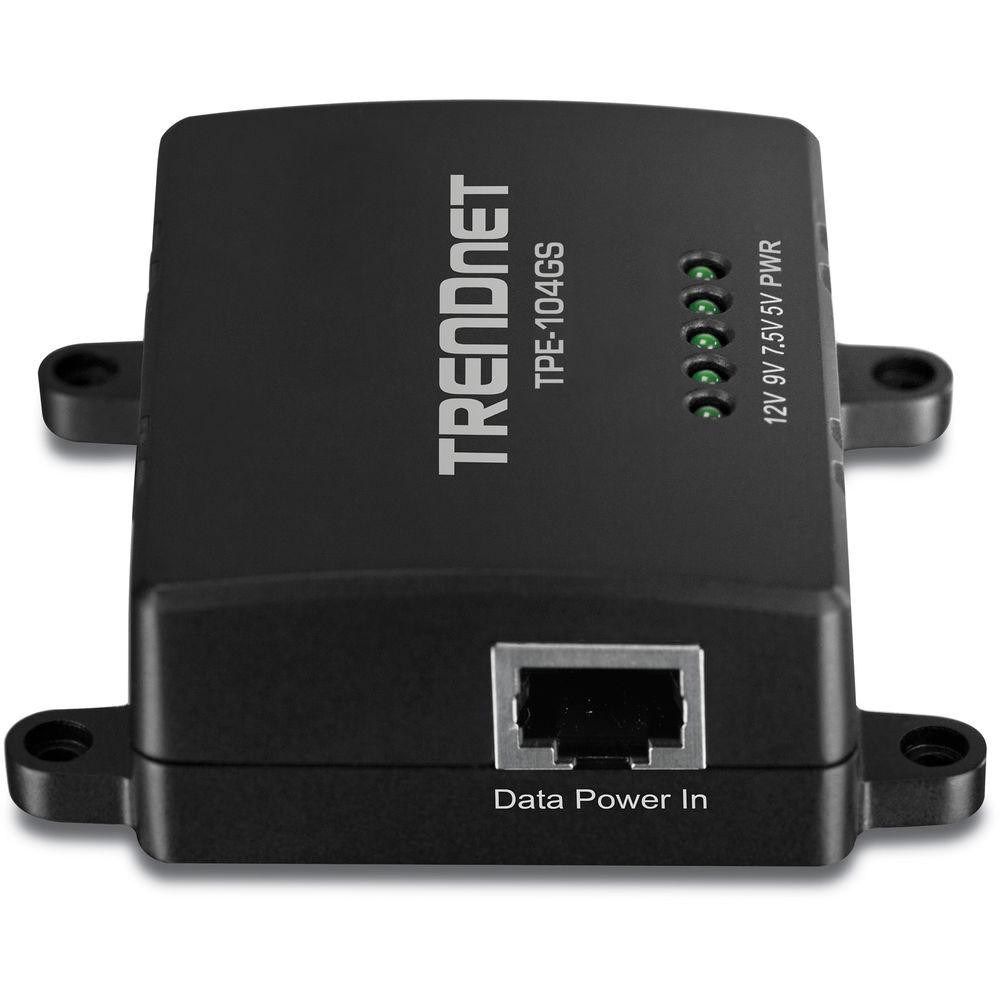

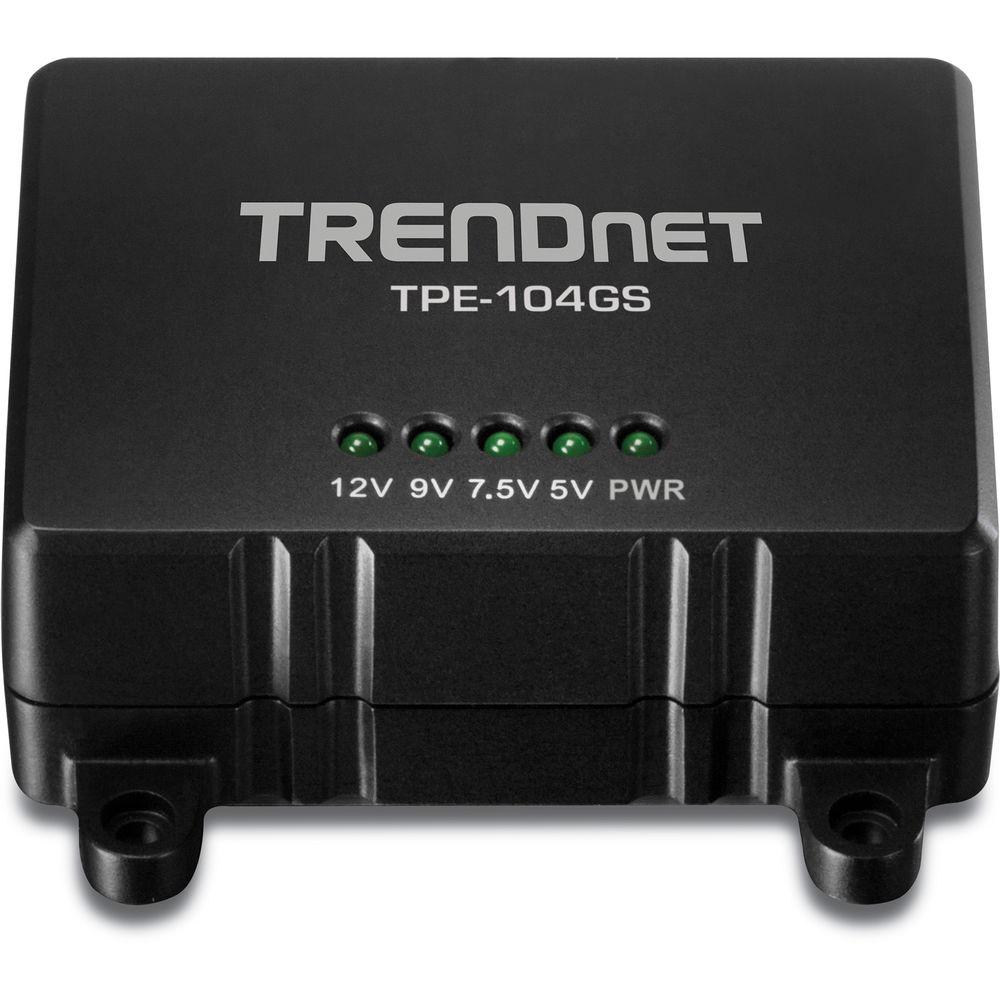

Product description With support for Gigabit network speeds, this Gigabit PoE Splitter from TRENDnet can effectively split the PoE and data streams coming into the splitter into a single Gigabit data out feed and single power out feed. Once configured, the dip switch makes it easy to adjust the power output to 5V, 7.5V, 9V, or 12V. Additionally, this PoE splitter comes with 2mm and 2mm-to-2.5mm jumper cables. Built-in mounting points help with installation, and an external power adapter is not necessary. - Compatible with PoE 802.3af network connections
- Supports Gigabit network speeds

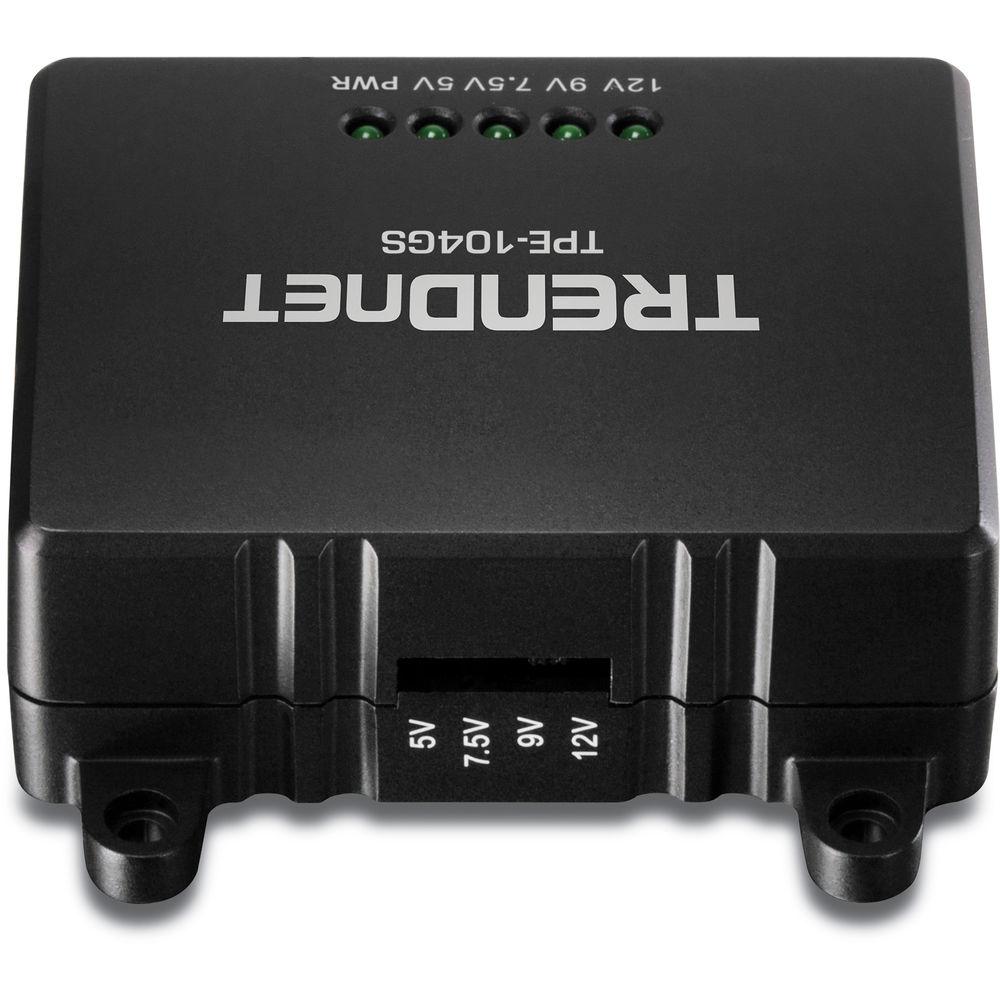

- A toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to match non-PoE device power requirements
- Included cables increase power pin device compatibility with the non-PoE networked devices
- No need for power adapter
- Built-in mounting points increase installation flexibility
UPC: 710931160178 In the Box TRENDnet Gigabit PoE Splitter Jumper Cable (2.0 to 2.0 mm) Jumper Cable (2.0 to 2.5 mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Gigabit PoE Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-104GS Specs | Standards | IEEE 802.3, IEEE802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE802.3af | | Interface (Inputs/Outputs) | 1 x Gigabit PoE input
1 x Gigabit data output
1 x Power output
1 x Adjustable output power DIP switch | | LED Indicators | Yes | | Data Transfer Rate | Ethernet: 10 Mb/s (half duplex), 20 Mb/s (full duplex)
Fast Ethernet: 100 Mb/s (half duplex), 200 Mb/s (full duplex)
Gigabit: 2000 Mb/s (full duplex) | | Input Voltage | PoE network cable input: 48 VDC, (0.38A) | | Output Voltage | 5 V (2 A)
7.5 V (2 A)
9 V (1.7 A)
12 V (1.2 A) | | Consumption | 0.3 W maximum | | Operating Temperature & Humidity | 32 to 113°F / 0 to 45°C at 90% non-condensing humidity | | Dimensions | 2.8 x 1.8 x 1.0" / 70.0 x 45.0 x 25.0 mm | | Weight | 2.1 oz / 60.0 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.2 x 4.3 x 1.8" |
