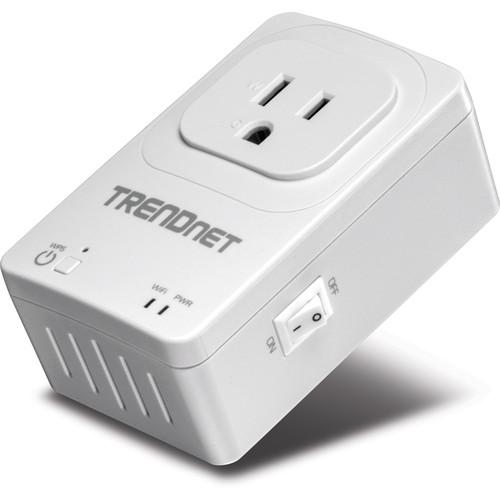

Product description The Home Smart Switch with Wireless Extender from Trendnet is a combination smart electrical outlet and N300 wireless extender. Combined with its free Apple or Android mobile app, users may take advantage of the smart switch aspect of this device to use their Internet connection to turn lights, fans, electronic devices, appliances, and more on or off. It is also possible to create daily schedules to turn specific outlets on or off to match specific needs, or to create an illusion that you're at home. As for the wireless extender capabilities of this device, simply place this device in an area of your home with a weak wireless signal and the built-in N300 wireless extender will connect to your existing Wi-Fi network and broadcast a strong signal.
The Trendnet Home Smart Switch with Wireless Extender supports 802.11b/g/n Wi-Fi on frequencies of 2.412 - 2.484 GHz. It also supports wireless channels 1-11 with FCC and 1-13 with ETSI, as well as WEP and WPA/WPA2-PSK encryption. It operates on 100-240 VAC at 50/60 Hz and consumes a maximum amount of 6W. An existing Internet connection and Wi-Fi router is required for use. Power Controller - App-Based Setup
- Complete the user-friendly app-based setup in minutes
- Remote Power Control
- Turn a light, fan, electronic device, or appliance on/off from any mobile internet connection
- On/Off Schedule
- Create a weekly on/off schedule for a light, fan, or another device to match your needs or to give the illusion that you're home
- No Clutter

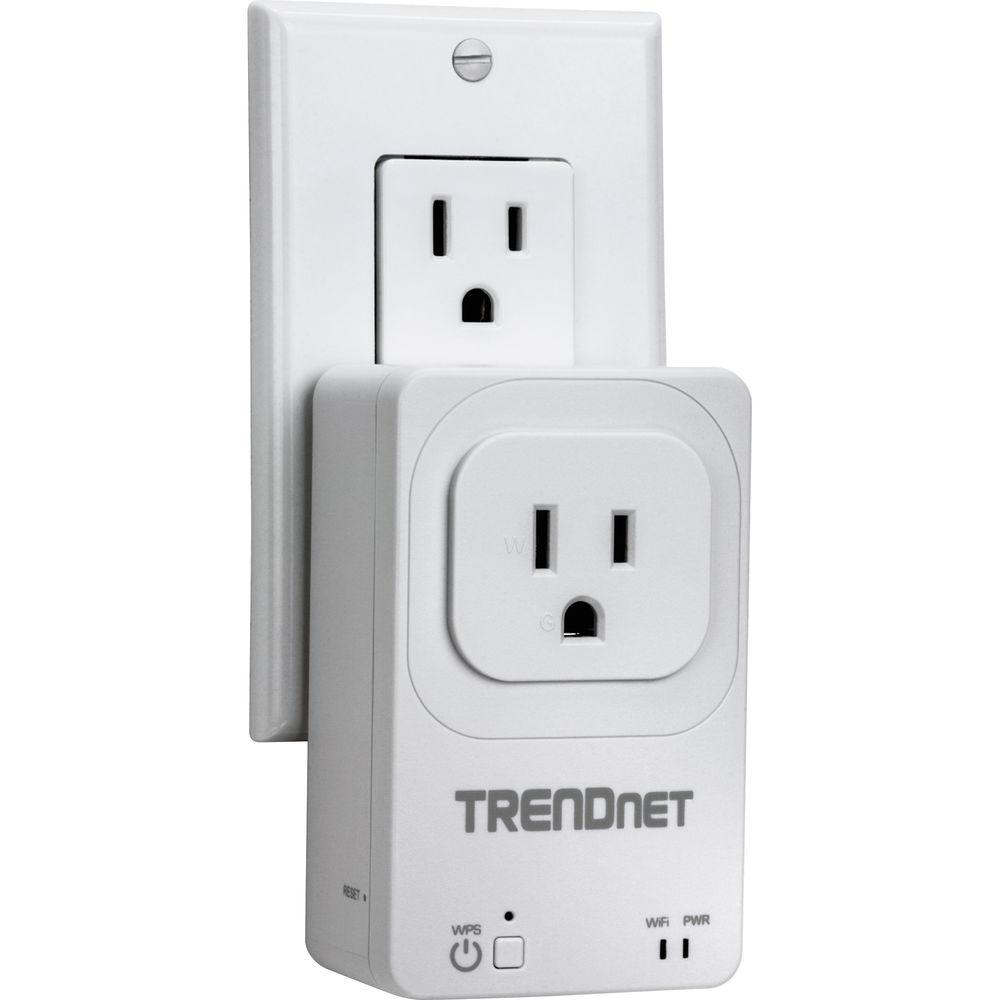

- The compact form factor stays off the ground by plugging directly into an outlet
- Free App
- TRENDnet's free Apple and Android app is able to control multiple THA-101 units from any Internet connection
- Power Consumption
- See how much power your device is consuming with real-time electrical consumption information listed within the app. Power consumption is given as energy (KWh), current (A), voltage (V), and power (W)
- Over Current Protection
- Trips relay when the current exceeds 16A
Wireless Extender - Wireless Extender
- Extends the range of your existing wireless network
- N300 Wireless
- 300 Mbps Wireless N
- Wireless Coverage
- Extended wireless coverage with MIMO antenna technology
- One Touch Connection
- Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

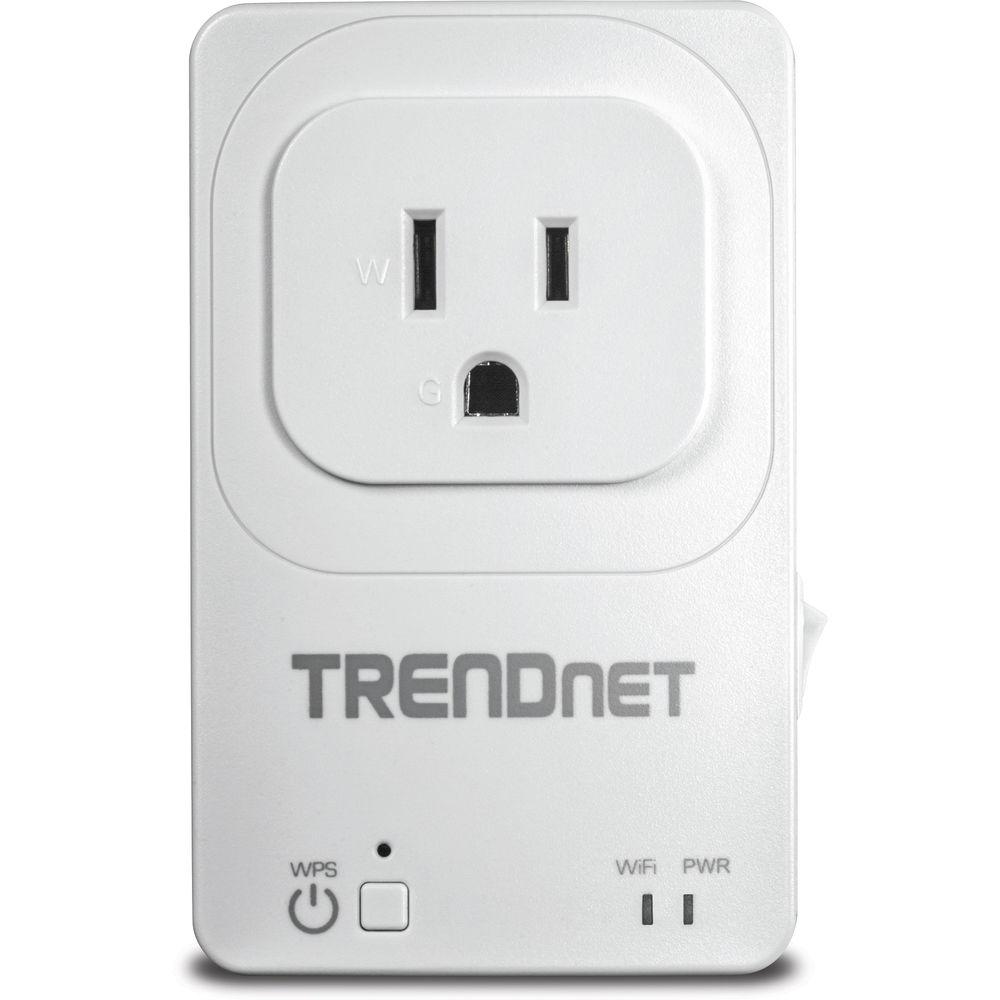

- LED Indicators
- LED indicators convey device status
- Compatibility
- Works with Wireless N and G routers
UPC: 710931190007 In the Box TRENDnet Home Smart Switch with Wireless Extender Limited 3-Year Warranty Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Home Smart Switch with Wireless Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet THA-101 Specs | Hardware Standards | IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mbps) | | Device Interfaces | Electrical outlet
WPS button

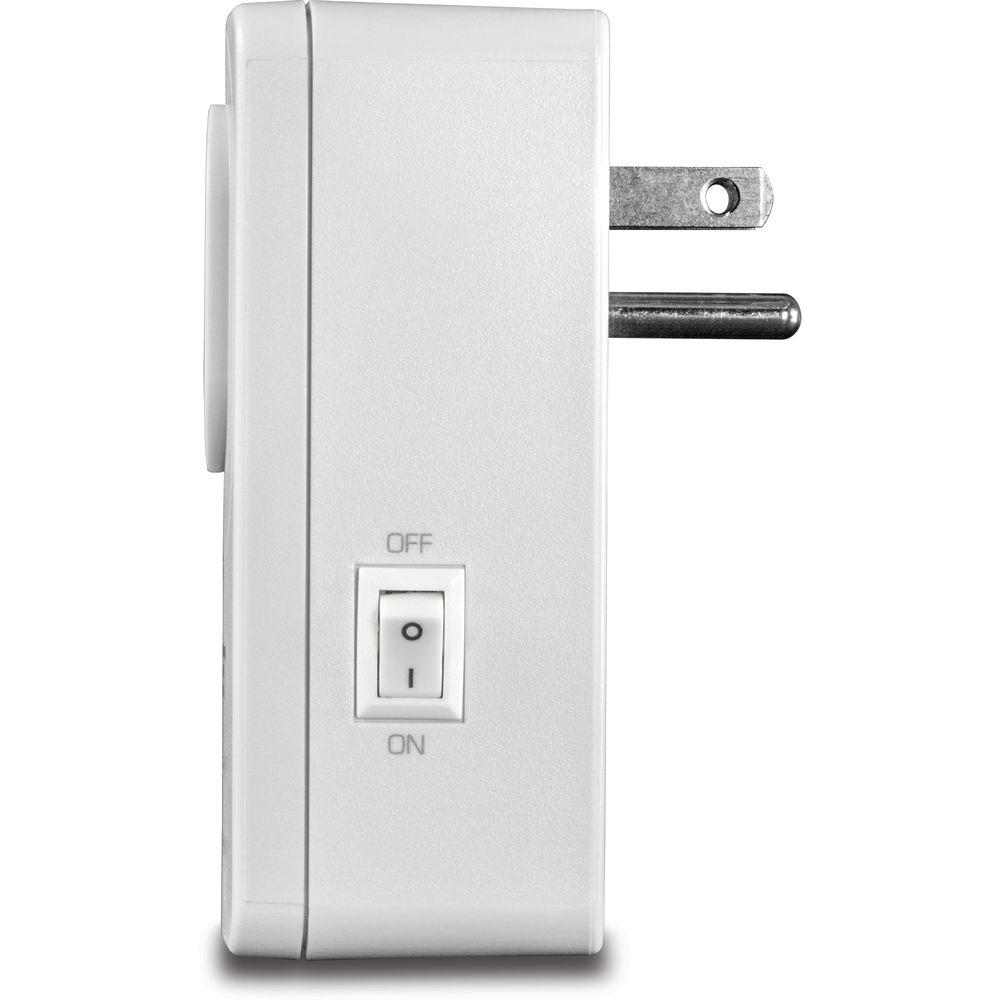

Power switch
LED indicators

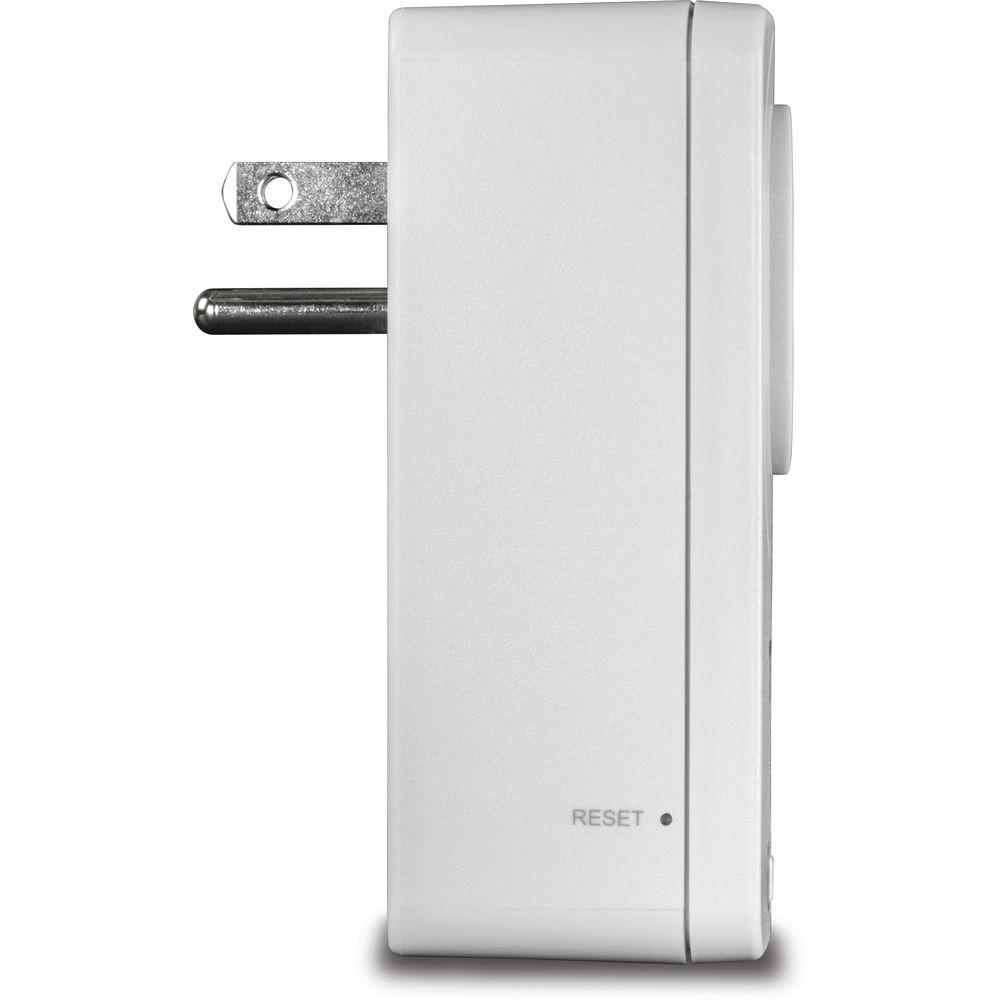

Reset button | | Special Features | Overcurrent protection
Requires existing wireless network in order to function | | Encryption | Wireless encryption: WEP, WPA/WPA2-PSK | | Media Access Protocol | CSMA/CA with ACK | | Antenna Gain | 2 x 2 dBi | | Frequency | 2.412 - 2.484 GHz | | Wireless Channels | FCC: 1-11, ETSI: 1-13 | | Modulation | 802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
802.11g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM | | Wireless Output Power (EIRP)/Receiving Sensitivity | 802.11b: 17 dBm (typical)/-84 dBm (typical) @ 11 Mbps
802.11g: 14 dBm (typical)/-73 dBm (typical) @ 54 Mbps
802.11n: 14 dBm (typical)/-70 dBm (typical) @ 300 Mbps | | Power | 100 - 240 VAC, 50/60 Hz Consumption: 6 W max | | Power Capacity | US: 1800 W / 15 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | Max. 95% non-condensing | | Certifications | CE, FCC | | Dimensions | 3.70 x 2.30 x 1.46" / 93.98 x 58.42 x 37.08 mm | | Weight | US: 4.90 oz / 138.91 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.063 x 5.276 x 3.858" |
