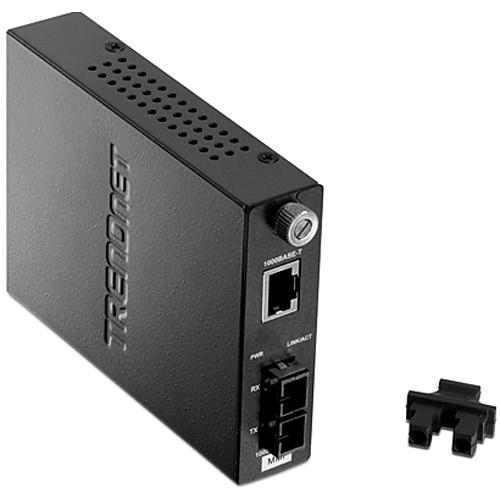

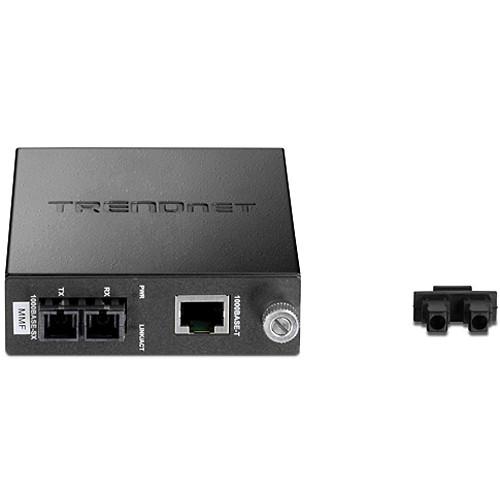

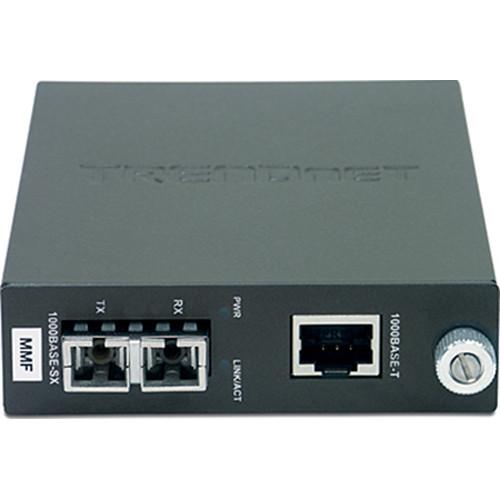

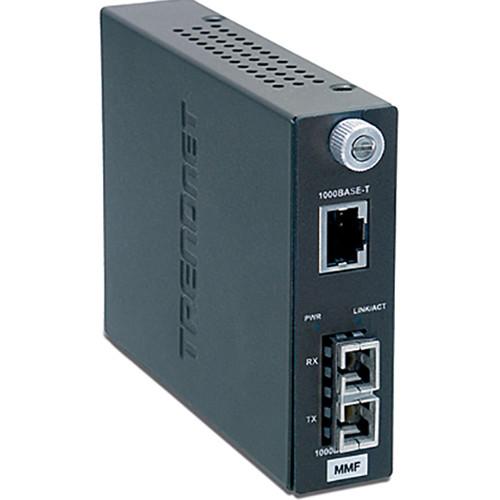

User Manual for TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter Click to enlarge the picture
Contents of the user manual for the TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode
- Product category: Network Transceivers TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Transceivers
 |
User manual for the TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter from Intellinet lets you convert a Gigabit Ethernet connection to a fiber one for faster speeds and farther connections between networking devices, up to 1803' (550 m). This makes it ideal for building-to-building connectivity without the need for additional routers. It supports 1000Base-T connections and requires a Cat5e cable or better for optimal performance. Furthermore, LED indicators on the device lets your monitor its connectivity. You can use this converter as a stand-alone unit or with an optional media converter chassis. -
- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
- 1 x 1000Base-T RJ-45 port
- 1 x 1000Base-SX multi-mode SC type fiber port
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for Fiber port
- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module (sold separately)
- Status LED indicators for Power and Link/Activity
- Wall mountable
UPC: 710931504156 In the Box TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TFC-1000MSC Specs | Ethernet Standards | IEEE 802.3z, IEEE 802.3ab | | Ports | 1 x SC
1 x RJ45 | | Networking Technology | 1000BASE-T, 1000BASE-SX | | Transmit Power | -9.4 to 4 dBm | | Receive Power | -12.5 to 13.5 dBm | | Wavelength | 850 nm | | Protocol | CSMA/CD | | Maximum Networking Distance | 1804' / 550 m | | Maximum Data Rate | 2 Gbps | | Mode | Multi-Mode | | Power Consumption | 2.7 W | | DC Input Power | 7.5 VDC at 1 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | -13 to 158°F / -25 to 70°C | | Dimensions (L x W x H) | 4.7 x 3.5 x 1.0" / 119.4 x 88.9 x 25.4 mm | | Weight | 12.5 oz / 354.4 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.7 x 4.3 x 2.5" |
