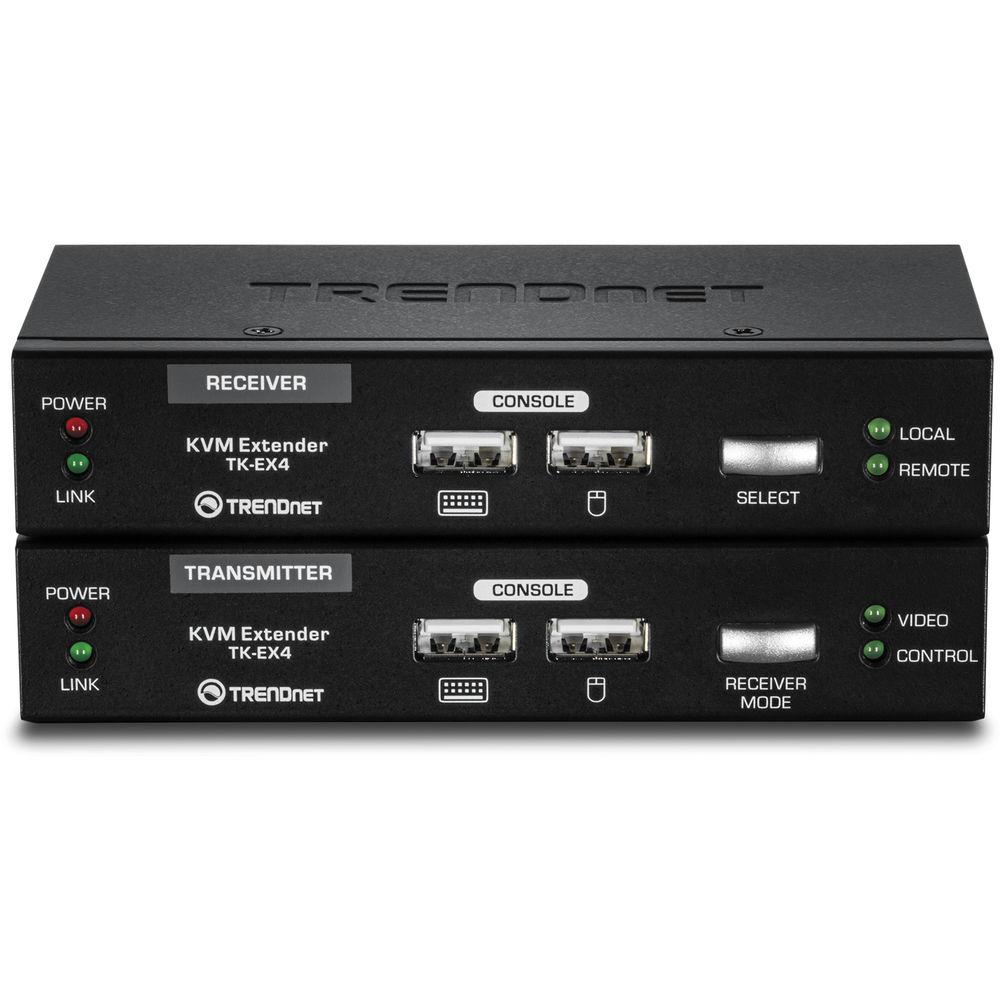

Product description Multi-Monitors: Maximizing Multitasking Read More The Trendnet KVM Extension Kit, which comes with a transmitter and receiver, lets you use a keyboard, mouse, and a VGA monitor up to 328' (100 m) away from a computer with no software installation required. The transmitter allows a set of peripherals to control a local computer or sends and receives signals through an optional Ethernet cable to the receiver to control a remote computer. With the OSD control feature, you can manage security and access options on the extension kit with a convenient on-screen display. In addition, this kit supports a screen resolution of 1920 x 1200 to a single monitor.

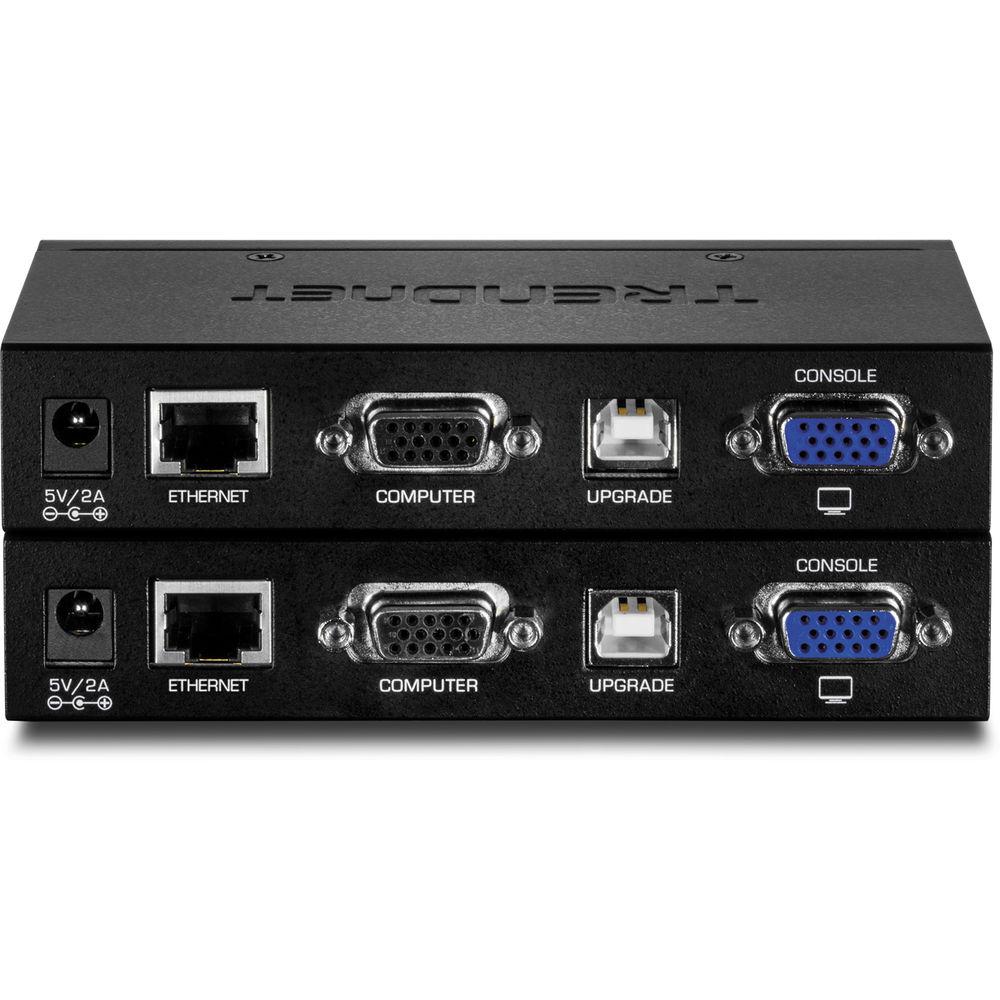

To help you set up quickly, this kit includes two 3-in-1 VGA combination cables, a USB type A-to-B cable, two power adapters, and two USB-to-PS/2 adapters. The 3-in-1 VGA combination cable, which has a USB and two VGA connectors, allows you to use the connected keyboard, mouse, and monitor on the transmitter with a local computer. Both the transmitter and receiver are equipped with one USB type B, one Ethernet, two VGA, and two USB type A ports. - KVM Features
- No CD Installation: simply connect the transmitter and receiver for full KVM management
OSD: manage security and access options with the convenient on screen display
Hotkeys: access the remote server or the OSD with hotkey controls
Console Override: blocks KVM functionality at the other terminal when in use
Multiple Server Access: connect to a KVM switch for multiple server access
EDID Emulation: adopt monitor resolution settings from the local or remote monitor - Security
- Access: create password protected OSD access
Auto-Logout: for additional security, create an auto-logout OSD time limit
View Only: allow remote viewing only UPC: 710931170009 In the Box TRENDnet KVM Extension Kit 2 x 4' (1.2 m) 3-in-1 VGA Combination Cables 4' (1.2 m) USB Type A to B Cable 2 x Power Adapters 2 x USB to PS/2 Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet KVM Extension Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

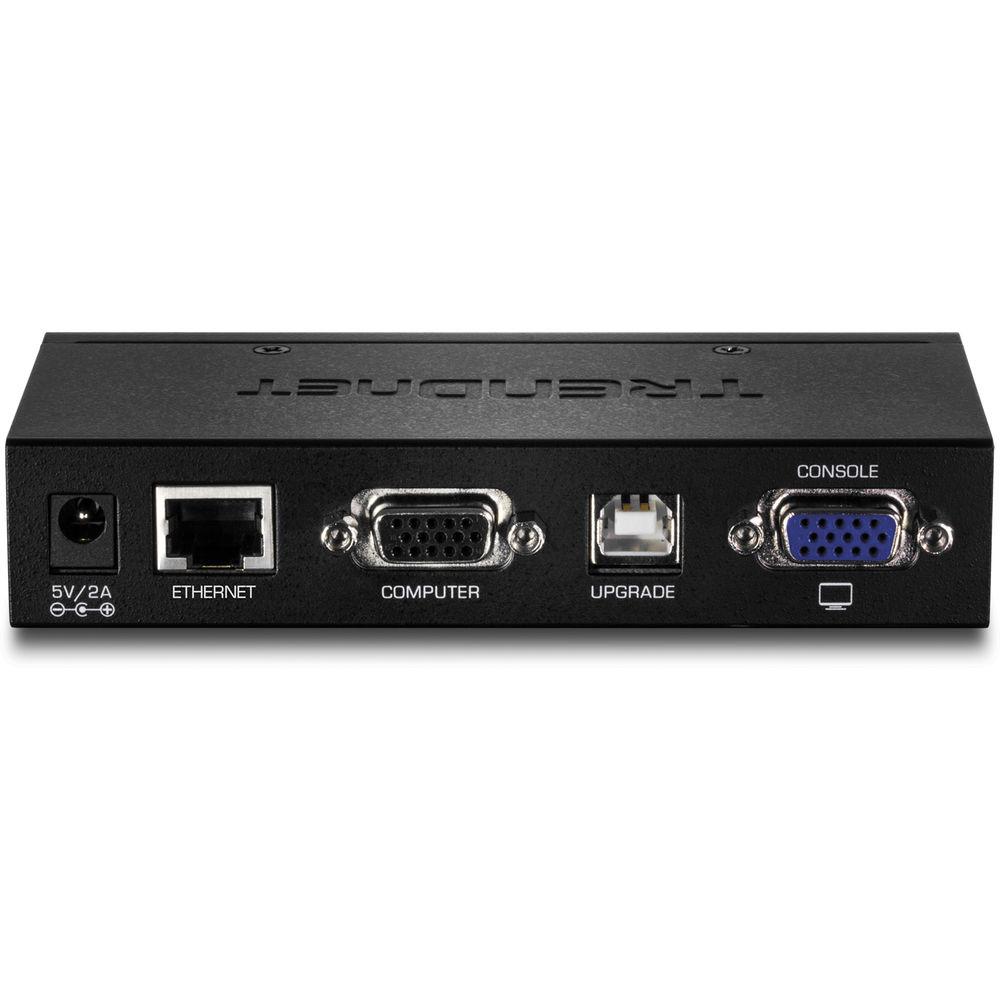

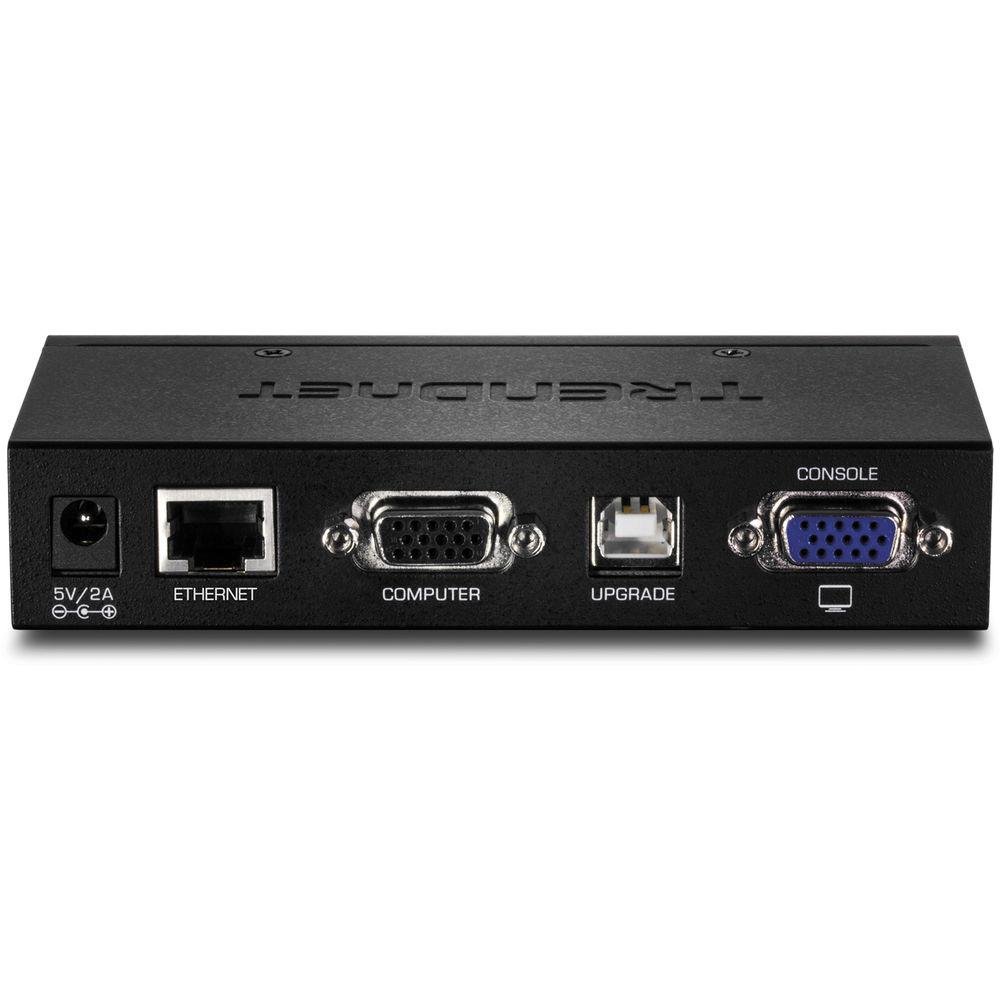

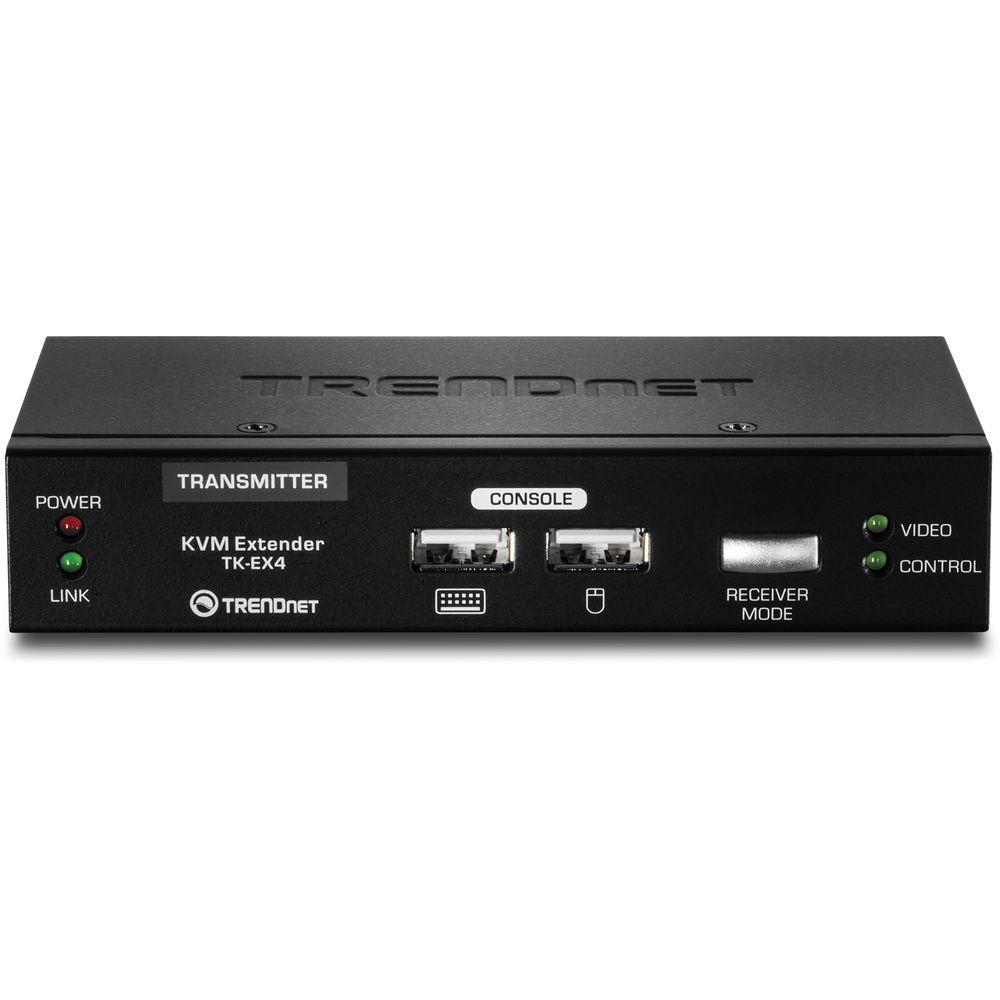

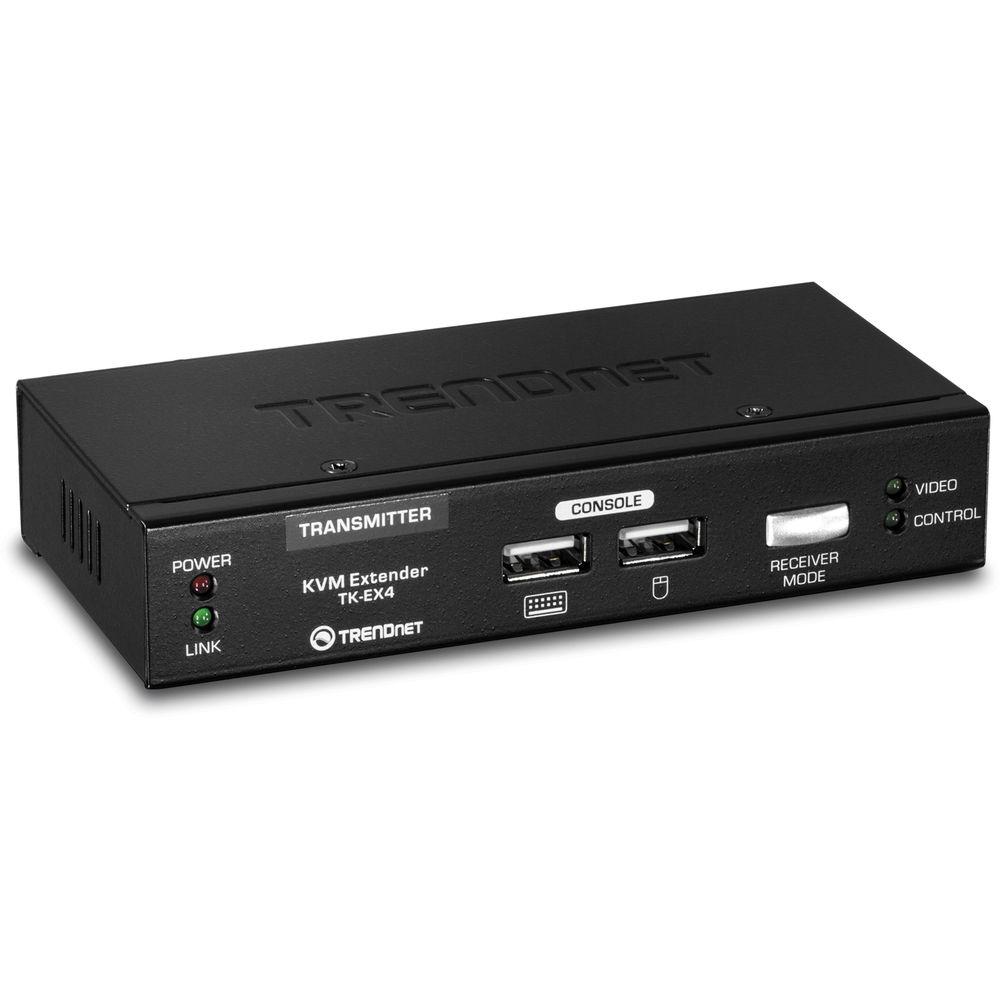

Technical parametersTRENDnet TK-EX4 Specs | Ports | Transmitter
1 x USB keyboard
1 x USB mouse
1 x USB type B (firmware upgrade port)
1 x VGA (monitor)
1 x VGA (local computer)
1 x Ethernet extension

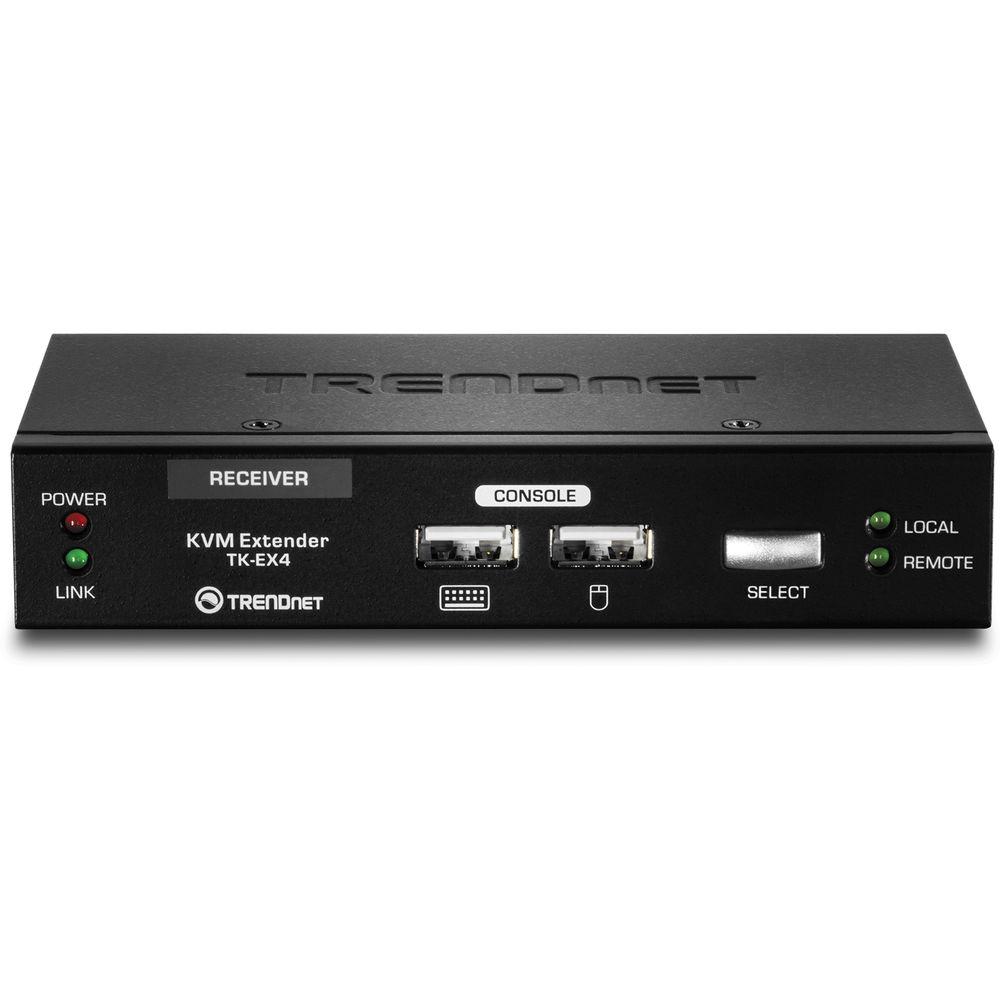

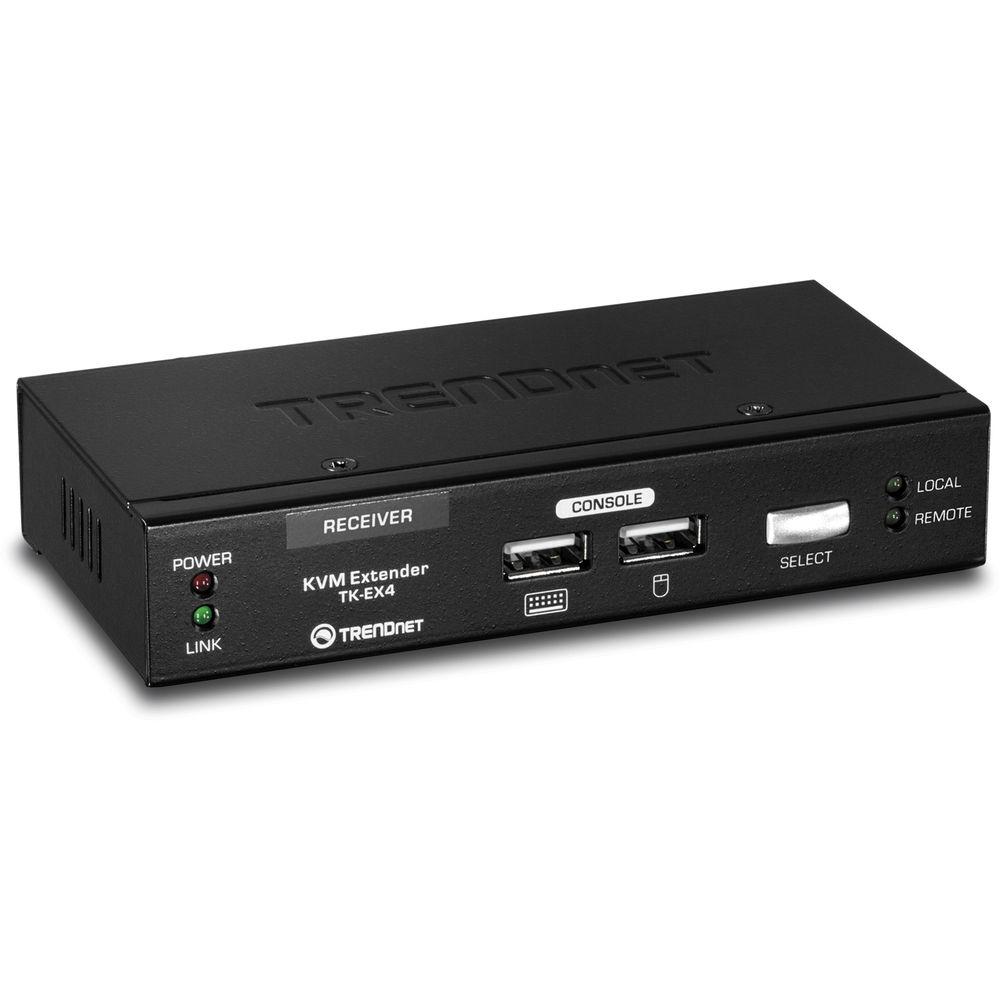

Receiver
1 x USB keyboard
1 x USB mouse
1 x USB type B (firmware upgrade port)
1 x VGA (monitor)
1 x VGA (local computer)
1 x Ethernet extension | | Controls | Receiver: PC select
Transmitter: receiver settings | | LED Indicators | LED indicators on transmitter and receiver
Power
Link | | Computer Connections | Transmitter and Receiver: VGA and USB or PS/2 | | Monitor Resolution | Up to 1920 x 1200 | | Notification | Audio switching | | Controls | Transmitter: block access, viewing access only, and full control
Receiver: local or remote view
ODS: Password protection, auto ODS logout, four hotkeys options, OSD timeout, console delay function, and EDID emulation | | Power | Input: 100 to 240 VAC, 50 to 60 Hz, 0.2 A
Output: 5 VDC, 2 A
Max Consumption: transmitter 2.7 W, receiver 4.7 W | | Environmental | Temperature: 32 to 104°F / 0 to 40°C
Humidity: Max 90% non-condensing | | Certifications | CE
FCC | | Dimensions | Transmitter and Receiver: 5.1 x 2.6 x 1.0" / 129.5 x 66.0 x 25.4 mm | | Weight | Transmitter: 10.1 oz / 285.0 g
Receiver: 10.2 oz / 290.0 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 8.1 x 7.0 x 5.6" |
