User Manual for TRENDnet Micro AC1200 Wireless USB Adapter Click to enlarge the picture
Contents of the user manual for the TRENDnet Micro AC1200 Wireless USB Adapter
- Product category: Wireless Adapters & Cards TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Adapters & Cards
 |
User manual for the TRENDnet Micro AC1200 Wireless USB Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description Quickly and easily connect your Windows or Mac computer to a local Wi-Fi network using the Micro AC1200 Wireless USB Adapter from TRENDnet. This discrete USB Type-A adapter plugs into most USB ports and allows you to connect to a local area network on either the 2.4 GHz or 5 GHz frequency. Additionally, this Micro Wireless USB Adapter supports the 802.11ac Wi-Fi network standard with data transfer rates of up to 1200 Mb/s making it easy to stream multimedia content, download large files, and more with virtually no lag. Your connection is also kept secure using WPA2 wireless encryption which helps to keep prying eyes from getting into your important file. -
- Simple installation in minutes
- Connect your laptop or desktop to a high-speed Wi-Fi AC1200 network to download files, play games, stream video, and more
- Supports up to WPA2 encryption

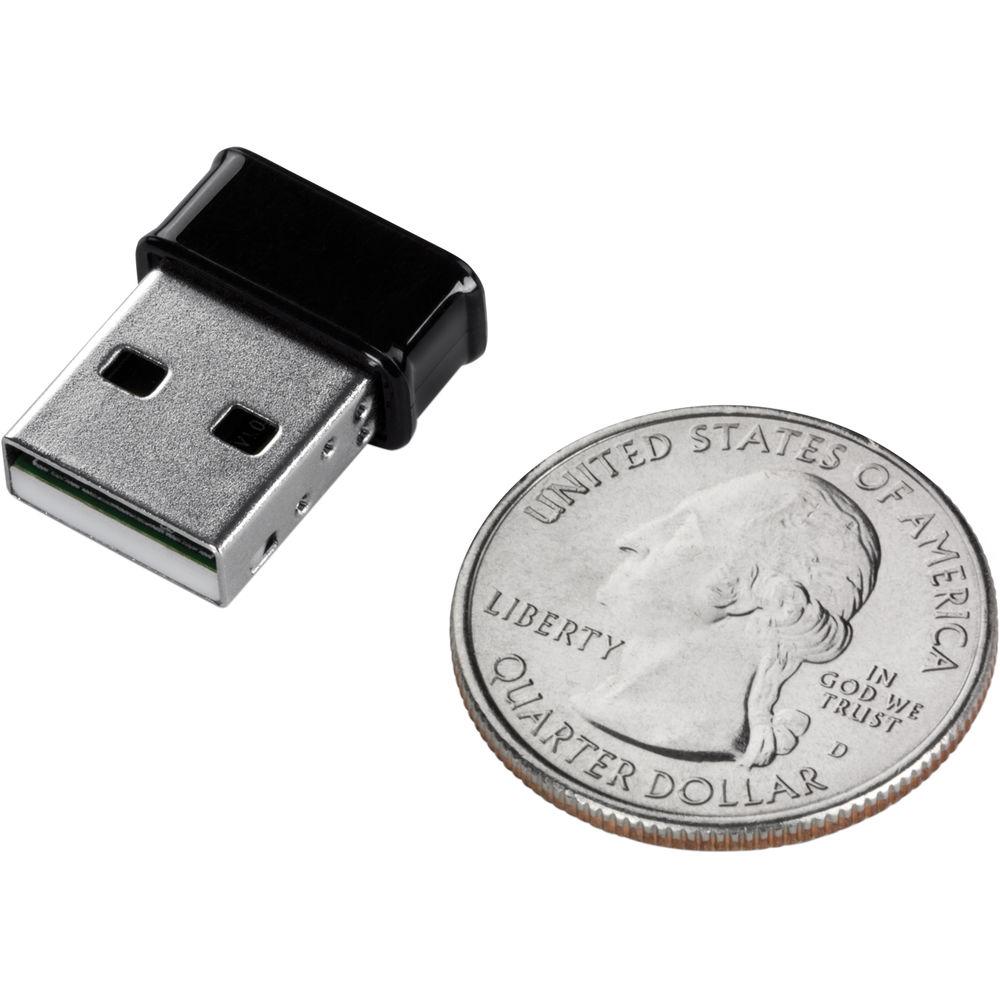

- Micro design length is just 3/8 inch (9mm) exposed
- Compatible with Windows and Mac operating systems
UPC: 710931130782 In the Box TRENDnet Micro AC1200 Wireless USB Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Micro AC1200 Wireless USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet Micro AC1200 Wireless USB Specs | Standards | IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mb/s)
IEEE 802.11ac (up to 867 Mb/s) | | Hardware Interface | USB 2.0
LED Indicator | | Compatibility | Windows 10, 8.1, 8, 7
Mac OS 10.9 - 10.12 | | Data Rates | 802.11a: Up to 54 Mb/s
802.11b: Up to 11 Mb/s
802.11g: Up to 54 Mb/s
802.11n: Up to 300 Mb/s (2.4 GHz & 5 GHz)
802.11ac: Up to 867 Mb/s | | Encryption | 64/128-bit WEP, WPA / WPA2-Enterprise, WPA / WPA2-PSK (AES/TKIP) | | QoS (Quality of Service) | WMM | | Frequency | 2.400 - 2.483 GHz
5.150 - 5.825 GHz | | Modulation | 802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM | | Antenna | 2.4 GHz / 5 GHz: 2 x 1 dBi (max.) dual-band internal | | Output Power | 802.11a: 8.5 dBm (max.) @ 54 Mb/s
802.11b: 9.5 dBm (max.) @ 11 Mb/s
802.11g: 8.5 dBm (max.) @ 54 Mb/s
802.11n: 7.5 dBm (max.) (2.4 GHz & 5 GHz) @ 300 Mb/s
802.11ac: 5.5 dBm (max.) @ 867 Mb/s | | Receiving Sensitivity | 802.11a: -70 dBm (typical) @ 54 Mb/s
802.11b: -81 dBm (typical) @ 11 Mb/s
802.11g: -70 dBm (typical) @ 54 Mb/s
802.11n (2.4 GHz): -68 dBm (typical) @ 300 Mb/s
802.11n (5 GHz): -67 dBm (typical) @ 300 Mb/s
802.11ac: -54 dBm (typical) @ 867 Mb/s | | Wireless Channels | 2.4 GHz: FCC: 1-11; ETSI: 1-13
5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) | | Power | Consumption: Max. 0.98 W | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: Max. 90% non-condensing | | Certifications | CE, FCC | | Dimensions | 0.8 x 0.6 x 0.3" / 20 x 15 x 7 mm | | Weight | 0.7 oz / 2 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.3 x 5.3 x 1.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
