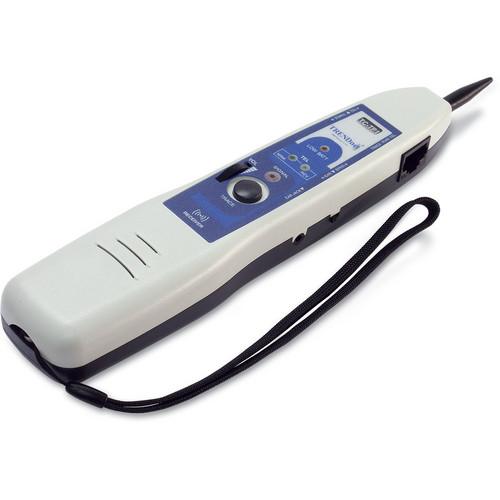

User Manual for TRENDnet Network Probe for TC-NT2 Tester Click to enlarge the picture
Contents of the user manual for the TRENDnet Network Probe for TC-NT2 Tester
- Product category: Networking Accessories TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Networking Accessories
|
User manual for the TRENDnet Network Probe for TC-NT2 Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The Network Probe for TC-NT2 Tester from TRENDnet is an ergonomically designed device that comes with an adjustable volume control and signal LED for enhanced accuracy in noisy environments. It is an easy-to-use amplified inductor and tone probe used for tone tracing and line testing. Featuring a simple push button, the Network Probe provides an easy operation and conserves battery power. It also features a ring/tip polarity test indicator.
The Network Probe when combined with a compatible tone generator can help a technician quickly locate, isolate and test commonly used voice and data cables swiftly and efficiently. - Compatible with most tone generators
- Composite tip reduces the risk of getting shock
- Built-in speaker with adjustable volume (gain)
- Earphone jack (2.5 mm) for using with earphone in noisy environment
- Tone signal LED indicator
- Detects AC or DC power up to 24 volts
- Identifies analog phone jack polarity and verifies line functioning
- Equipped with RJ-45 jack and a short RJ-11 jumper cable is included
- +/- terminals for butt set or alligator clips
- Push button for easy operation and conserves battery power
- Lanyard attachment for quick access to the Probe
UPC: 710931401226 In the Box TRENDnet Network Probe for TC-NT2 Tester Short RJ-11 Jumper Cable 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Network Probe for TC-NT2 Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TC-TP1 Specs | Ports | 1x RJ-45 network 1x sub-mini phone earphone | | Connectivity Media | Twisted pair | | Status Indicators | Tone signal LED indicator | | Button | Push button for easy operation and conserves battery power | | Terminals | +/- terminals for butt set or alligator clips | | Sound Control Feature | Built-in speaker with adjustable volume (gain) | | Link Configuration | Compatible with most tone generators | | Management | Push button for easy operation and conserves battery power Lanyard attachment for quick access to the Probe | | Power Detection | AC / DC up to 24 volts | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.6 x 1.7 x 1.4" |
