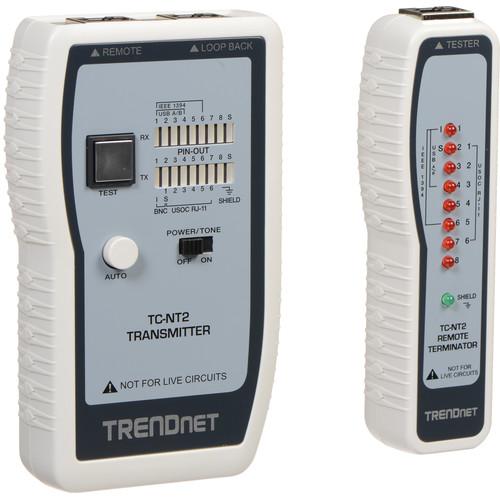

User Manual for TRENDnet TC-NT2 Network Cable Tester Click to enlarge the picture
Contents of the user manual for the TRENDnet TC-NT2 Network Cable Tester
- Product category: Cable Testers & Tone Generators TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Cable Testers & Tone Generators
|
User manual for the TRENDnet TC-NT2 Network Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The Trendnet TC-NT2 Network Cable Tester is a comprehensive cable tester for network professionals. This tool allows network installers to accurately test pin configurations of various voice and data communication cables up to 984' (300 m) long. It checks continuity and displays wiring configuration. The built-in audio tone indicator lets you quickly identify faulty cables to assure proper pin and wiring structure. A master unit transmits test signals to its corresponding remote terminator to verify cable reliability. - Tests pin configuration of 10/100/1000Base-T, 10Base-2 (coax), RJ-11 / RJ-12 / RJ-45, EIA / TIA-356A / 568A / 568B, and Token Ring Cables
- Tests USB and IEEE 1394 cables with optional adapters (not included)
- Built-in Tone Generator for tracing cable with standard Tone Probe (probe not included)
- Tests the grounding on shielded / screened cables
- Verifies cable continuity, opens, shorts, and mis-wires
- Tests cable up to 984' (300 m)
- Auto-Scan or Manual-Scan mode
- Includes Deluxe Carrying Pouch, two RJ45-to-BNC Adapters, and RJ45 Patch Cable
UPC: 710931401011 In the Box TRENDnet TC-NT2 Network Cable Tester Deluxe Carrying Pouch 2 x RJ45-to-BNC Adapters RJ45 Patch Cable 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TC-NT2 Network Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TC-NT2 Specs | Compatibility | 10/100/1000Base-T, 10Base-2 (coax), RJ-11 / RJ-12 / RJ-45, EIA / TIA-356A / 568A / 568B, and Token Ring Cables
USB and IEEE 1394 cables with optional adapters (not included) | | Frequency | 600 ~ 800 Hz | | Maximum Cable Length | 984' (300 m) | | Power Requirements | 1x DC 9V battery (not included) | | Operating Temperature | 32 ~ 113° F (0 ~ 45° C) | | Dimensions | Master Unit: 4.5 x 2.7 x 1.1" (11.5 x 6.8 x 2.7 cm) approx.
Remote Terminator: 4.6 x 1.3 x 1.1" (11.8 x 3.2 x 2.7 cm) | | Weight (without Battery) | Master Unit: 3.9 oz (0.11 kg)
Remote Terminator: 2.0 oz (57 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.3 x 4.7 x 2.0" |
