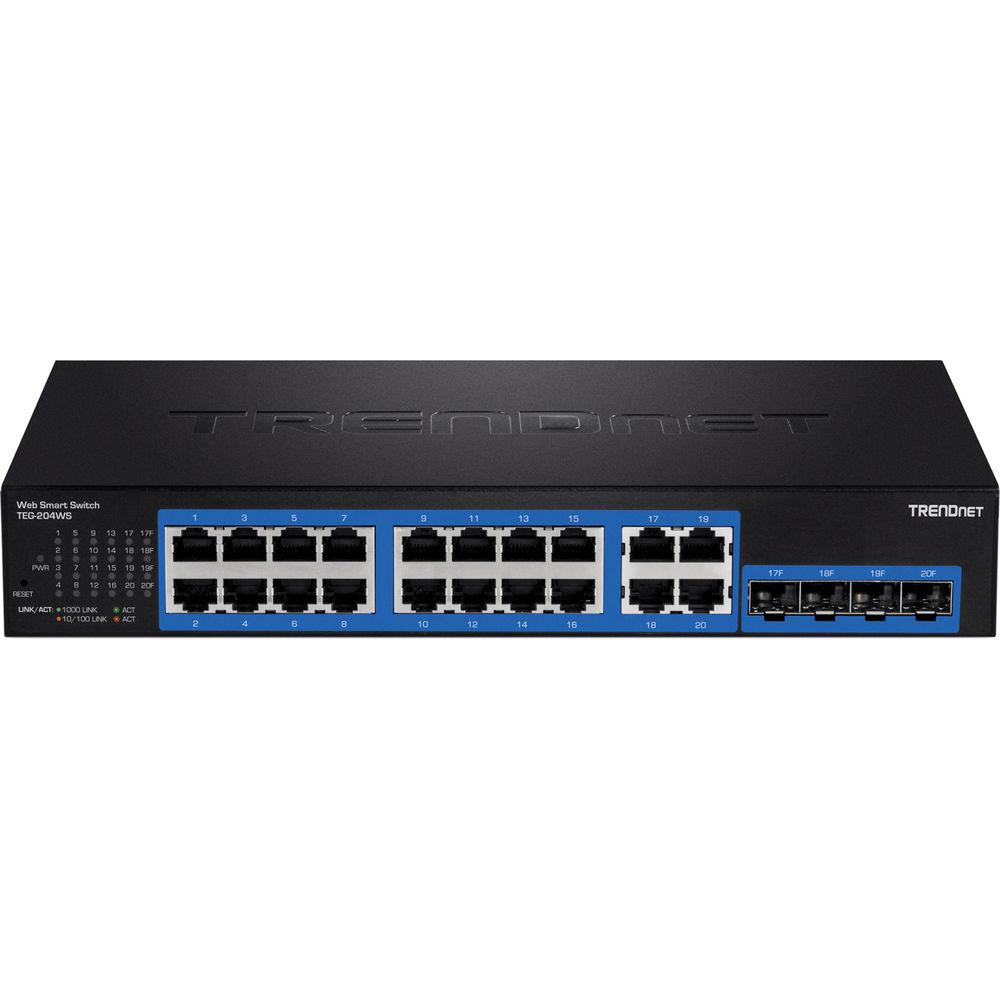

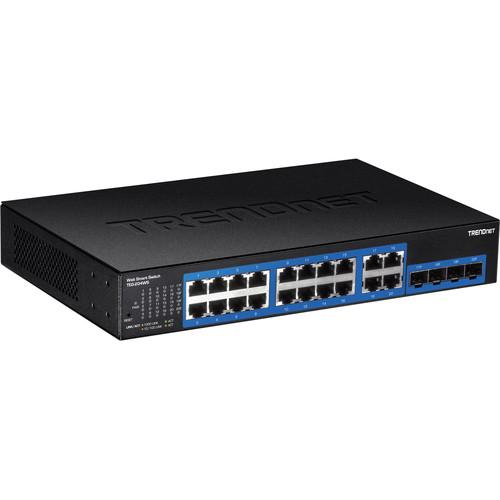

Product description With a 40 Gbps switching capacity and a variety of advanced management features, the TEG-204WS 20-Port Gigabit Managed Switch from TRENDnet gives network admins complete control over their network. This switch comes equipped with 16 Gigabit ports and 4 shared Gigabit ports (RJ45/SFP), making it easy to connect a variety of network components directly to the switch. The switch can be easily installed into an existing rack and features a fanless metal housing.
Once installed, network admins can utilize features like 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Loopback Detection, and much more to easily manage traffic throughout the network. Monitoring protocols including RMON, SNMP, SNMP Trap, and Port Mirroring also provide admins the ability to manage various aspects of the network. If that's not enough, access control features including ACL, SSL, MAC/port filtering, and a variety of additional protocols offer enhanced access control capabilities. - Web Smart Management
- Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
- Integration Flexibility
- Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
- High-Speed SFP
- Offers four shared gigabit SFP slots to allow for long distance fiber optic connections.
- Hardware Design
- Fanless rack mountable 1U metal housing features 16 gigabit ports and 4 shared gigabit ports (RJ-45/SFP).
- IPv6 Ready
- This switch supports IPv6 configuration and IPv6 neighbor discovery.
- Traffic Management
- A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.
- Troubleshooting
- A convenient cable diagnostic test and traffic statistics aid in network troubleshooting.
- Access Control
- Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls.
- Monitoring
- RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
UPC: 710931140392 In the Box TRENDnet TEG-204WS 20-Port Gigabit Managed Switch Power Cord Rack Mount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEG-204WS 20-Port Gigabit Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-204WS Specs | Standards | IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az | | Device Interface | 16 x Gigabit ports
4 x shared Gigabit ports (RJ-45/SFP)
LED indicators | | Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex) | | Performance | Switch Fabric: 40 Gbps
RAM Buffer: 512 KB
MAC Address Table: 8 K entries
Jumbo Frames: 10 KB
HOL Blocking Prevention
Forwarding Rate: 29.8 Mpps (64-byte packet size) | | Management | HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration | | MIB | IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB | | Spanning Tree | IEEE 802.1D STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) | | Link Aggregation | Static Link Aggregation
802.3ad Dynamic LACP | | Quality of Service (QoS) | 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) | | VLAN | Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs) | | Multicast | IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries | | Port Mirroring | RX, TX, or Both
One to one | | Encryption | 802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial-In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS) | | ACL | ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)

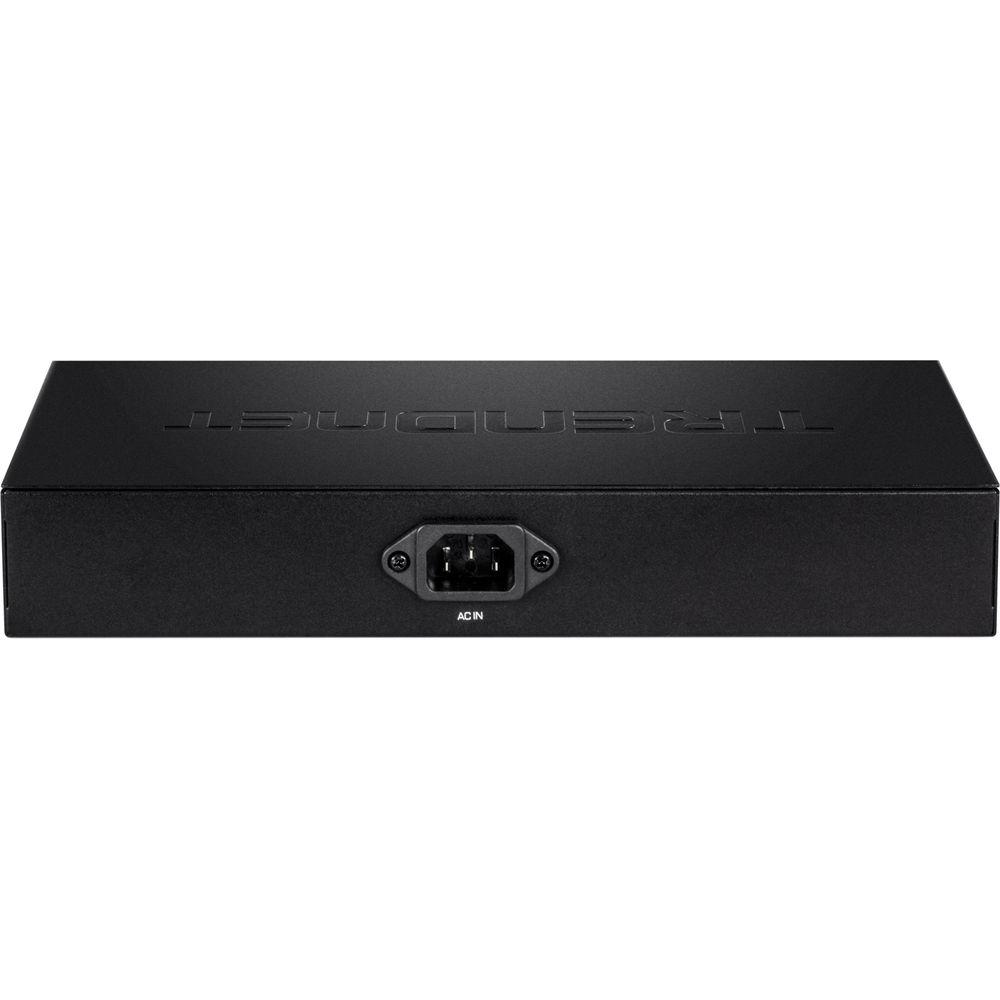

IPv6 Address (IPv6 only) | | Compatibility | Optional Software Utility: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server | | Power | Input: 100 - 240 VAC, 50/60 Hz, internal power supply
Consumption: 14.6 W (max.) | | MTBF | 836,517 hours | | Temperature & Humidity | Operating Temperature
23 to 122°F / -5 to 50°C
Operating Humidity
Max. 95% non-condensing | | Certifications | CE, FCC, UL | | Dimensions | 11.00 x 7.00 x 1.74" / 280 x 180 x 44 mm | | Weight | 3.88 lb / 1.76 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 13.858 x 13.071 x 2.677" |
