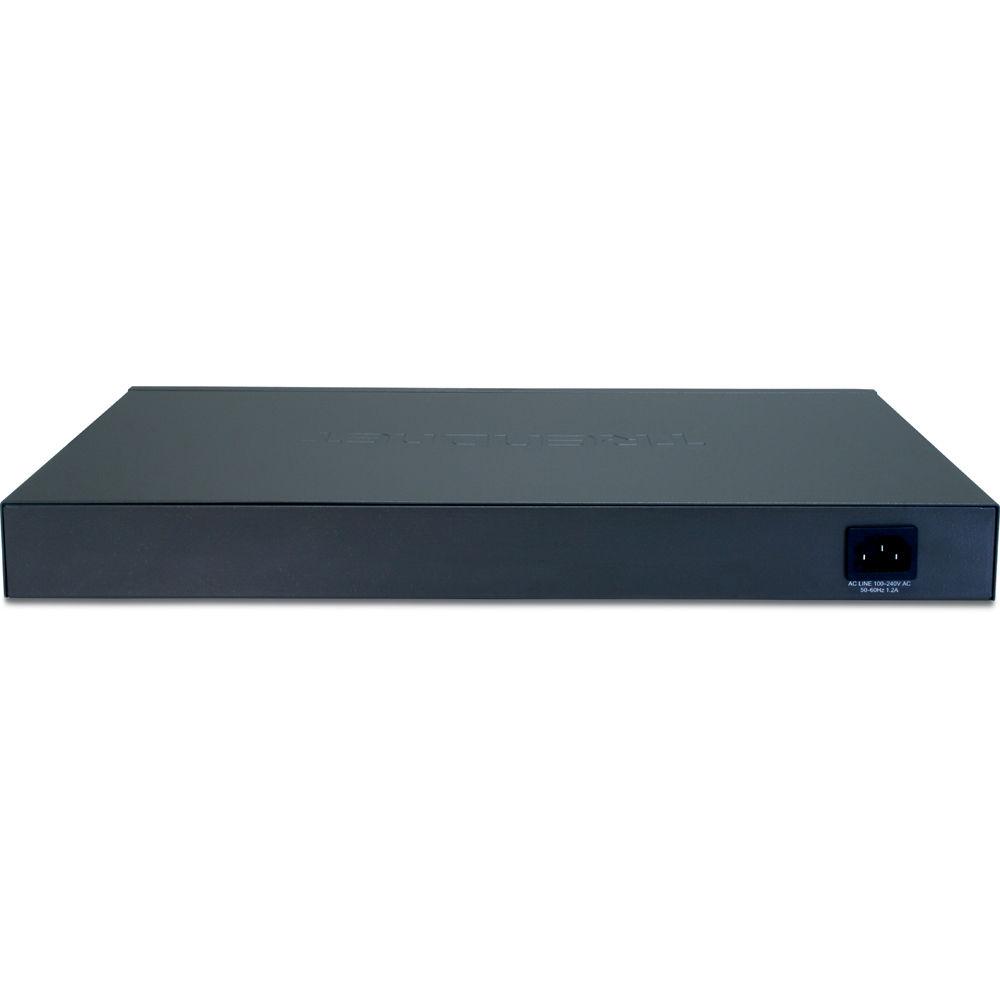

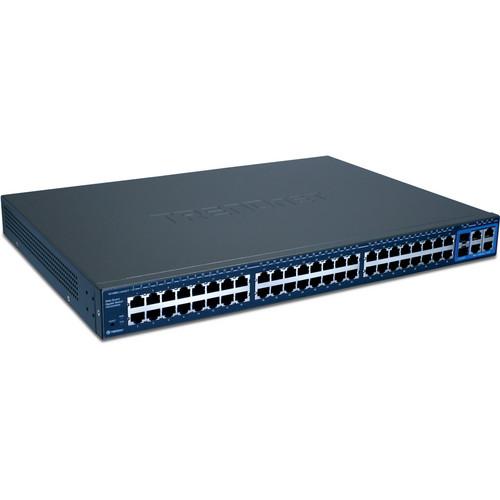

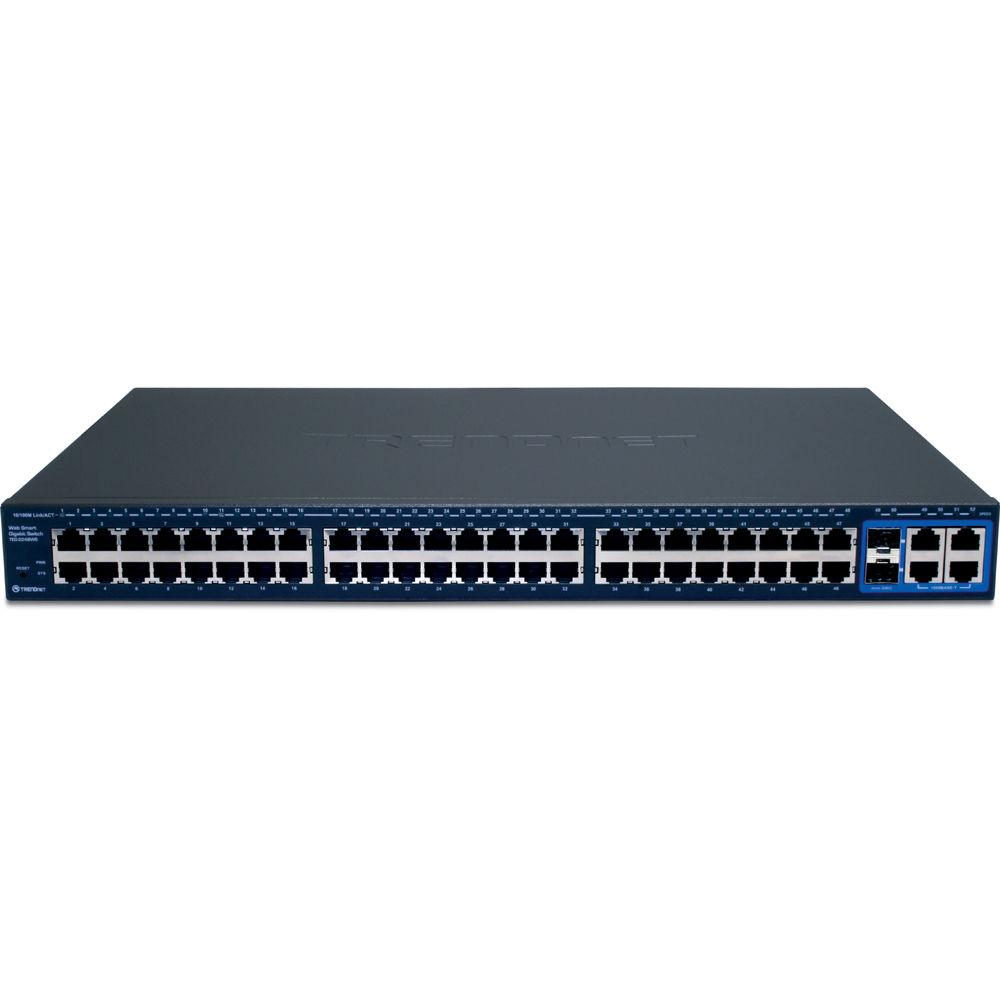

User Manual for TRENDnet TEG-2248WS 48-Port 10 100Mbps Web Smart Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TEG-2248WS 48-Port 10 100Mbps Web
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TEG-2248WS 48-Port 10 100Mbps Web contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The TEG-2248WS 48-Port 10/100Mbps Web Smart Switch from TRENDnet is an excellent means of connecting a multitude of devices to your LAN and provides advanced features without a hefty price tag. This switch features 48 Fast Ethernet ports, 2 Gigabit Ethernet ports, and 2 combination ports that you can use as either Gigabit Ethernet or as Mini-GBIC slots. You can connect computers, routers, and other devices on your network to the Fast Ethernet ports while you can connect devices that require faster throughput to the Gigabit ports. Those devices might include servers, network attached storage, or other switches. The Mini-GBIC slots allow you to connect the switch to a Fiber network. Beyond these ports, the switch boasts a switching capacity of 17.6Gbps and includes numerous advanced features so that you can get the most from it and your network connections. You can configure it via the web browser management interface. - 48x 10/100Mbps Auto-MDIX Fast Ethernet ports
- 4x 10/100/1000Mbps Auto-MDIX Gigabit ports
- The two 1000Base-SX/LX Mini-GBIC slots (shared with 2 Gigabit ports) can be used to install fiber uplink modules that use the standard Mini-GBIC form factor
- 17.6Gbps switching capacity
- IEEE 802.3x Full Duplex Flow Control and Back Pressure so as to stop any overlows of data to the switch
- IEEE 802.3ad Port Trunk aggregates parallel links to the switch for fast communication
- IEEE 802.1D Spanning Tree Protocol ensures a loop-free topology for any bridged LAN
- IEEE 802.1p Quality of Service (QoS) prioritizes traffic so that data that needs a constant link, such as VoIP and videoconferencing, takes precedence over traffic that does not
- IEEE 802.1X Authentication supports port-based access control and SNMP v1 supports basic network management
- Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLANs, perfect for creating virtual LANs. You can create up to 256 VLANs
- Utilizes the Store and Forward switching method
- Integrated address look-up engine with an 8K absolute MAC address table
- Supports 128KB RAM for data buffering
- Easy configuration via web browser
- Front panel diagnostic LEDs give the network status and activity
- Housed in a standard 1U rack mount form factor, and even includes the rack mount kit
In the Box TRENDnet TEG-2248WS 48-Port 10/100Mbps Web Smart Switch Multi-Language User's Guide Web-Smart Utility CD-ROM Power Supply Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEG-2248WS 48-Port 10 100Mbps Web Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-2248WS Specs | | | Ports | 48 x 10/100 Mb/s Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Auto-MDIX/MDI | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x, 802.3z | | | | Switching Bandwidth | 17.6 Gb/s | | Packet Buffer | 128 Kb | | | | Power Draw | 24.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Link/Activity, Power, Speed, System | | Dimensions | 17.3 x 12.3 x 1.7" / 44 x 31 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
