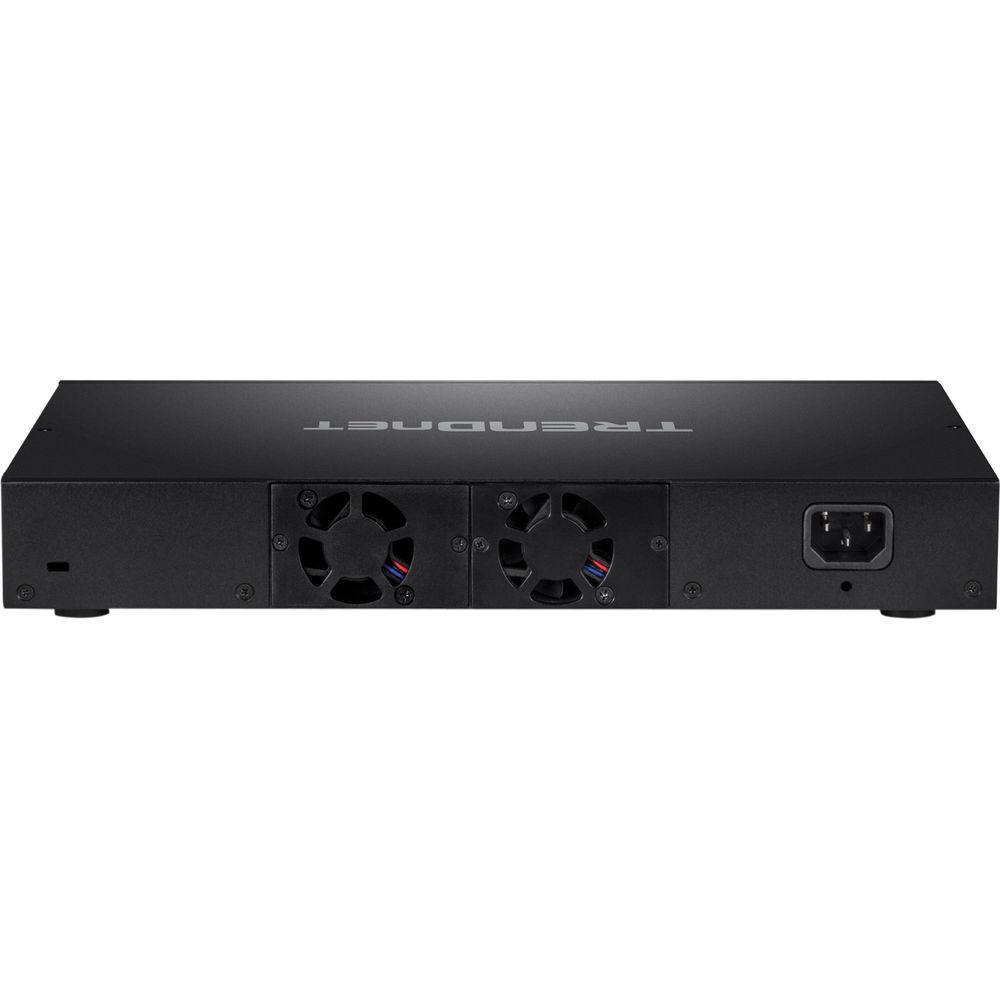

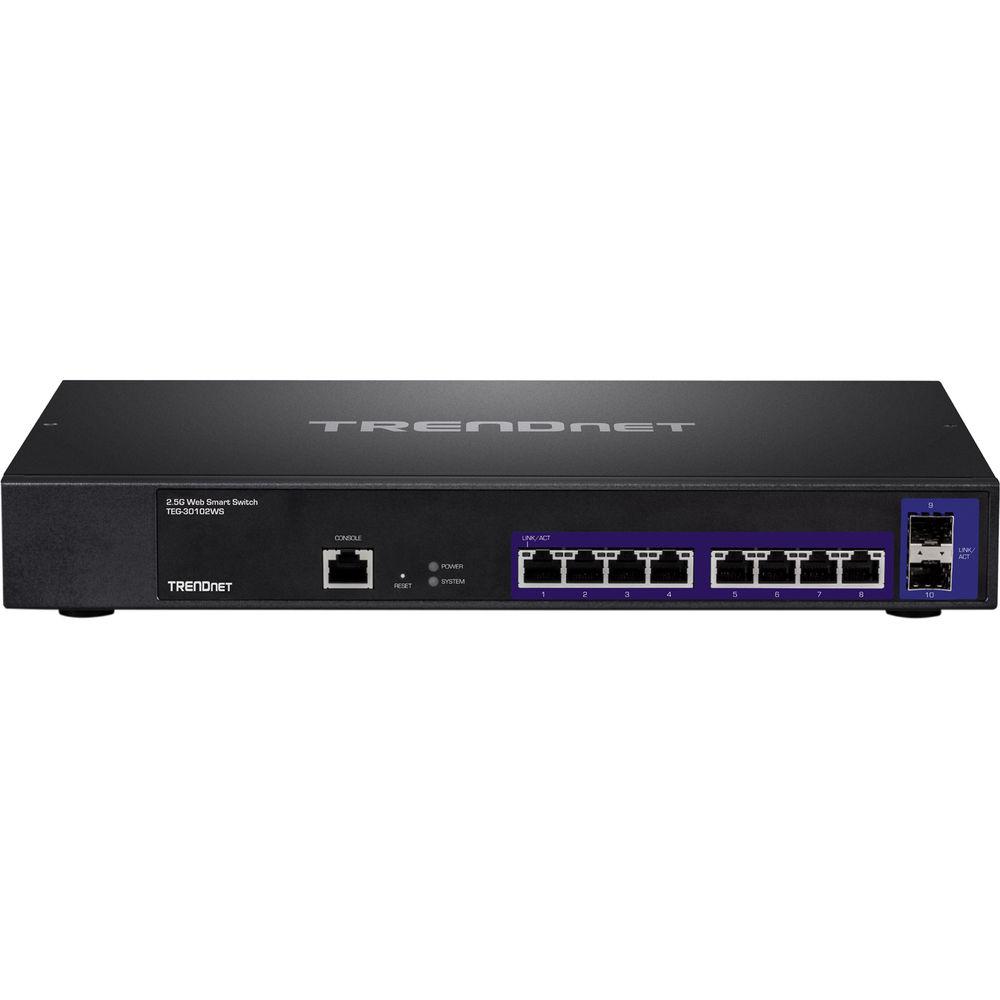

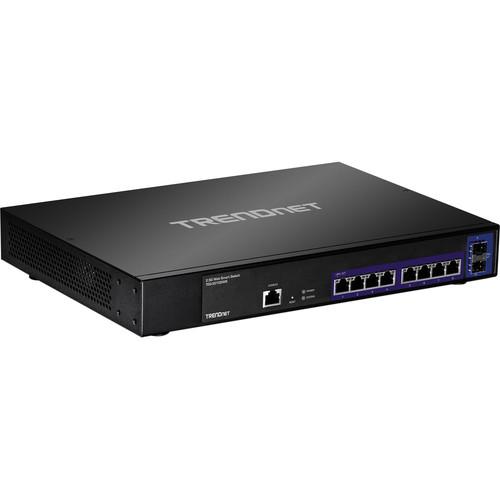

User Manual for TRENDnet TEG-30102WS 10-Port 2.5GBASE-T Web Smart Switch with 2 x 10G SFP Slots Click to enlarge the picture
Contents of the user manual for the TRENDnet TEG-30102WS 10-Port 2.5GBASE-T Web Smart
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TEG-30102WS 10-Port 2.5GBASE-T Web Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description Take advantage of enhanced Gigabit speeds of up to 2.5 Gb/s over existing Cat 5e cabling with the TEG-30102WS 10-Port 2.5GBASE-T Web Smart Switch from TRENDnet. This Gigabit switch comes equipped with eight 2.5GBASE-T RJ45 ports providing a fast, efficient network connection while the dual 10G SFP+ slots offer ultra-fast connectivity for high-speed, localized network devices. Setup is simple, thanks to the web-based management interface, and with support for up to 32 IPv4/IPv6 static routes, you can ensure that the switch has the necessary bandwidth to handle a heavy workload. Installation has also been greatly simplified as the 1U rack-mountable TEG-30102WS Smart Switch can be easily added into an existing rackmount configuration using the included brackets. -
- 8 x 2.5GBASE-T RJ45 ports with 2 x 10G SFP+ slots
- 2.5GBASE-T supports up to 2.5 Gb/s connection speeds
- Compatible with existing Cat5e or better cabling
- Easy to use web-based management interface
- Supports up to 32 IPv4/IPv6 static routes
- Supports LACP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- Per port MAC restriction and dynamic ARP inspection
- Bandwidth control per port
- 80 Gb/s switching capacity
- 1U rack-mountable (brackets included)
- Smart fans save energy by auto-adjusting the fan speed and use based on cooling needs
UPC: 710931140378 In the Box TRENDnet TEG-30102WS 10-Port 2.5GBASE-T Web Smart Switch with 2 x 10G SFP+ Slots Power Cord RJ45 to RS-232 Console Cable Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEG-30102WS 10-Port 2.5GBASE-T Web Smart Switch with 2 x 10G SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-30102WS Specs | Standards | IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3bz | | Device Interface | 8 x 2.5GBASE-T ports (100 Mb/s - 1 Gb/s - 2.5 Gb/s)
2 x 10G SFP+ slots (1Gb/s - 10 Gb/s)
1 x RJ45 console port
LED indicators
Reset button | | Data Transfer Rate | Fast Ethernet: 100 Mb/s (half duplex), 200 Mb/s (full duplex)
Gigabit Ethernet: 2000 Mb/s (full duplex)
2.5 Gigabit Ethernet: 5 Gb/s (full duplex)
10 Gigabit Ethernet: 20 Gb/s (full duplex) | | Performance | Switch Fabric: 80 Gb/s
RAM buffer: 2 MB
MAC Address Table: 32 K entries
Jumbo Frames: 9 KB
Forwarding Mode: Store-and-Forward
Forwarding Rate: 59.5 Mpps (64-byte packet size) | | Management | CLI (Console / Telnet / SSHv2) for IP address settings and password configuration only
HTTP / HTTPS (SSL v2/3 TLS 1.2) web based GUI
SNMP v1, v2c, v3
SNMP trap (up to 4 receivers)
RMON groups 1/2/3/9
Cable diagnostic test
Static unicast entries
LLDP
IPv6 neighbor discovery, IPv6 static IP, and DHCPv6 | | MIB | MIB II RFC 1213
Bridge MIB IEEE8021-Q
RMON (Group 1,2,3,9) RFC 2819
Interface group MIB using SMIv2 RFC 2863
Multicast group membership discovery MIB RFC 5519
SNMP management frameworks RFC 3411
User-based security model for SNMPv3 RFC 3414
View-based access control model for SNMP RFC 3415
Ethernet-like MIB RFC 3635
802.3 MAU MIB RFC 3636
Entity MIB v3 RFC 4133
Bridge MIB RFC 4188
IP MIB RFC 4293
RADIUS authentication client MIB RFC 4668
RADIUS accounting MIB RFC 4670
LLDP-MIB IEEE802.1AB
PAE MIB IEEE802.1X | | Spanning Tree | IEEE 802.1D STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
IEEE 802.1s MSTP (multiple spanning tree protocol) | | Link Aggregation | Static link aggregation and 802.3ad dynamic LACP (up to 4 groups)
802.3ax dynamic LACP (up to 4 groups) | | Quality of Service (QoS) | 802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), deficit weighted round robin (DWRR) | | VLAN | Multiple management VLAN assignment
Asymmetric VLAN
802.1Q tagged VLAN
Dynamic GVRP
Up to 32 VLAN groups, ID range 1-4094
Private VLAN
Voice VLAN (16 user defined OUIs) | | Multicast | IGMP snooping v1, v2, v3
IGMP fast leave
Static multicast entries
MLD Snooping v1, v2
Up to 1K multicast groups | | Port Mirroring | One to one
Many to one | | Storm Control | Broadcast (min. limit: 10 pps)
Multicast (min. limit: 10 pps)
Destination lookup failure (min. limit: 10 pps) | | Access Control | 802.1X port-based network access control
MAC-based authentication
RADIUS (up to 5 servers)
TACACS+ (up to 5 servers)
Local dial in user authentication
DHCP IPv4 snooping
Duplicated address detection
Loopback detection
Head-of-Line (HoL) blocking prevention
Denial of Service (DoS) prevention
Trusted Host/IP Access List
Port Security/MAC address learning restriction (up to 64 entries per port)
Destination MAC filter
Static/dynamic ARP inspection | | IPv4 and IPv6 Dual Stack | MAC address
VLAN ID
ARP/RARP
EtherType
ICMP type 1-255
IP protocol 1-255
TCP/UDP port 1-65535
802.1p
DSCP
IPv4/IPv6 address
Up to 256 entries | | Layer 3 Routing | IPv4 / IPv6 static routing
IP Interfaces: Up to 8
Routing Table Entries: Up to 32 (IPv4 / IPv6)
ARP table (up to 1024 entries)
DHCP server, relay, option 82
Inter-VLAN routing | | Power | Input: 100 - 240 VAC, 50/60 Hz
Max. Consumption: 27.36 W | | Fans | Quantity: 2 x Hot-swappable fans
Noise Level: 41.7 dBA (max.) | | MTBF | 446,704 hours | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
Max. 80% non-condensing | | Certifications | CE, FCC, UL | | Dimensions | 13.00 x 9.10 x 1.75" / 330.00 x 230.00 x 44.45 mm
Rack mountable 1U height | | Weight | 5.12 lb / 2.33 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 16.5 x 13.0 x 4.0" |
