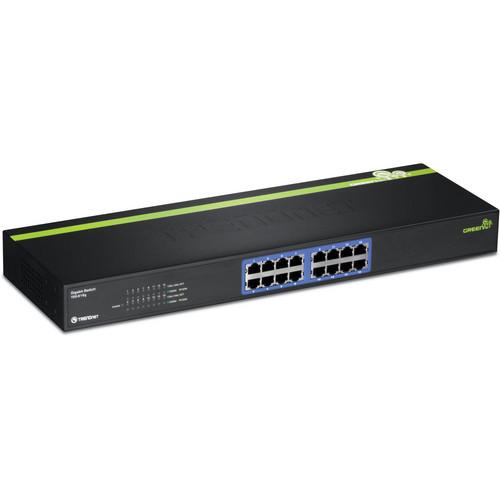

User Manual for TRENDnet TEG-S16g 16-Port GREENnet Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TEG-S16g 16-Port GREENnet Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
|
User manual for the TRENDnet TEG-S16g 16-Port GREENnet Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The TEG-S8G 16-Port GREENnet Gigabit Ethernet Switch from TRENDnet is an easy-to-use, high-speed, power-efficient solution for connecting different Ethernet-enabled devices on your network. This switch utilizes sixteen Gigabit Ethernet ports that are also Auto-Negotiation, Auto-MDIX. With Auto-Negotiation, the switch will figure out the appropriate speed to transfer data and the appropriate mode (full or half duplex) depending on what is supported by the device connected to your switch. With Auto-MDIX, you can connect either a regular or crossover cable to a port and the switch will adjust no matter the cable type. You can also use standard Ethernet cables as crossover cables when connecting devices. Since this switch is plug-and-play, you can start using it as soon as you connect Ethernet-enabled network devices. No need to configure it.
Because this switch is designed with GREENnet technology, it can reduce its power consumption by 70% in comparison to standard Trendnet switches. It reduces its power consumption when an Ethernet port is not in use, when an Ethernet cable is a shorter length, when a connected device is in power saving mode, and when a connected device is turned off. Housed in a sturdy metal enclosure, this switch is an easy, energy-efficient, high-speed way to connect up to sixteen devices on your network. - Total of sixteen 10/100/1000 Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
- GREENnet technology reduces power consumption in four different scenarios:
a. Ethernet port is not in use b. Connected device is turned off c. Connected device is in power-saving mode d. Based on Ethernet cable length - Features a 32Gbps forwarding capacity
- Internal power supply reduces clutter
- IEEE 802.3x Flow Control for full-duplex mode
- Back pressure Flow Control for half-duplex mode
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- Integrated address look-up engine with an 8K MAC address table
- Operates and maximizes packet filtering and forwarding rate
- Jumbo Frame support up to 9216 Bytes
- Rackmount hardware included
- Diagnostic LEDs show the Power, Link/ACT, and Speed status for all sixteen ports
- Plug-and-play support allows you to connect to the switch and begin immediately
- Compatible with Windows, Linux, and Mac operating systems
UPC: 710931610239 In the Box TRENDnet TEG-S16g 16-Port GREENnet Gigabit Ethernet Switch Multi-Language Quick Installation Guide 6' / 1.8cm Power Cord Rackmount Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEG-S16g 16-Port GREENnet Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-S16G Specs | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Supported Protocols | Auto-MDIX/MDI | Jumbo Frames Support | 9,216 Bytes | MAC Address Table Size | 8K | | Supported IEEE Standards | 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | OS Compatibility | Windows macOS Linux | | Power Draw | 7.2 W (Active) | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | Power Supply Type | Internal | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 90% | Storage Temperature | 14 to 158°F / -10 to 70°C | Certifications | RoHS, as per Manufacturer | | Indicator Lights | Link/Activity, Power, Speed | Dimensions | 17 x 5.5 x 1.8" / 44 x 14 x 4.5 cm | Weight | 4 lb / 2 kg | | Package Weight | 5.6 lb | Box Dimensions (LxWxH) | 21.7 x 8.7 x 3.9" |
