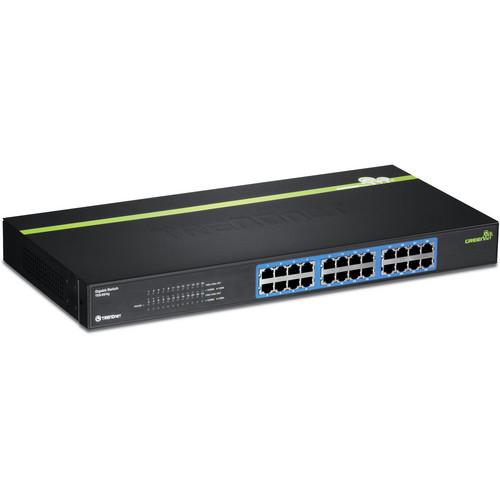

User Manual for TRENDnet TEG-S24g 24-Port Gigabit GREENnet Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TEG-S24g 24-Port Gigabit GREENnet Switch
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TEG-S24g 24-Port Gigabit GREENnet Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The TEG-S24g 24-Port Gigabit GREENnet Switch from Trendnet is an easy-to-use, high-speed, power-efficient solution for connecting different Ethernet-enabled devices on your network. This switch features twenty-four Gigabit Ethernet ports that are also Auto-MDIX. With Auto-MDIX, you can connect either a regular or crossover cable to a port and the switch will adjust no matter the cable type. You can also use standard Ethernet cables as crossover cables when connecting devices. Since this switch is plug-and-play, you can start using it as soon as you connect Ethernet-enabled network devices. No need to configure it. The diagnostic LEDs will let you know when connections are established.
Because this switch is designed with GREENnet technology, it can reduce its power consumption by 70% in comparison to standard Trendnet switches. It reduces its power consumption when an Ethernet port is not in use, when an Ethernet cable is a shorter length, when a connected device is in power saving mode, and when a connected device is turned off. Housed in a sturdy metal enclosure, this switch is an easy, energy-efficient, high-speed way to connect up to twenty-four devices on your network. - Twenty four 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
- Features a 48Gbps forwarding capacity
- Internal power supply reduces clutter
- GREENnet technology reduces electrical power consumption for the following scenarios:
1. Ethernet port is not in use
2. Connected device is turned off
3. Connected device is in power-saving mode
4. Based on Ethernet cable length - IEEE 802.3x Flow Control for full-duplex mode
- Back pressure Flow Control for half-duplex mode
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- Integrated address look-up engine with an 8K MAC address table
- Operates and maximizes packet filtering and forwarding rate
- Rackmount hardware included
- Jumbo Frame support up to 9216Bytes
- Diagnostic LEDs and Plug & Play support
UPC: 710931610246 In the Box TRENDnet TEG-S24g 24-Port Gigabit GREENnet Switch Multi-Language Quick Installation Guide 6' / 1.8 m Power Cord Rackmount Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEG-S24g 24-Port Gigabit GREENnet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEG-S24G Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Jumbo Frames Support | 9,216 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3u, 802.3x | | | | OS Compatibility | Windows
macOS
Linux | | | | Power Draw | 13.00 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 11 x 7.1 x 1.7" / 28 x 18 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 22.0 x 12.3 x 3.8" |
