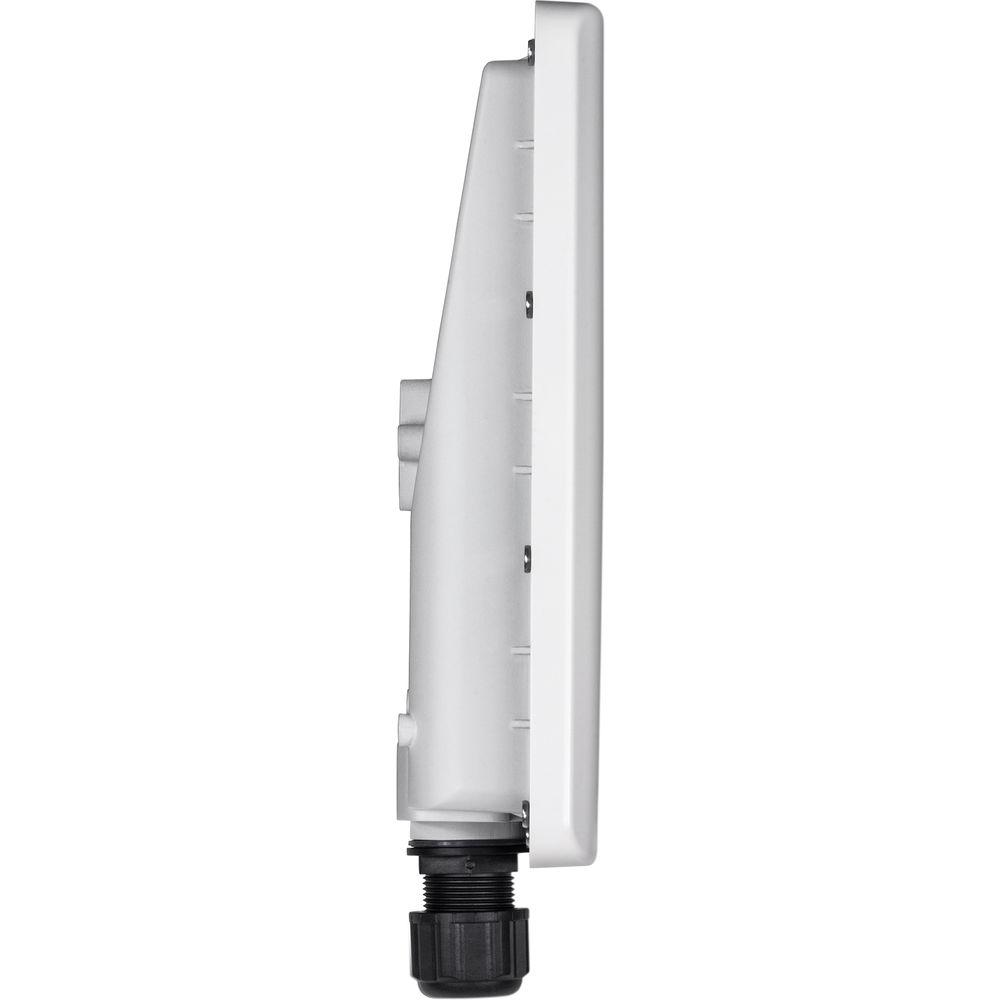

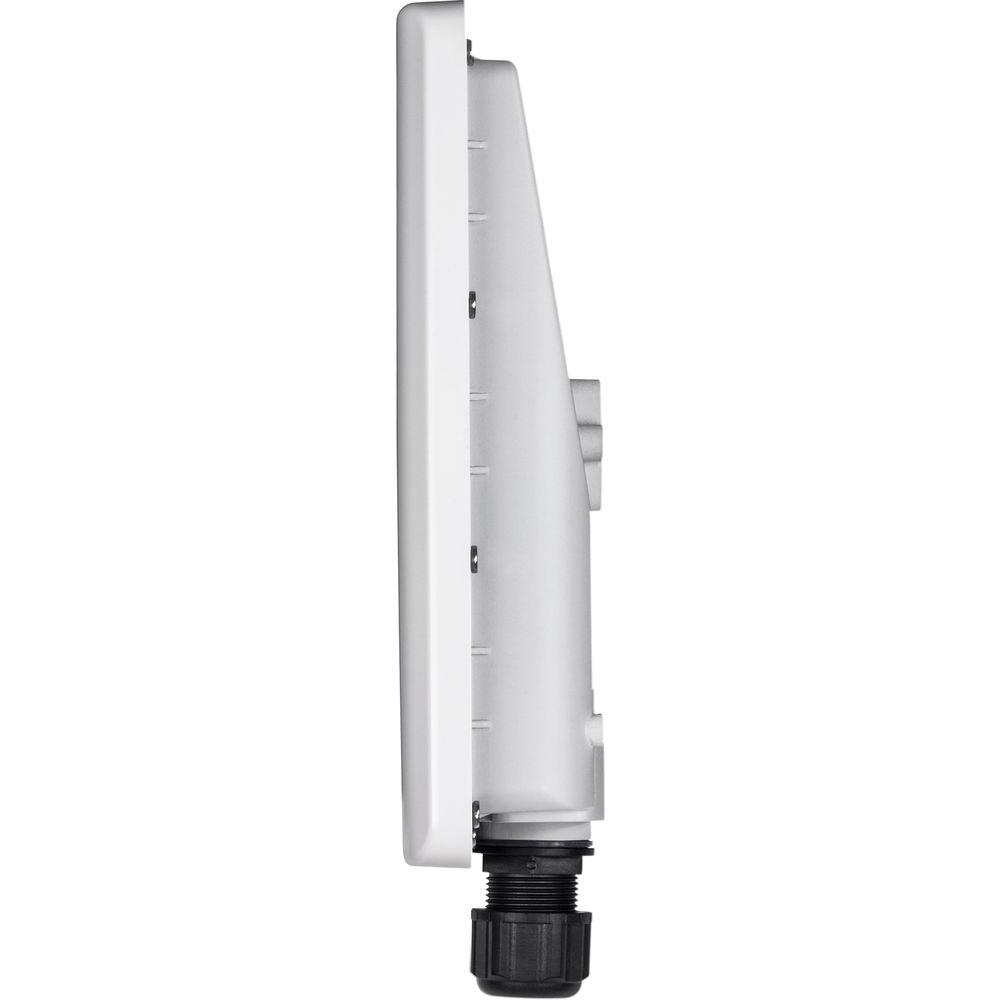

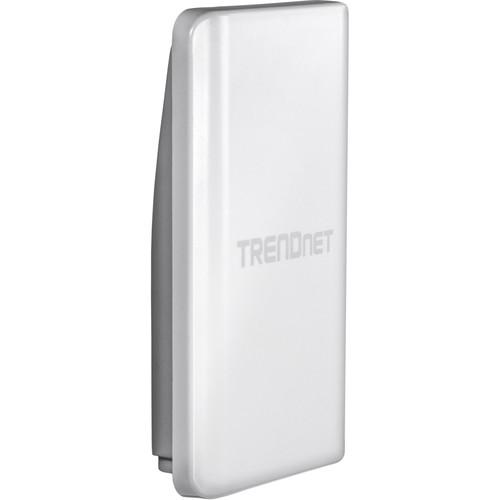

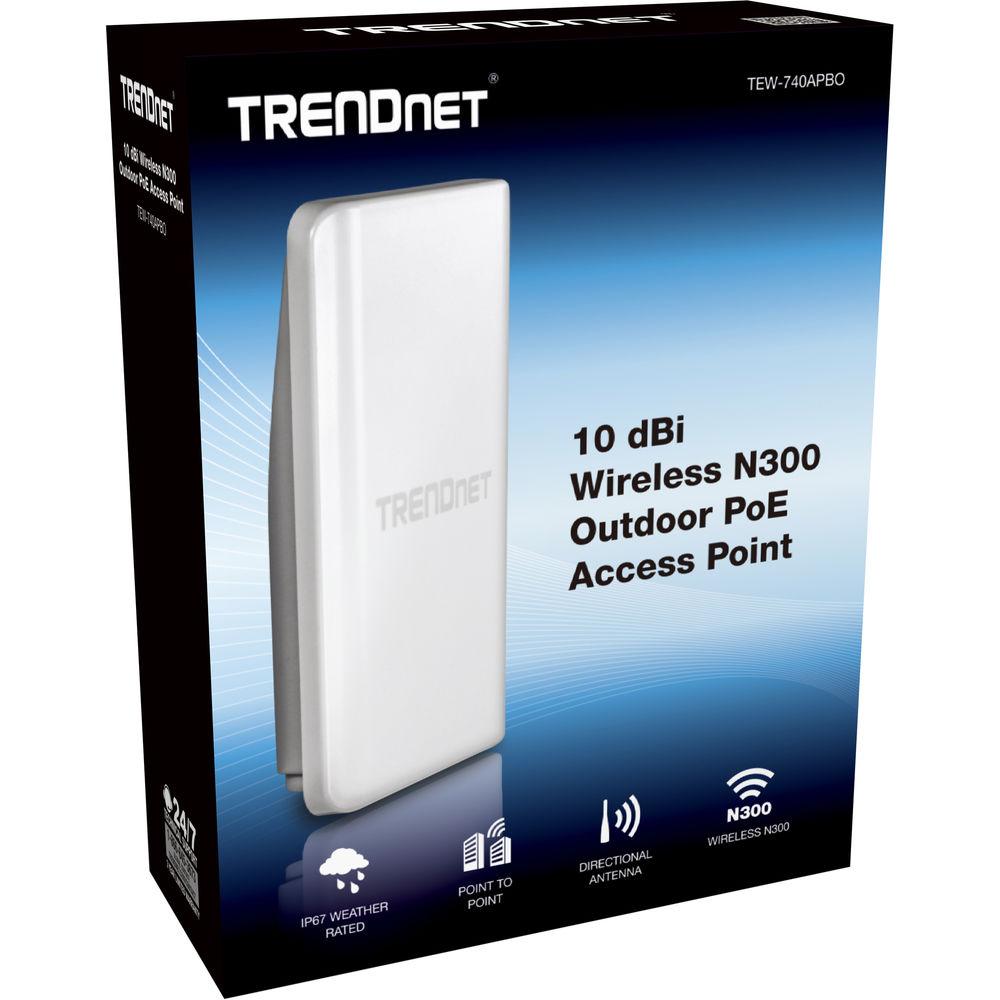

User Manual for TRENDnet TEW-740APBO N300 10 dBi Wireless Outdoor PoE Access Point Click to enlarge the picture
Contents of the user manual for the TRENDnet TEW-740APBO N300 10 dBi Wireless
- Product category: Wireless Access Points TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Access Points
 |
User manual for the TRENDnet TEW-740APBO N300 10 dBi Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

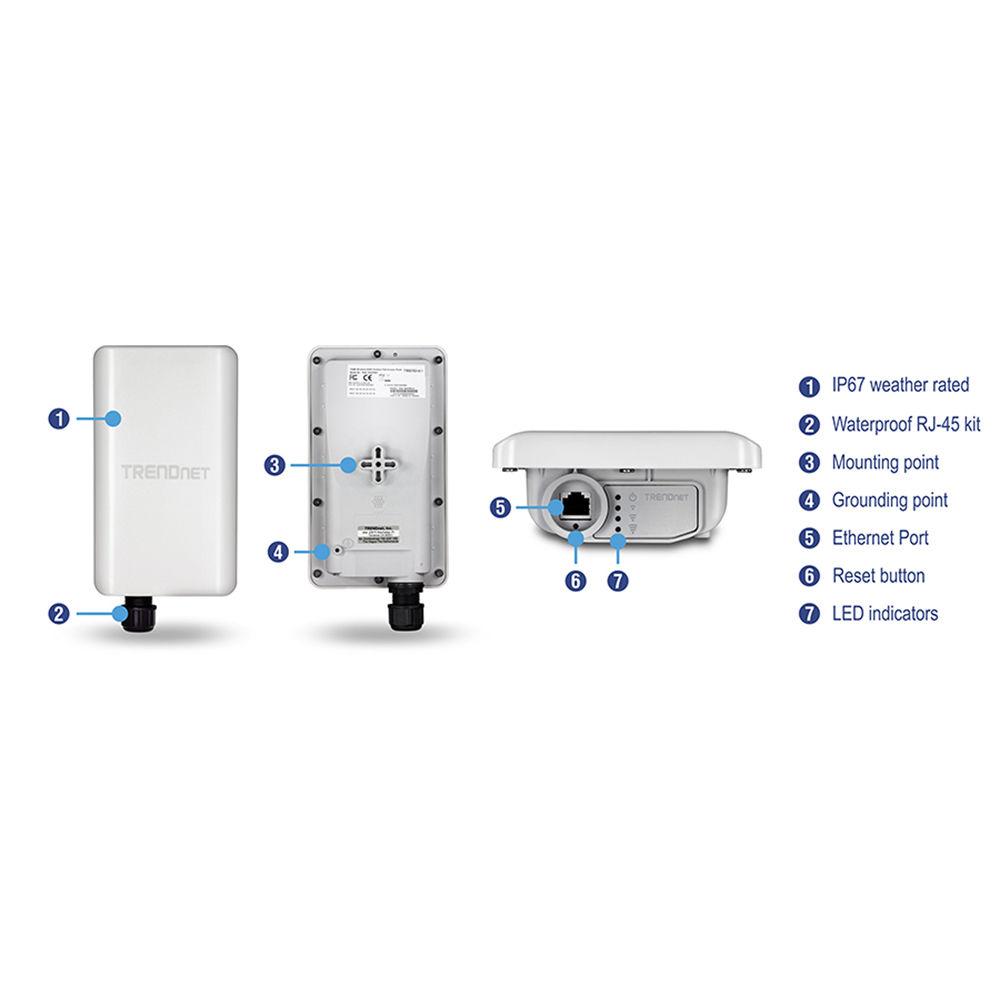

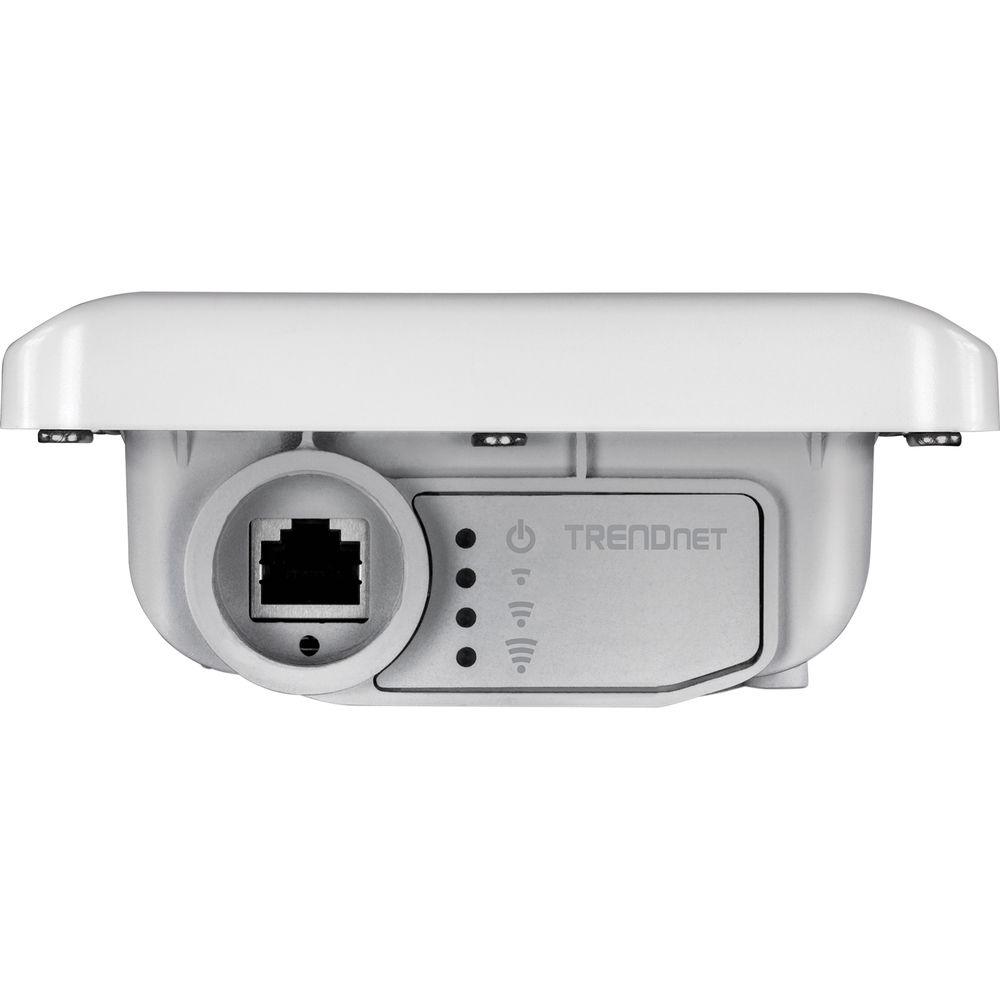

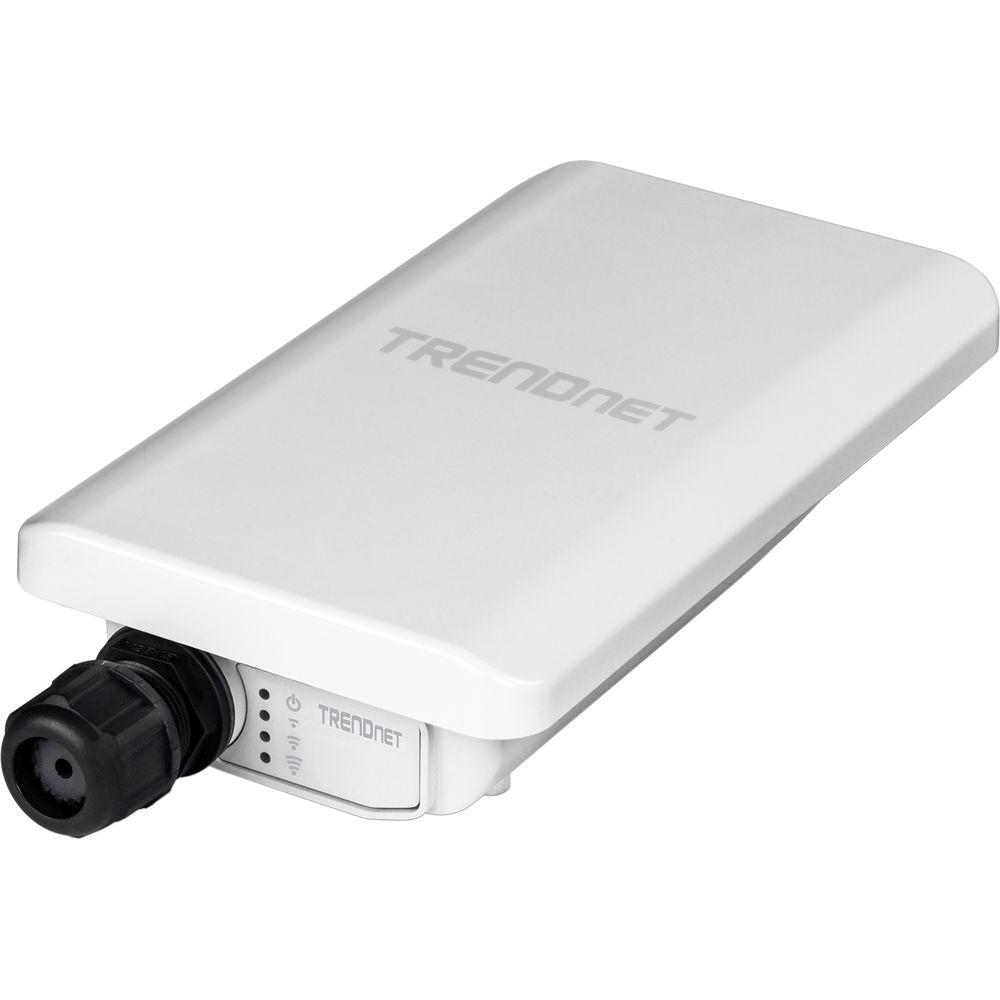

Product description With the TEW-740APBO N300 10 dBi Wireless Outdoor PoE Access Point from TRENDnet it is simple to extend the reach of your wireless network outdoors. This access point comes IP67 weather rated to help protect against the elements and comes equipped with a single Fast Ethernet PoE compatible network port. Additionally, the built-in 10 dBi directional sector antenna provides for enhanced wireless coverage to multiple devices over a broad area.

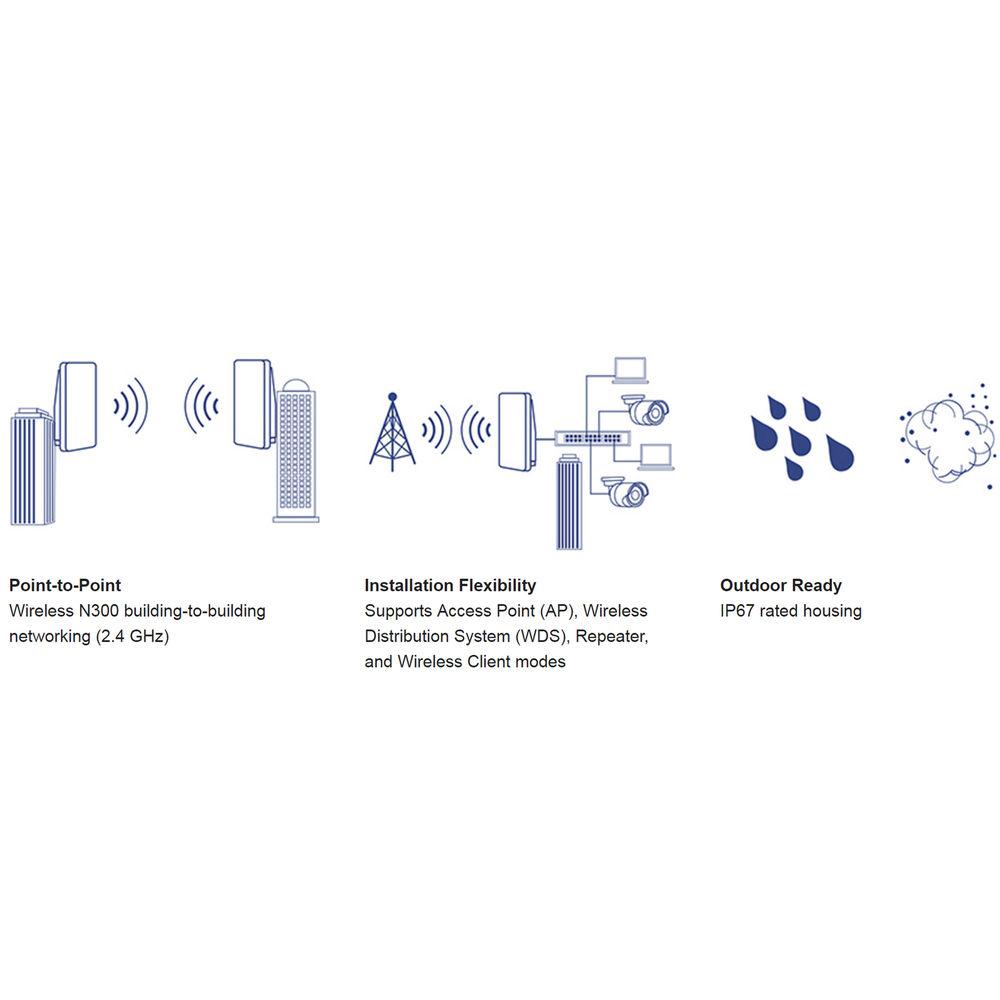

This TRENDnet access point supports a variety of operating modes including AP, WDS, repeater, and wireless client modes making it a versatile networking device. Once configured, the AP supports 802.11b/g/n Wi-Fi standards and operates on the 2.4 GHz frequency allowing nearly any Wi-Fi enabled device to connect to the network. The wireless connection is secured using WEP and WPA encryption and can be divided up using up to 8 individual SSIDs. - Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
- Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps
- Durable enclosure with an IP67 outdoor weather rating
- Built in 10 dBi directional antenna
- Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
- Real time logs and statistics help troubleshooting
- Support for wireless encryption of up to WPA2
- Create up to eight additional SSIDs
- Compatible with legacy wireless devices

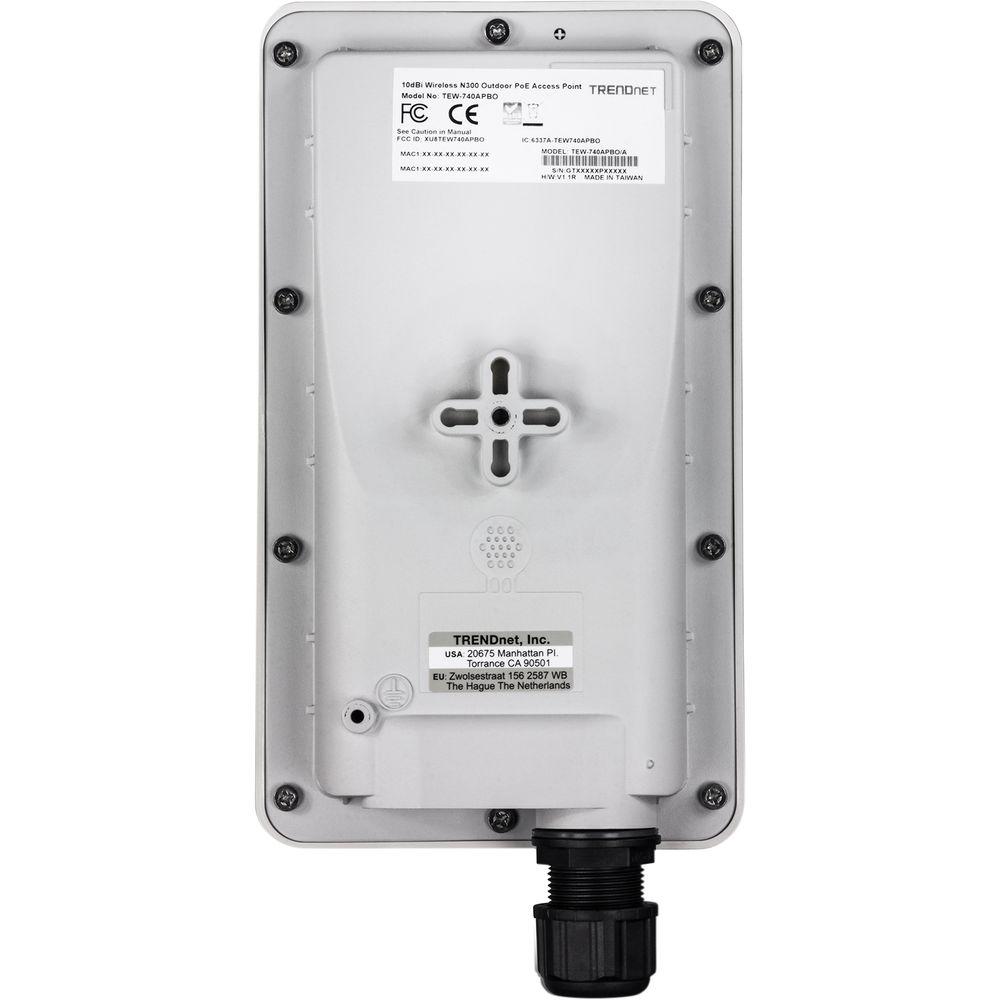

- Pole and wall mounting hardware included
- DDNS support for dyn.com, no-ip.com
- Schedule radio on/off time policy
UPC: 710931160819 In the Box TRENDnet TEW-740APBO N300 10 dBi Wireless Outdoor PoE Access Point CD-ROM Mounting Hardware Proprietary PoE Injector Water-Proof RJ-45 Kit Power Adapter Grounding Wire Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEW-740APBO N300 10 dBi Wireless Outdoor PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEW-740APBO Specs | | | Wireless Frequency Bands | 2.4 GHz | | WLAN Mode | 802.11n | | Sensitivity | -69 to -88 dBm | | Antenna Gain | 10 dBi | | Transmit Power | 27 to 28 dBm | | Supported Protocols | WMM
SNMPv1
SNMPv2c
SNMPv3 | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Client, Repeater, Wireless Router | | Max SSIDs Supported | 8 | | Throughput | 2.4 GHz: 300 Mb/s | | | | Supported IEEE Standards | 802.11d, 802.11e, 802.11f, 802.11h, 802.11i, 802.1d, 802.1p, 802.1q, 802.1x, 802.3, 802.3u | | | | AC Input Power | 100 to 220 VAC, 50 / 60 Hz at 0.6 A | | Power Consumption | 22 W | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 90% | | | | Dimensions | 8.6 x 4.9 x 2.1" / 21.8 x 12.5 x 5.4 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.0 x 5.6 x 4.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
